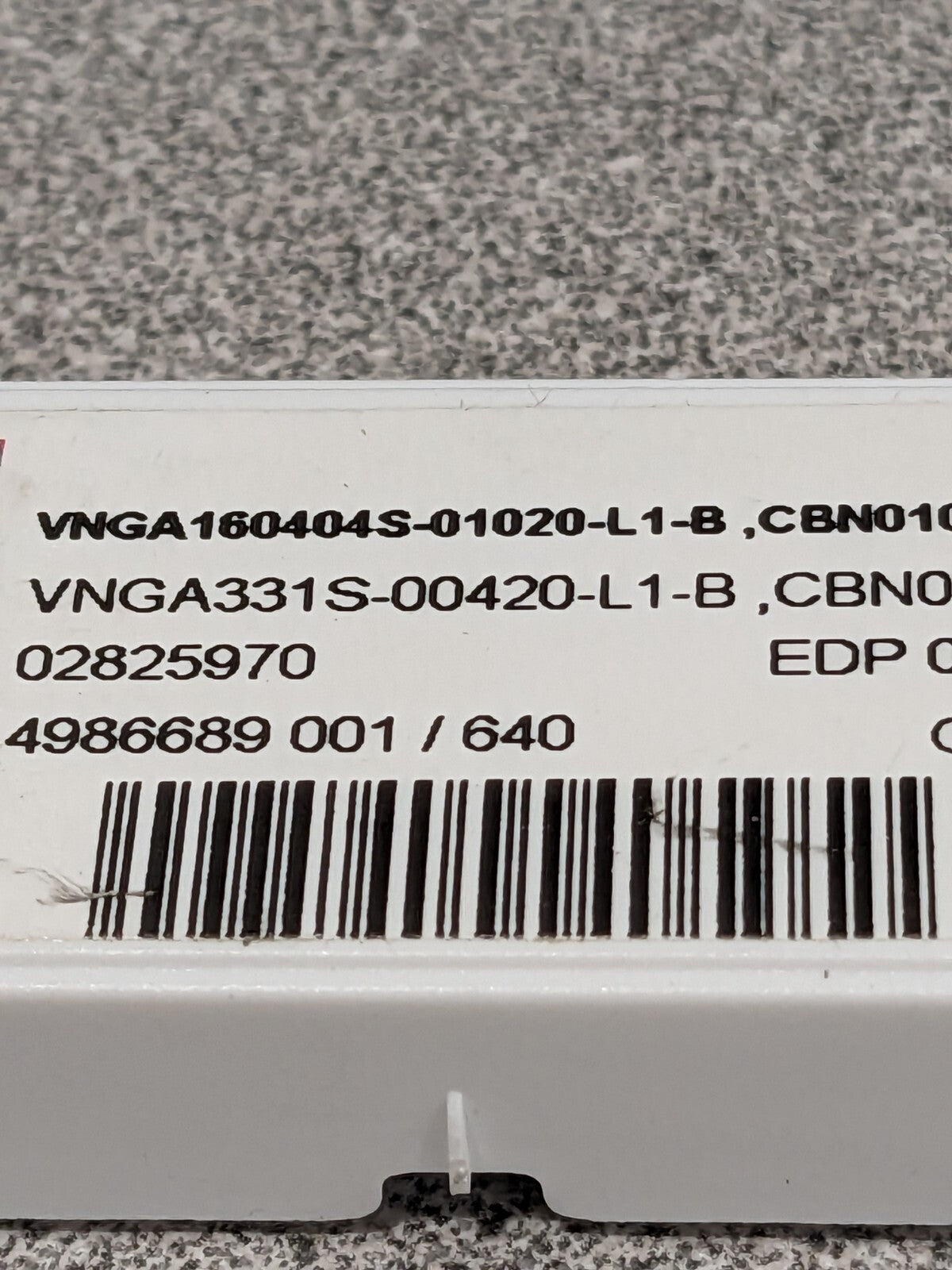

SECO Turning Insert: VNGA 331S-00420-L1-B, (PCBN) 02825970

Seco
1 Turning Insert

MSRP: $75.00

• Insert Style VNGA
• Insert Size Code 331
• Insert Shape Diamond 35°
• Included Angle 35 degree
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Polycrystalline Cubic Boron Nitride (PCBN)
• Manufacturer Grade CBN010
• Coating/Finish Bright/Uncoated
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1874
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code V
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (Decimal Inch) 0.0200
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp; Lever Lock
• Width (Inch) 3/8 in
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code G
• Series VNGA-Flat Top
• Coating Process PCBN
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.2598
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Secondary Workpiece Material Super-alloys & Titanium
• Secondary Workpiece Material Code S
• Iso Code VNGA160404S-01020-L1-B
• Standards ISO; ANSI
• Manufacturers Catalog Number 02825970
• Material Grade H10; H20; H01
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Uncoated
• UNSPSC Code 23242105
• Lead Angle 35 degree
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number VNGA331S-00420-L1-B
• Width (Decimal Inch - 4 Decimals) 0.3750 in
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Profiling; Turning; Back Turning
• Tip Length (Decimal Inch) 0.1000

This item appears to be new and in good condition. SOLD AS IS.

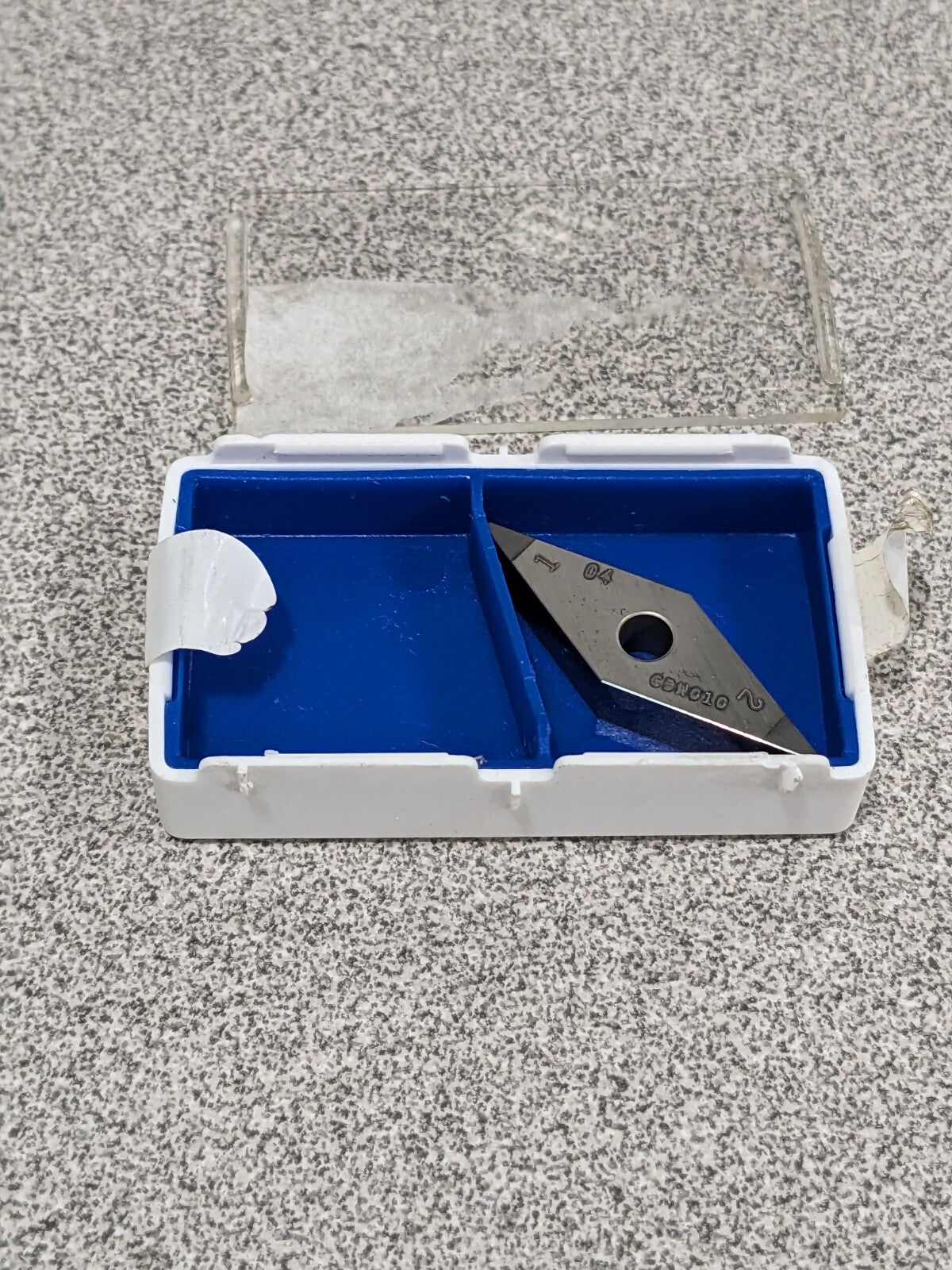

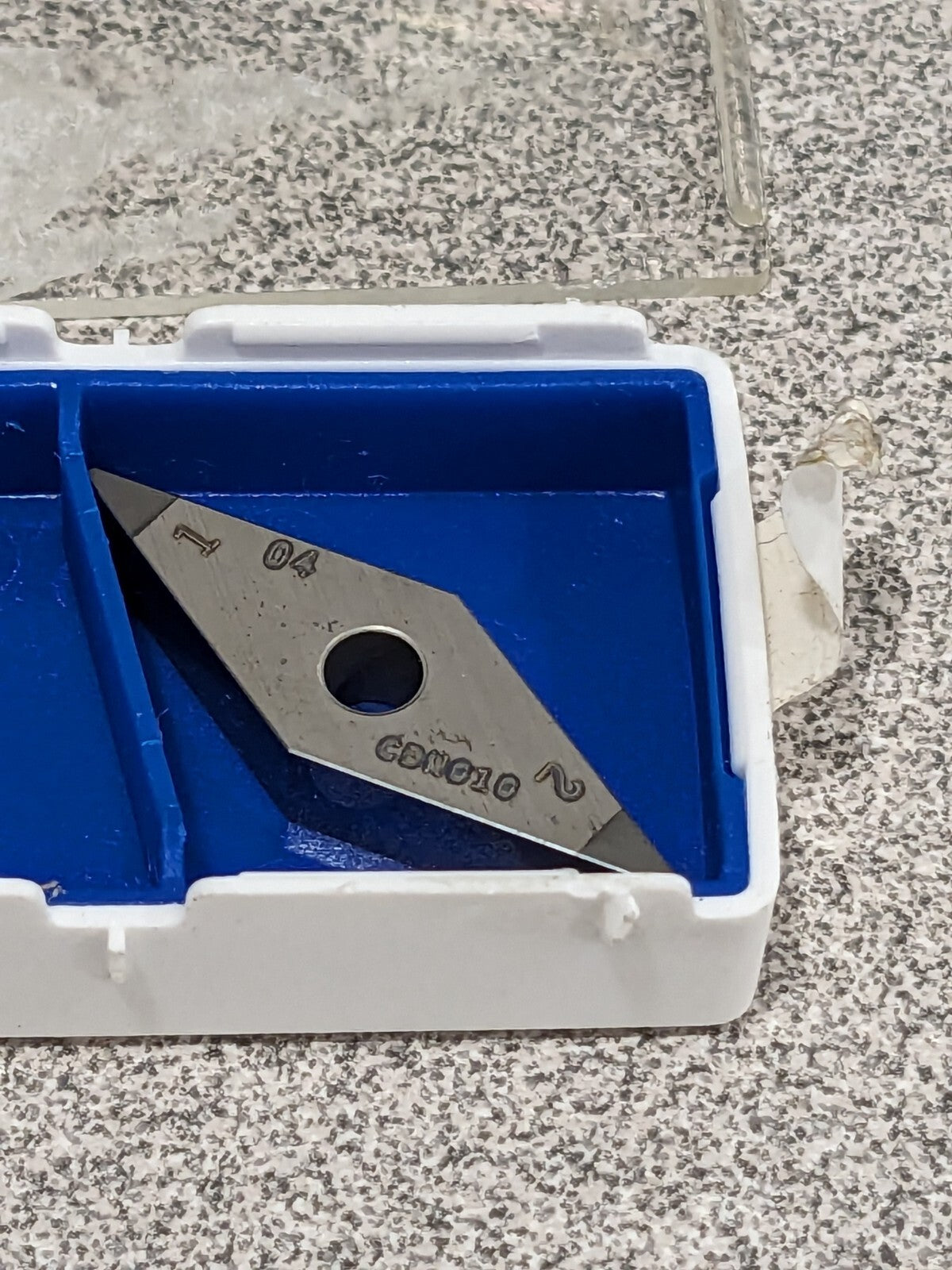

Please review photos, comes as shown.
