SECO Turning Insert: DCMT431-M3 TP1501, Carbide 02960897

SECO Turning Insert: DCMT431-M3 TP1501, Carbide 02960897

MSRP: $260

•

• Insert Style DCMT
• Insert Size Code 431
• Insert Shape Diamond
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade TP1501
• Coating/Finish TiCN; Al2O3; Cr
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1874
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code D
• Corner Radius (Inch) 1/64
• Hole Diameter (Mm) ( - 0 Decimals) 5.60
• Hole Diameter (Decimal Inch) 0.2205
• Maximum Depth of Cut (Decimal Inch) 0.5157
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Screw
• Width (Inch) 1/2
• Insert Thickness (Inch) 3/16
• Clearance Code C
• Tolerance Code M
• Series DCMT-M3
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Positive
• Insert Length (Decimal Inch) 1.2204
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Hard Material; Cast Iron
• Secondary Workpiece Material Code H; K
• Iso Code DCMT150404-M3
• Standards ISO; ANSI
• Manufacturers Catalog Number 02960897
• Material Grade P10; P20
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Duratomic
• UNSPSC Code 23242105
• Lead Angle 55
• Coating Classification Duratomic
• Chip Breaker M3
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number DCMT431-M3
• Width (Decimal Inch - 4 Decimals) 0.5
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Back Turning; Boring

(Description).

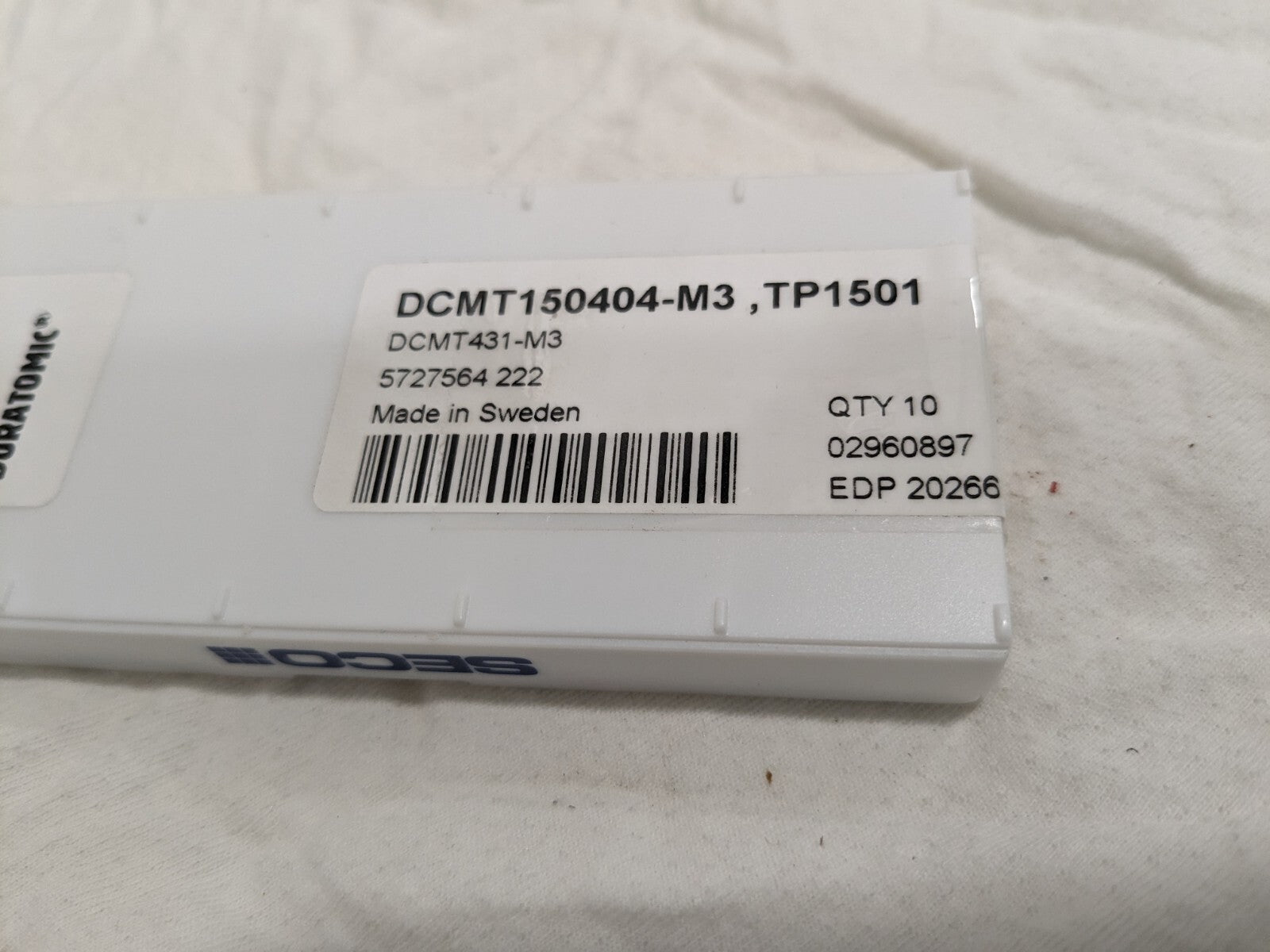

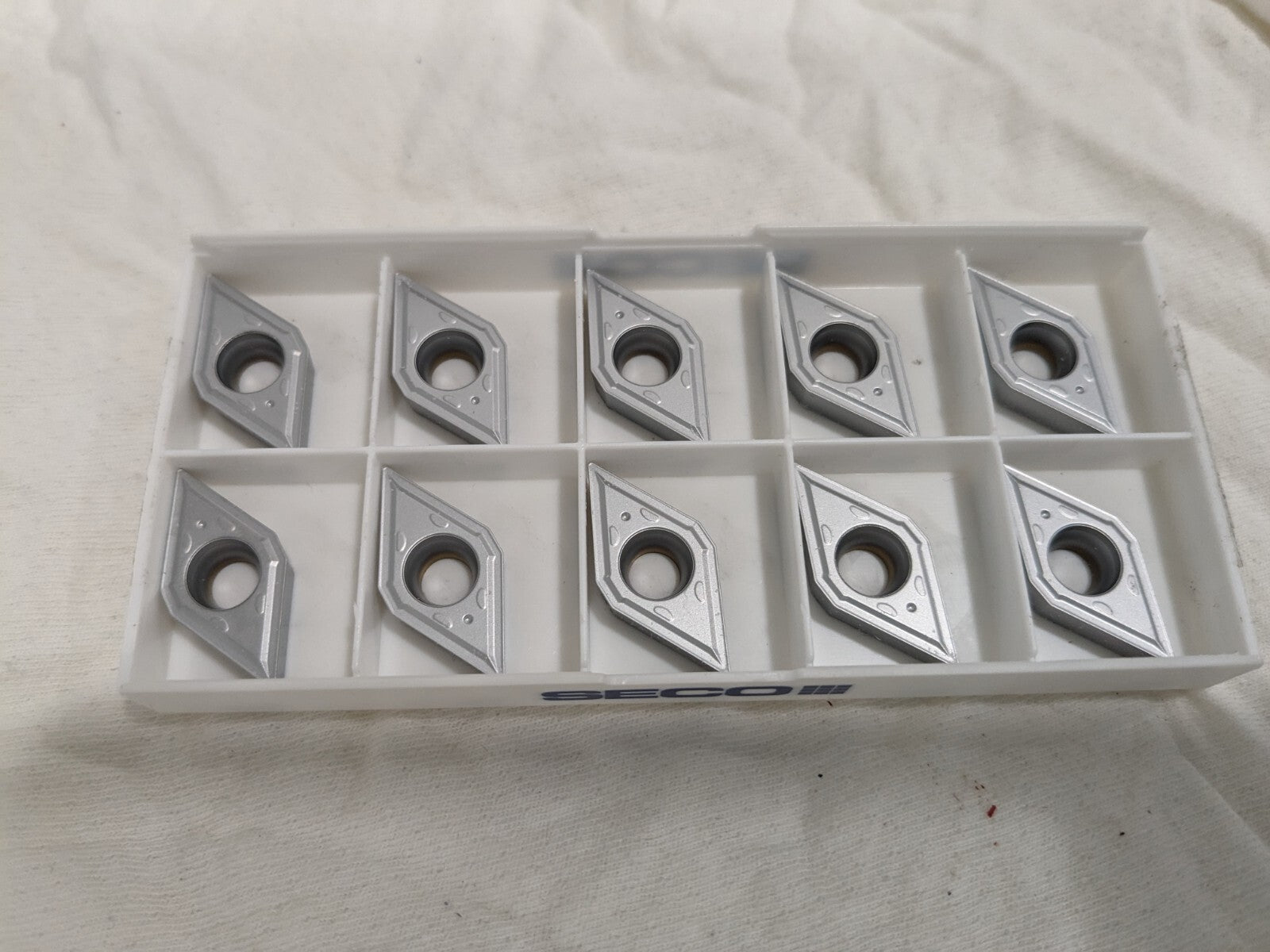

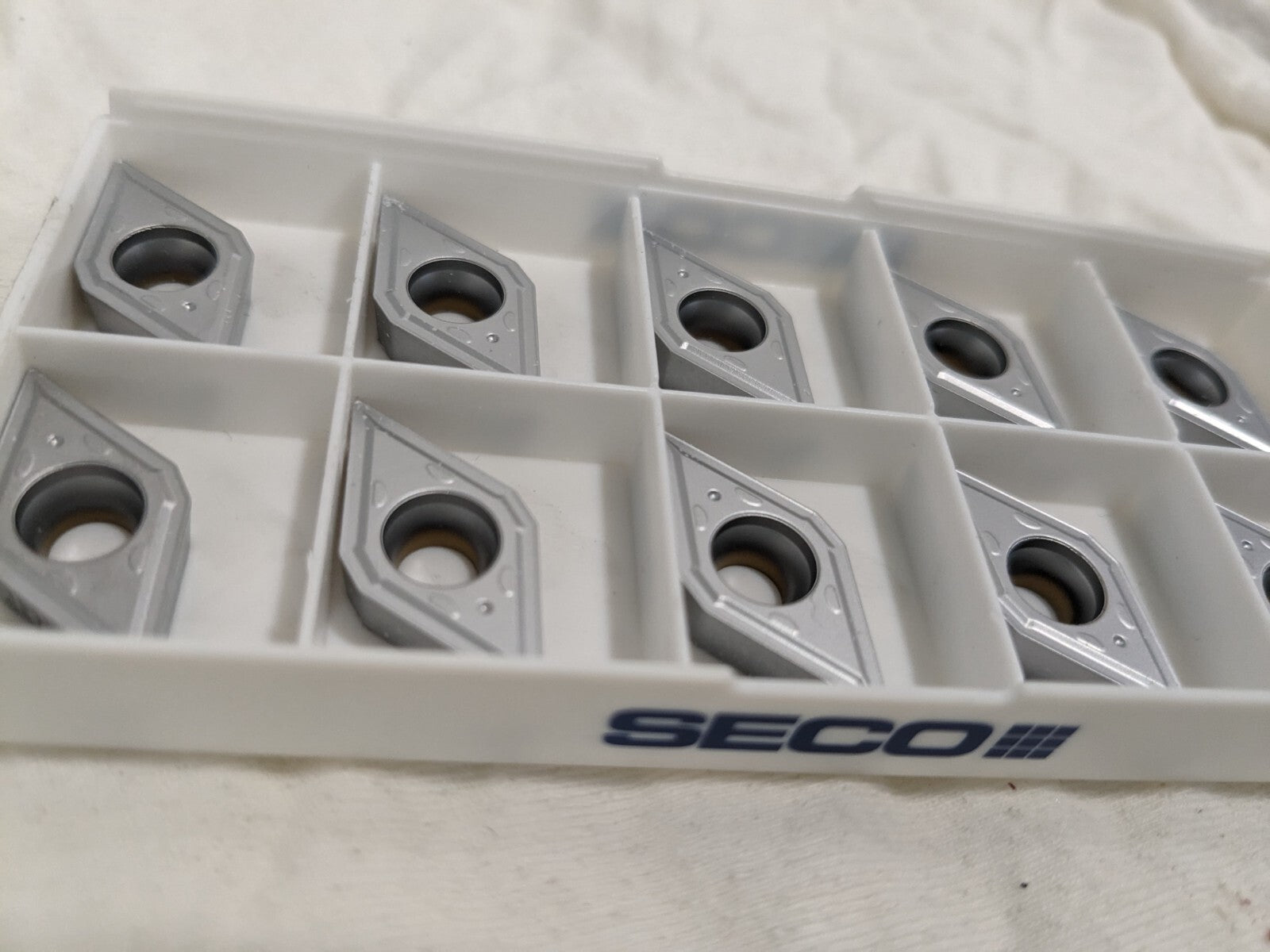

Please review photos, comes as shown.
