Seco Turning Insert: DCMT431-M3 TM3501, Carbide pack of 10 03276264
Seco Turning Insert: DCMT431-M3 TM3501, Carbide pack of 10 03276264
Regular price
$118.01 USD
Regular price
$260.00 USD
Sale price
$118.01 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Seco
Item
MSRP: $260.00
- specs
| ANSI Insert Code | DCMT431 |
| ISO Insert Code | DCMT150404 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | TM3501 |
| Coating/Finish | TiCN; Al2O3; Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | DCMT-M3 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Maximum Depth of Cut (Fractional Inch) | 33/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.5154 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/2 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.2204 |
| Insert Length (Inch) | 33/64 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | DCMT150404-M3 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 03276264 |
| Material Grade | M40; M30 |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 55 |
| Coating Classification | Duratomic |
| Chip Breaker | M3 |
| Rake Angle | 18 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DCMT431-M3 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 431 |
| ISO Size Code | 150404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| Country of Origin | Sweden |
(Description).

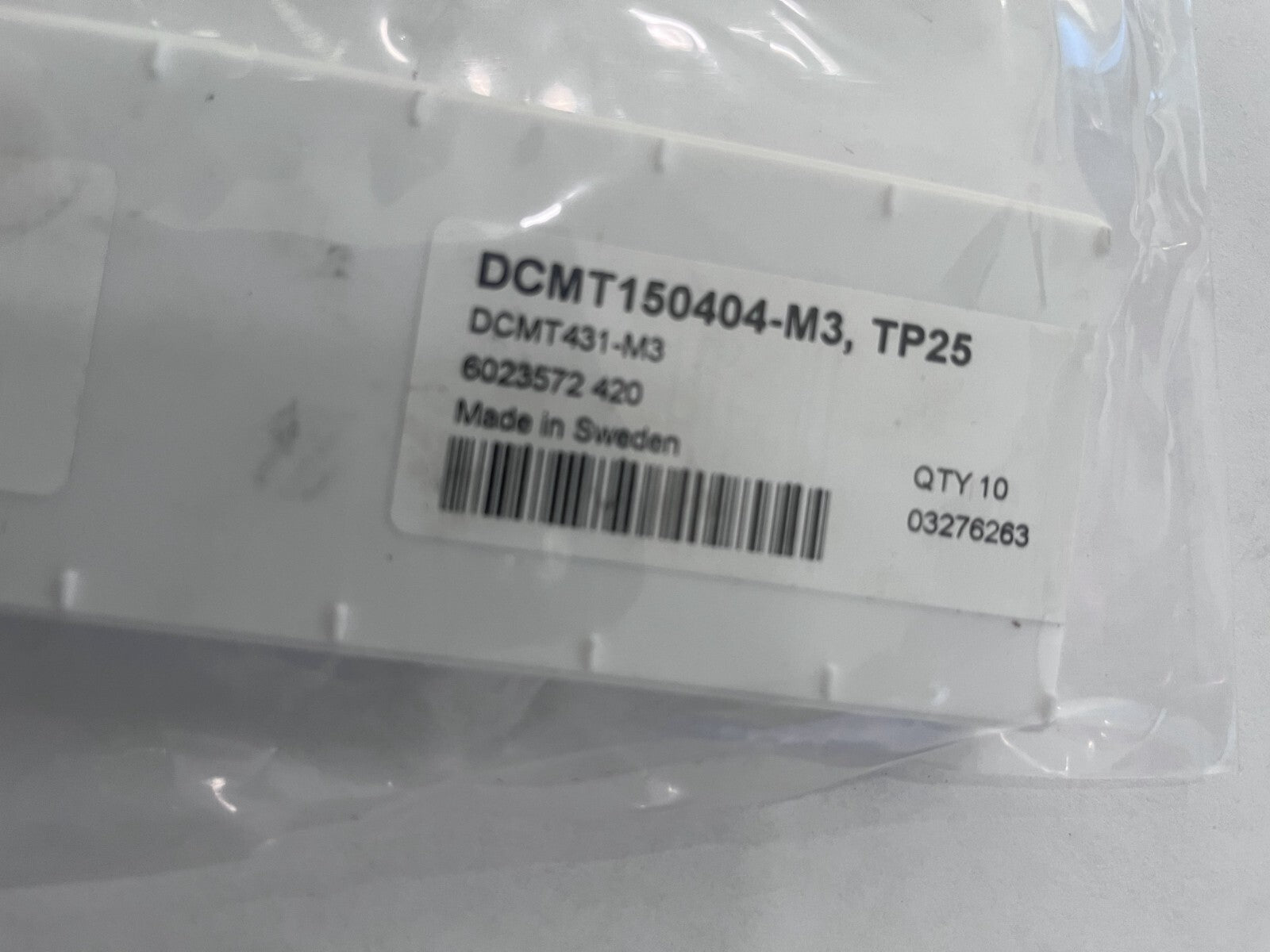

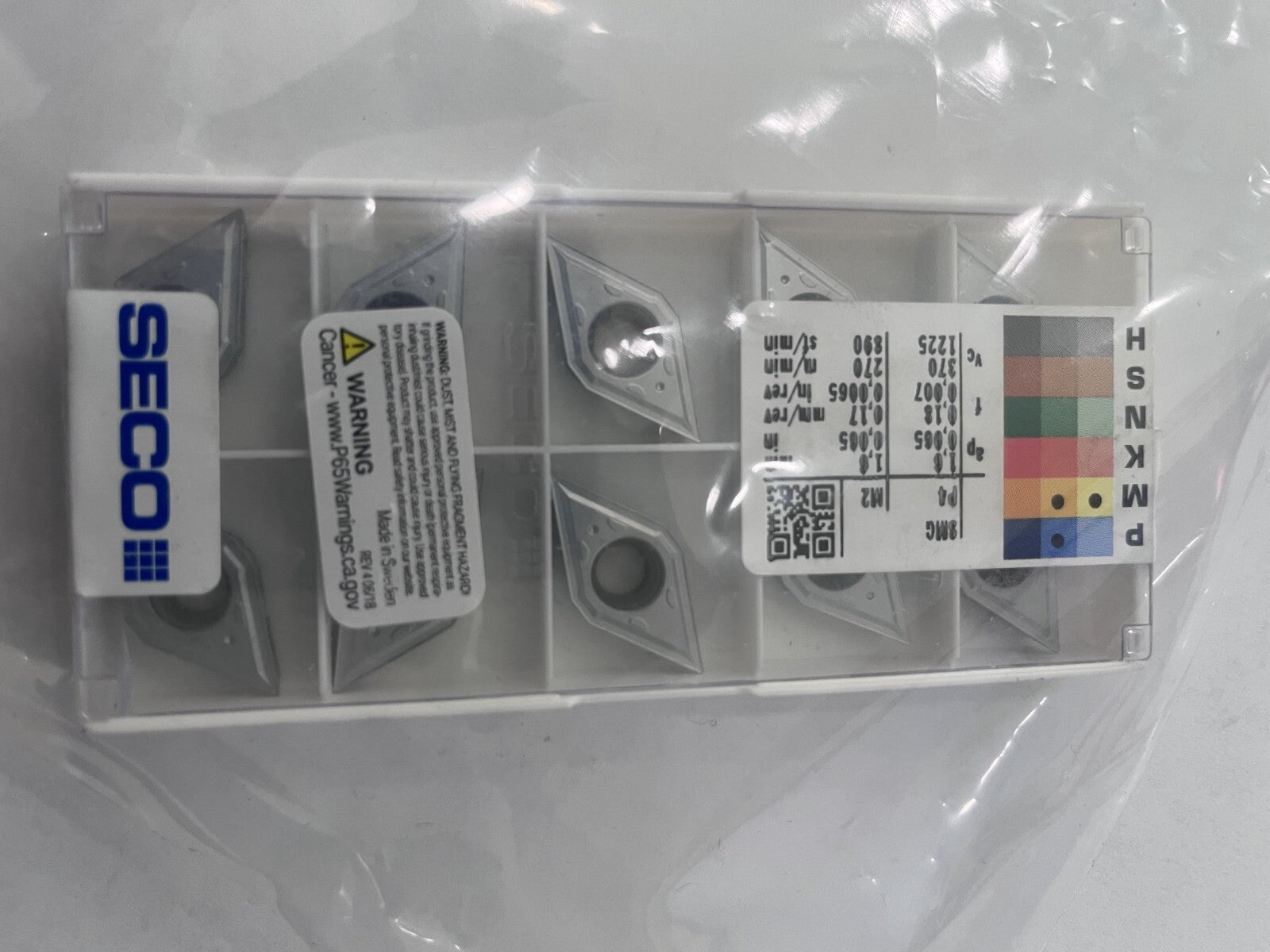

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
