SECO Turning Insert: CCMT432-M3 TK0501, Solid Carbide 03062594

SECO

Turning Insert: CCMT432-M3 TK0501, Solid Carbide 03062594
MSRP: $160

• Insert Style CCMT
• Insert Size Code 432
• Insert Shape Diamond 80°
• Included Angle 80 degree
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Insert Material Carbide
• Manufacturer Grade TK0501
• Coating/Finish TiCN; Al2O3; Cr
• Relief Angle 7 °
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1874
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code C
• Corner Radius (Inch) 1/32
• Hole Diameter (Mm) ( - 0 Decimals) 5.60
• Hole Diameter (Decimal Inch) 0.2205
• Maximum Depth of Cut (Decimal Inch) 0.4764
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Screw
• Width (Inch) 1/2 in
• Insert Thickness (Inch) 3/16
• Clearance Code C
• Tolerance Code M
• Series CCMT-M3
• Coating Process CVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Positive
• Insert Length (Decimal Inch) 0.5079
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Secondary Workpiece Material Hard Material
• Secondary Workpiece Material Code H
• Iso Code CCMT120408-M3
• Standards ISO; ANSI
• Manufacturers Catalog Number 03062594
• Material Grade K05; K10; K15
• Proprietary Coating Designation Duratomic
• UNSPSC Code 23242105
• Lead Angle 80 degree
• Coating Classification Duratomic
• Chip Breaker M3
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number CCMT432-M3
• Width (Decimal Inch - 4 Decimals) 0.5000 in
• Width (Mm - 2 Decimals) 12.90
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring

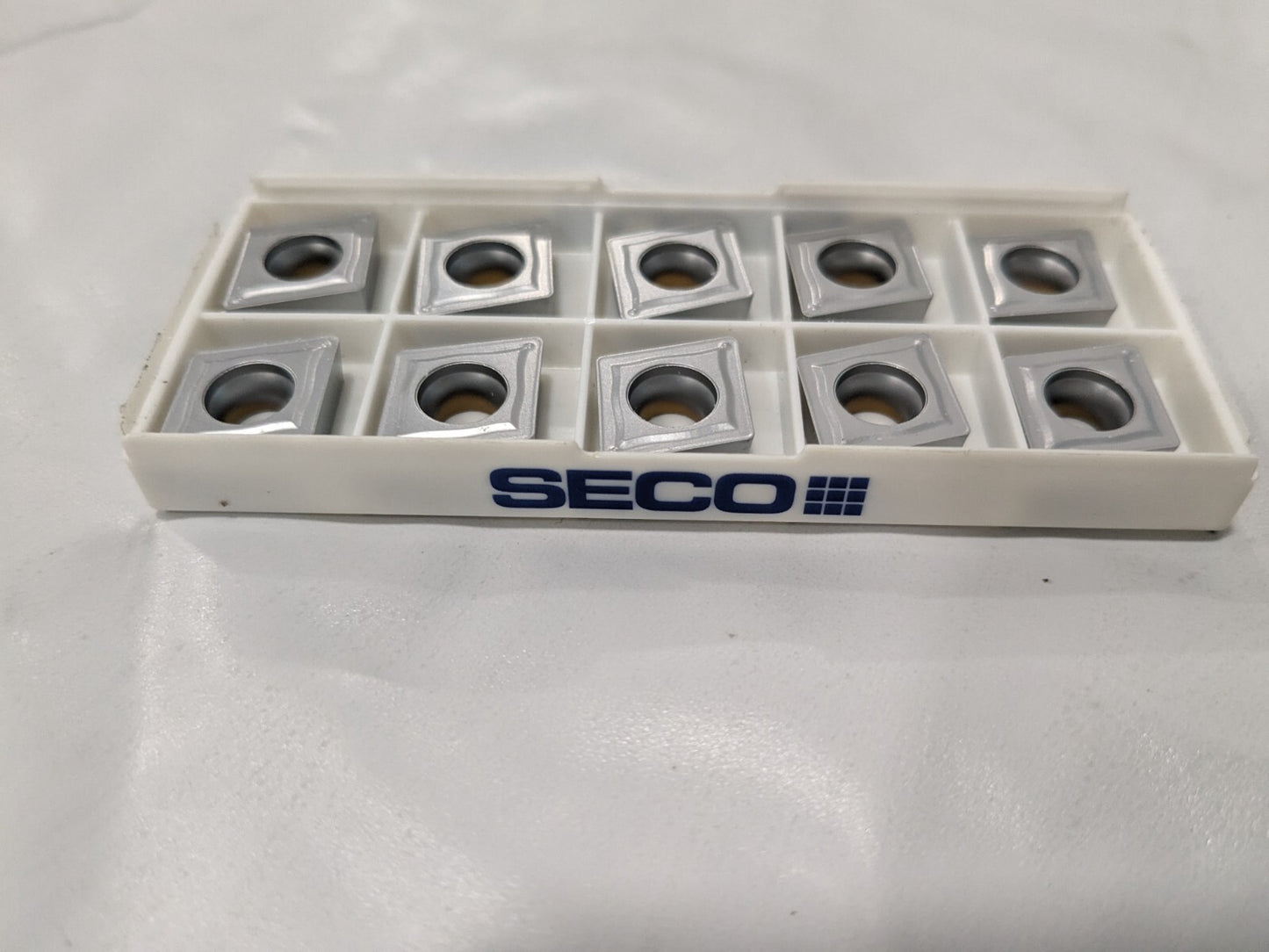

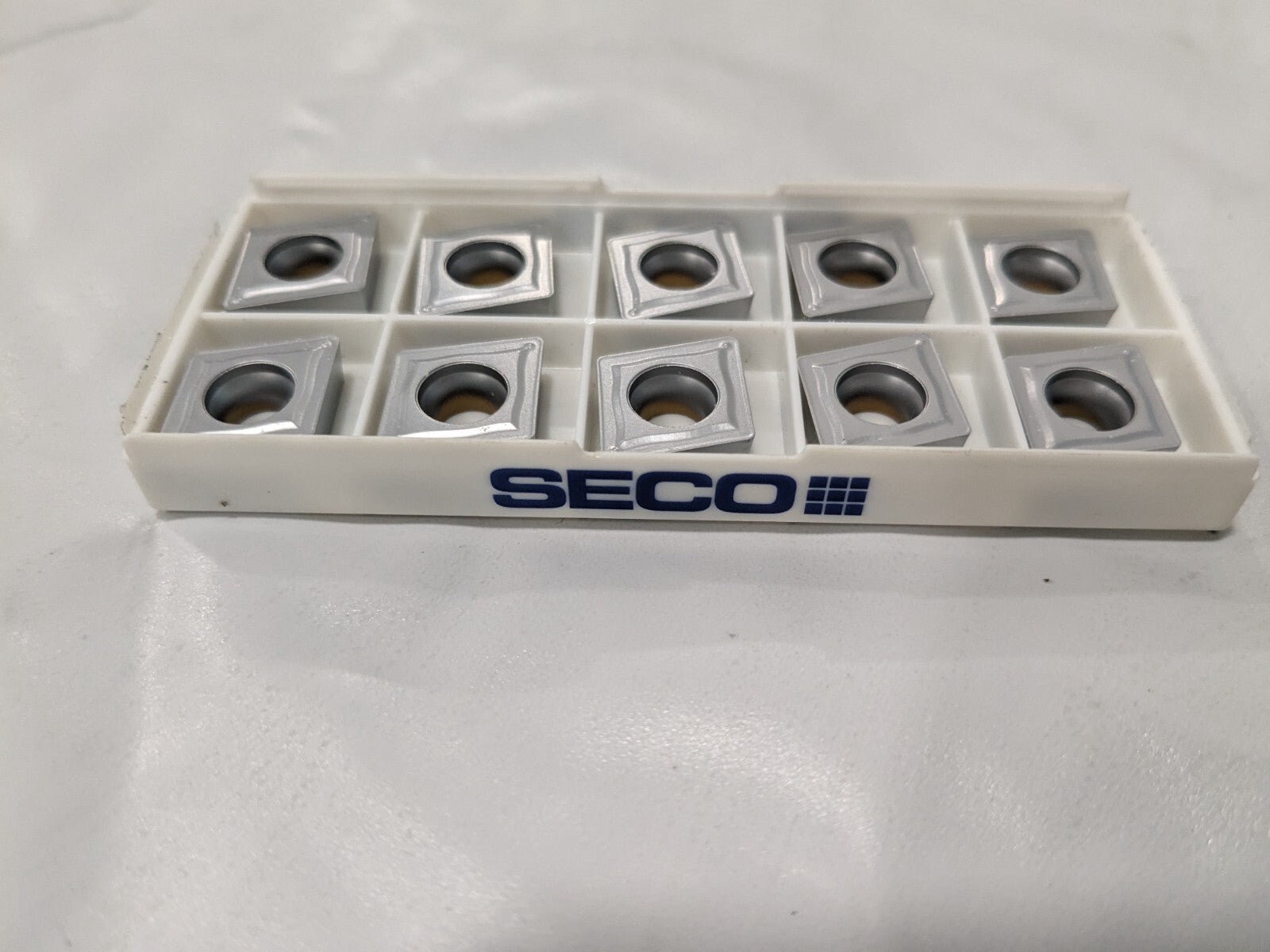

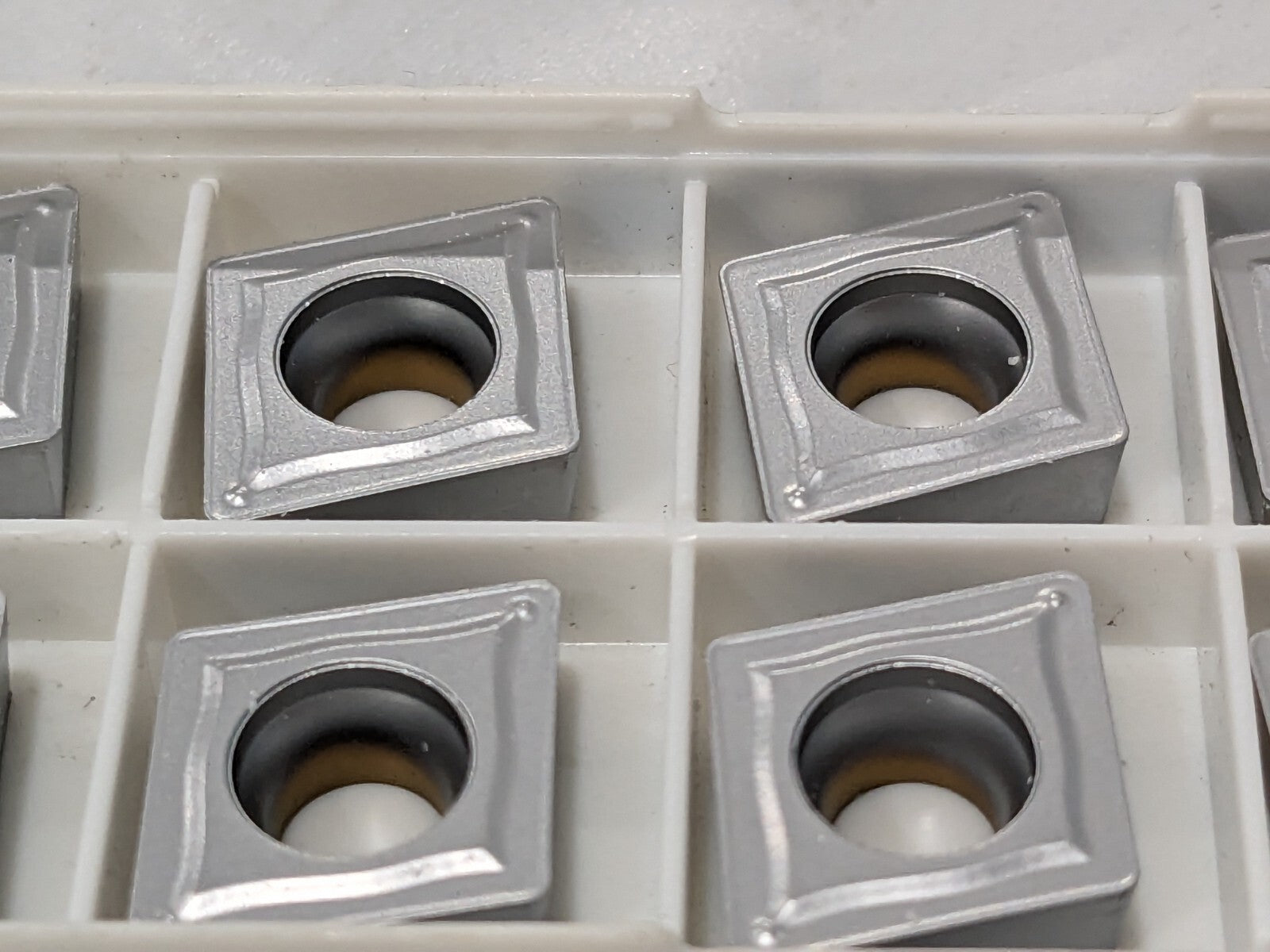

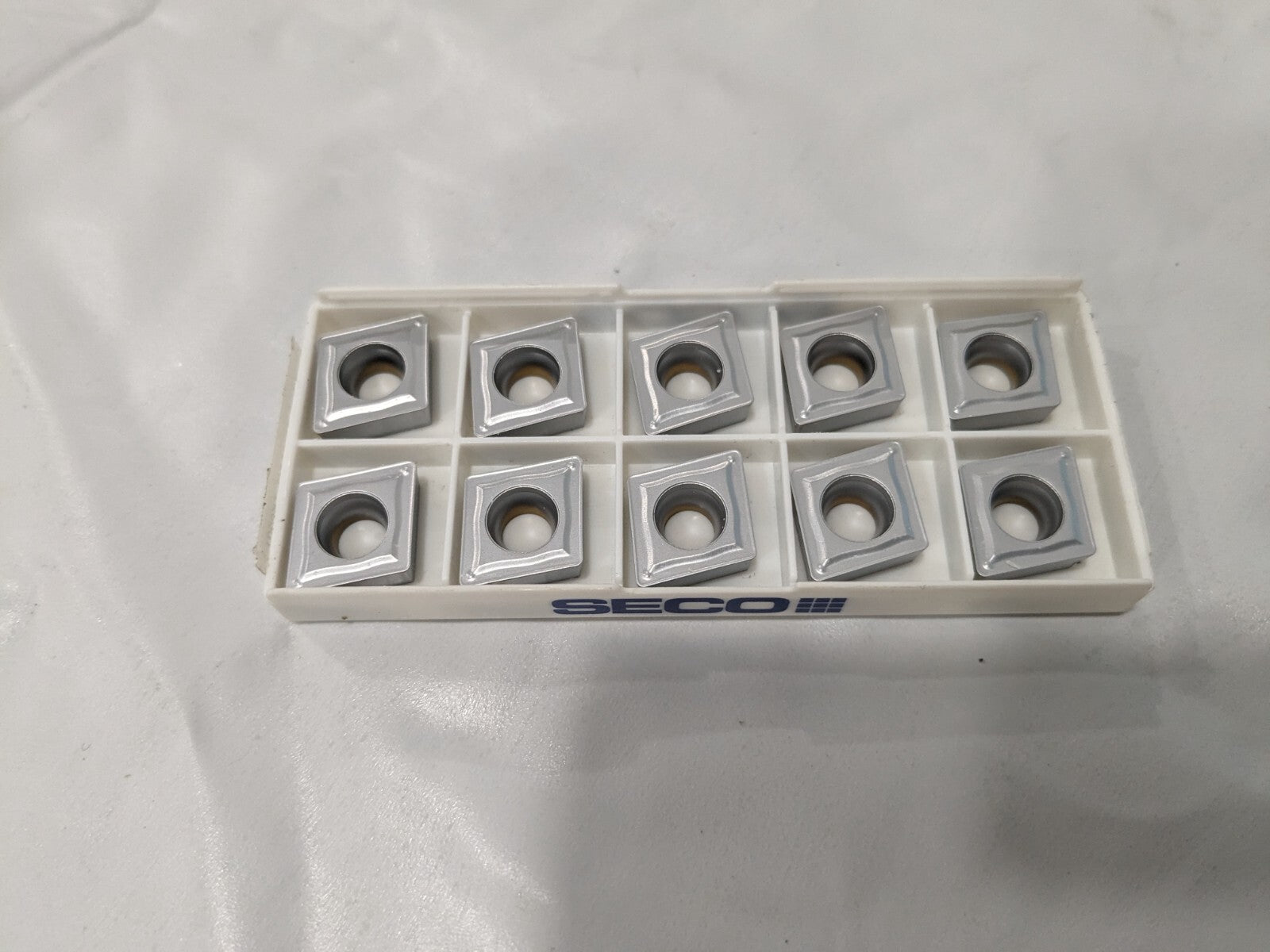

 Please review photos, comes as shown.
