SECO Turning Insert 5pk SCMT32.51-F1 CP500, Solid Carbide 00099707

SECO Turning Insert 5pk SCMT32.51-F1 CP500, Solid Carbide 00099707

MSRP: $70

• Insert Style SCMT
• Insert Size Code 32.51
• Insert Shape Square
• Included Angle 90 degree
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade CP500
• Coating/Finish TiN; TiAlN
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code S
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.1772
• Maximum Depth of Cut (Decimal Inch) 0.3583
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Width (Inch) 3/8 in
• Insert Thickness (Inch) 5/32
• Clearance Code C
• Tolerance Code M
• Series SCMT-F1
• Coating Process PVD
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Inch) 3/8
• Insert Length (Decimal Inch) 0.3748
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code M
• Secondary Workpiece Material Cast Iron; Super-alloys & Titanium; Steel
• Secondary Workpiece Material Code P; S; K
• Iso Code SCMT09T304-F1
• Standards ISO; ANSI
• Manufacturers Catalog Number 00099707
• Material Grade M20; M30; M10
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Lead Angle 90 degree
• Coating Classification PVD
• Chip Breaker F1
• Cutting Edge Style Sharp
• Industry Standard Number SCMT32.51-F1
• Width (Decimal Inch - 4 Decimals) 0.3748
• Width (Mm - 2 Decimals) 9.52
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring

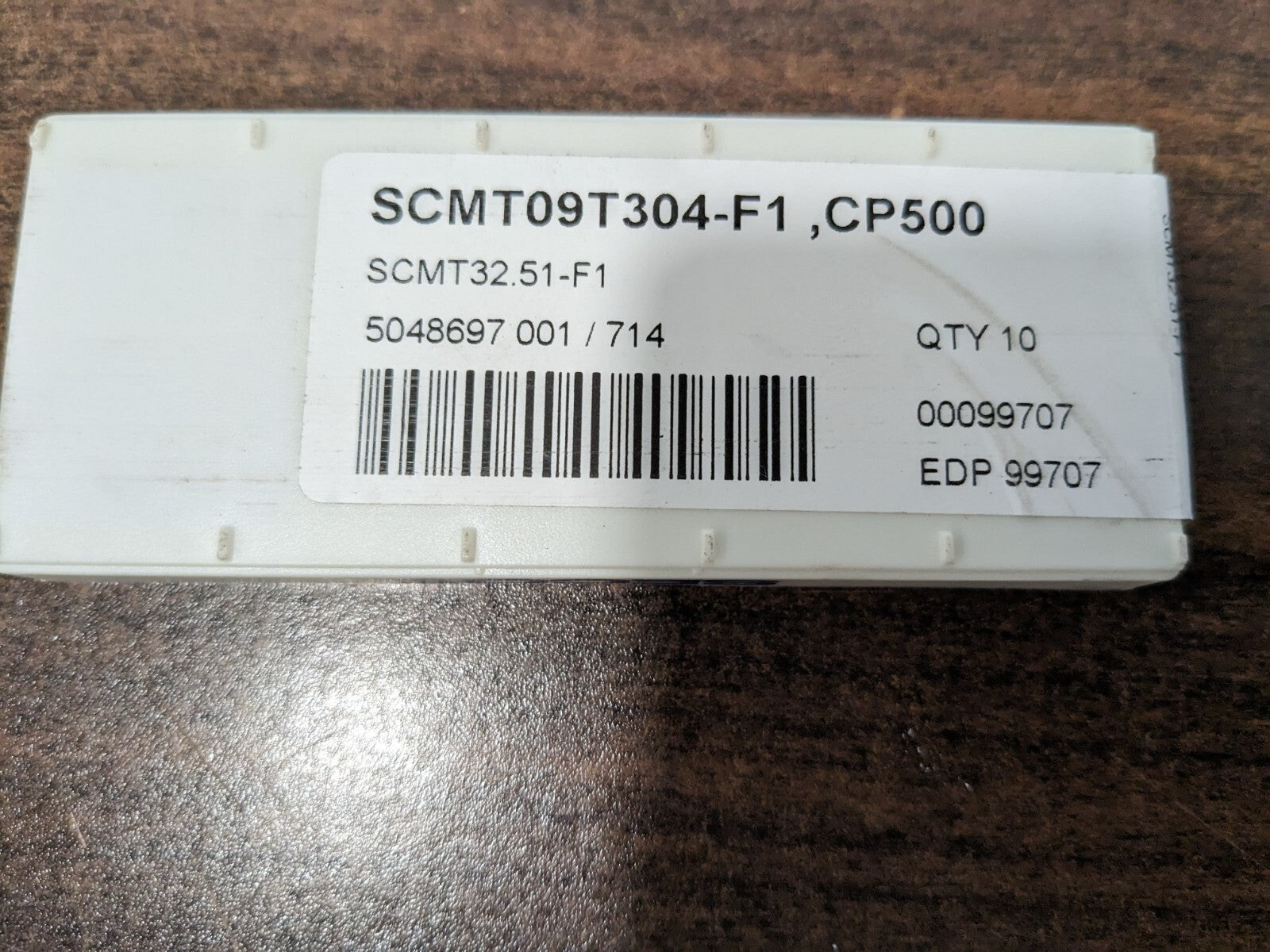

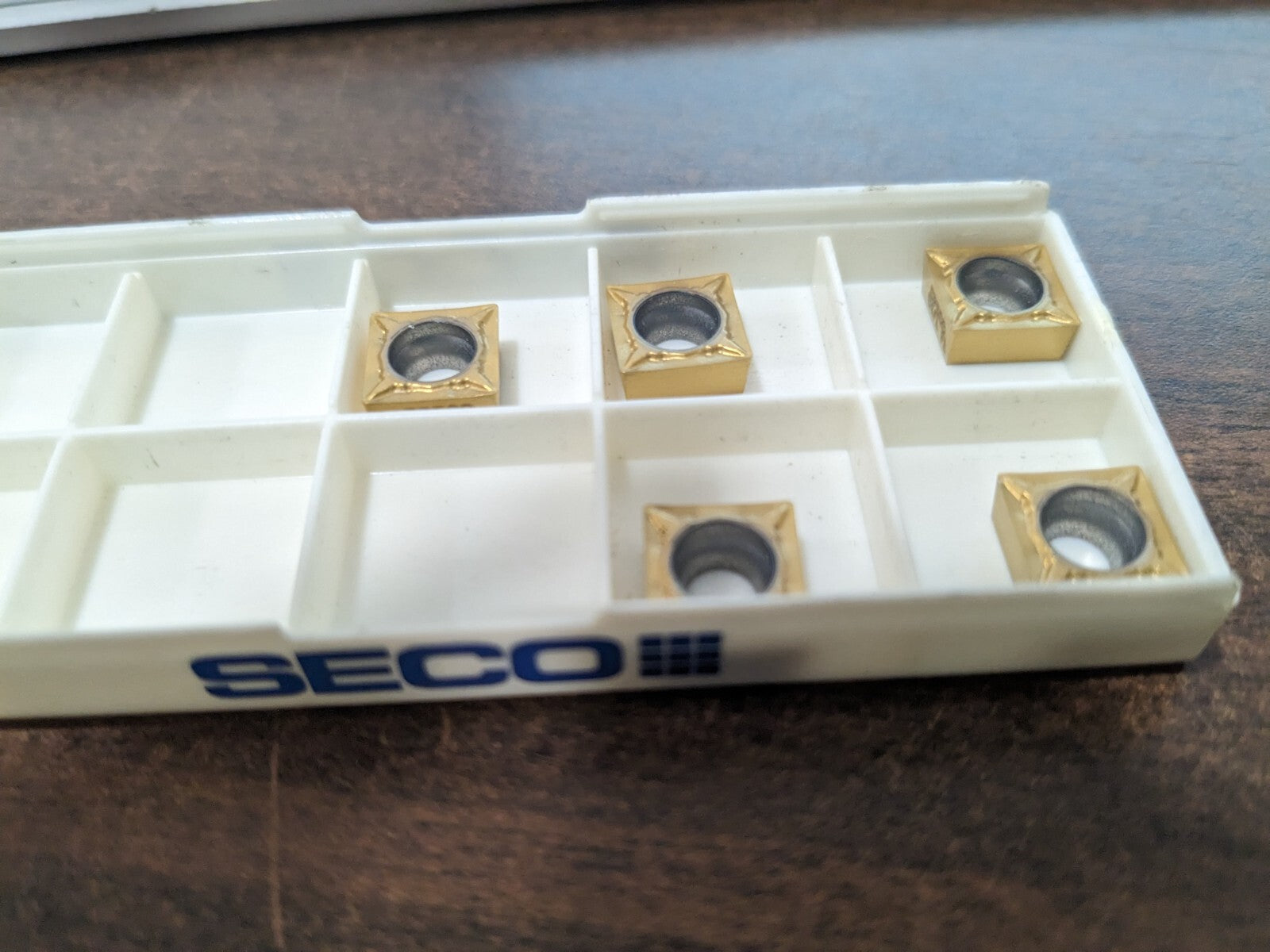

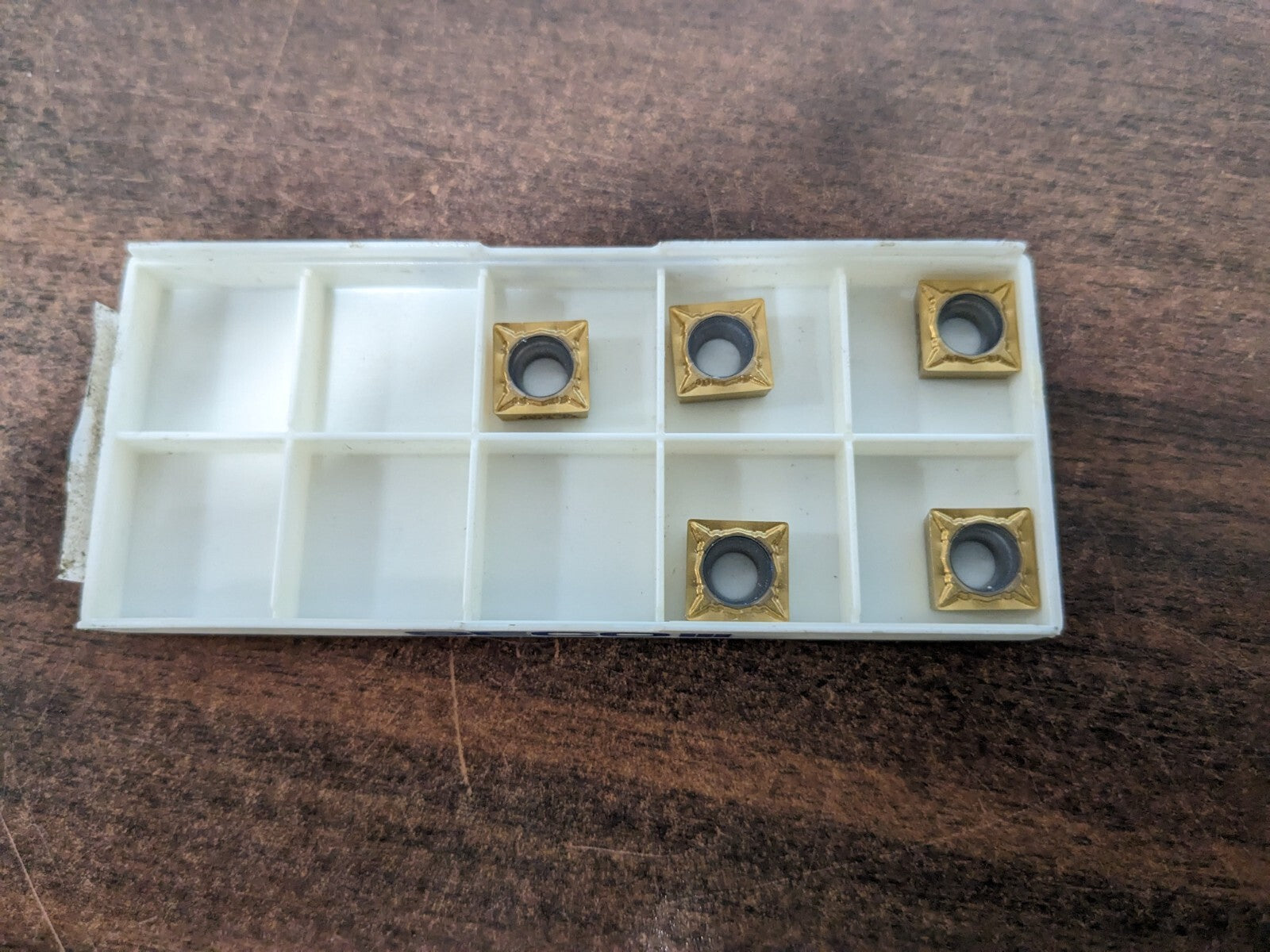

 Please review photos, comes as shown.
