SECO Turning Insert 2pk: SNMN 222S CBN300, PCBN 00097859

SECO Turning Insert 2pk: SNMN 222S CBN300, PCBN 00097859

MSRP: $230

• ANSI Insert Code SNMN222
• ISO Insert Code SNMN060308
• Relief Angle 0
• Insert Style SNMN
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0315
• Included Angle 90
• Manufacturer Grade CBN300
• Coating/Finish Bright/Uncoated
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 1/8
• Insert Thickness (Decimal Inch) 0.1252
• Series SNMN-Flat Top
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Insert Material PCBN
• Insert Shape S - Square
• Chip Breaker Operation Flat Top
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to High Toughness
• Side Clearance Negative
• Number Of Cutting Edges 8
• Insert Shape Code S
• Maximum Depth of Cut (Decimal Inch) 0.0752
• Insert Holding Method Clamp
• Width (Inch) 1/4
• Clearance Code N
• Tolerance Code M
• Coating Process PCBN
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Rake Negative
• Insert Length (Decimal Inch) 0.2500
• Insert Length (Inch) 1/4
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Secondary Workpiece Material Hard Material
• Secondary Workpiece Material Code H
• Iso Code SNMN060308S
• Standards ISO; ANSI
• Manufacturers Catalog Number 00097859
• Material Grade K20; K30; K10; K01
• Proprietary Coating Designation Uncoated
• Lead Angle 90
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number SNMN222S
• Width (Decimal Inch - 4 Decimals) 0.2500
• Width (mm - 2 Decimals) 6.35
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• ANSI Size Code 222
• ISO Size Code 060308
• UNSPSC Code 23242105
• Insert Size Code 222
• Country of Origin Sweden
• Ordered as Part # 97859

(Description).

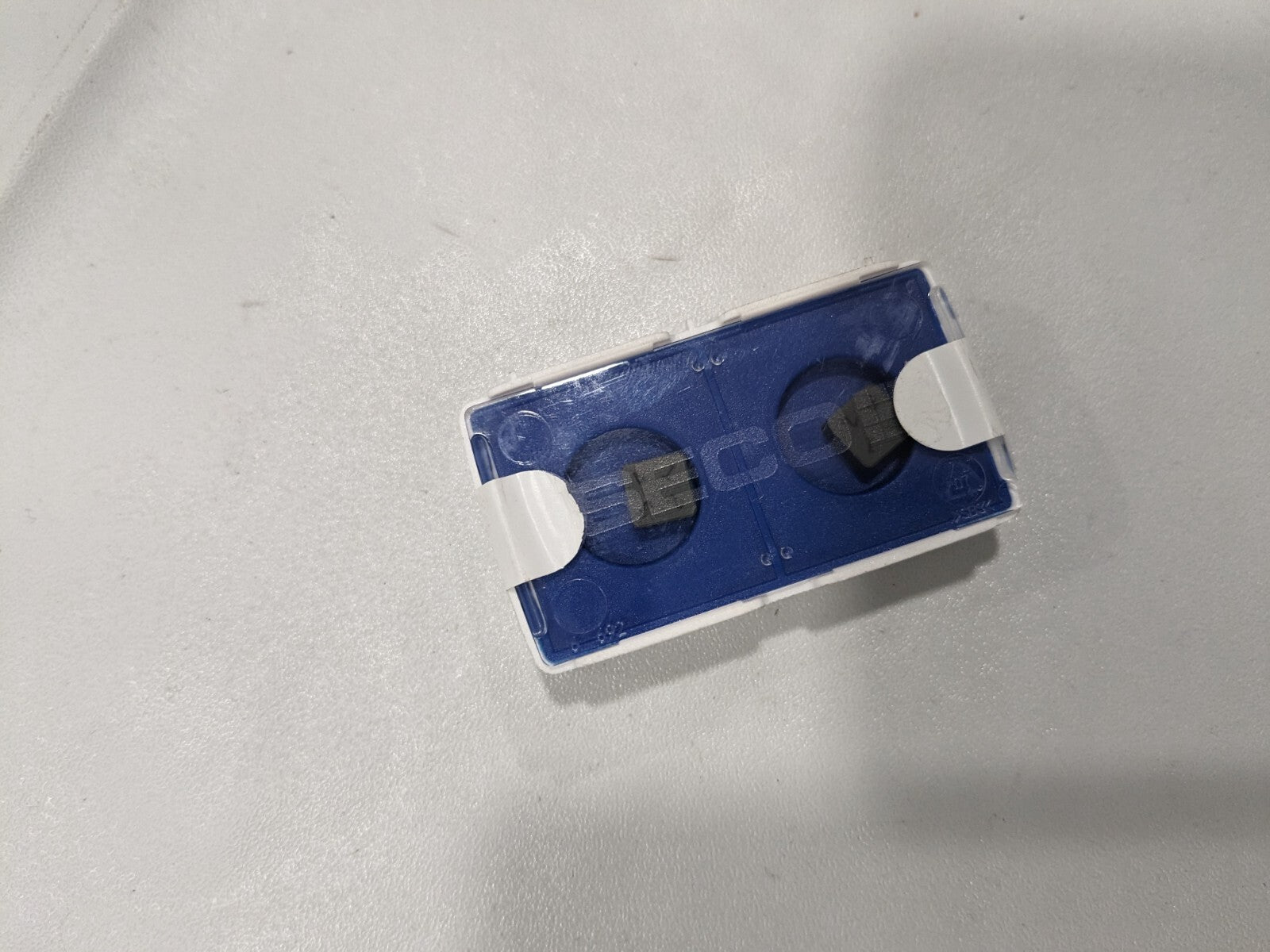

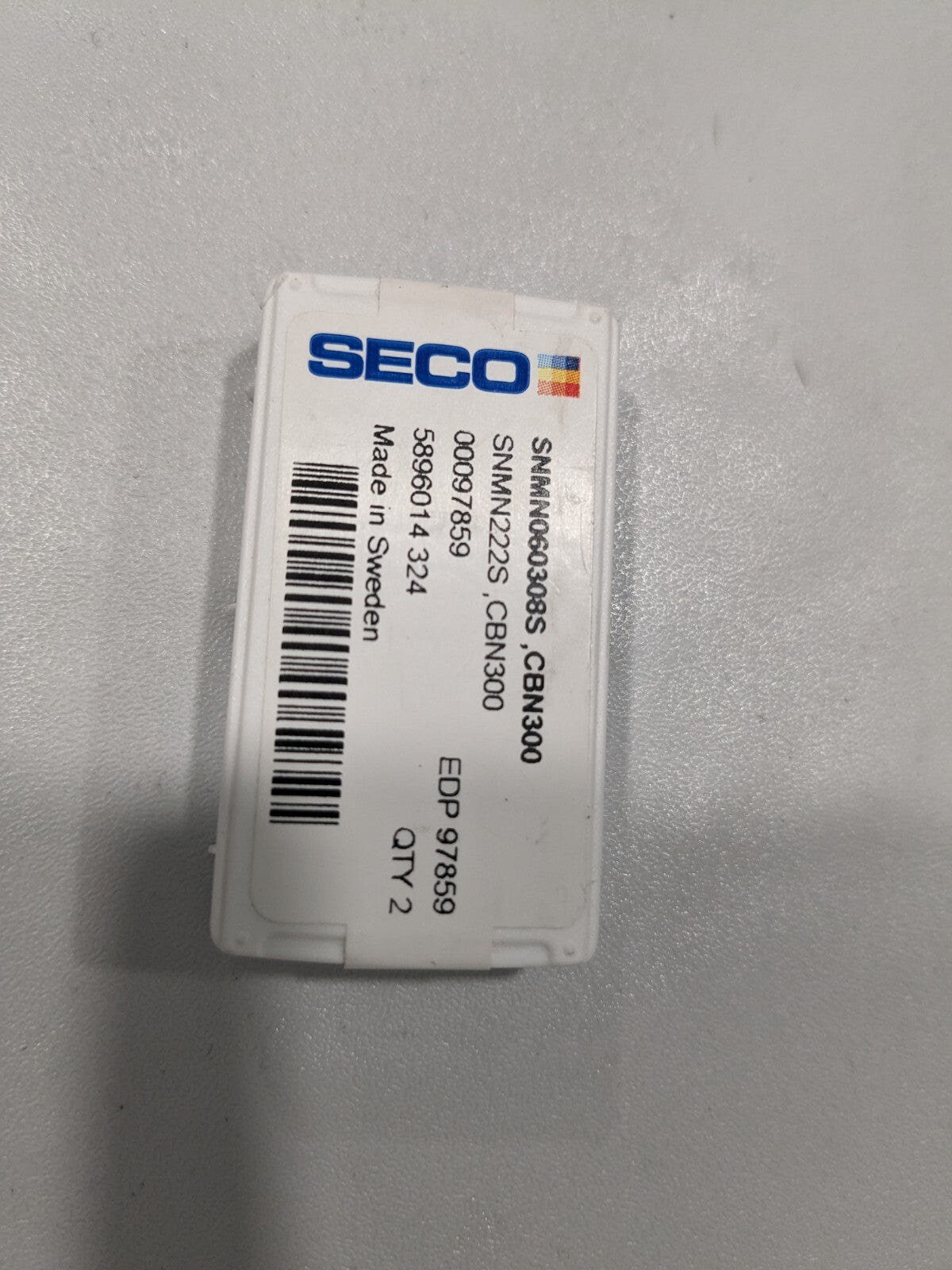

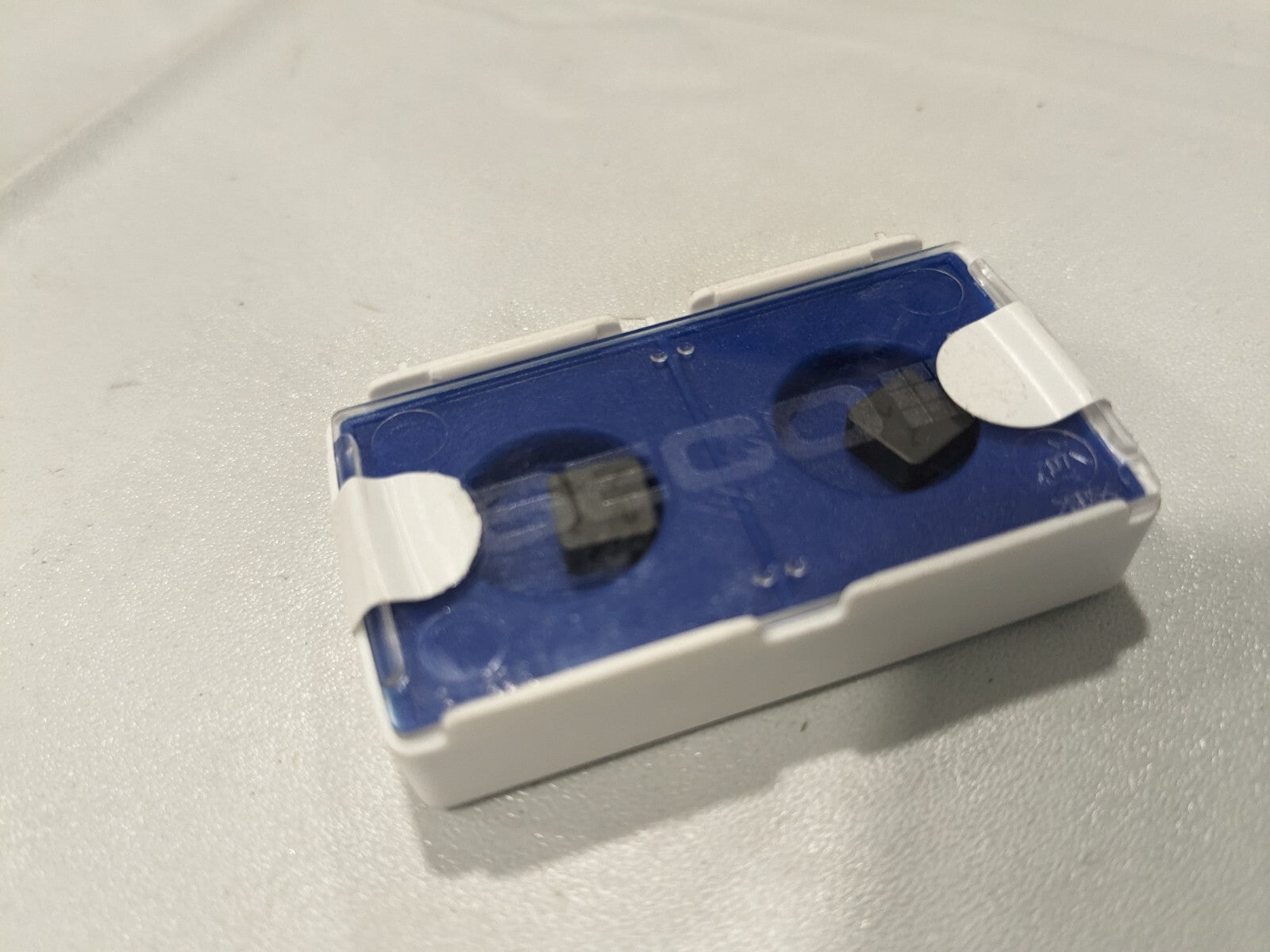

Please review photos, comes as shown.
