SECO Turning Insert 2pc: WNGA332S-L1-C CBN200 PCBN 02429858

MSRP: $240

• Relief Angle 0
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0315
• Included Angle 80
• Manufacturer Grade CBN200
• Coating/Finish Bright/Uncoated
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1874
• Series WNGA-Flat Top
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Material Polycrystalline Cubic Boron Nitride (PCBN)
• Insert Shape Trigon
• Number Of Cutting Edges 3
• Insert Shape Code W
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (Decimal Inch) 0.0400
• Insert Holding Method Pin; Clamp; Lever Lock
• Width (Inch) 3/8
• Clearance Code N
• Tolerance Code G
• Coating Process PCBN
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Negative
• Insert Length (Decimal Inch) 0.5196
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Secondary Workpiece Material Hard Material; Super-alloys & Titanium
• Secondary Workpiece Material Code S; H
• Iso Code WNGA060408S-02020-L1-C
• Standards ISO; ANSI
• Manufacturers Catalog Number 02429858
• Material Grade K20; K10
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Uncoated
• Lead Angle 80
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number WNGA332S-00820-L1-C
• Width (Decimal Inch - 4 Decimals) 0.375
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• Tip Length (Decimal Inch) 0.0850
• UNSPSC Code 23242105
• Insert Style WNGA
• Insert Size Code 332

(Description).

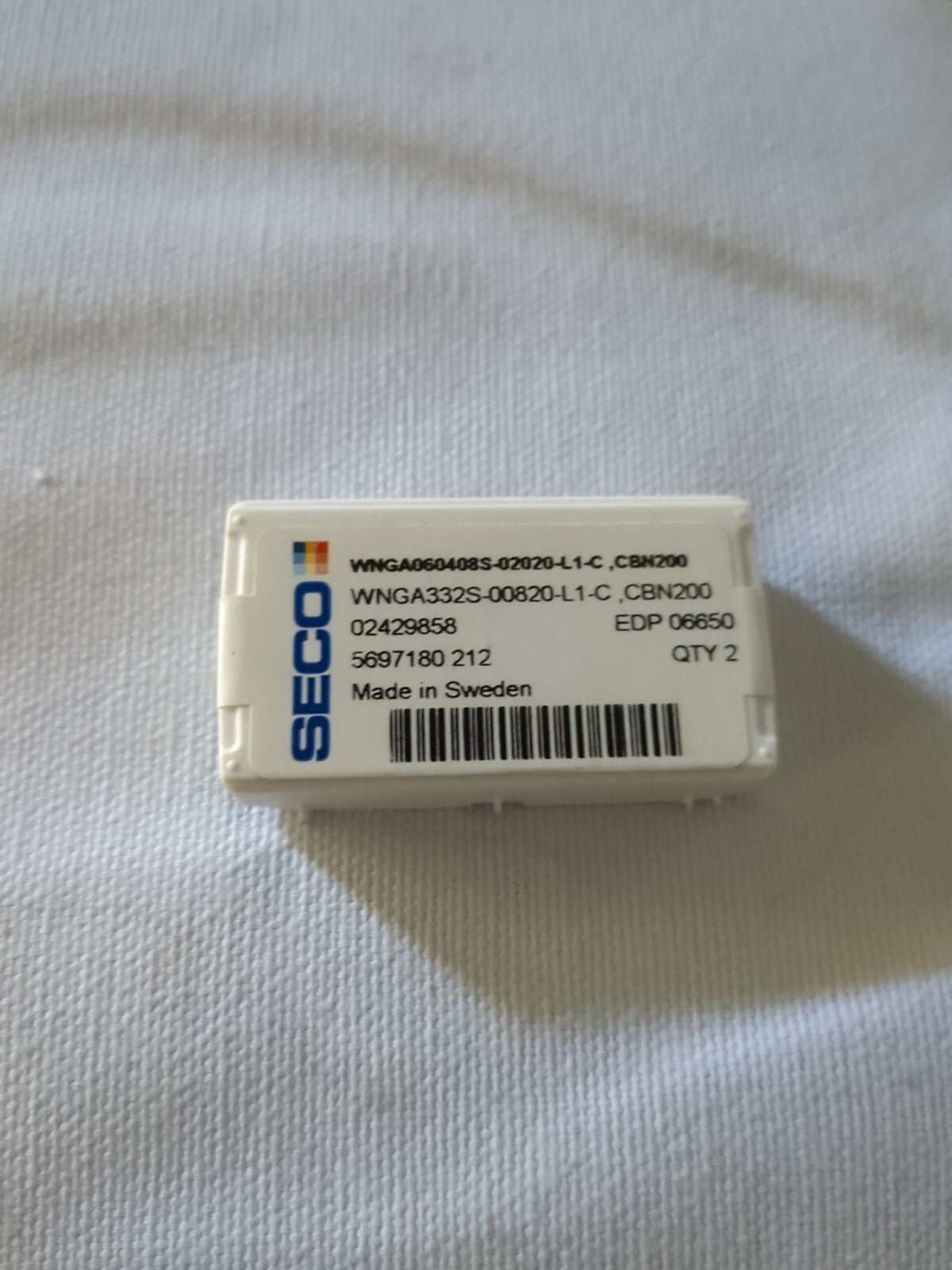

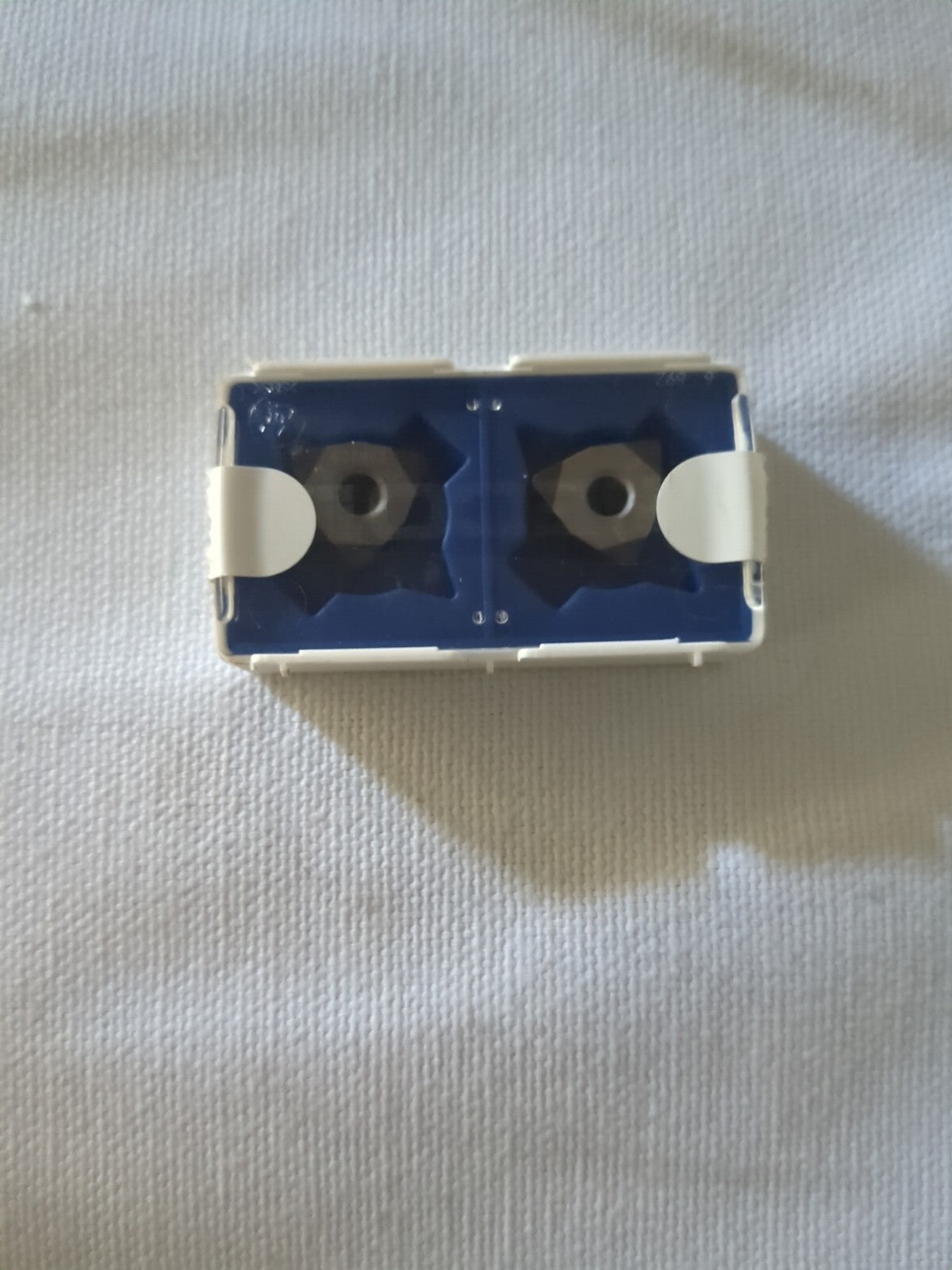

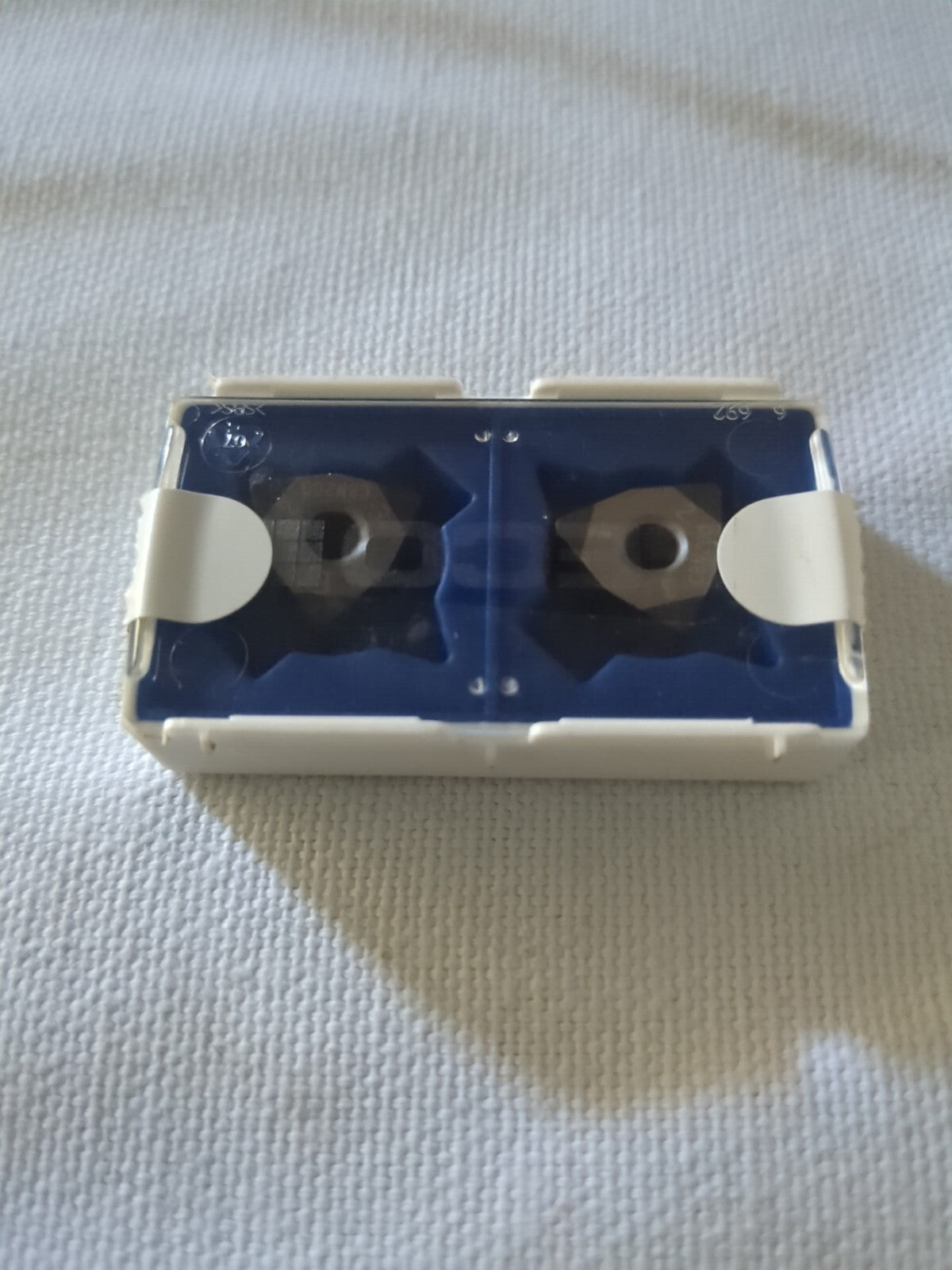

Please review photos, comes as shown.
