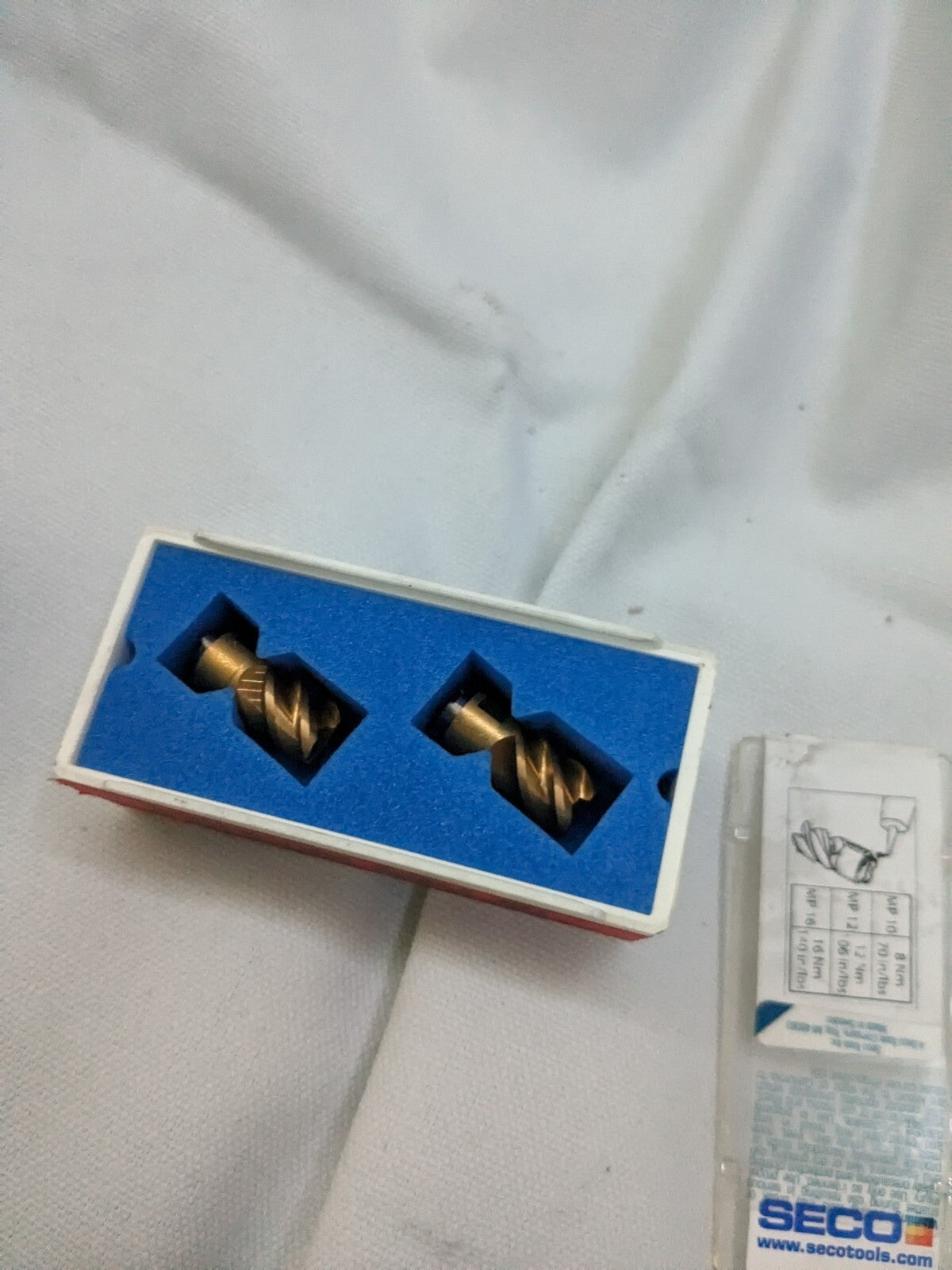

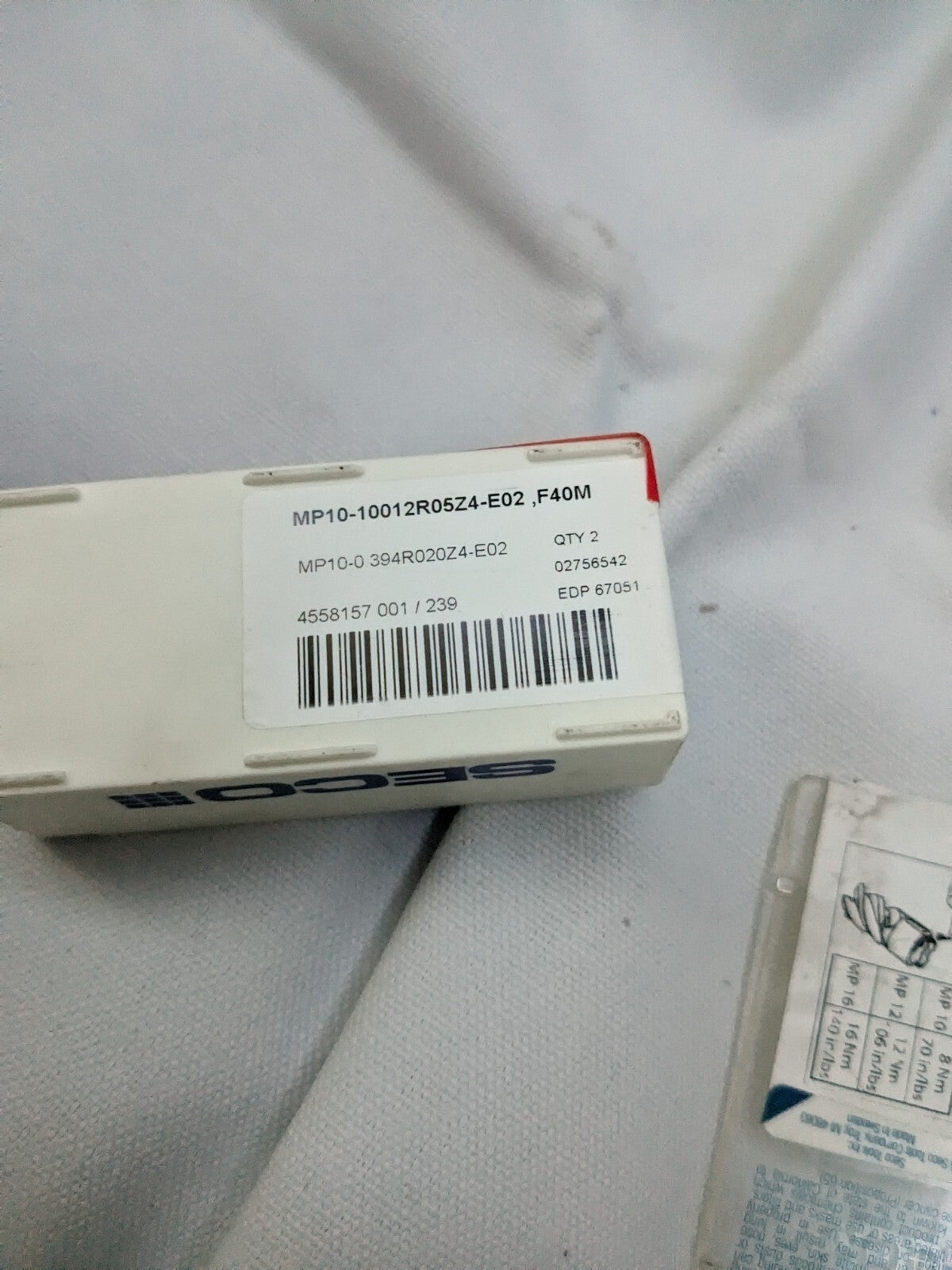

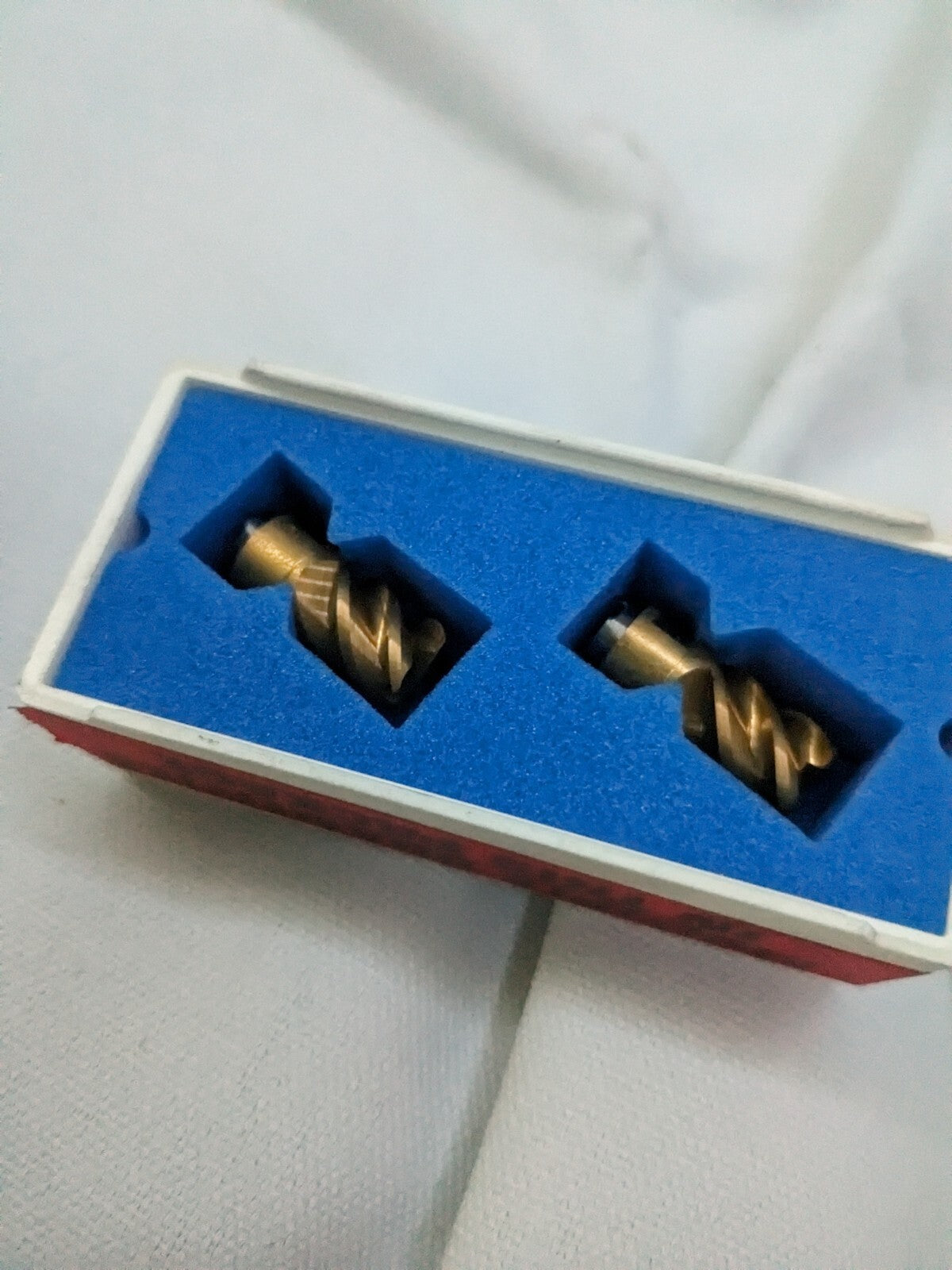

SECO Square-Shoulder Milling TipInsert MP10-10012R05Z4-E02 F40M, Carbide02756542

MSRP: $180

• Milling Tip Type Square-Shoulder
• Milling Tip Style MP10
• Maximum Depth of Cut (Decimal Inch) 0.4720
• Cutting Diameter (Decimal Inch) 0.3940
• Cutting Diameter (mm) 10.00
• Tool Material Carbide
• Manufacturer Grade F40M
• Insert Hand Right Hand
• Chipbreaker E02
• Series MP10
• Coating Process PVD
• Corner Radius (Decimal Inch) 0.0200
• Cutting Width (Decimal Inch) 0.394
• Functional Length (Decimal Inch) 0.8270
• Primary Workpiece Material Non-Ferrous Metal; Steel
• Primary Workpiece Material Code P; N
• Standards ANSI
• Milling Tip Full Description MP10-10012R05Z4-E02
• Extension From Holder (mm) 21.00
• Lead Angle 90
• Manufacturers Catalog Number 02756542
• Chamfer Angle 0
• Overall Length (Decimal Inch) 0.827
• Insert Size 10012R05Z4
• Helix Angle 50
• Coolant Through No
• Material Grade P50; P30; N10; P40; N20; P10; P20
• Included Angle Degree 90
• Coating/Finish TiN; TiAlN
• UNSPSC Code 23291601
• Length Of Cut (Decimal Inch - 4 Decimals) 0.4720
• Number Of Flutes 4

(Description).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
