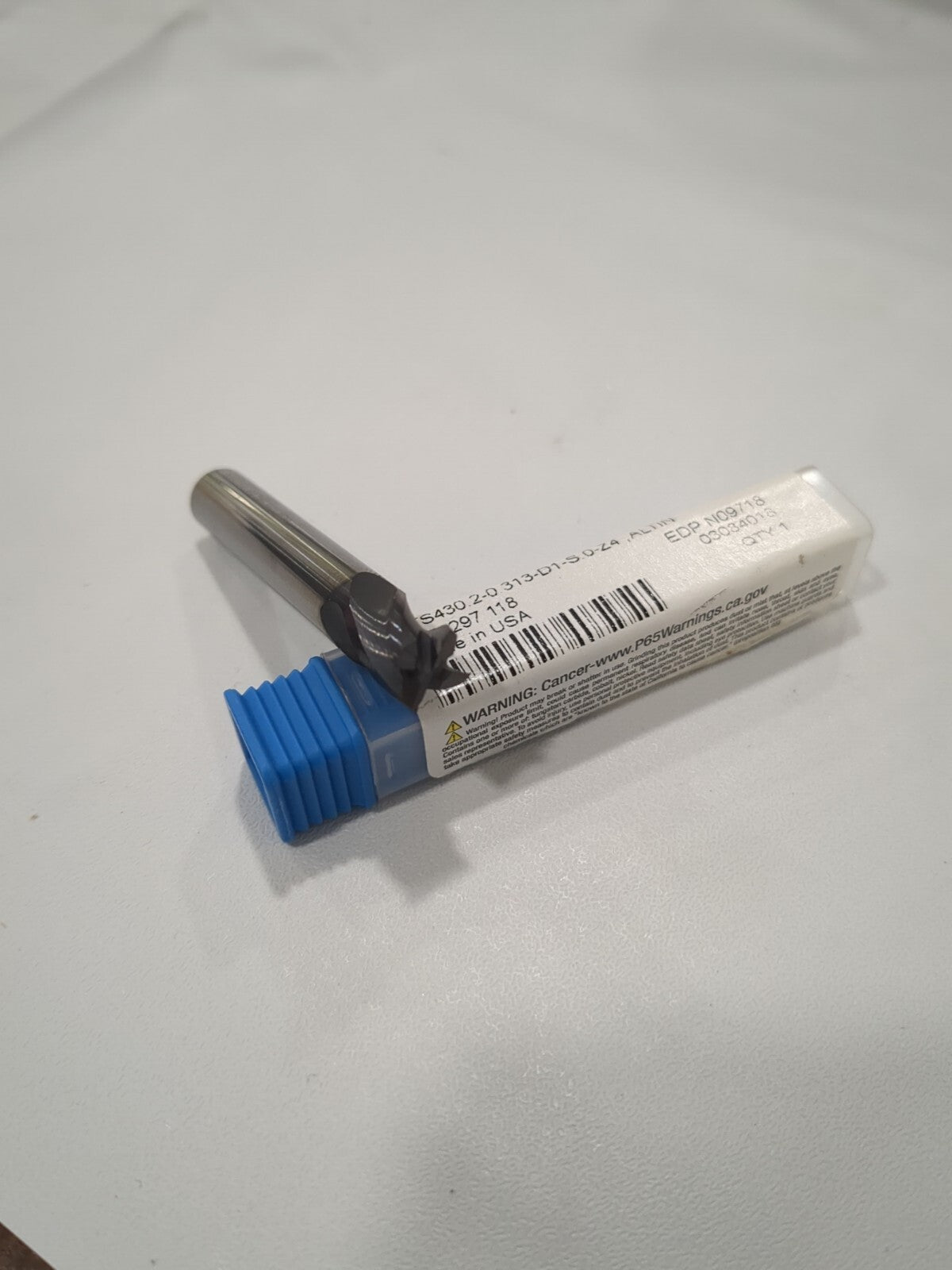

SECO Square End Mill: 5/16" Dia 4 Fl Solid Carbide 03084018

SECO

Square End Mill: 5/16" Dia 4 Fl Solid Carbide 03084018

MSRP: $50

• Mill Diameter (Decimal Inch) 0.3125
• Mill Diameter (Inch) 5/16
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.3125
• Length of Cut (Inch) 5/16
• Shank Diameter (Inch) 5/16
• Shank Diameter (Decimal Inch) 0.3125
• Overall Length (Decimal Inch) 2.0000
• Overall Length (Inch) 2
• Single Or Double End Single
• Coating/Finish Family AlTiN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Cast Iron; Steel
• Primary Workpiece Material Code P; K; N
• Coating/Finish AlTiN
• Variable Helix Yes
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight
• Material Grade Micrograin
• Length Type Standard
• Length Of Cut Range (Decimal Inch) 0.3000 - 0.5000
• TIR Maximum (Decimal Inch) 0.0005
• Series STS430.2
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES

(Description).

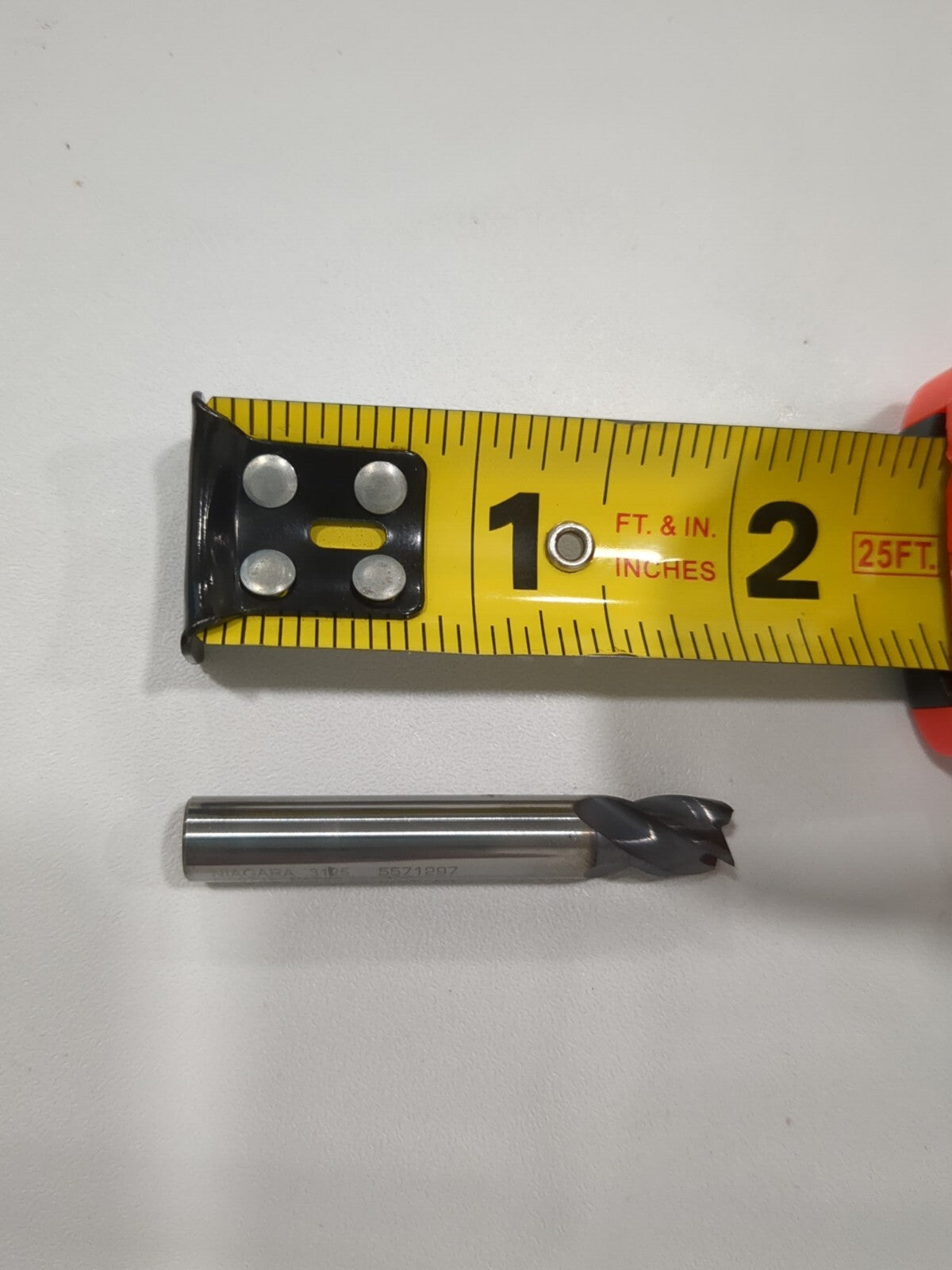

Please review photos, comes as shown.
