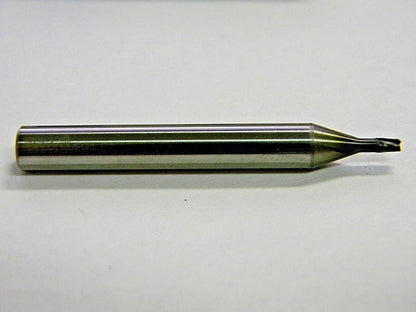

Seco Spiral Flute Corner Radius End Mill 2mm 4 F Single End Solid Carb 07974
Seco Spiral Flute Corner Radius End Mill 2mm 4 F Single End Solid Carb 07974
Regular price
$27.77 USD
Regular price
$60.00 USD
Sale price
$27.77 USD
Shipping calculated at checkout.
Seco
MSRP: $60.00
Model: 07974
Description:
Mill Diameter (mm) 2.00
Mill Diameter (Decimal Inch) 0.0787
End Type Corner Radius
Corner Radius (mm) 0.200
Corner Radius (Decimal Inch) 0.0079
Number of Flutes 4
Material Solid Carbide
Finish/Coating MEGA-T
Length of Cut (mm) 2.50
Length of Cut (Decimal Inch) 0.0984
Shank Diameter (mm) 6.00
Overall Length (mm) 50.00
Flute Type Spiral
Reach Length (mm) 5.00
Helix Angle 20.00
Single or Double End Single
Centercutting No
Cutting Direction Right Hand
Flute Direction Right Hand
Mill Diameter Tolerance (mm) -0.02/-0.04
Corner Radius Tolerance (mm) +0.05/-0.05
Extended Reach Yes
TIR Maximum (mm) 0.01

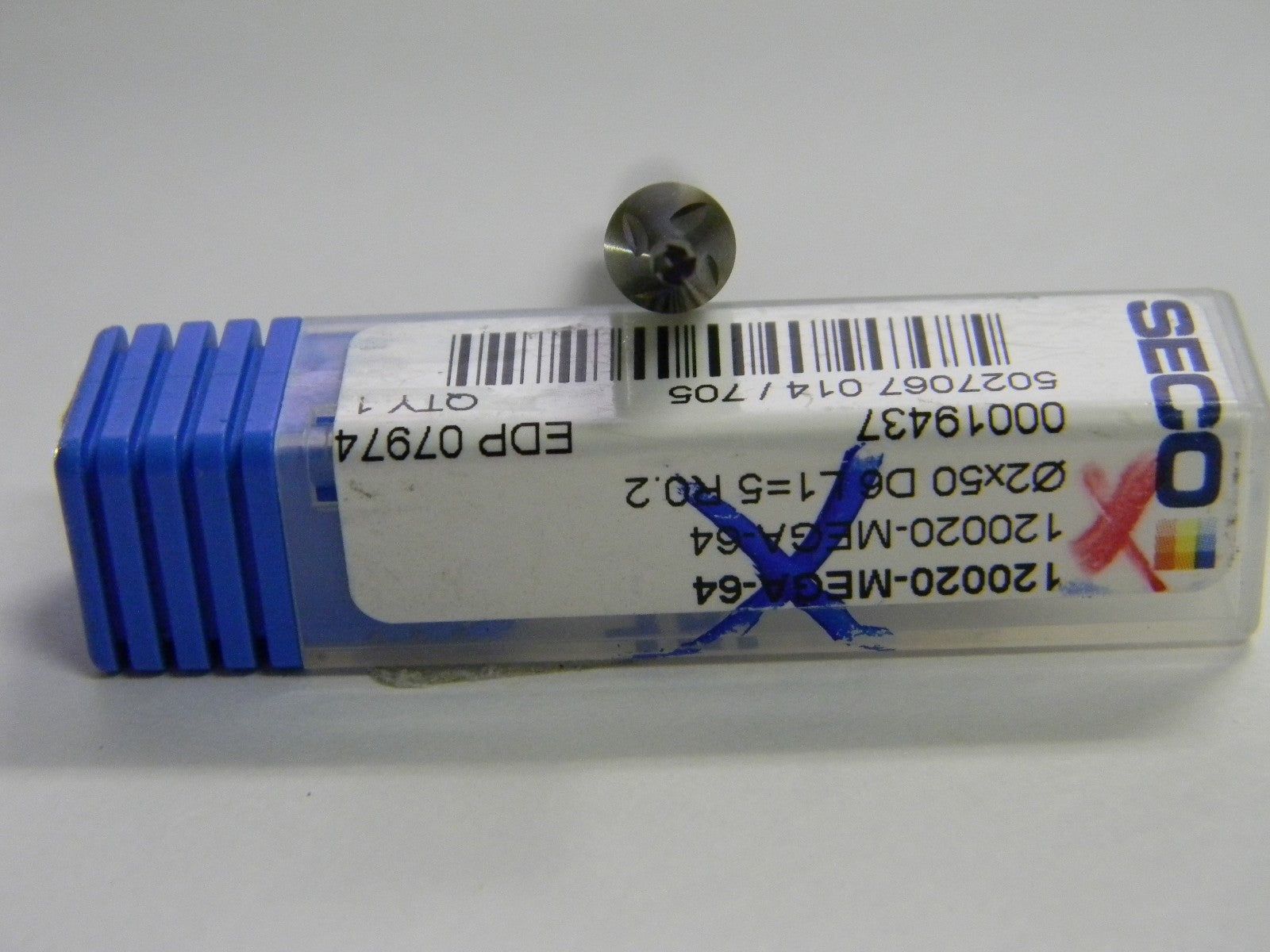

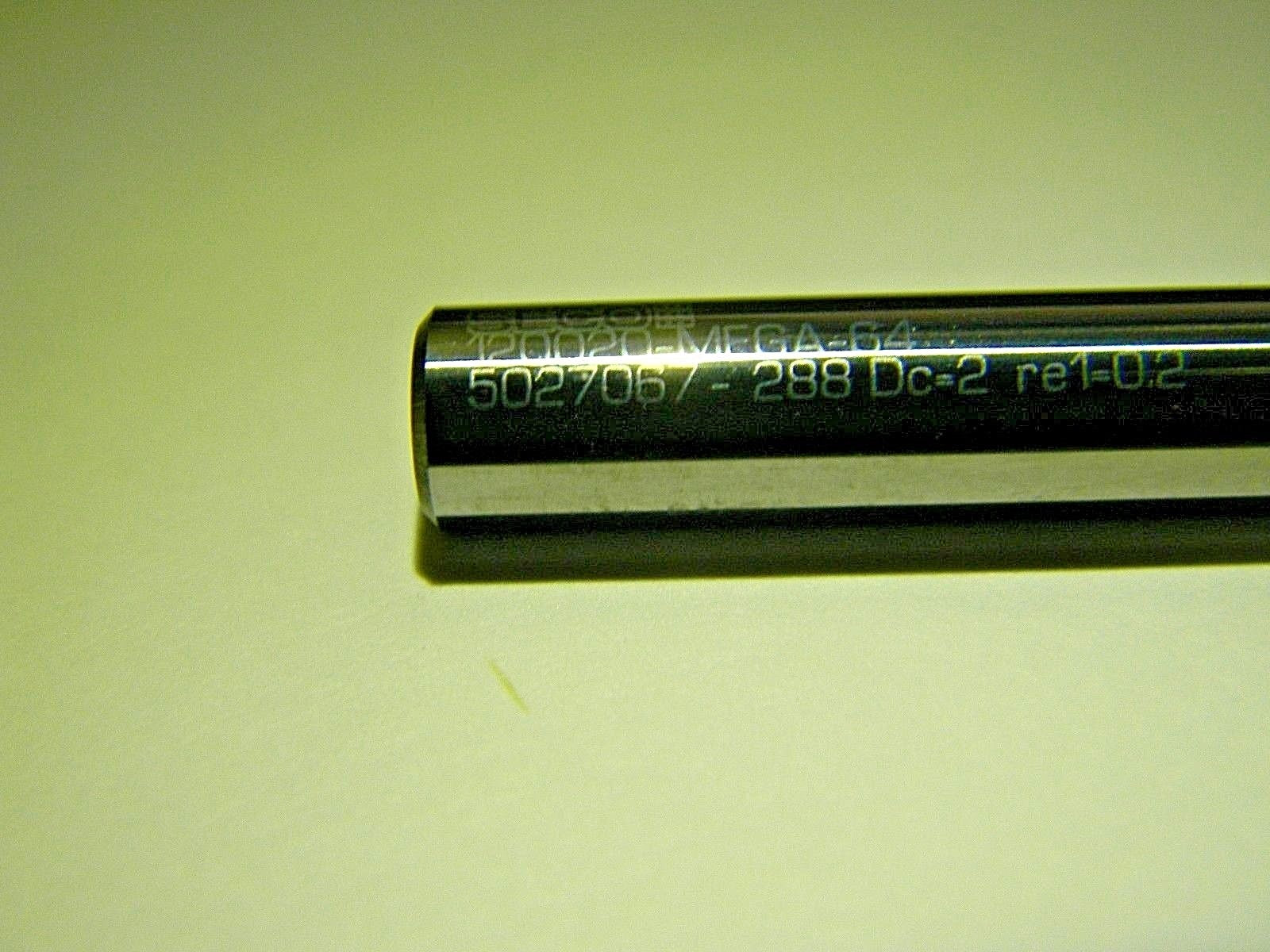

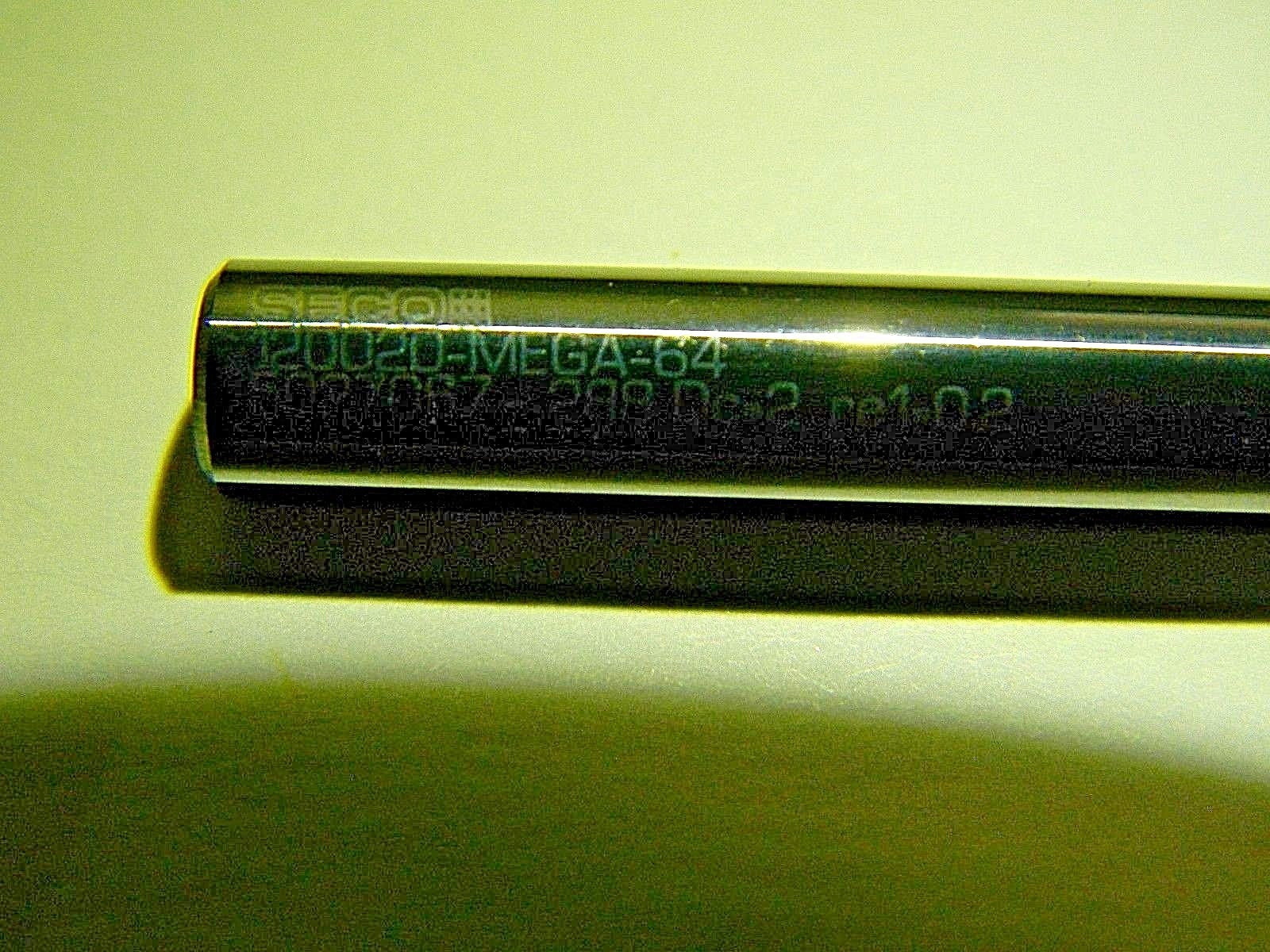

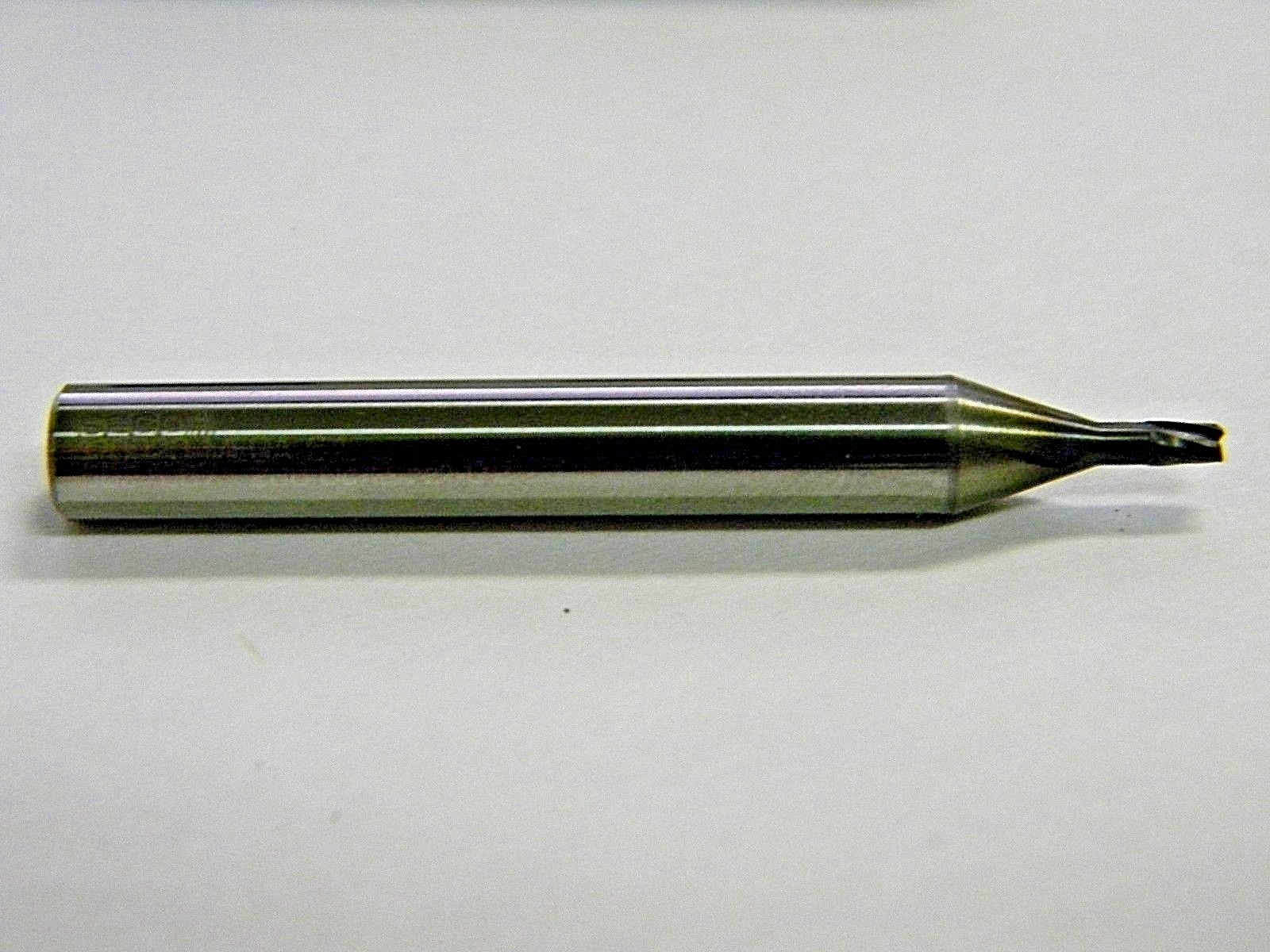

This listing is for One End Mill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
