Seco Solid Carbide Screw Machine Drill Bit 5mm 140° Spiral Flute 18978
Seco Solid Carbide Screw Machine Drill Bit 5mm 140° Spiral Flute 18978
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco
MSRP: $100.00
Model: 18978
Description:
Drill Bit Size (Decimal Inch) : 0.1969
Drill Bit Size (mm) : 5.00
Drill Point Angle: 140
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiAlN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Flute Length (mm): 28.00
Flute Length (Decimal Inch): 1.1024
Overall Length (mm): 66.00
Overall Length (Decimal Inch): 2.5984
Flute Length x Diameter Ratio: 3xD
Shank Diameter (mm): 6.00
Shank Diameter (Decimal Inch): 0.2362
Specification Designation: DIN
Maximum Drilling Depth (mm): 20.00
Maximum Drilling Depth (Decimal Inch): 0.7874
Spiral Type: Regular Spiral
Shank Length (mm): 36.00
Shank Length (Decimal Inch): 1.4173
Threaded Shank: No
Number of Flutes: 2
Web Configuration: Tapered
Drill Bit Diameter Tolerance (mm): +0.004 to +0.016
Specification Number: DIN 6537A
Web Thinning: Web-Thinned
Series/List: SD203A

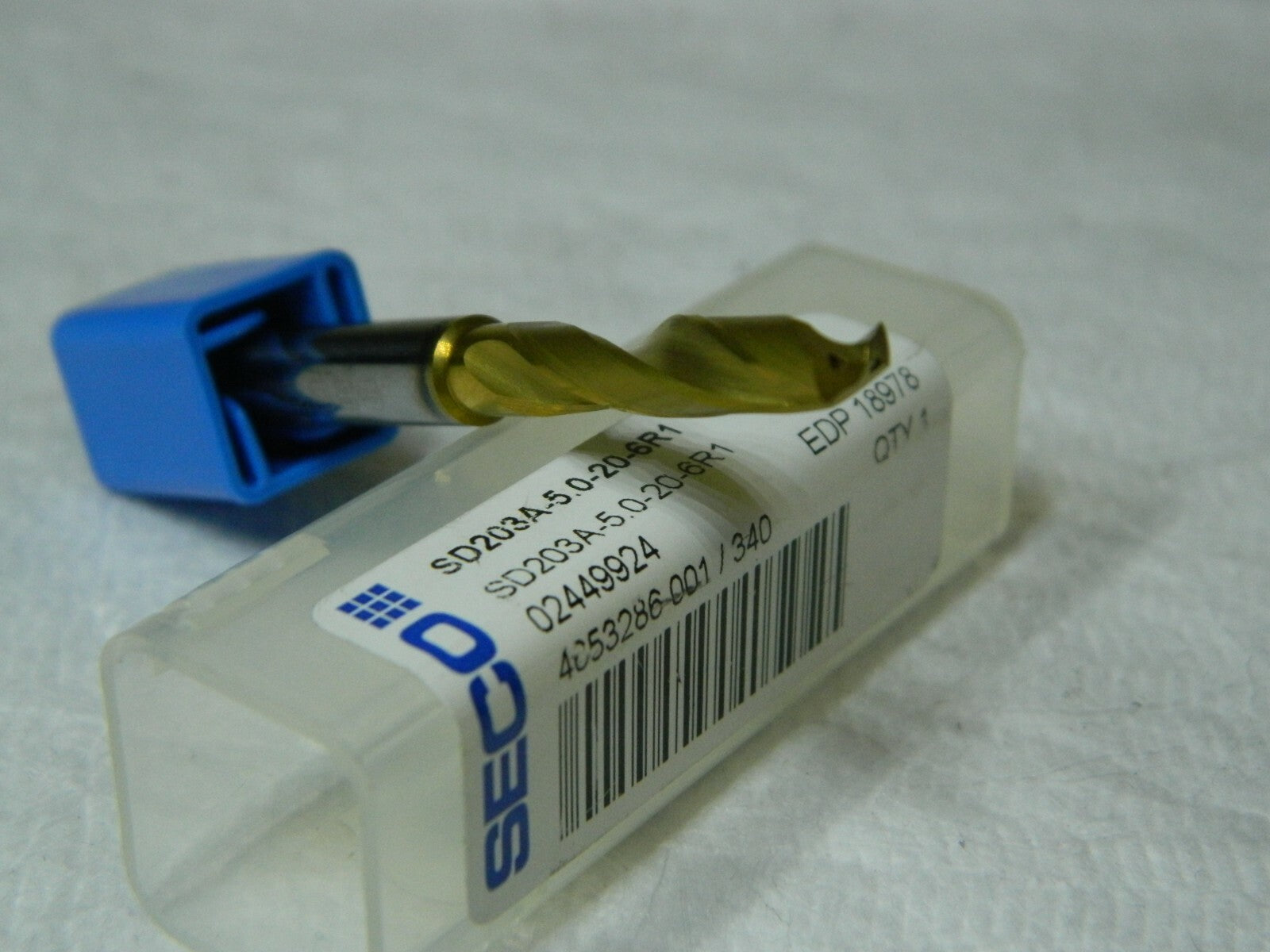

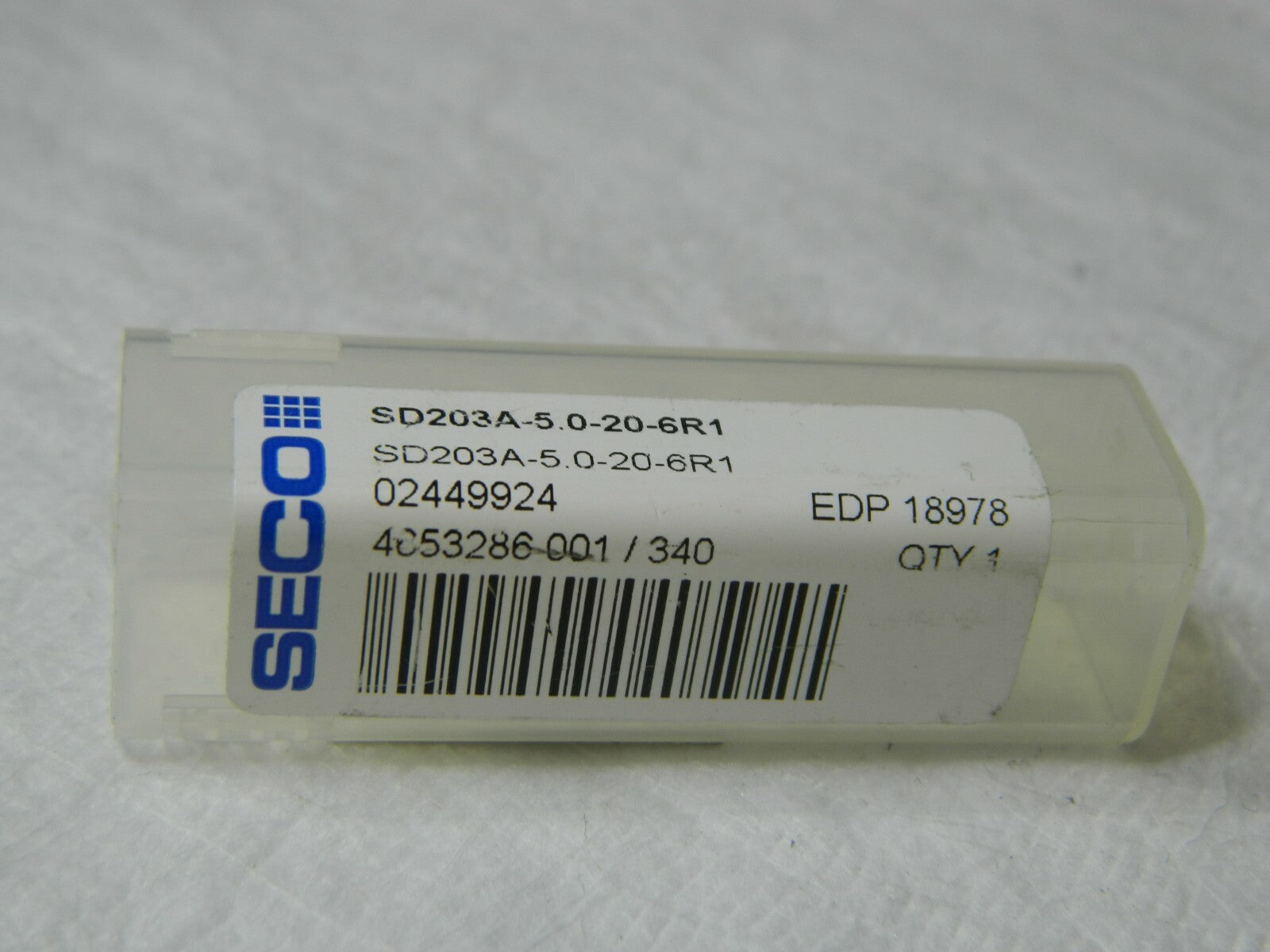

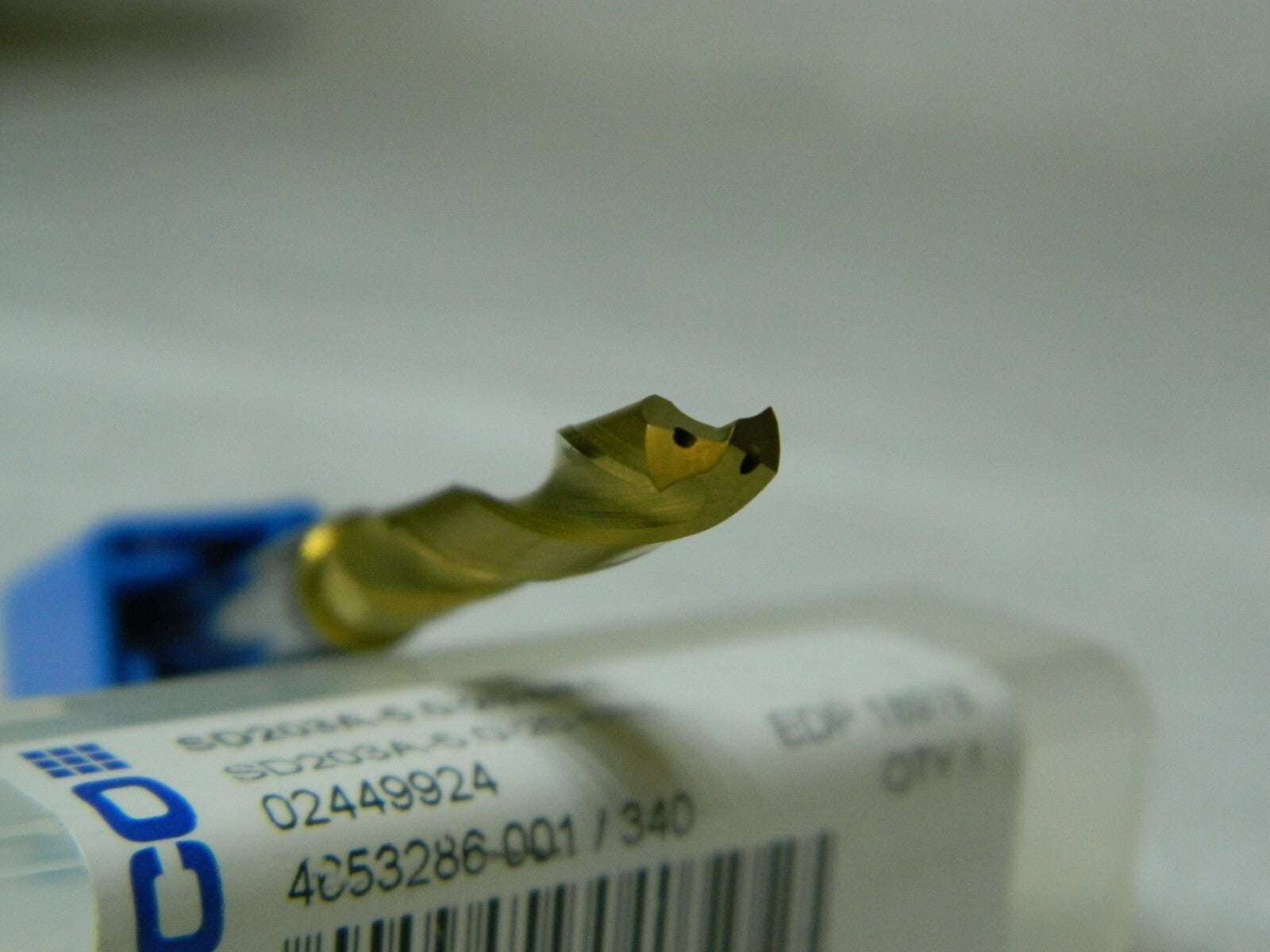

This listing is for One Solid Carbide Screw Machine Drill Bit that is in the picture as well as described. Please ask any questions prior to buying!
