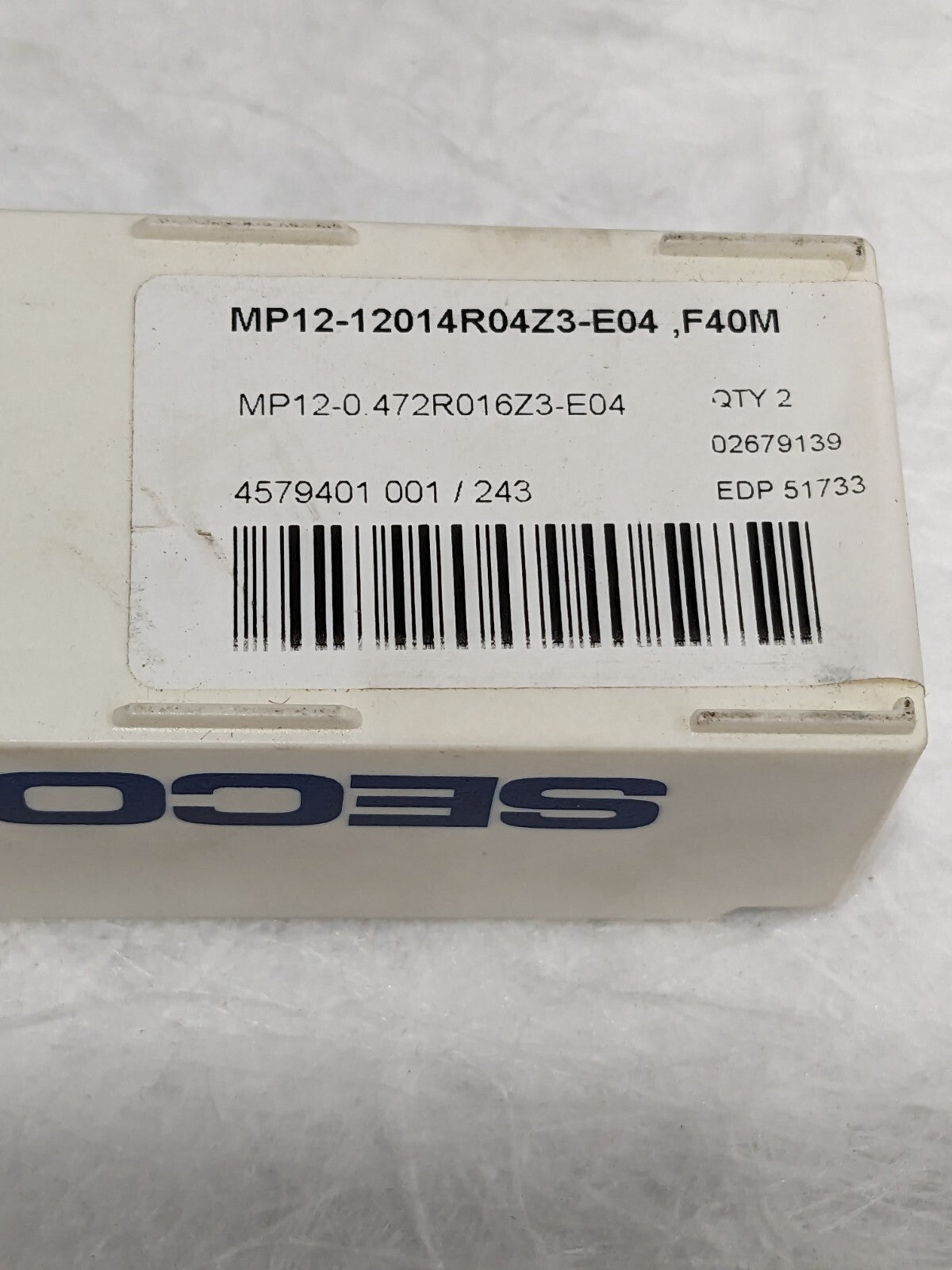

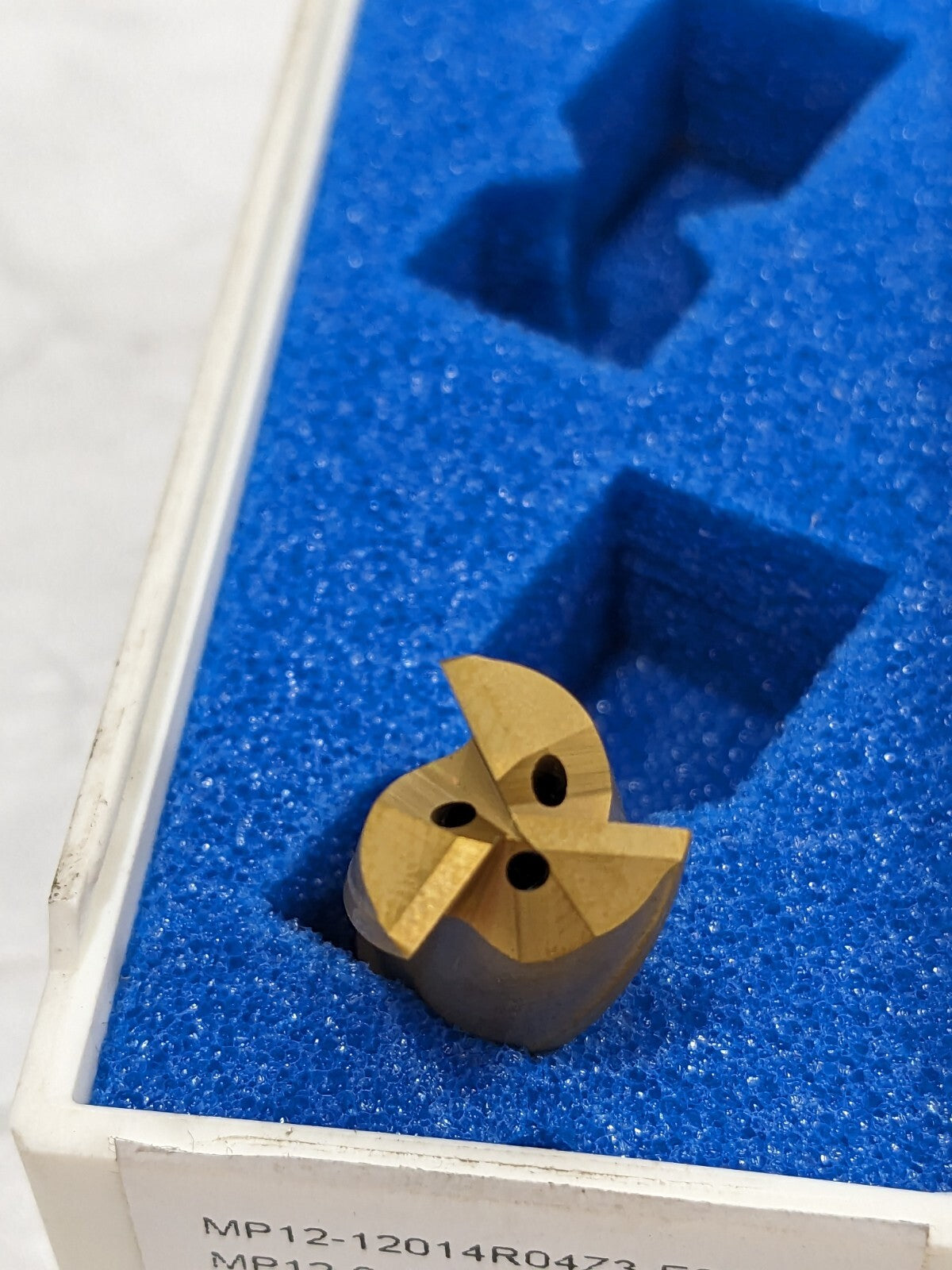

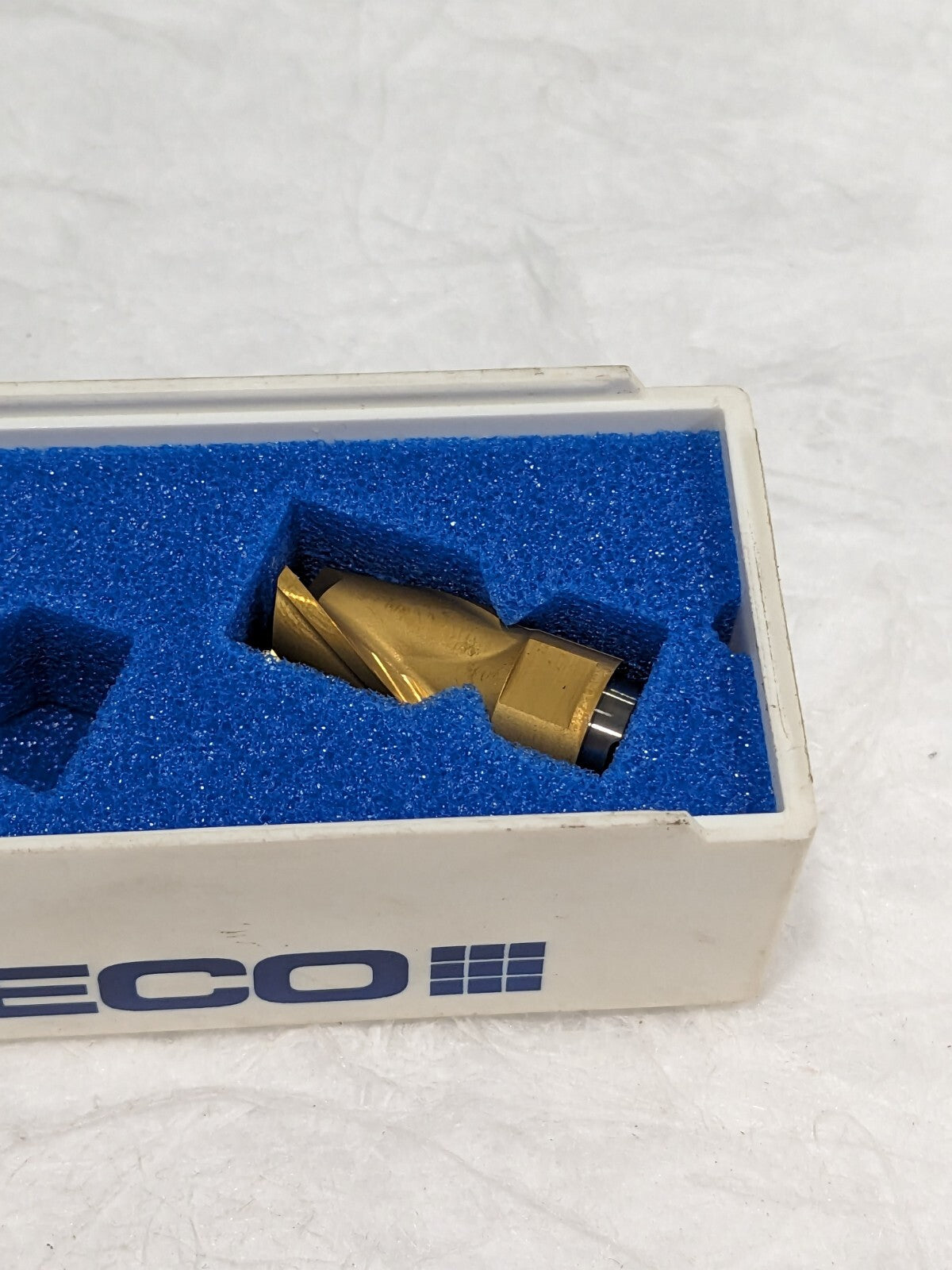

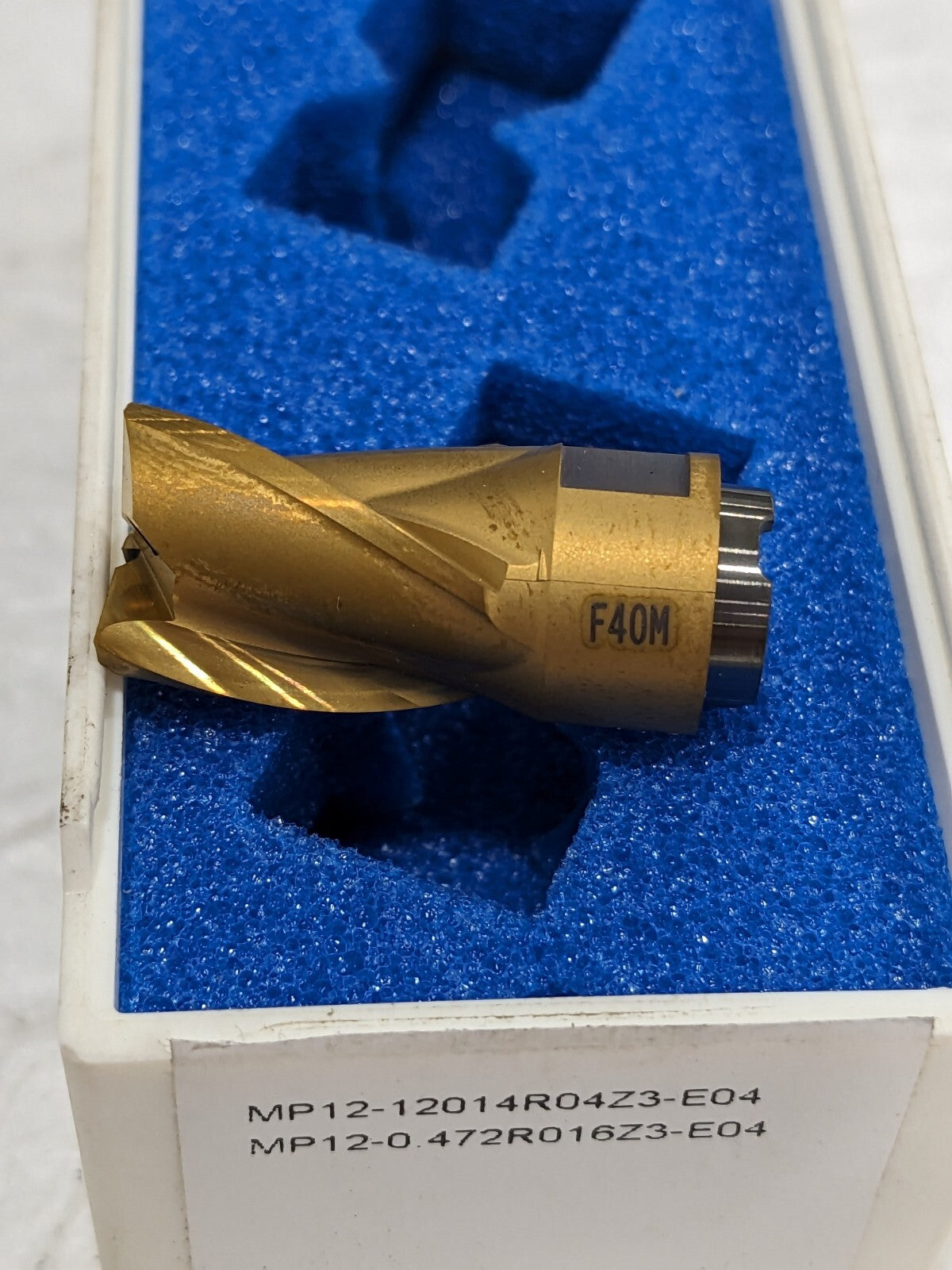

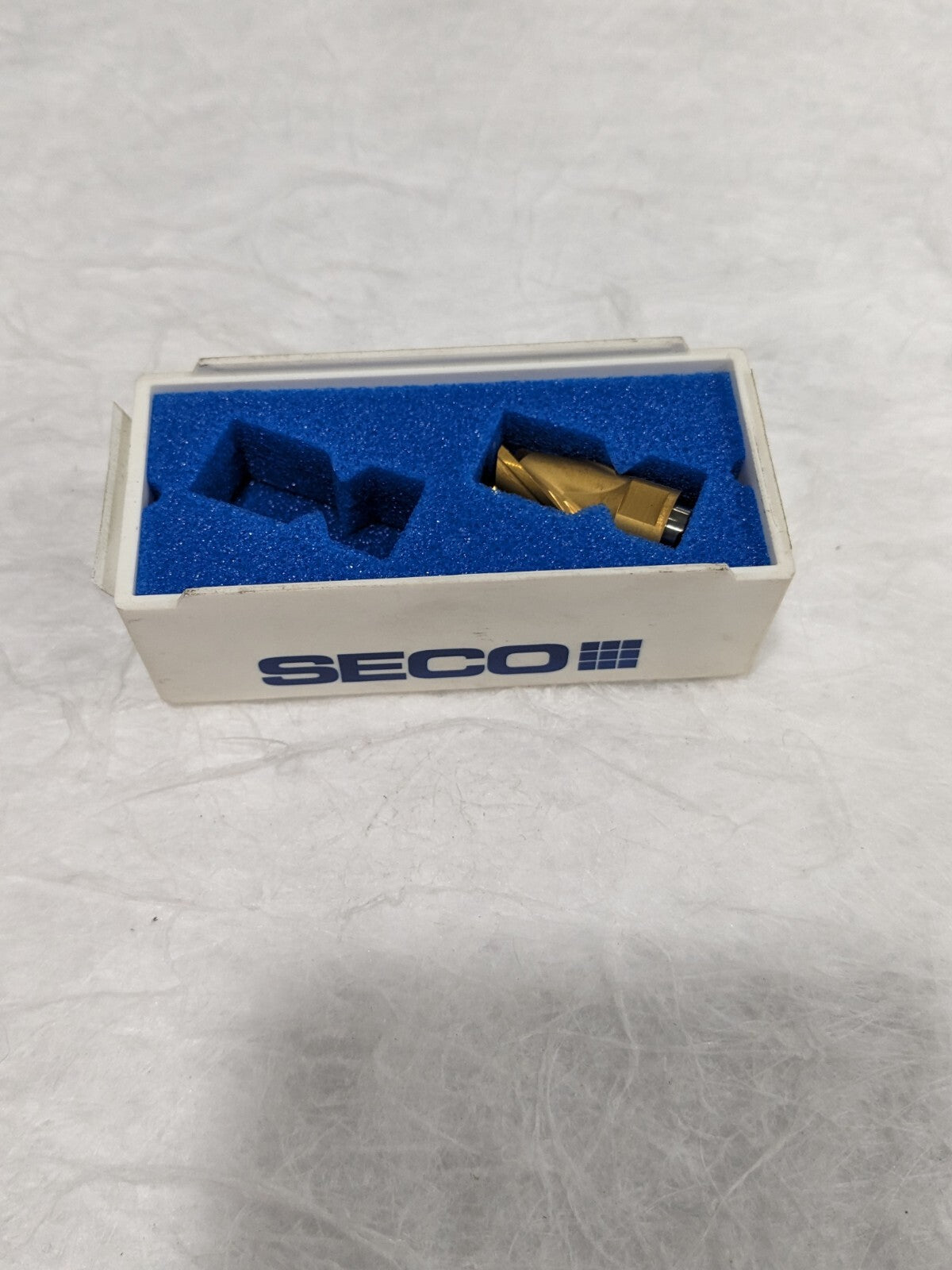

SECO Slotting Milling Tip Insert: MP12-12014R04Z3-E04 F40M, Carbide 02679139

Seco
Slotting Milling Tip

MSRP: $70.00

• Milling Tip Type Slotting
• Milling Tip Style MP12
• Maximum Depth of Cut (Decimal Inch) 0.5510
• Cutting Diameter (Decimal Inch) 0.4720
• Cutting Diameter (mm) 12.00
• Tool Material Carbide
• Manufacturer Grade F40M
• Insert Hand Right Hand
• Chipbreaker E04
• Series MP12
• Coating Process PVD
• Corner Radius (Decimal Inch) 0.0160
• Corner Radius (Inch) 1/64
• Cutting Width (Decimal Inch) 0.4728
• Functional Length (Decimal Inch) 0.9450
• Primary Workpiece Material Non-Ferrous Metal; Steel
• Primary Workpiece Material Code P; N
• Standards ANSI
• Milling Tip Full Description MP12-12014R04Z3-E04
• Extension From Holder (mm) 24.00
• Lead Angle 90
• Manufacturers Catalog Number 02679139
• Chamfer Angle 0
• Overall Length (Decimal Inch) 0.945
• Insert Size 12014R04Z3
• Helix Angle 30
• Coolant Through Yes
• Material Grade P50; P30; N10; P40; N20; P10; P20
• Included Angle Degree 90
• Coating/Finish TiN; TiAlN
• UNSPSC Code 23291601
• Length Of Cut (Decimal Inch - 4 Decimals) 0.5510
• Number Of Flutes 3

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
