SECO Slotting Milling Tip Insert 2pk: MM10-0.375-M03 T60M, Carbide

MSRP: $120

• Milling Tip Type Slotting
• Milling Tip Style MM10
• Maximum Depth of Cut (Decimal Inch) 0.2680
• Maximum Depth of Cut (mm) 6.8
• Tool Material Carbide
• Manufacturer Grade T60M
• Insert Hand Right Hand
• Chipbreaker M03
• Series MM10
• Coating Process PVD
• Corner Radius (Decimal Inch) 0.0000
• Cutting Width (Decimal Inch) 0.375
• Functional Length (mm) 8.50
• Functional Length (Decimal Inch) 0.3350
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Standards ANSI
• Milling Tip Full Description MM10-0.375-M03
• Lead Angle 90
• Manufacturers Catalog Number 74034266
• Chamfer Angle 0
• Overall Length (Decimal Inch) 0.335
• Insert Size 0.375
• Helix Angle 0
• Coolant Through No
• Material Grade C5
• Included Angle Degree 90
• Coating/Finish TiAlN
• UNSPSC Code 23291601
• Length Of Cut (Decimal Inch - 4 Decimals) 0.2680
• Number Of Flutes 2
• Extension From Holder (Inch) 0.3350

(Description).

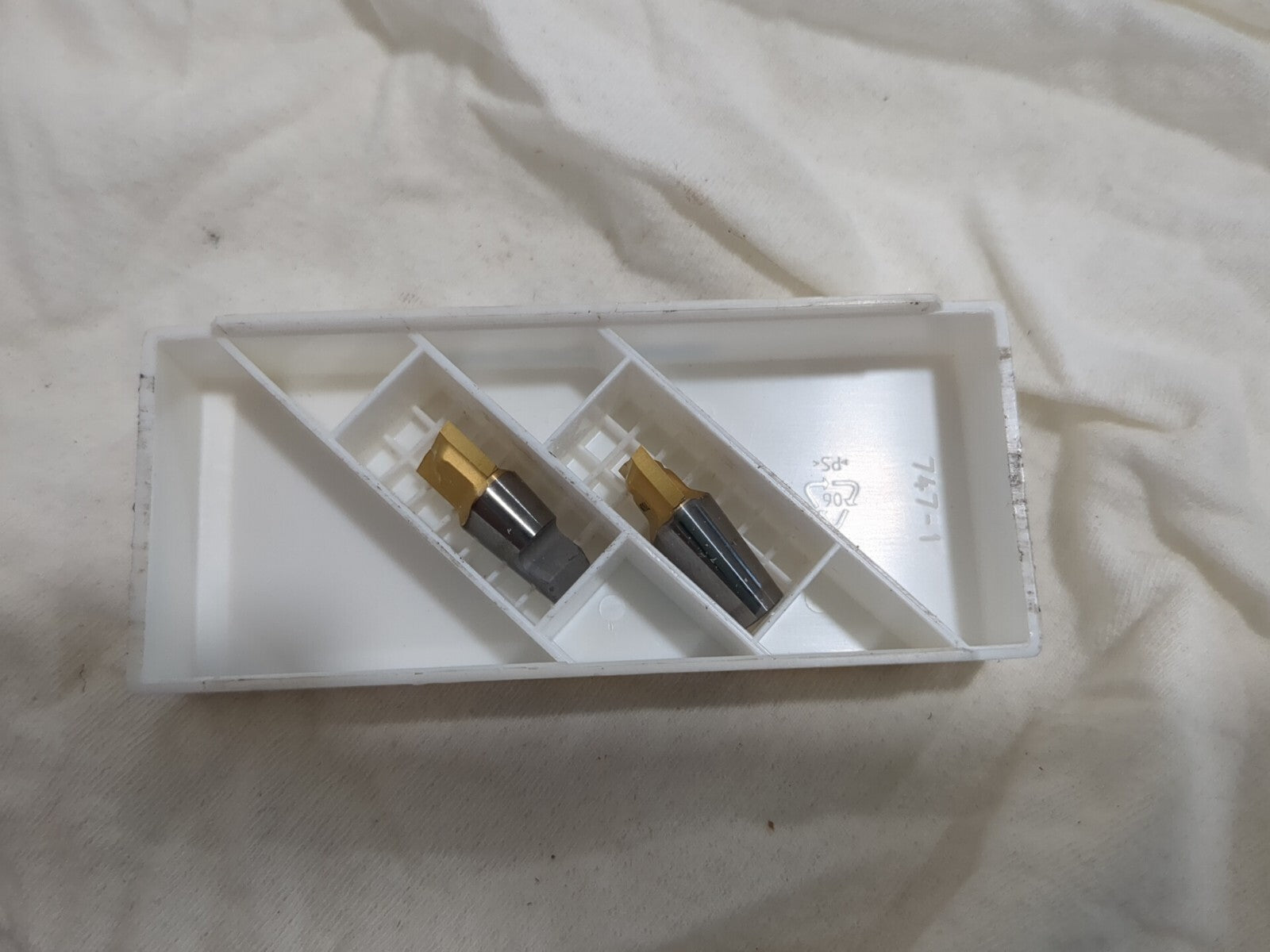

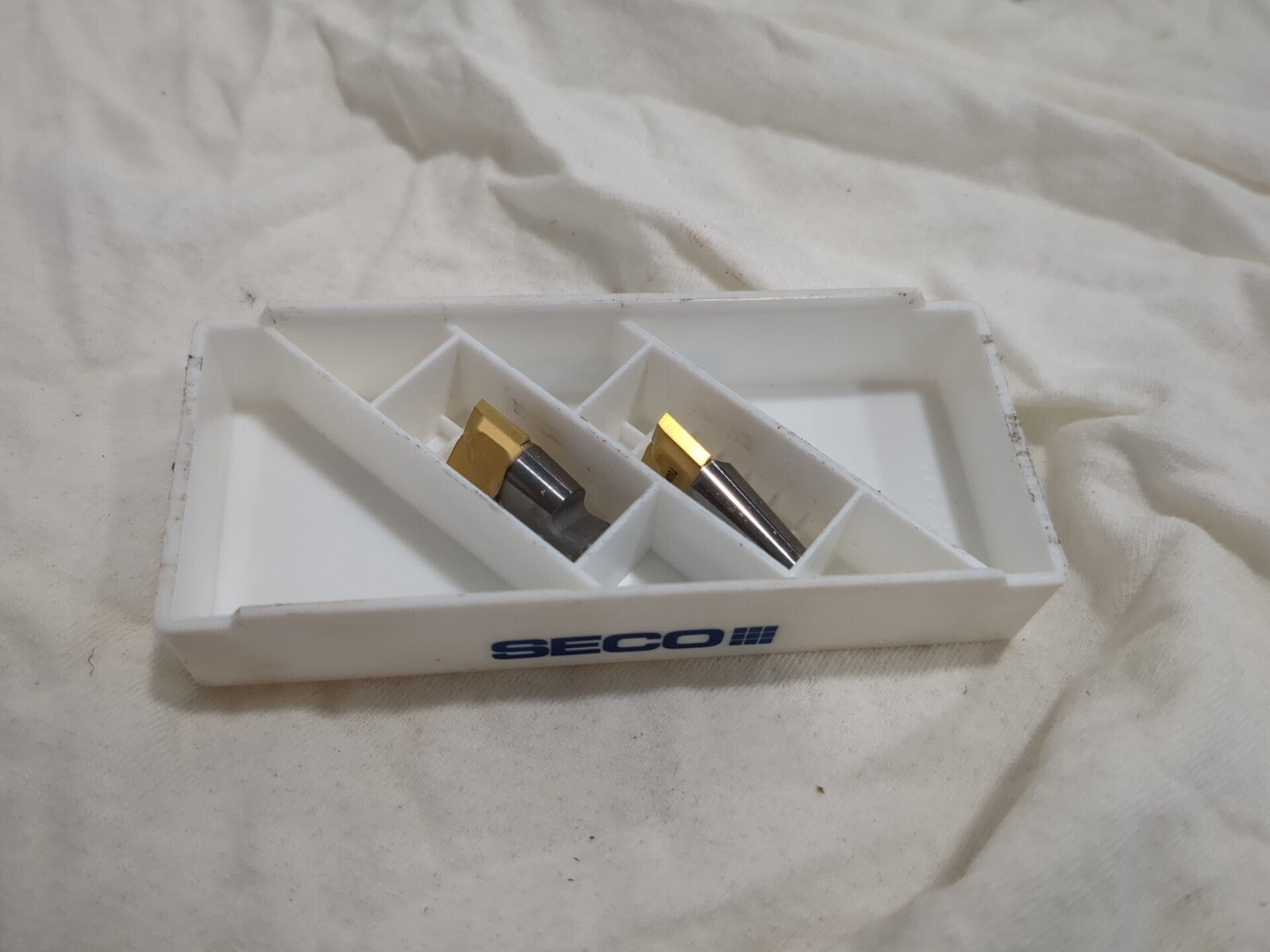

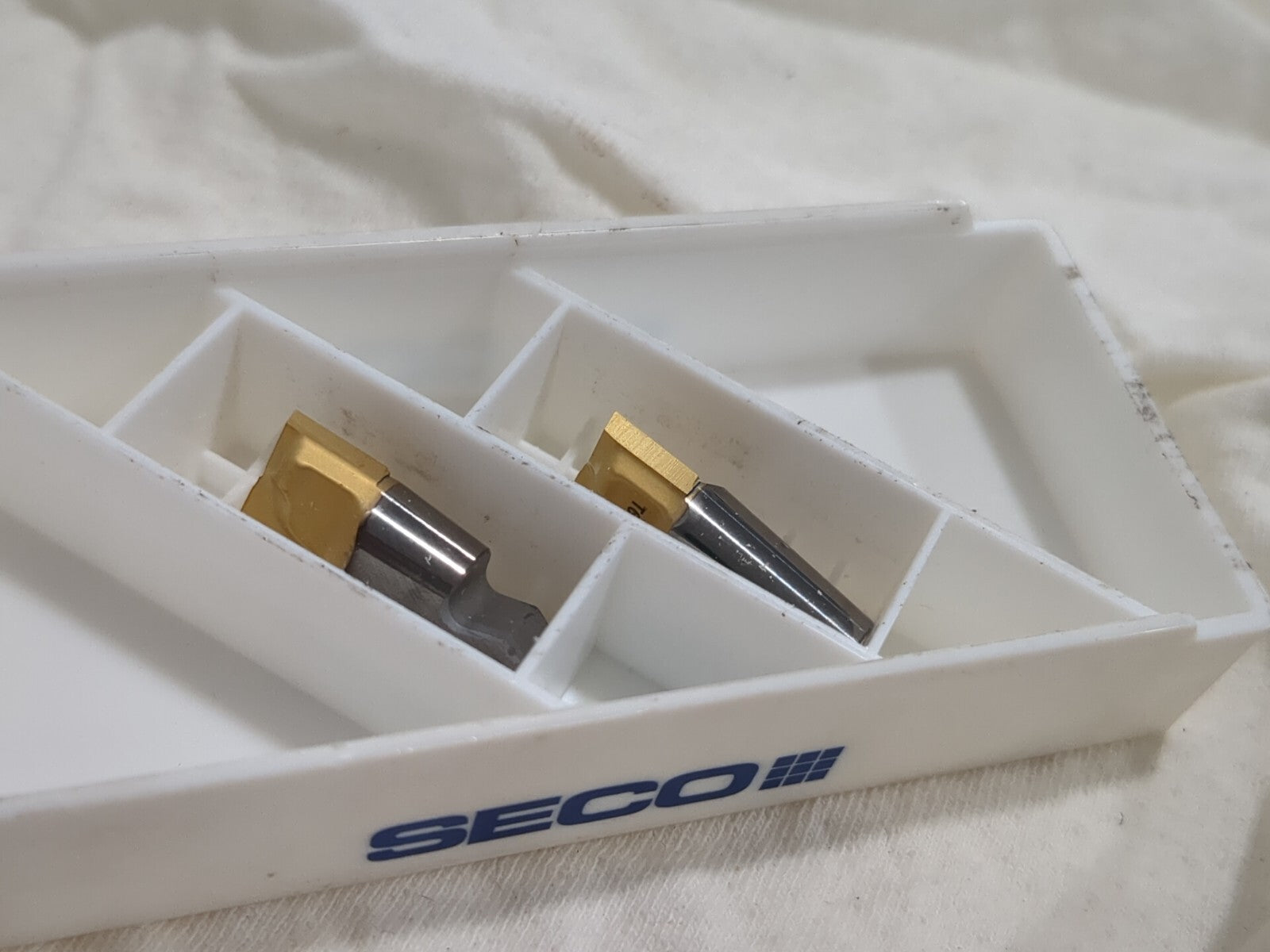

Please review photos, comes as shown.
