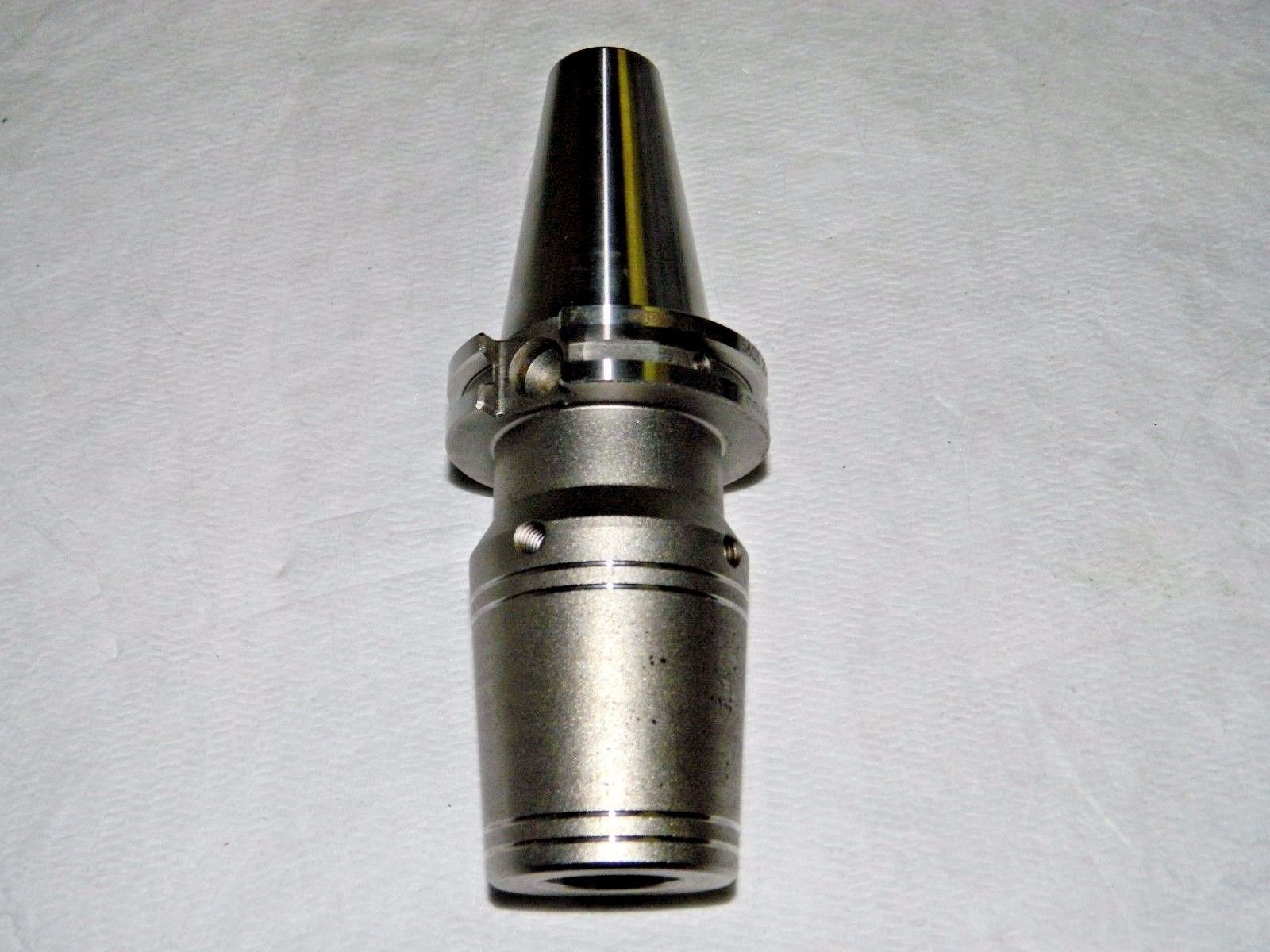

Seco Shrink Fit Tool Holder & Adapter CAT40 Taper 63/64" Hole Diam #66565

Seco Shrink Fit Tool Holder & Adapter CAT40 Taper 63/64" Hole Diam #66565

Seco

Model:  66565

Specs:

Shank Type: Taper Shank
Taper Size: CAT40
Hole Diameter (Decimal Inch): 0.9843
Hole Diameter (mm): 25.00
Projection (Decimal Inch): 4.0000
Nose Diameter (Decimal Inch): 1.7320
Through Coolant: Through Coolant
Clamping Depth (Decimal Inch): 1.7320
Overall Length (Decimal Inch): 6.6930
Balanced to (RPM): 32000
