SECO RH DDJN Negative Rake Indexable Turning Toolholder 02565500

SECO

RH DDJN Negative Rake Indexable Turning Toolholder 02565500

MSRP: $150

• Cutting Direction Right Hand
• Hand of Holder Right Hand
• Compatible Insert Size Code DN43/DN44
• Toolholder Style DDJN
• Rake Negative
• Rake Angle -6
• Multi-use Tool No
• Lead Angle 93.0
• Insert Holding Method Clamp
• Shank Width (Decimal Inch) 1.2500
• Shank Width (Inch) 1-1/4
• Insert Compatibility DN..43.
• Shank Height (Decimal Inch) 1.2500
• Shank Height (Inch) 1-1/4
• Series Clamp Lock
• Overall Length (Decimal Inch) 6.0000
• Overall Length (Inch) 6
• Cutting Tool Application Turning
• Head Length (Decimal Inch) 1.6500
• Back of Bar to Cutting Edge (Decimal Inch) 1.5000
• Primary Workpiece Material Universal
• Primary Workpiece Material Code H; K; M; N; P; S
• Insert Inscribed Circle (Decimal Inch) 0.5000
• Insert Inscribed Circle (Inch) 1/2
• Toolholder Material Steel
• Complete Insert Compatibility DN.. 43..; DNGA; DNGM; DNGP; DNMA; DNMG; DNMP; DNMX
• Coolant Through No

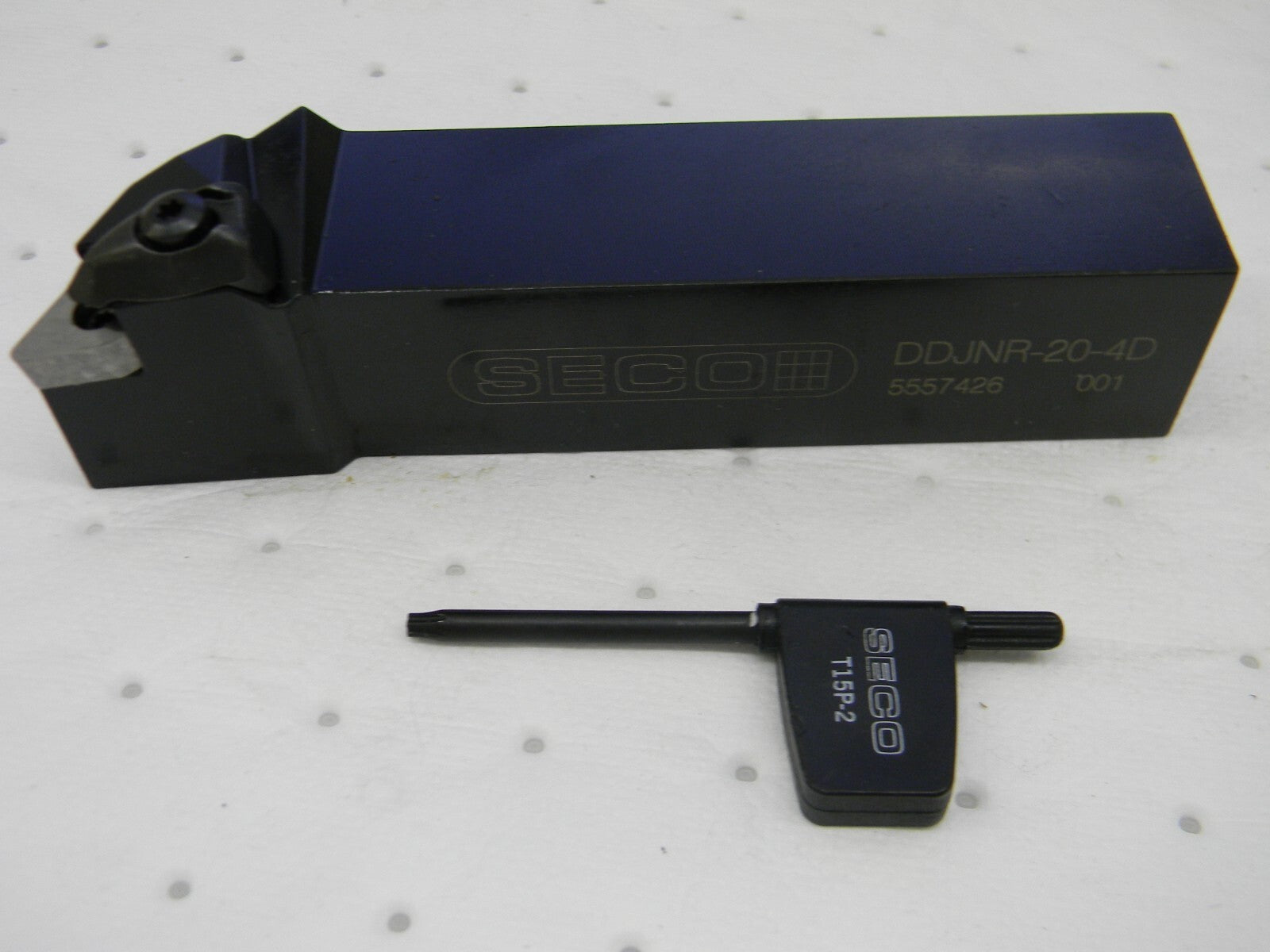

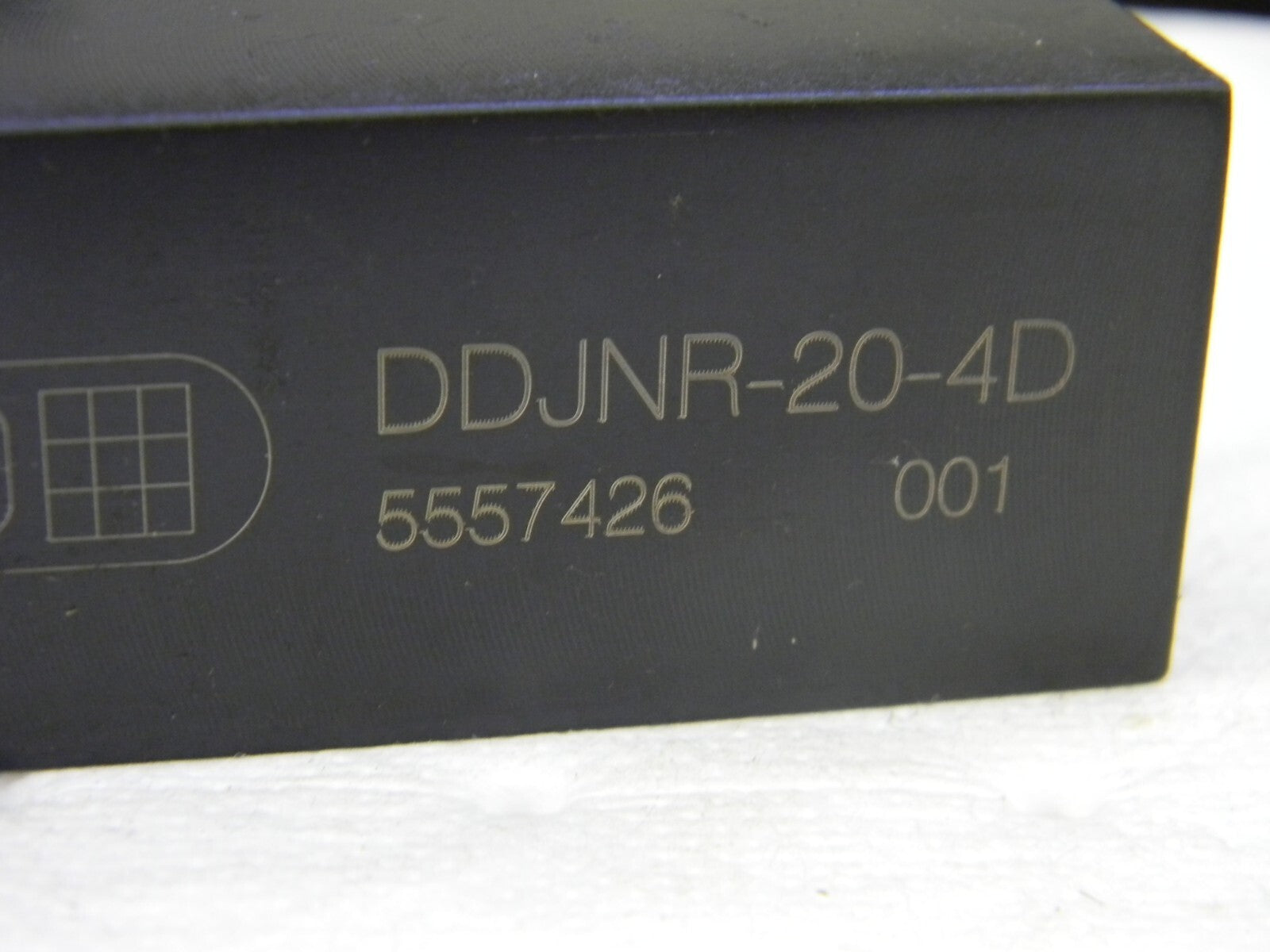

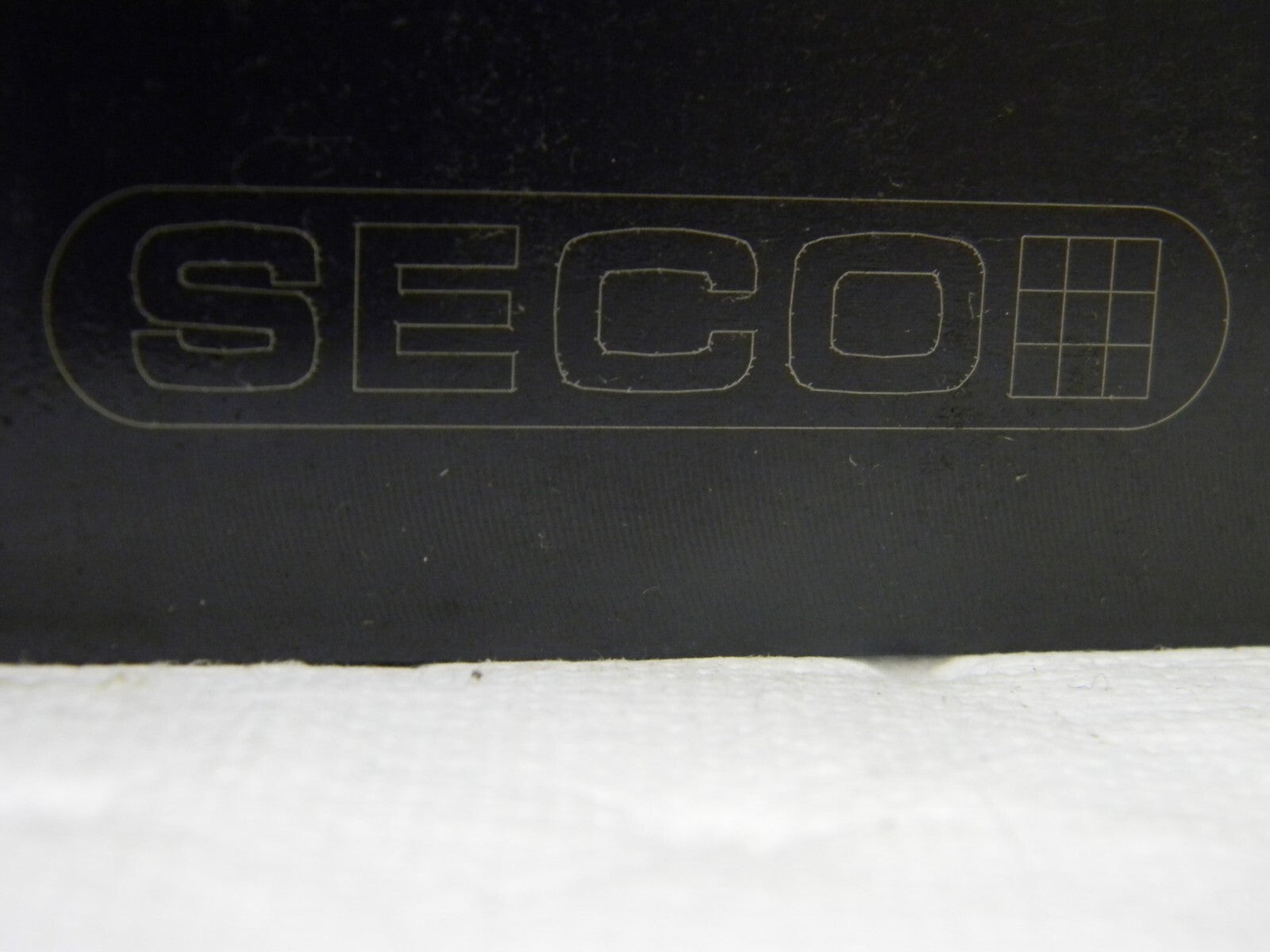

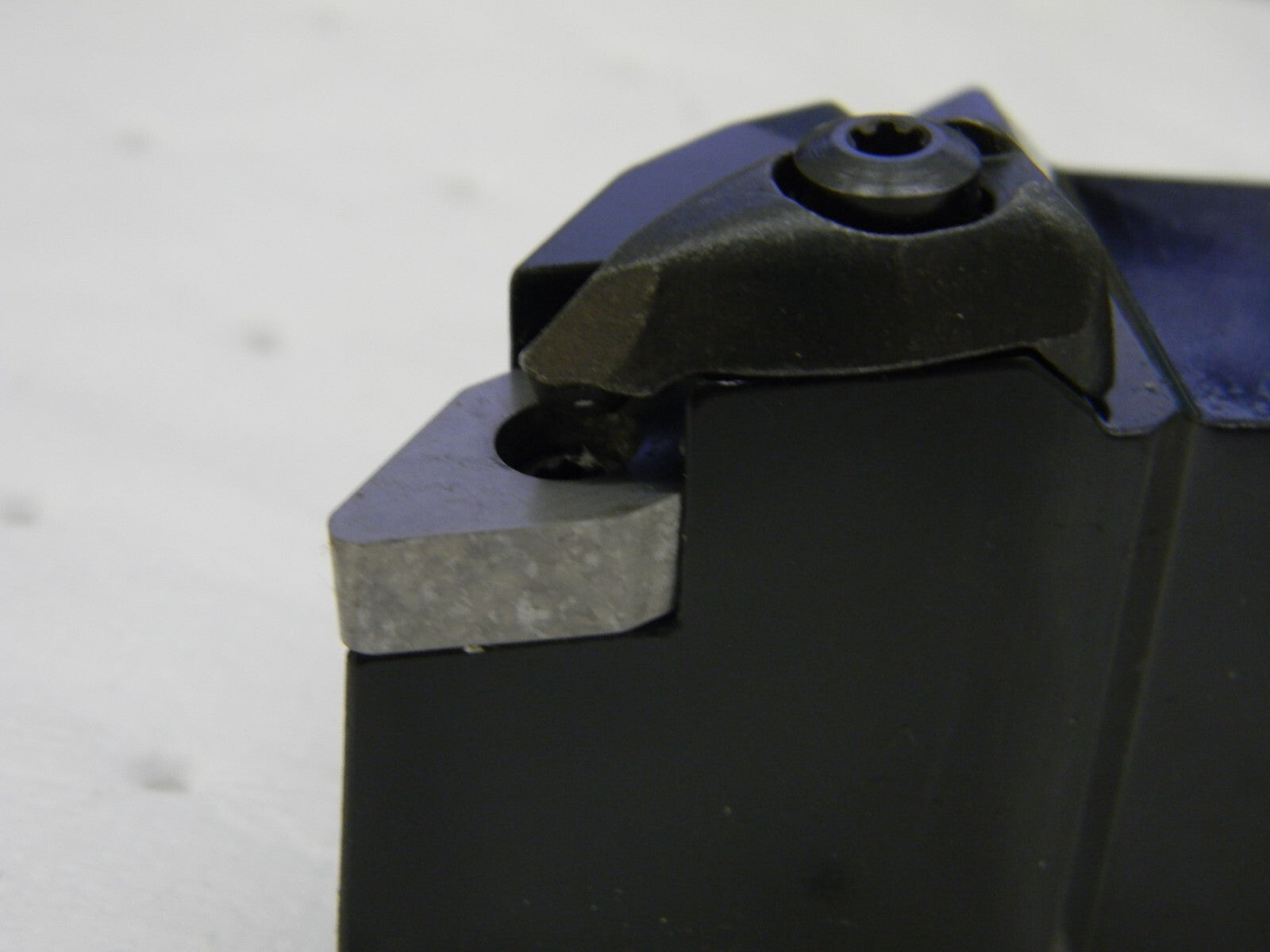

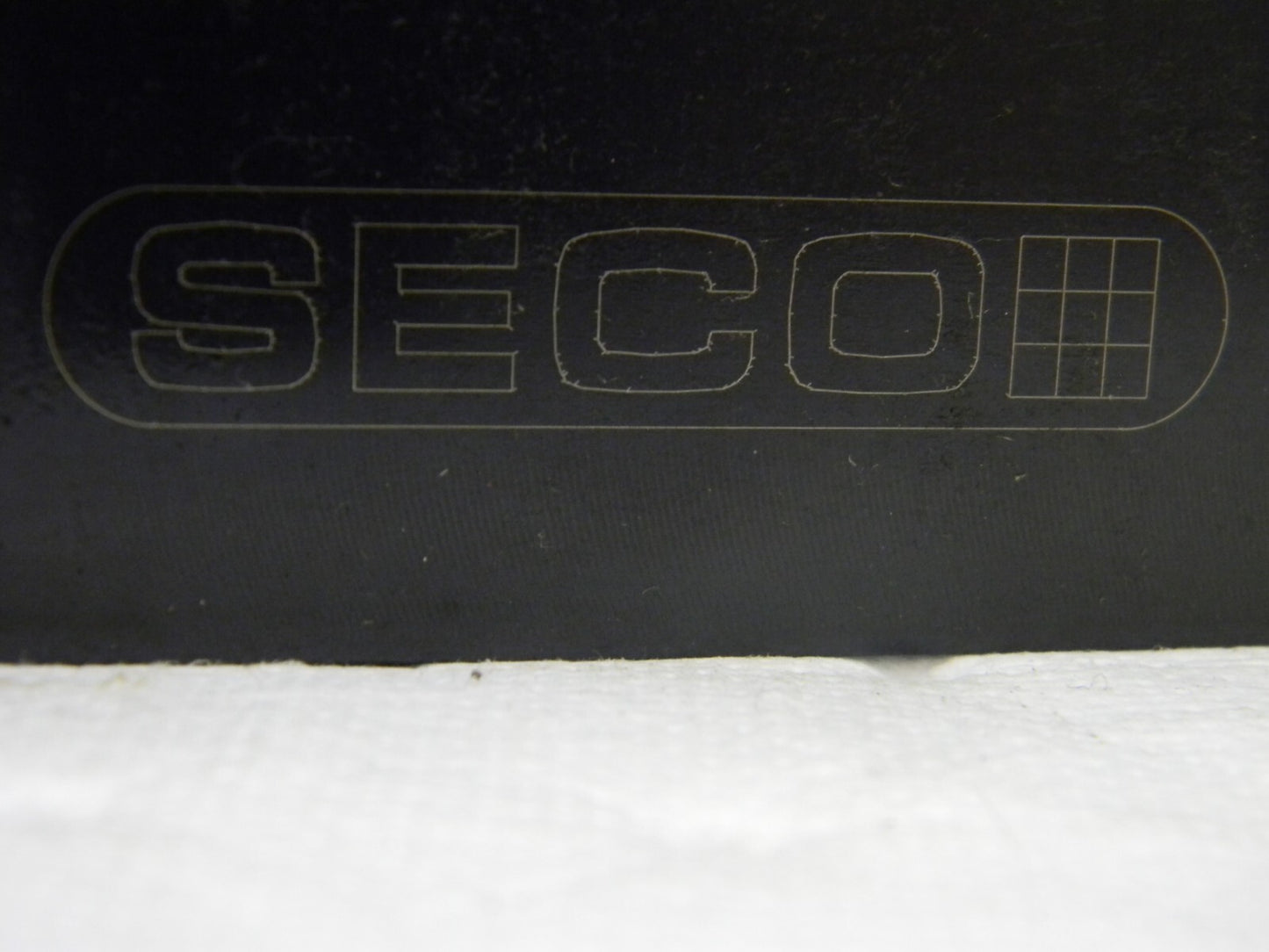

 Please review photos, comes as shown.
