SECO RH A-F 0° Neutral Rake Indexable Turning Toolholder 00089091

SECO

RH A-F 0° Neutral Rake Indexable Turning Toolholder 00089091

MSRP: $330

• Hand of Holder Right Hand
• Toolholder Style A-F
• Rake Neutral
• Rake Angle 0
• Multi-use Tool No
• Insert Holding Method Screw
• Shank Width (Decimal Inch) 1.5748
• Insert Compatibility LC..13..
• Shank Width (mm) 40.00
• Shank Height (Decimal Inch) 1.4567
• Shank Height (mm) 37.00
• Series Multi-Directional Turning (MDT)
• Overall Length (mm) 301.07
• Overall Length (Decimal Inch) 11.8530
• Head Length (Decimal Inch) 1.7720
• Head Length (mm) 45.01
• Center to Cutting Edge (Decimal Inch) 0.4570
• Toolholder Material Steel
• Coolant Through Yes

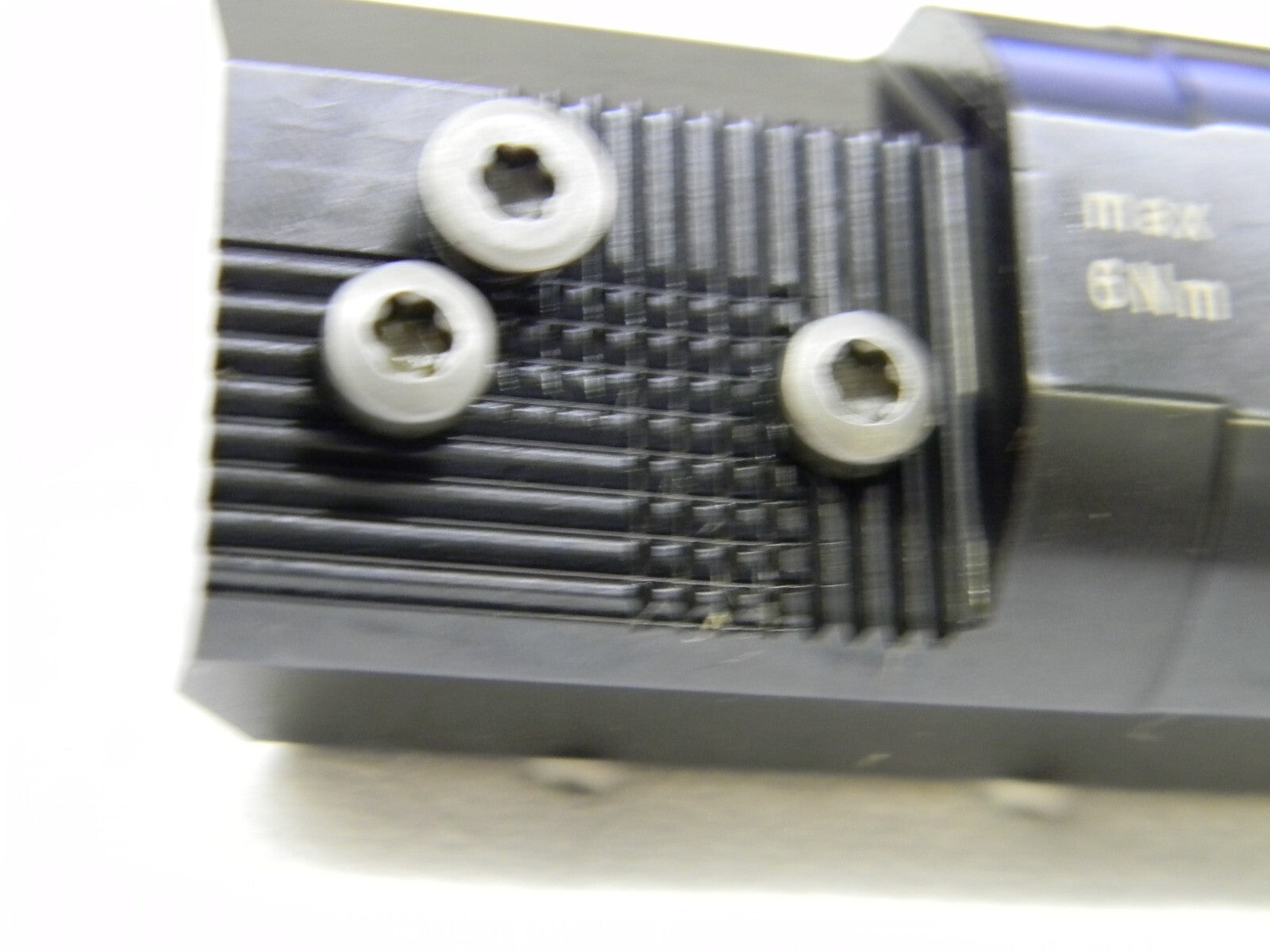

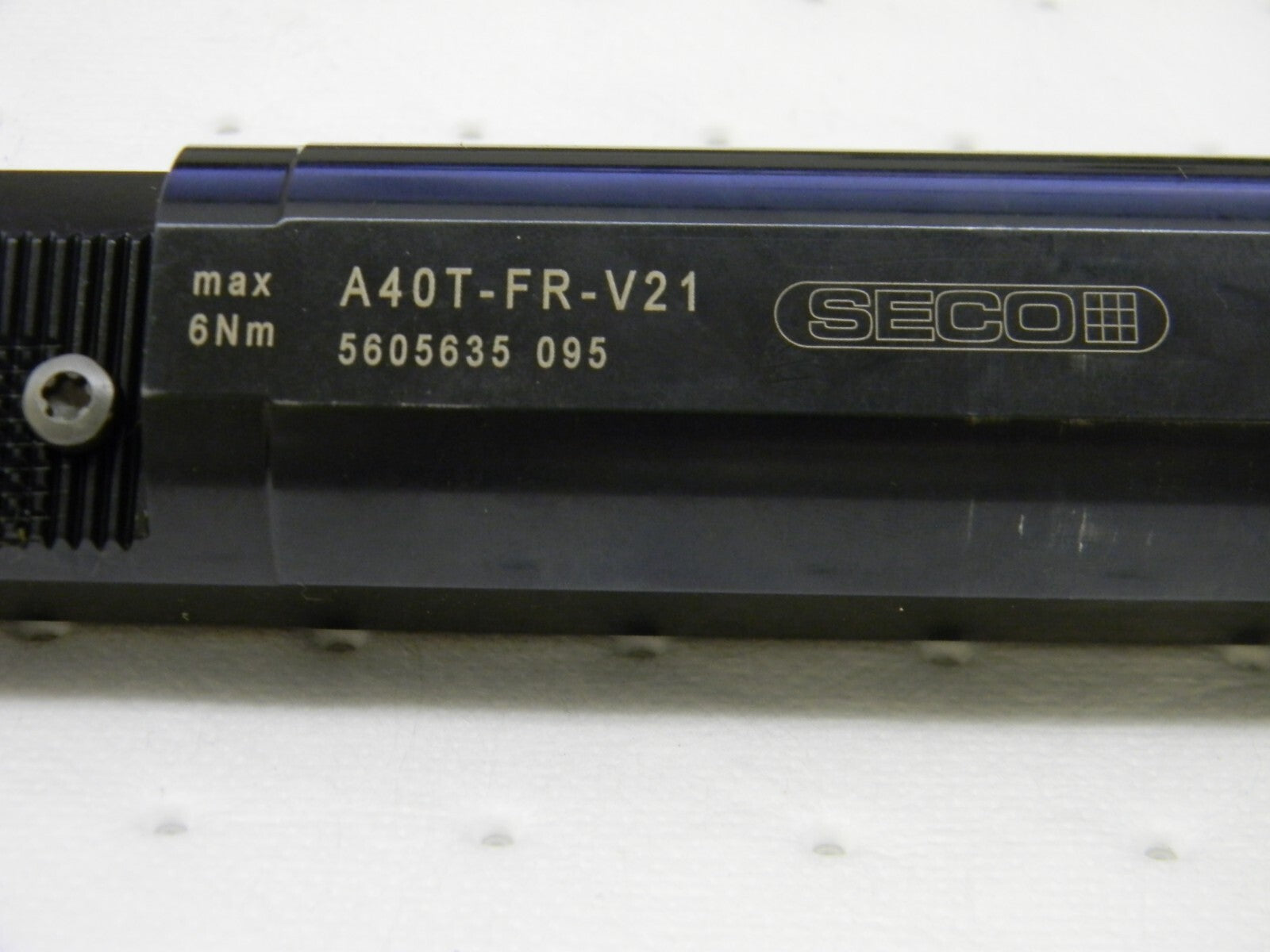

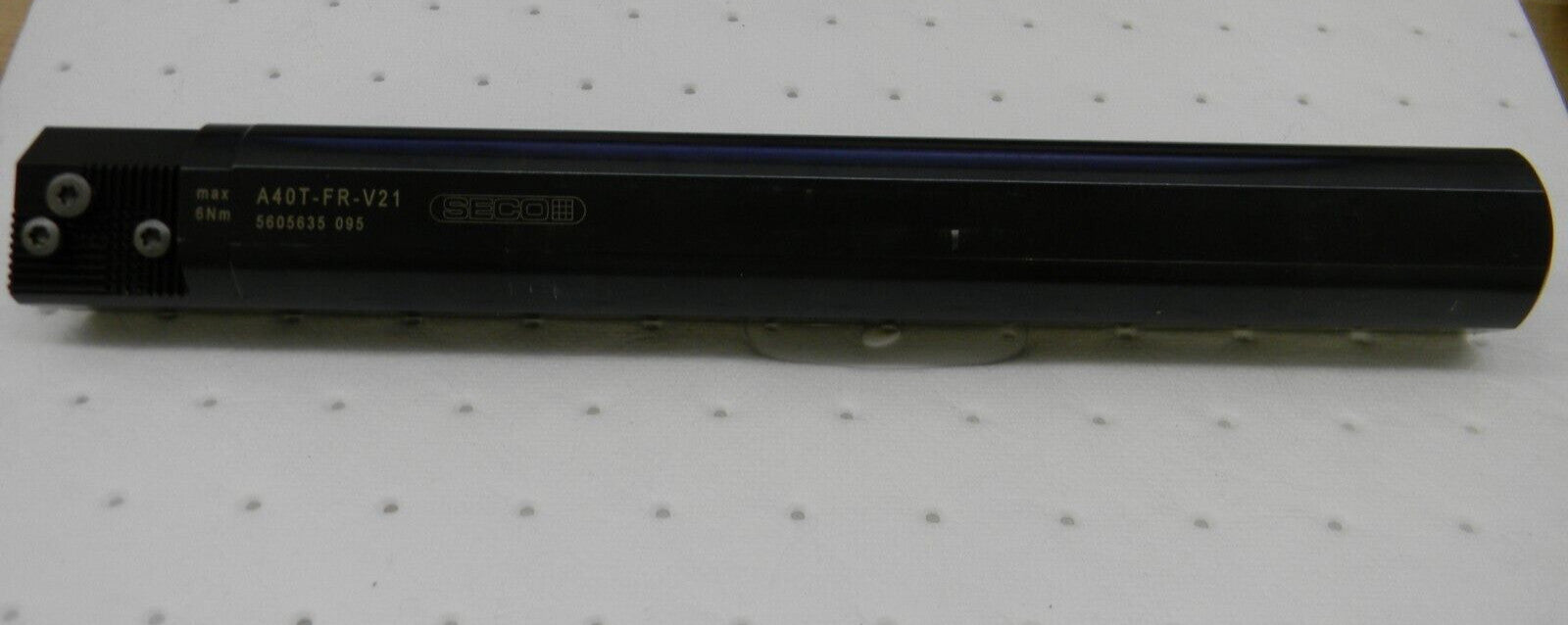

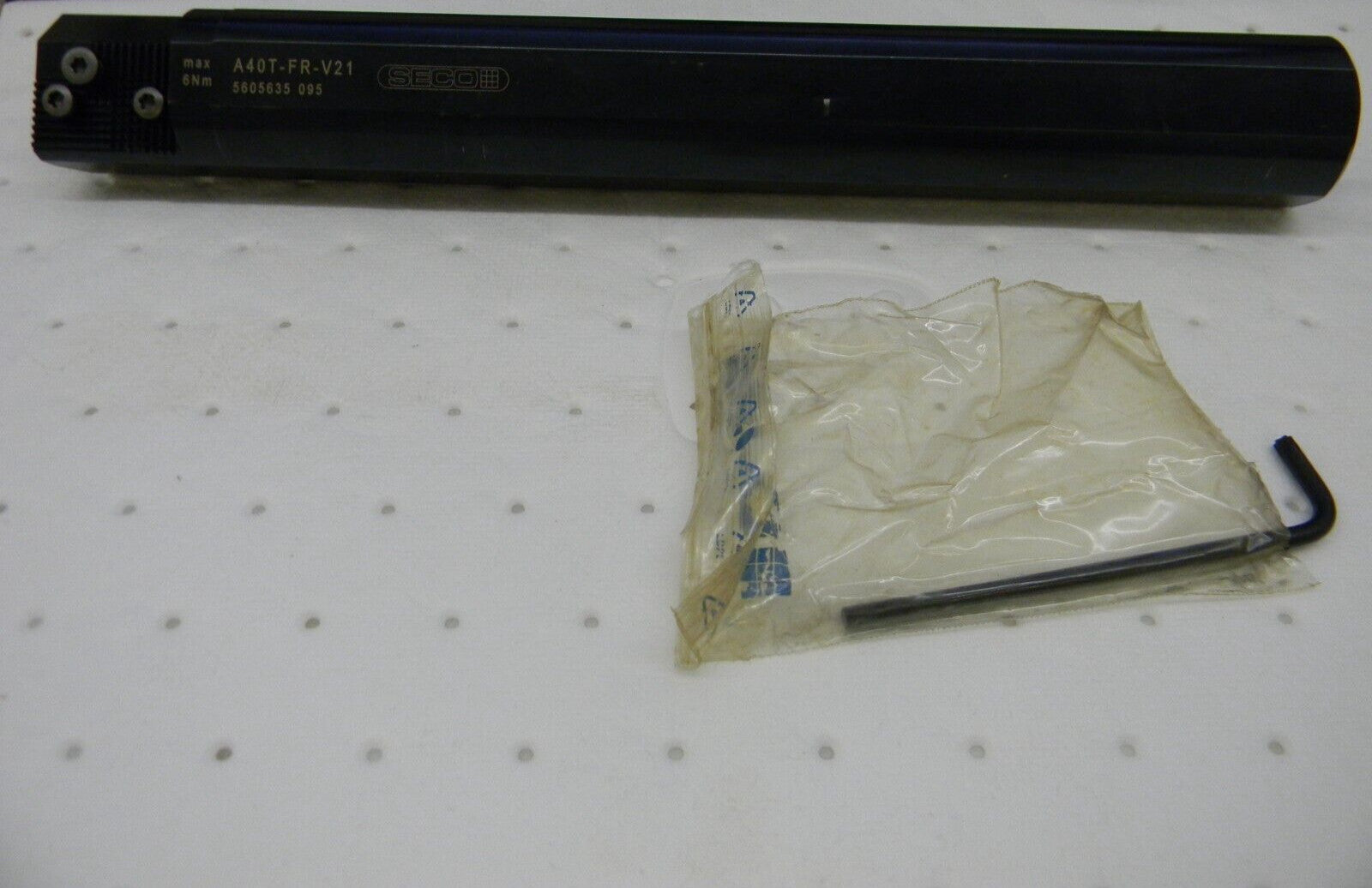

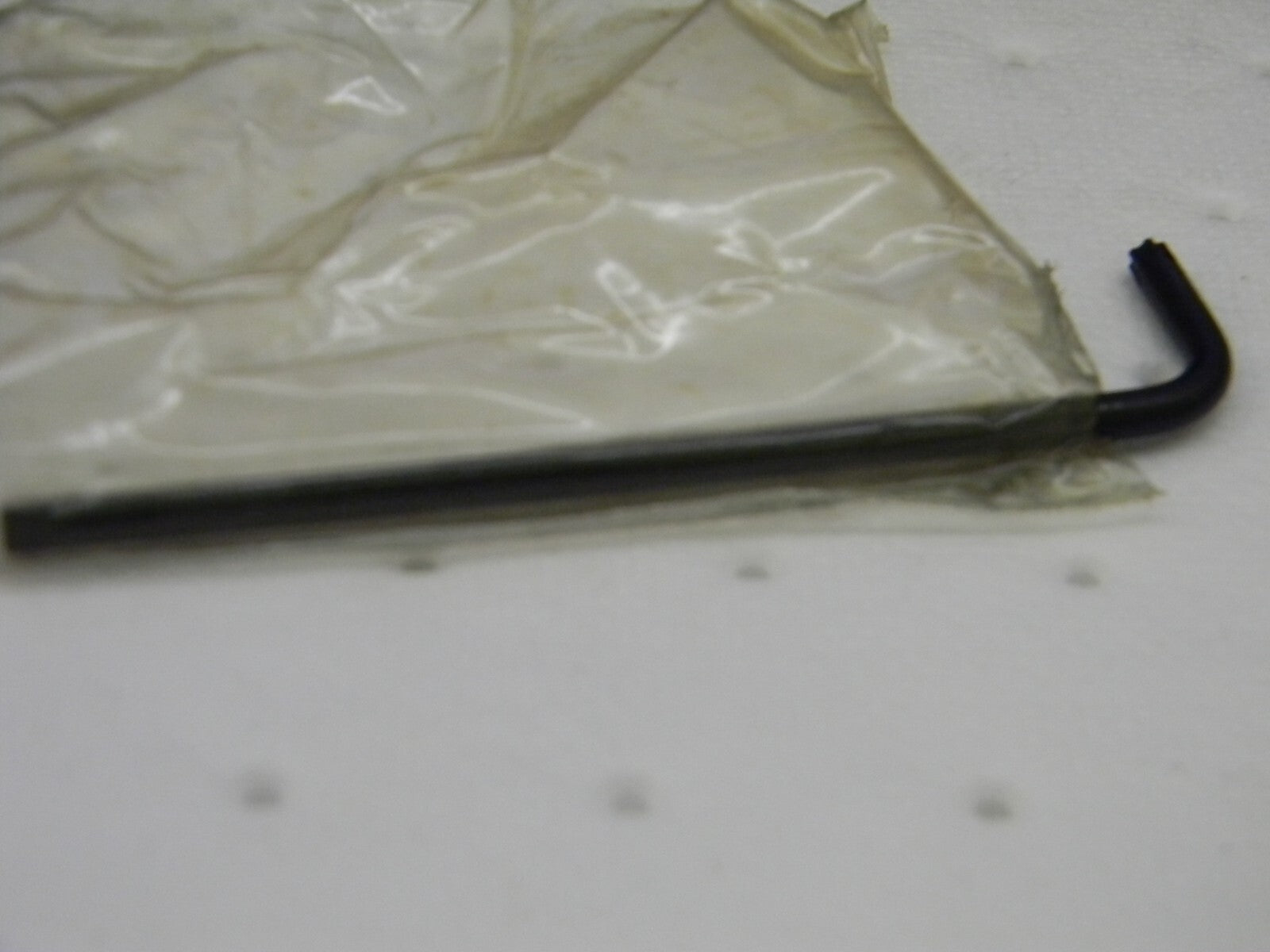

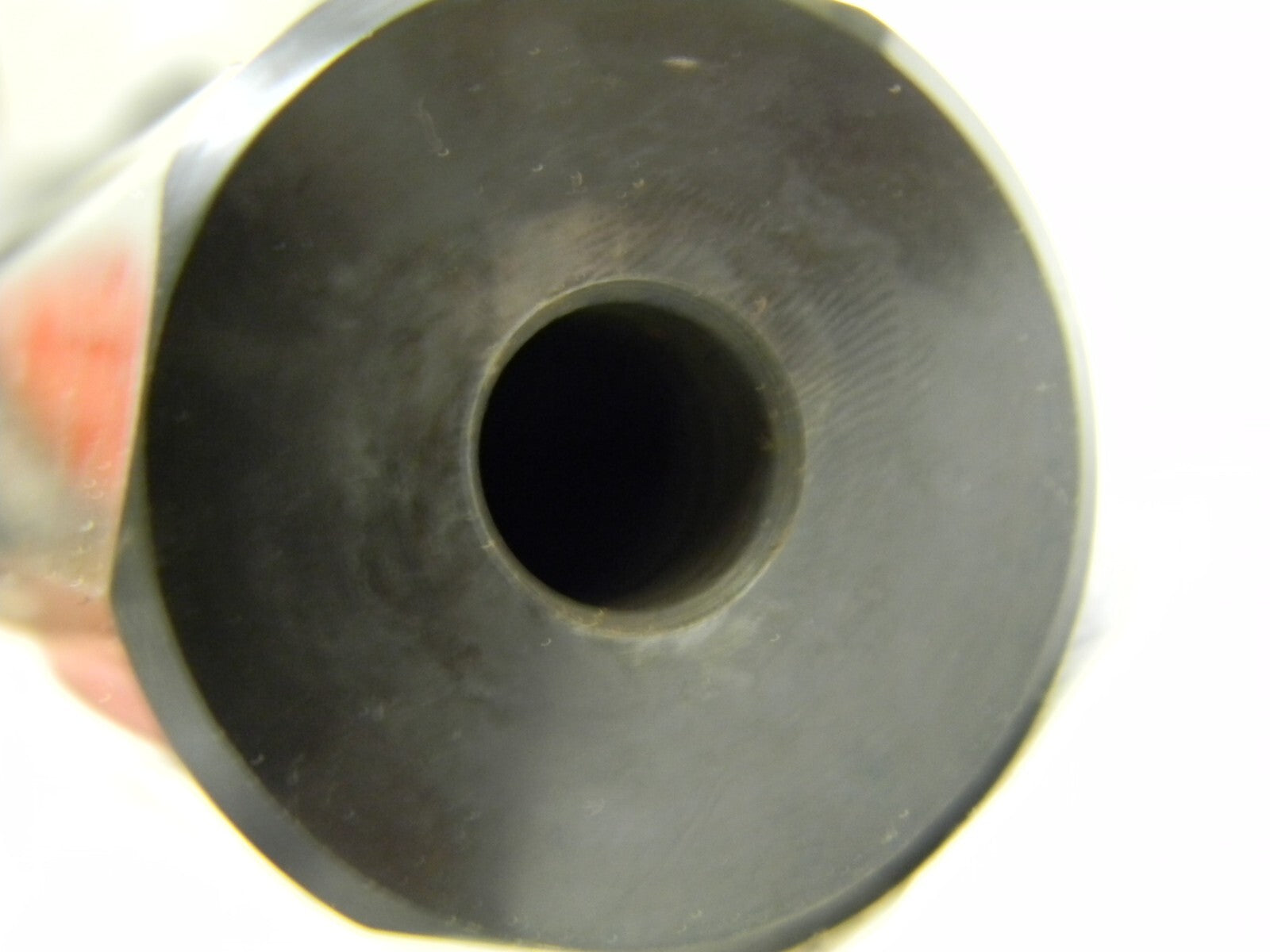

 Please review photos, comes as shown.
