SECO Replaceable-Tip Drill: 13 to 13.99 mm Dia 4.406" OAL 02622944

SECO Replaceable-Tip Drill: 13 to 13.99 mm Dia 4.406" OAL 02622944

MSRP: $280

• Minimum Drill Diameter (Decimal Inch) 0.5118
• Minimum Drill Diameter (mm) 13.00
• Maximum Drill Diameter (mm) 13.99
• Maximum Drill Diameter (Decimal Inch) 0.5508
• Drill Depth by Diameter Ratio 3xD
• Maximum Drill Depth (mm) 42.00
• Maximum Drill Depth (Decimal Inch) 1.6535
• Shank Type Weldon Flat
• Shank Diameter (Inch) 5/8
• Shank Diameter (Decimal Inch) 0.6250
• Maximum Drill Depth Range (Decimal Inch) 1.5000 to 2.5000
• Maximum Drill Depth Range (mm) 40.00 to 60.00
• Overall Length (Decimal Inch) 4.406
• Series Crownloc Plus
• Toolholder Style SD403
• Flute Length (Decimal Inch) 2.0040
• Body Length (Decimal Inch) 2.516
• Shank Length (Decimal Inch) 1.8900
• Tool Application Holemaking
• Standards ISO 9766
• Coolant Through Yes
• UNSPSC Code 23291502

(Description).

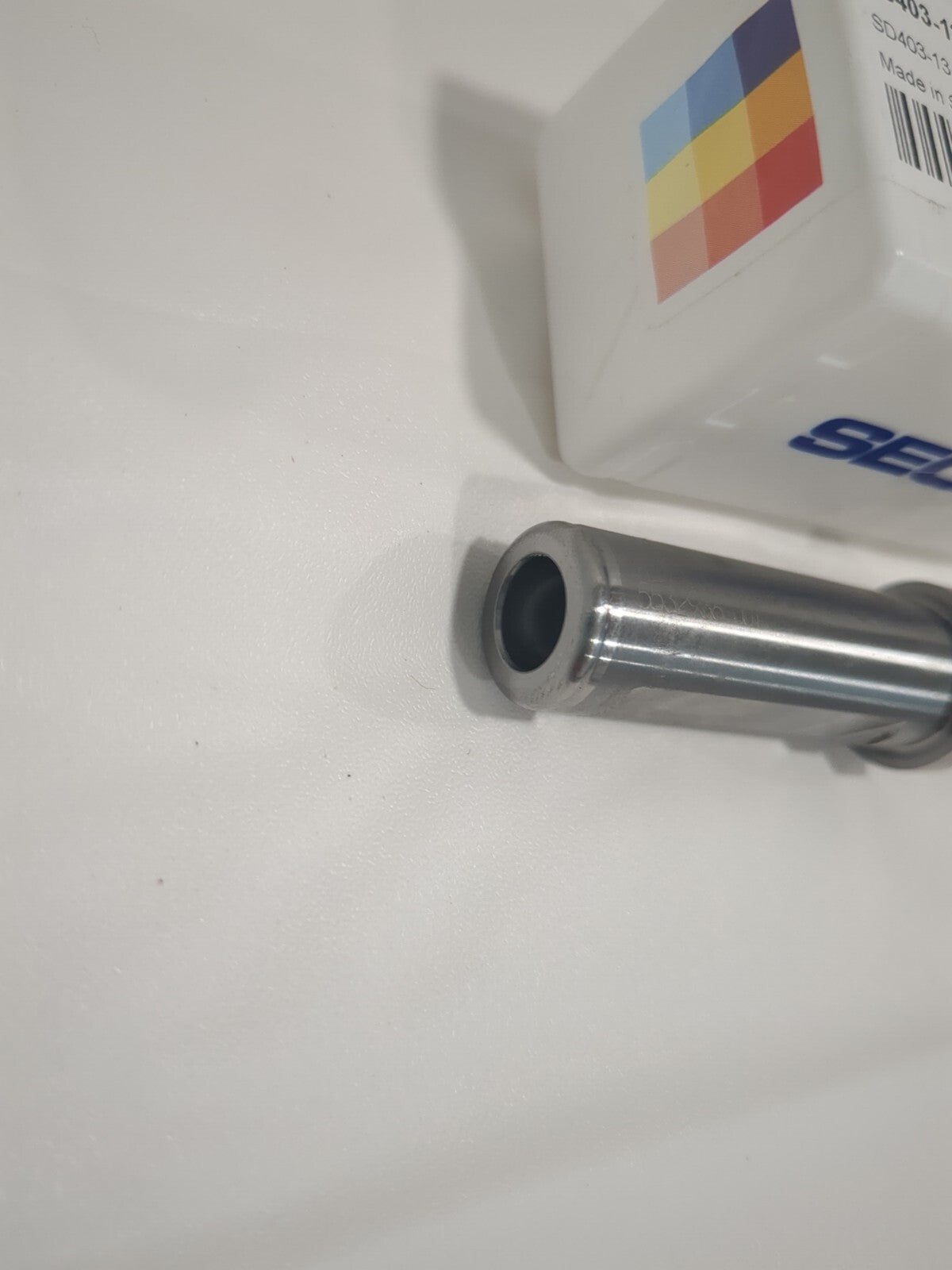

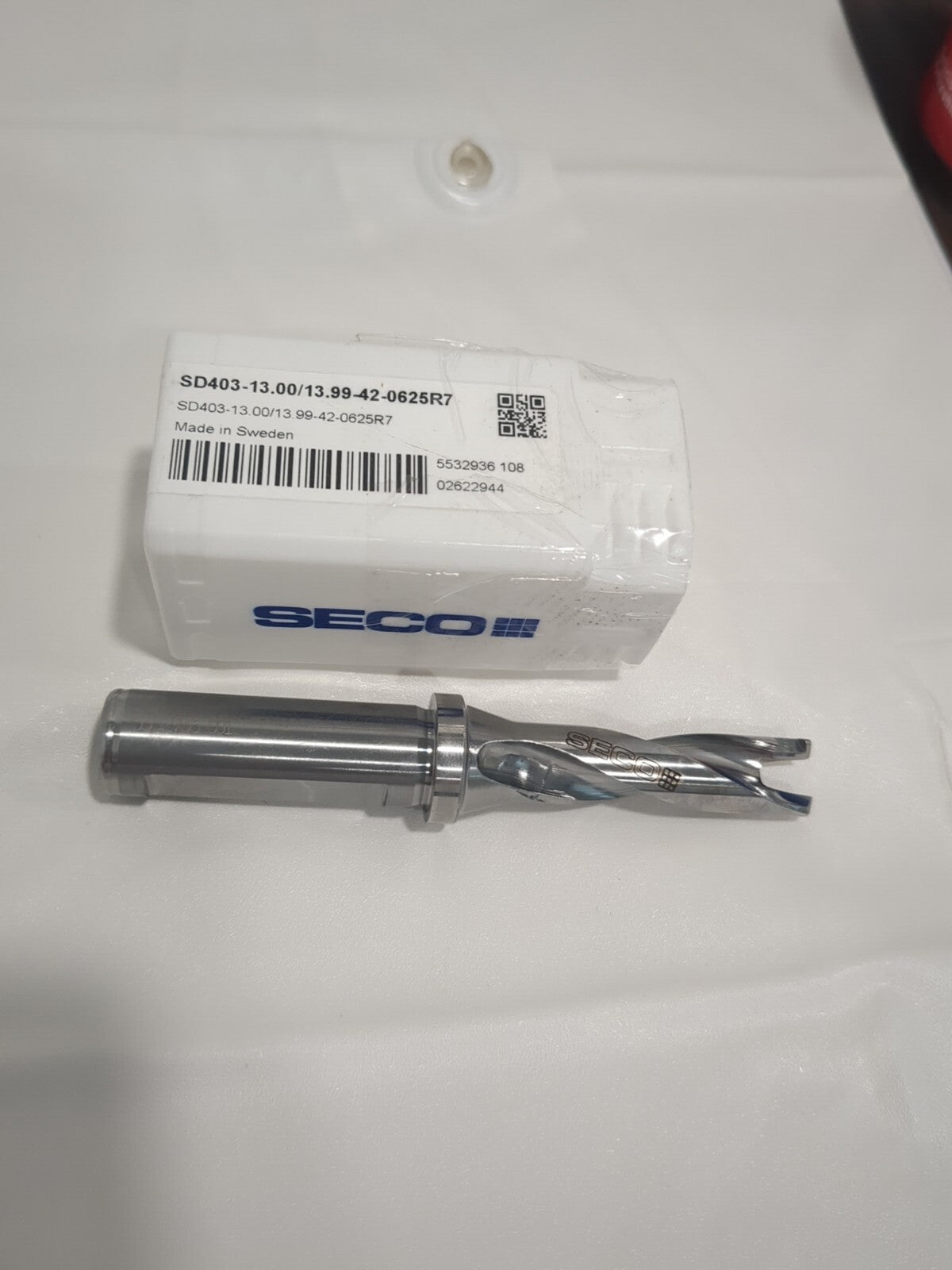

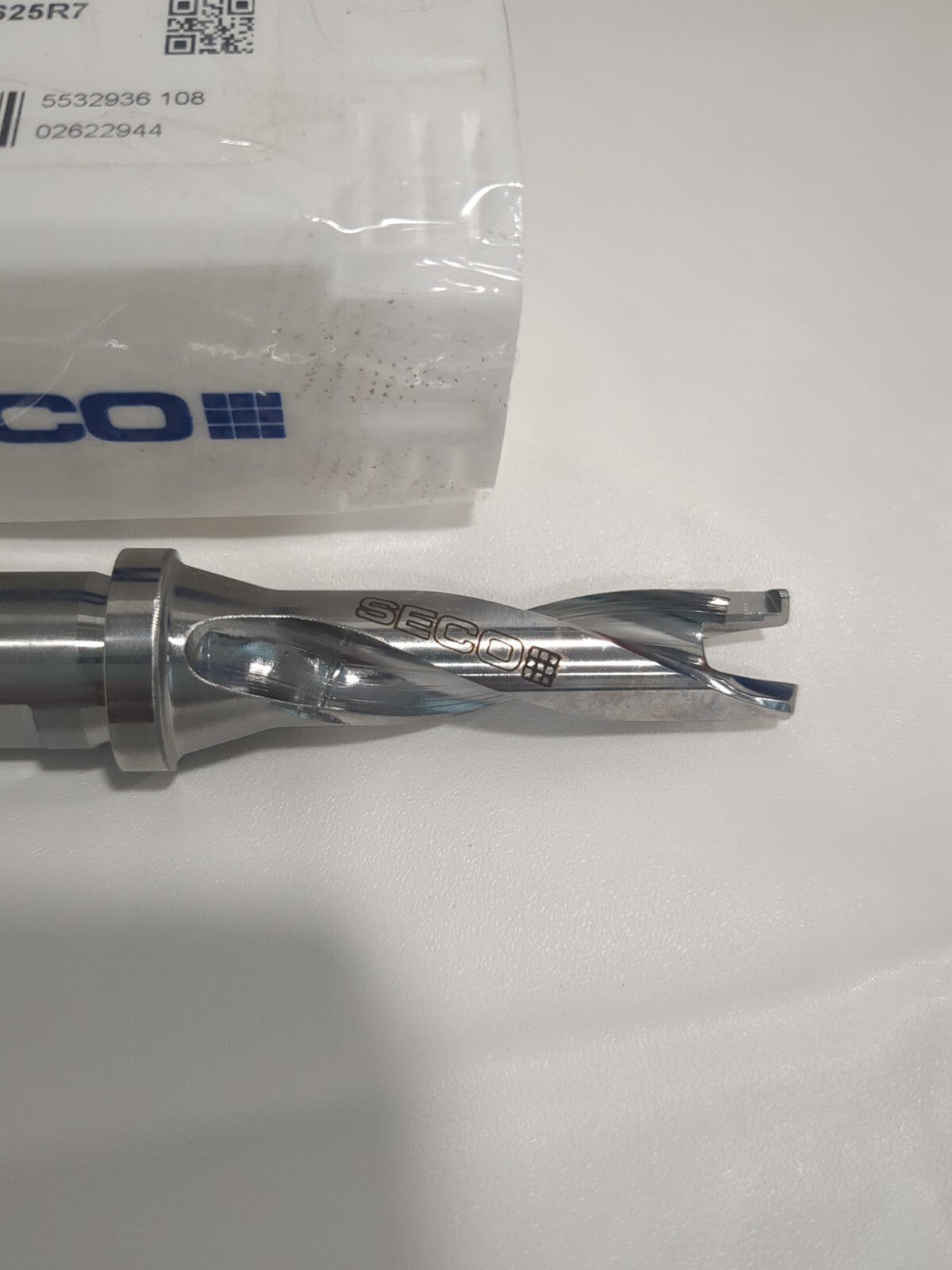

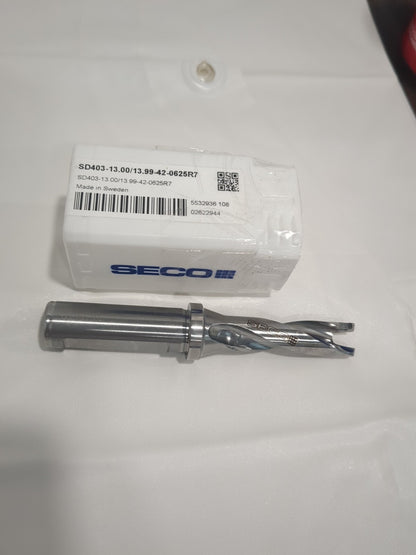

Please review photos, comes as shown.
