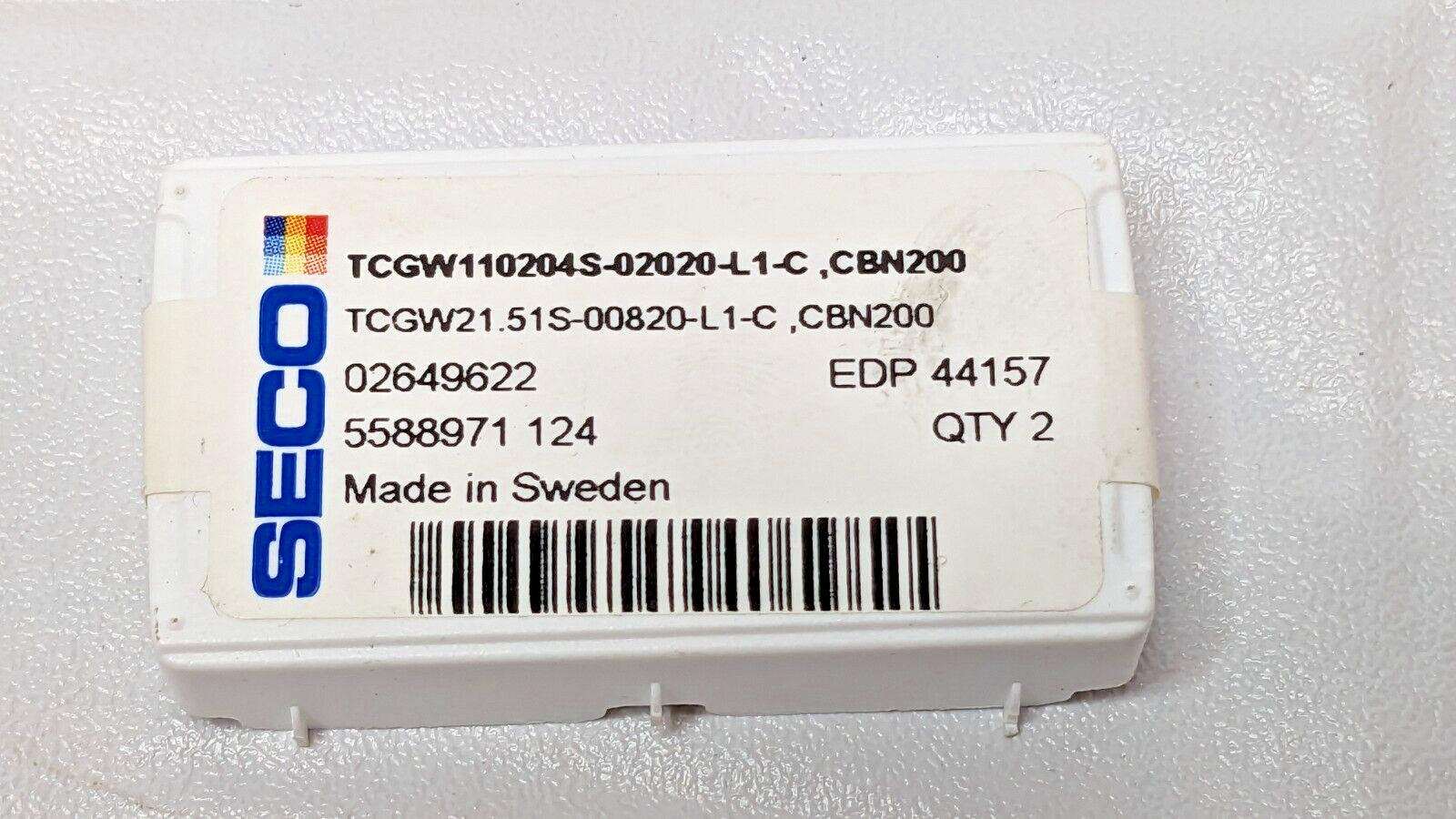

Seco PCBN Turning Inserts TCGW21.51S-00820-L1-C CBN200 QTY 2 02649622

Seco

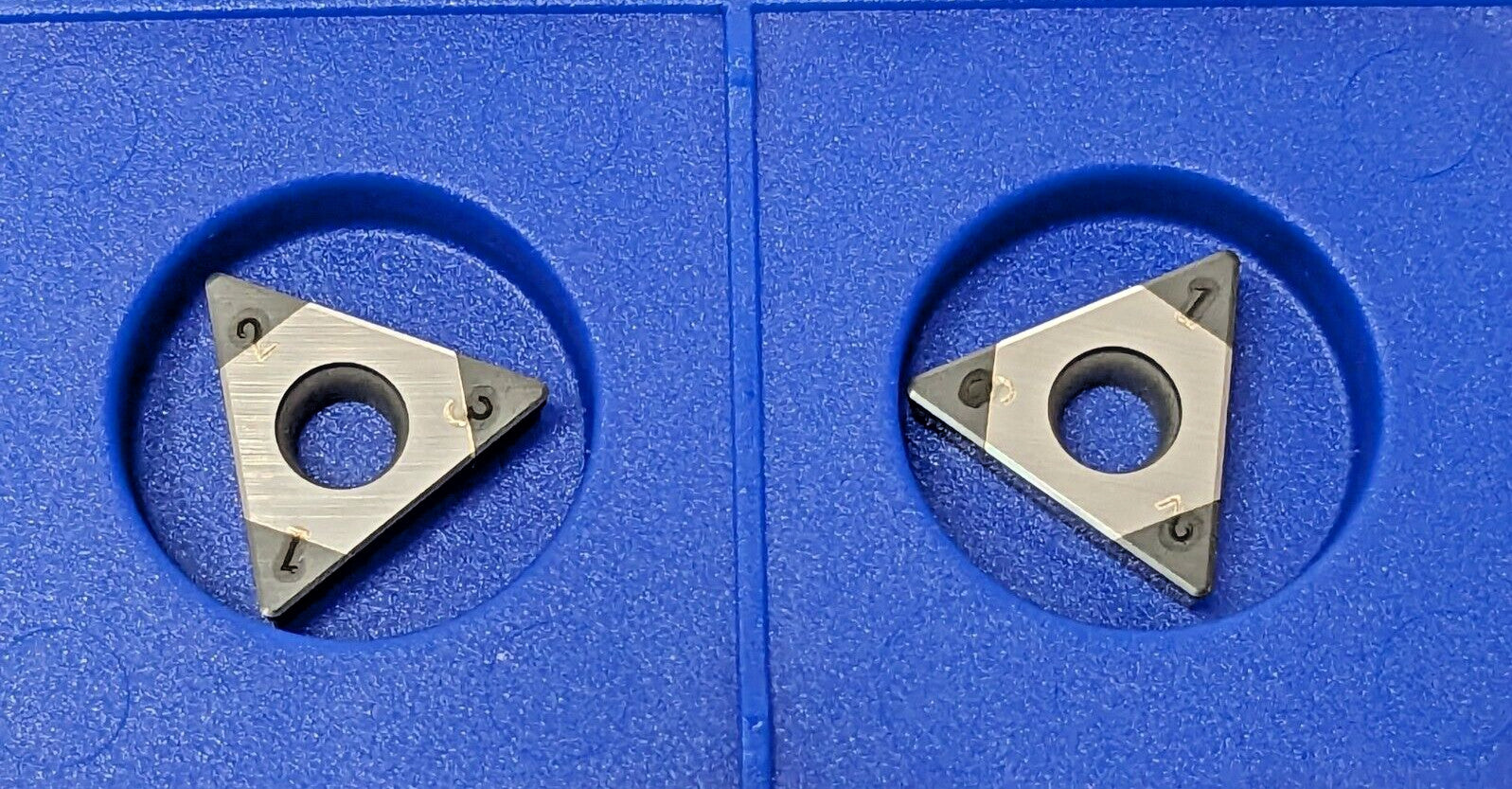

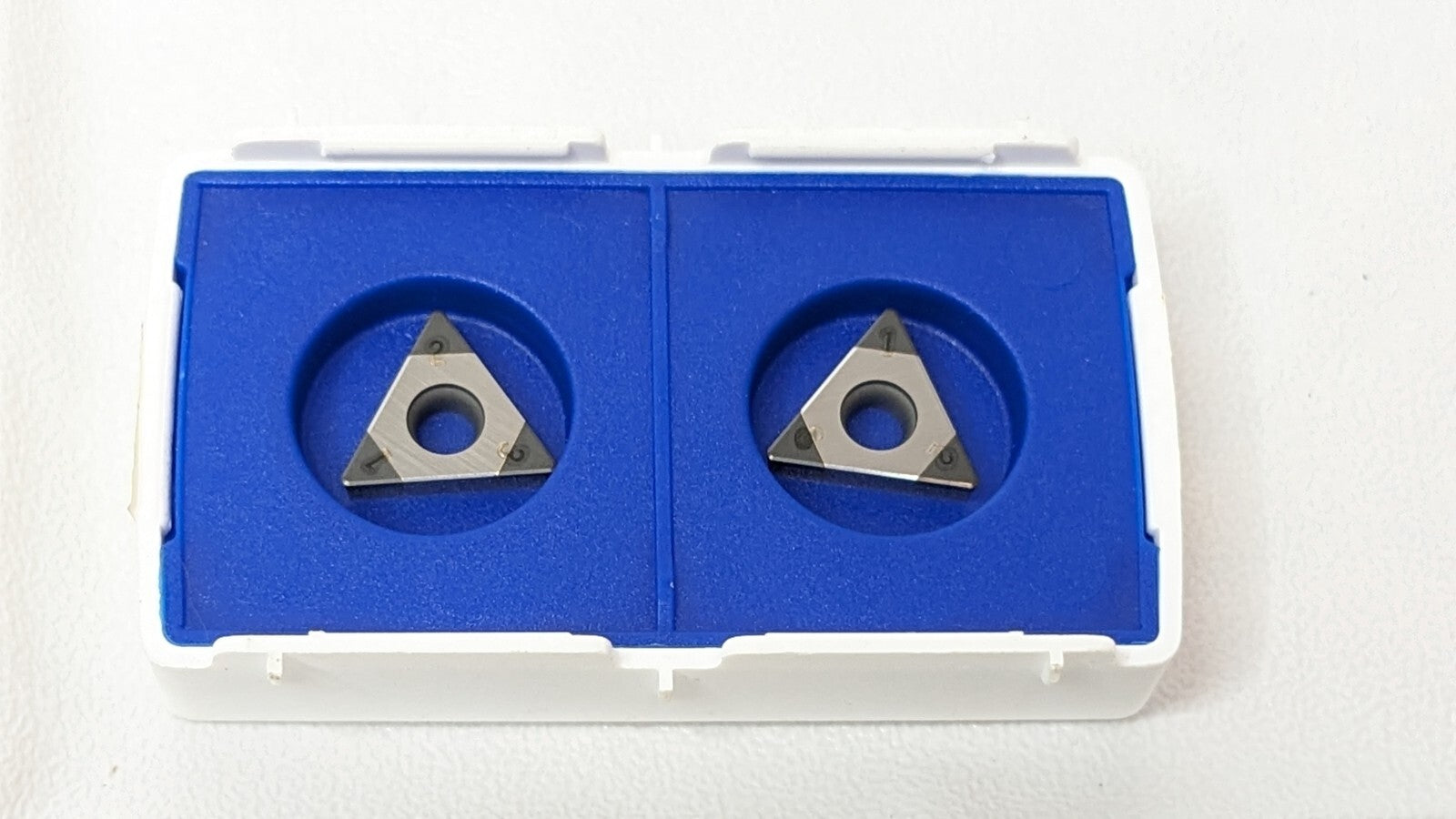

1 Pack of 2 PCBN Turning Inserts

MSRP: $200

• ANSI Insert Code TCGW21.51
• ISO Insert Code TCGW110204
• Relief Angle 7
• Insert Style TCGW
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0157
• Included Angle 60
• Manufacturer Grade CBN200
• Coating/Finish Bright/Uncoated
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0937
• Series TCGW-Flat Top
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Insert Material PCBN
• Insert Shape T - Triangle
• Chip Breaker Operation Flat Top
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 3
• Insert Shape Code T
• Hole Diameter (Decimal Inch) 0.1142
• Maximum Depth of Cut (Decimal Inch) 0.0400
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code G
• Coating Process PCBN
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Rake Positive
• Insert Length (Decimal Inch) 0.4331
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code S; K
• Secondary Workpiece Material Hard Material; Superalloys & Titanium
• Secondary Workpiece Material Code S; H
• Iso Code TCGW110204S-02020-L1-C
• Standards ISO; ANSI
• Manufacturers Catalog Number 02649622
• Material Grade K20; K10
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Uncoated
• Lead Angle 60
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number TCGW21.51S-00820-L1-C
• Width (Decimal Inch - 4 Decimals) 0.4331
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Back Turning; Boring
• Tip Length (Decimal Inch) 0.1000
• ANSI Size Code 21.51
• ISO Size Code 110204
• UNSPSC Code 23242105
• Insert Size Code 21.51

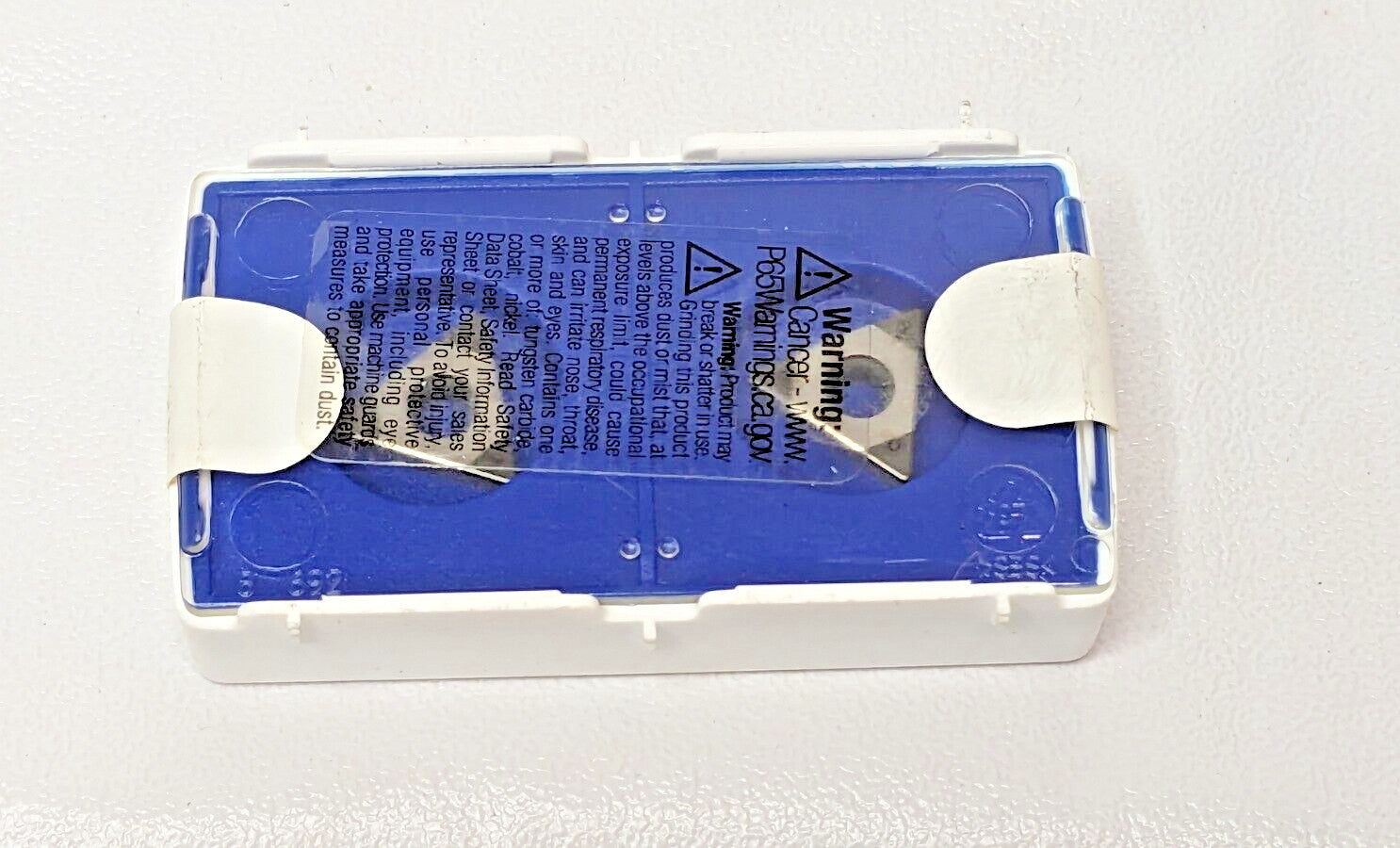

Please review photos, comes as shown.
