Seco PCBN Turning Inserts 2PK CCGW 32.51S-00420-L1-B 02825917

Seco
PCBN Turning Inserts 1 pack of 2


MSRP: $185

• Insert Style CCGW
• ANSI Size Code 32.51
• ISO Size Code 09T304
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0157
• Insert Material PCBN
• Manufacturer Grade CBN010
• Coating/Finish Bright/Uncoated
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Neutral
• Series CCGW-Flat Top
• Chip Breaker Operation Flat Top
• Grade Characteristics Hardened Materials (H) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1772
• Maximum Depth of Cut (Decimal Inch) 0.0200
• ANSI Insert Code CCGW32.51
• ISO Insert Code CCGW09T304
• Insert Holding Method Screw
• Width (Inch) 3/8
• Clearance Code C
• Tolerance Code G
• Coating Process PCBN
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3819
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code S; H
• Secondary Workpiece Material Superalloys & Titanium
• Secondary Workpiece Material Code S
• Iso Code CCGW09T304S-01020-L1-B
• Standards ISO; ANSI
• Manufacturers Catalog Number 02825917
• Material Grade H10; H20; H01
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Uncoated
• Lead Angle 80
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number CCGW32.51S-00420-L1-B
• Width (Decimal Inch - 4 Decimals) 0.3750
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• Tip Length (Decimal Inch) 0.1060
• UNSPSC Code 23242105
• Insert Size Code 32.51

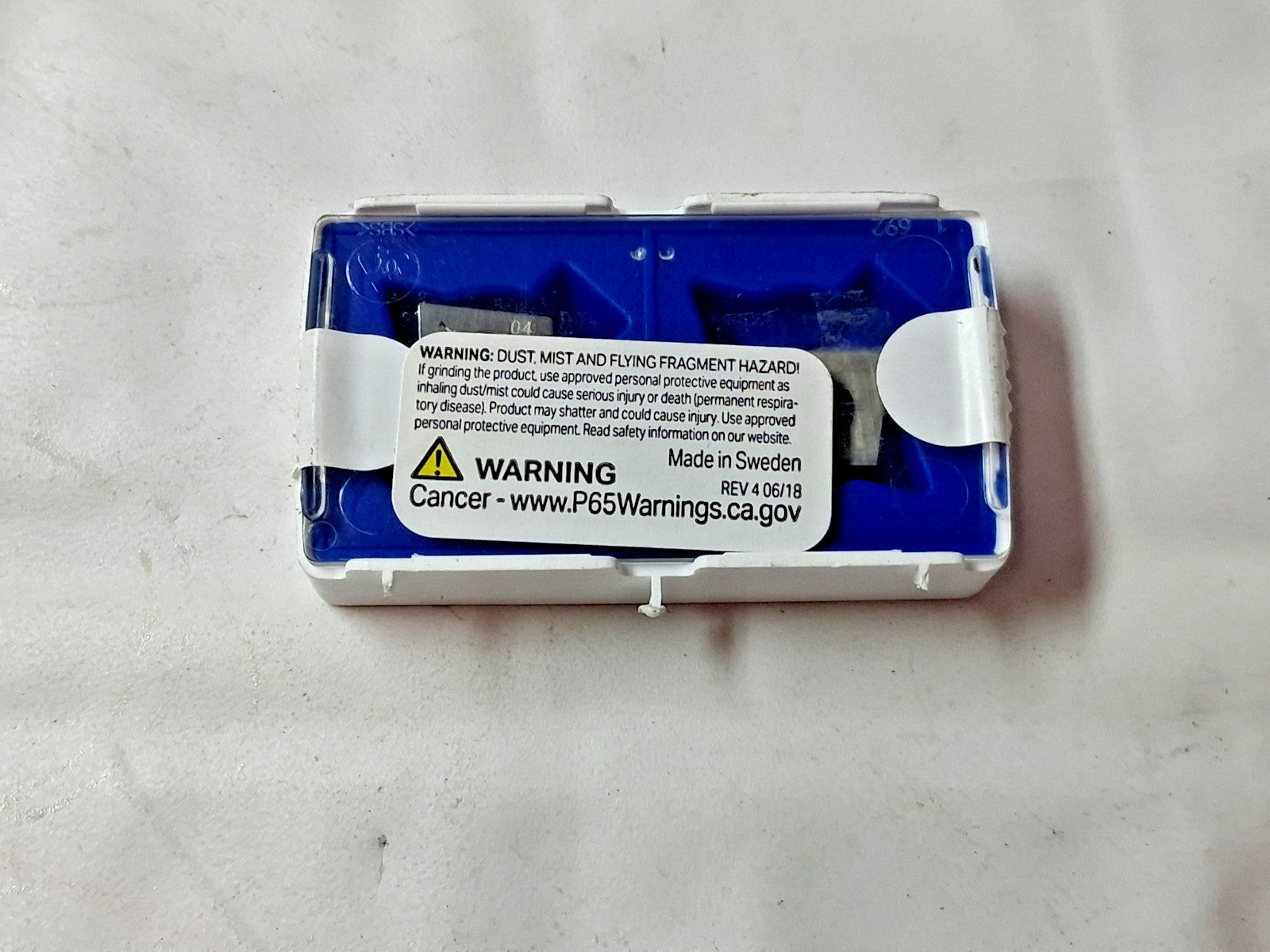

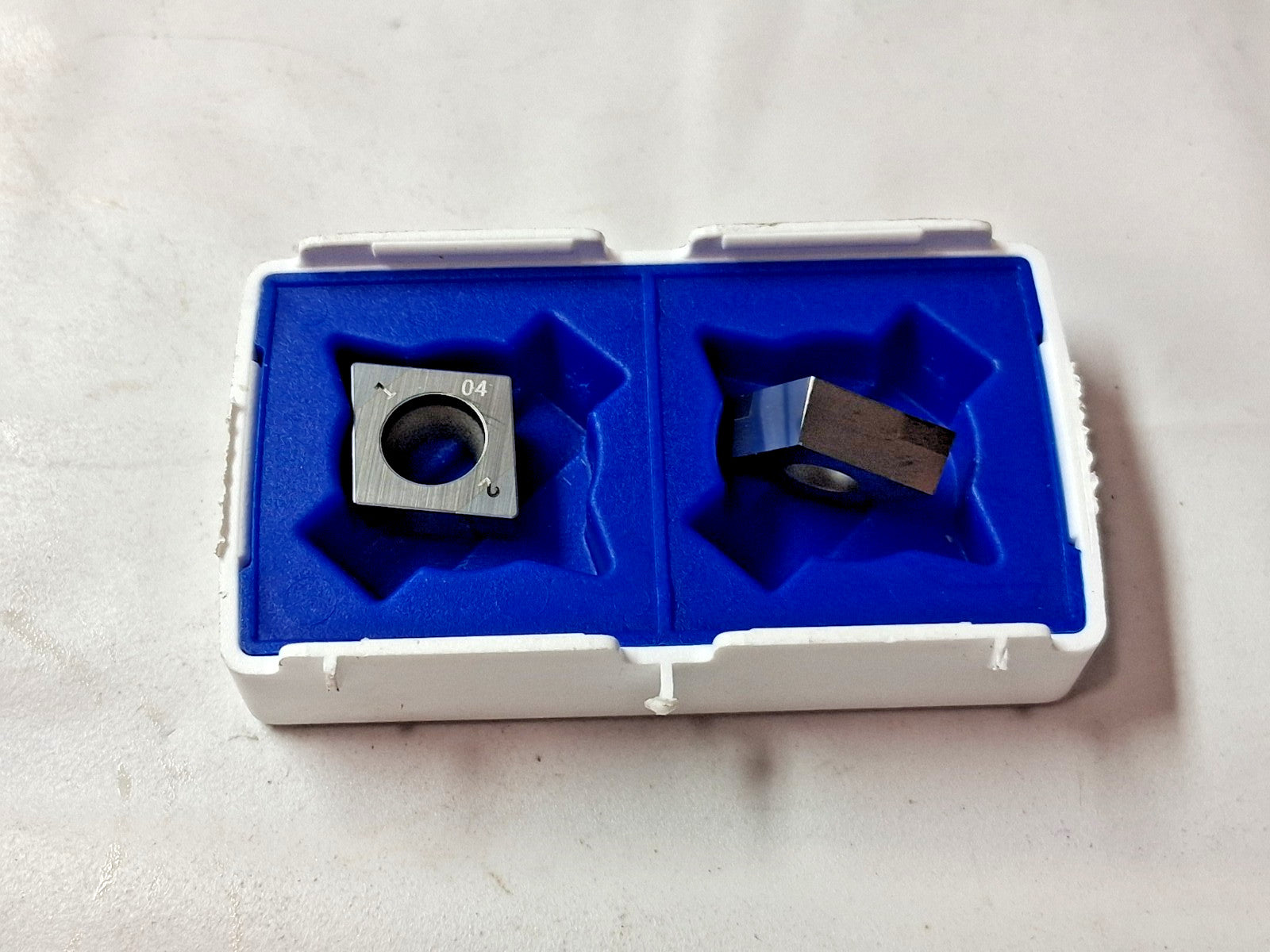

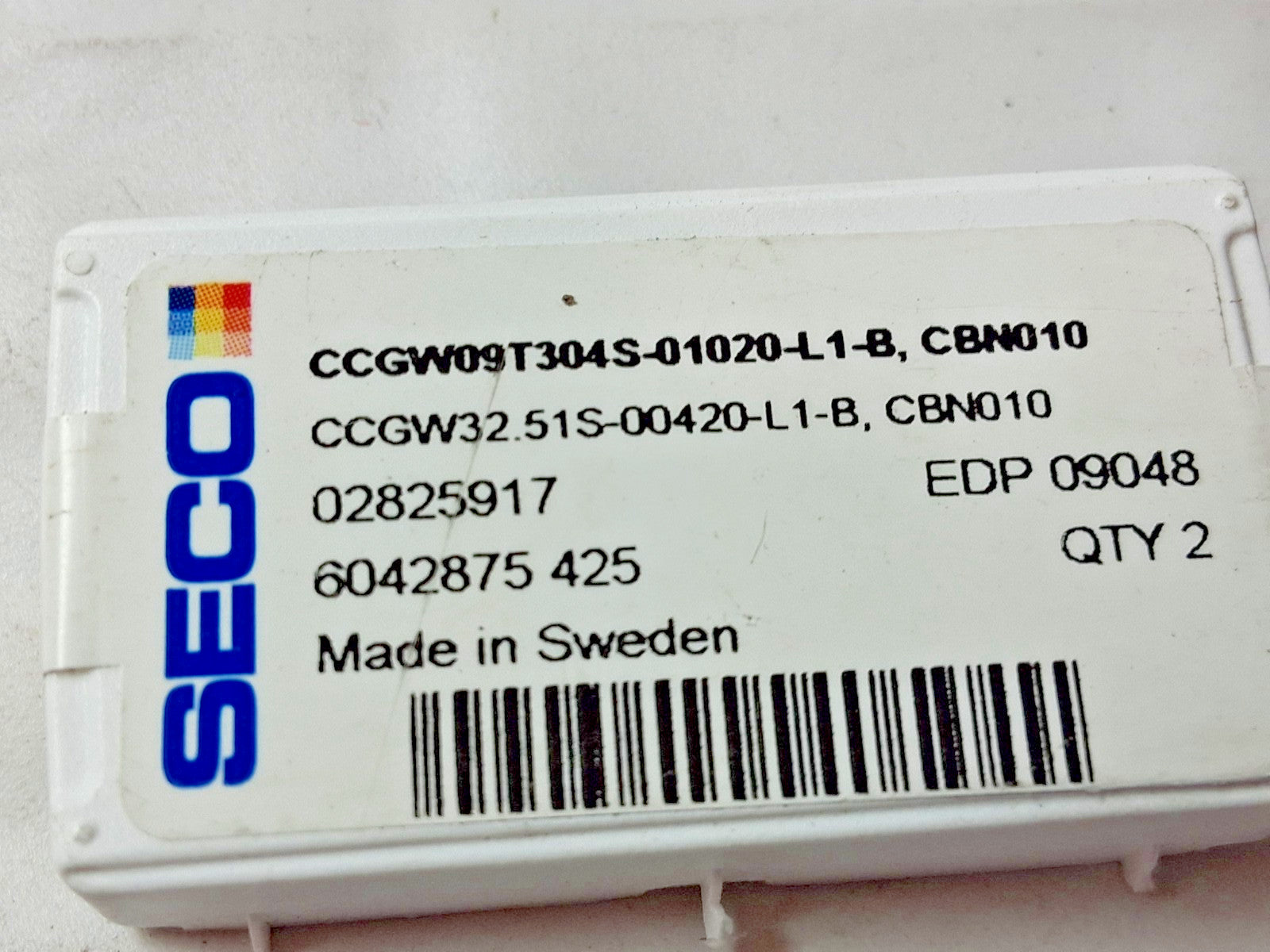

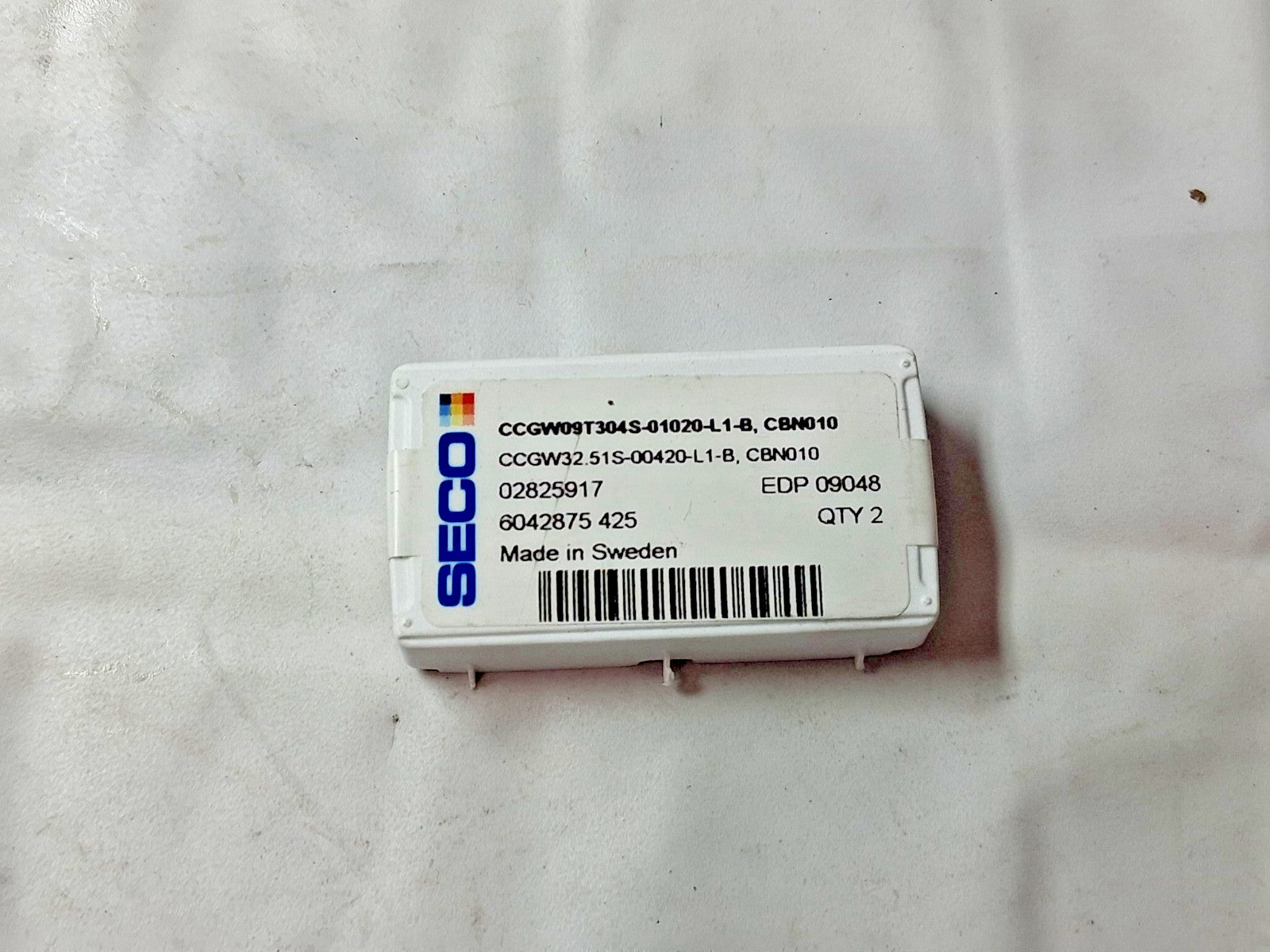

Please review photos, comes as shown.
