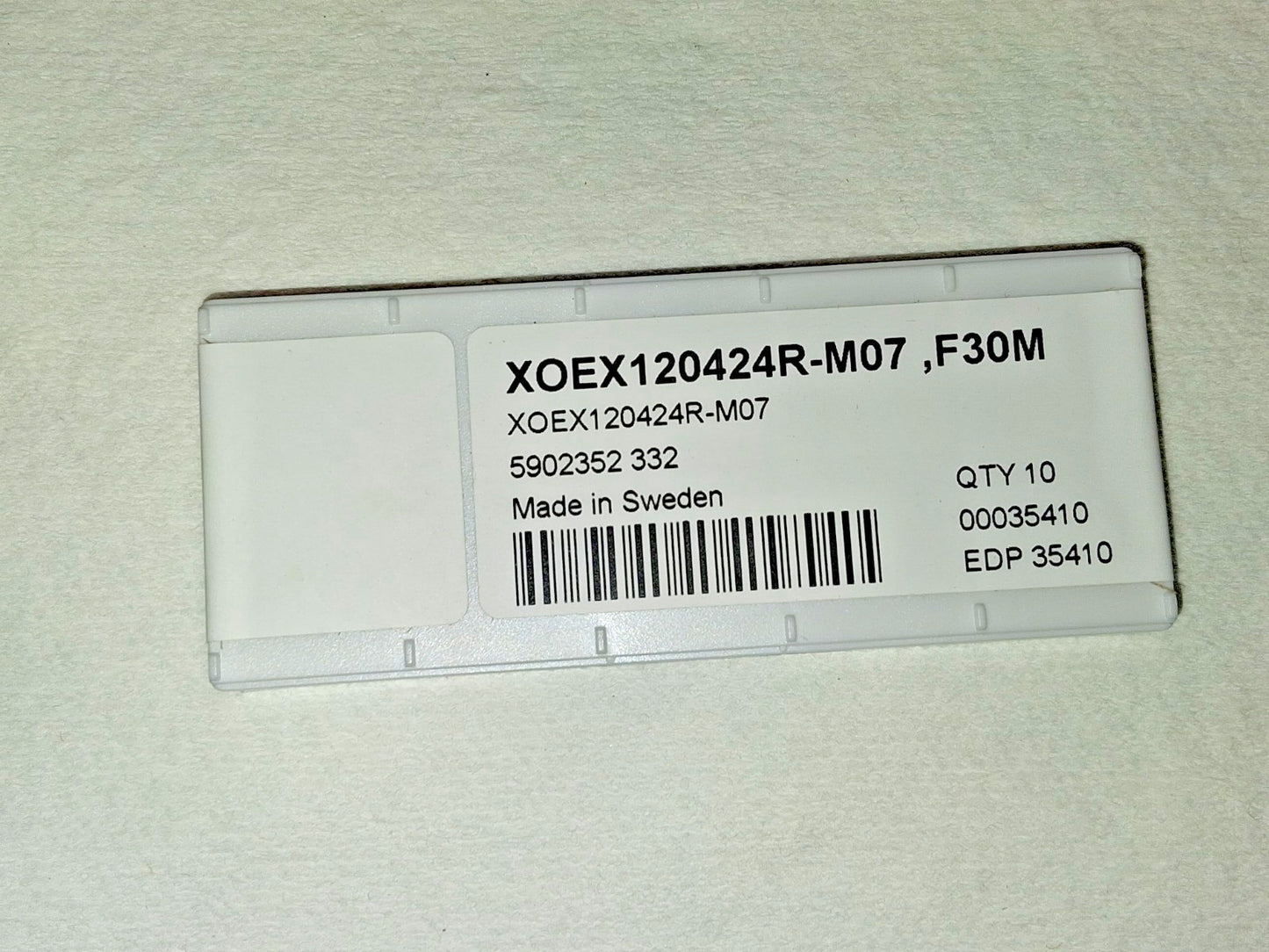

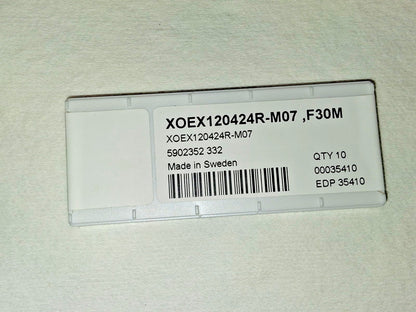

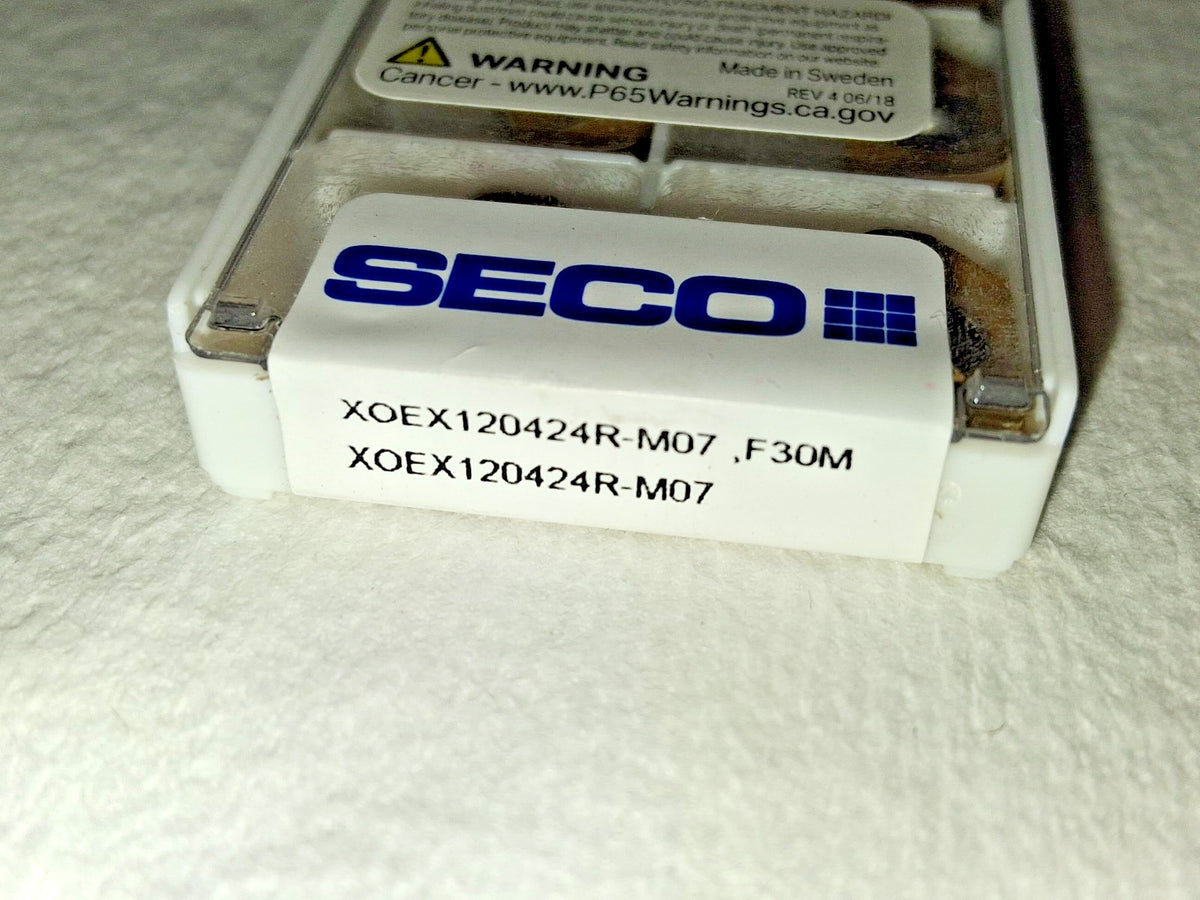

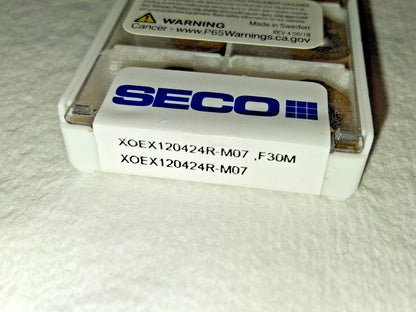

Seco Milling Inserts XOEX Carbide Qty10 00035410
Seco Milling Inserts XOEX Carbide Qty10 00035410
Regular price
$175.00 USD
Regular price
$350.00 USD
Sale price
$175.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco Milling Inserts XOEX Carbide Qty10 00035410
Item Description
Seco

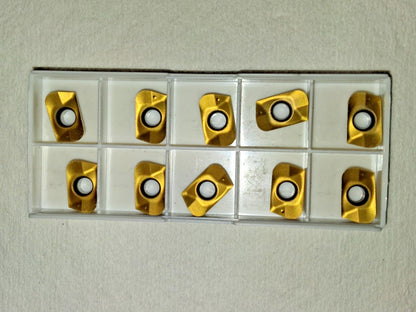

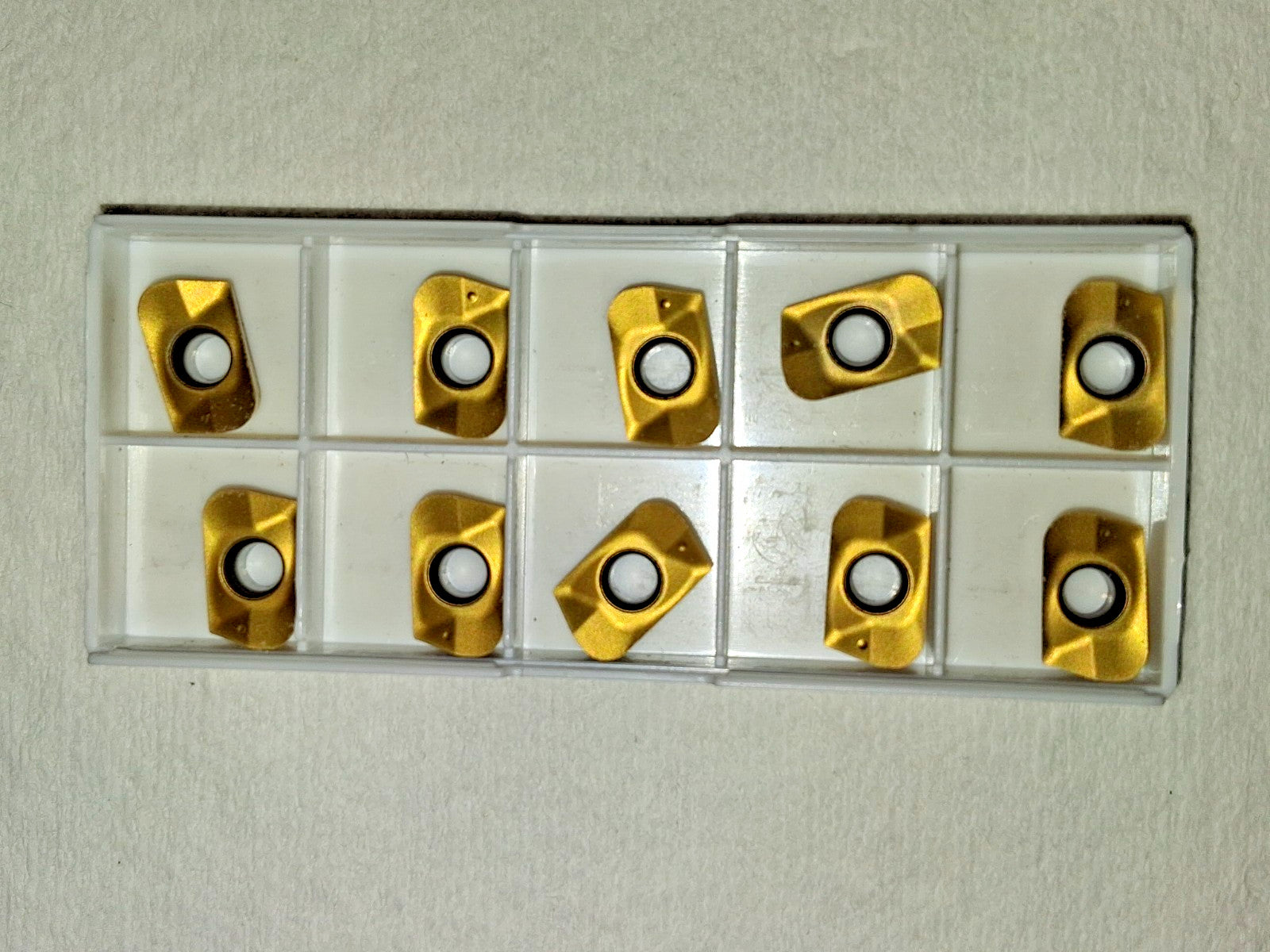

10pc XOEX Milling Insert
10pc XOEX Milling Insert
MSRP $350.00
- Insert Style: XOEX
- Insert Size: 12
- Insert Material: Solid Carbide
- Insert Shape: Parallelogram
- Manufacturer Grade: F30M
- Corner Radius (Decimal Inch): 0.0945
- Number Of Cutting Edges: 2
- Thickness (Decimal Inch - 4 Decimals): 0.1980
- Coating/Finish: TiN; TiAlN
- Relief Angle: 15.000
- Insert Size Code: 120424
- Material Grade: Micrograin
- Inscribed Circle (Decimal Inch): 0.3228
- Thickness Range (Decimal Inch): 0.1850 to 0.2000
- Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500
- Length Range (Decimal Inch): 0.4500 to 0.5000
- Insert Hand: Right Hand
- Maximum Depth of Cut (Decimal Inch): 0.4724
- Series: XOEX-12
- Coating Process: PVD
- Hole Diameter (Decimal Inch): 0.1535
- Cutting Edge Effective Length (Decimal Inch): 0.4724
- Rake: Positive
- Secondary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Steel
- Secondary Workpiece Material Code: P; H; K; M
- Ansi Code: XOEX120424R-M07
- Iso Code: XOEX120424R-M07
- Standards: ISO
- Rake Angle: 18.600
- Cutting Edge Style: Honed
- Manufacturers Catalog Number: XOEX120424R-M07
- Cutter Series Compatibility: R217.69-12; R220.69-12
- Chip Breaker: M07
- UNSPSC Code: 23291601
- Material Application: Hard Material; Stainless Steel; Cast Iron; Steel
- Insert Holding Method: Screw
- Coating Classification: PVD
- Single or Double Sided Insert: Single
- Included Angle Degree: 90
- Width (Decimal Inch - 4 Decimals): 0.3228
- Multi-Use Tool: Yes
- Length (Decimal Inch - 4 Decimals): 0.4724
