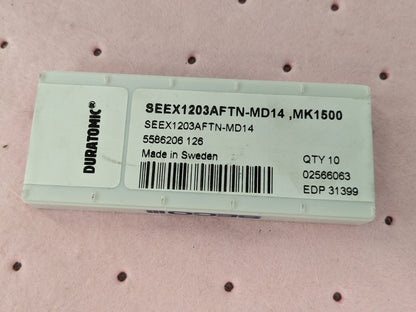

SECO Milling Inserts 10pc SEEX1203AFTN-MD14 MK1500, Carbide 02566063

SECO

 Milling Inserts 10pc SEEX1203AFTN-MD14 MK1500, Carbide 02566063
MSRP: $240

• Insert Style SEEX
• Insert Size 12
• Insert Material Carbide
• Insert Shape Square
• Manufacturer Grade MK1500
• Corner Radius (Decimal Inch) 0.0394
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.1252
• Coating/Finish TiCN; Al2O3
• Relief Angle 20
• Maximum Depth of Cut (Decimal Inch) 0.0866
• Insert Size Code 1203
• Material Grade Micrograin
• Thickness (Inch) 1/8
• Inscribed Circle (Decimal Inch) 0.5028
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Neutral
• Series SEEX-12
• Coating Process CVD
• Hole Diameter (Decimal Inch) 0.1772
• Cutting Edge Effective Length (Decimal Inch) 0.5028
• Rake Neutral
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Ansi Code SEEX1203AFTN-MD14
• Iso Code SEEX1203AFTN-MD14
• Standards ISO
• Rake Angle 0
• Cutting Edge Style T-Land
• Manufacturers Catalog Number SEEX1203AFTN-MD14
• Cutter Series Compatibility R220.53-12; R217.53-12
• Chip Breaker MD14
• Cutting Direction Neutral
• Material Application Cast Iron
• Shape Square
• Insert Holding Method Wedge Clamp
• Coating Classification Duratomic
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.5028
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5028

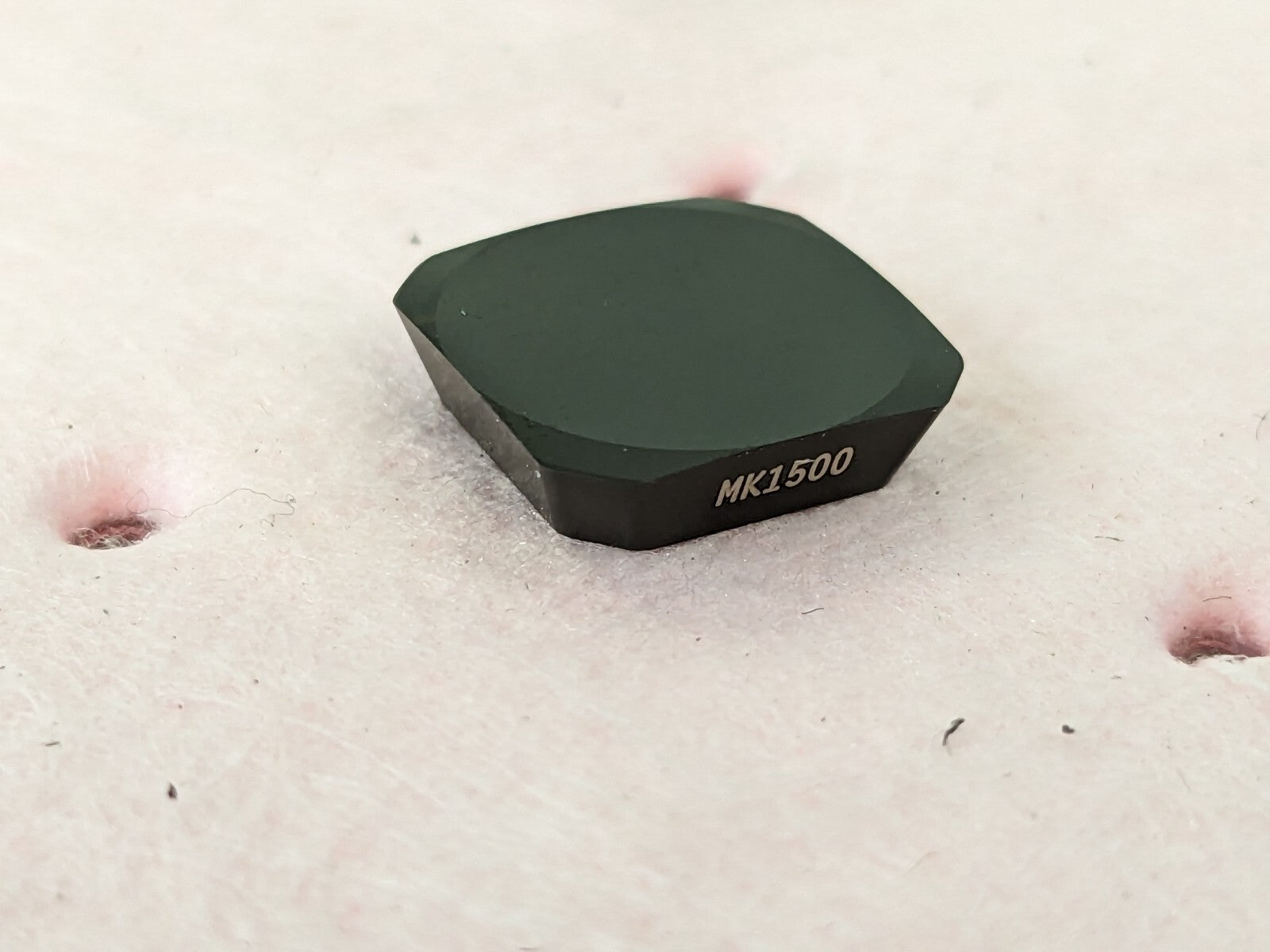

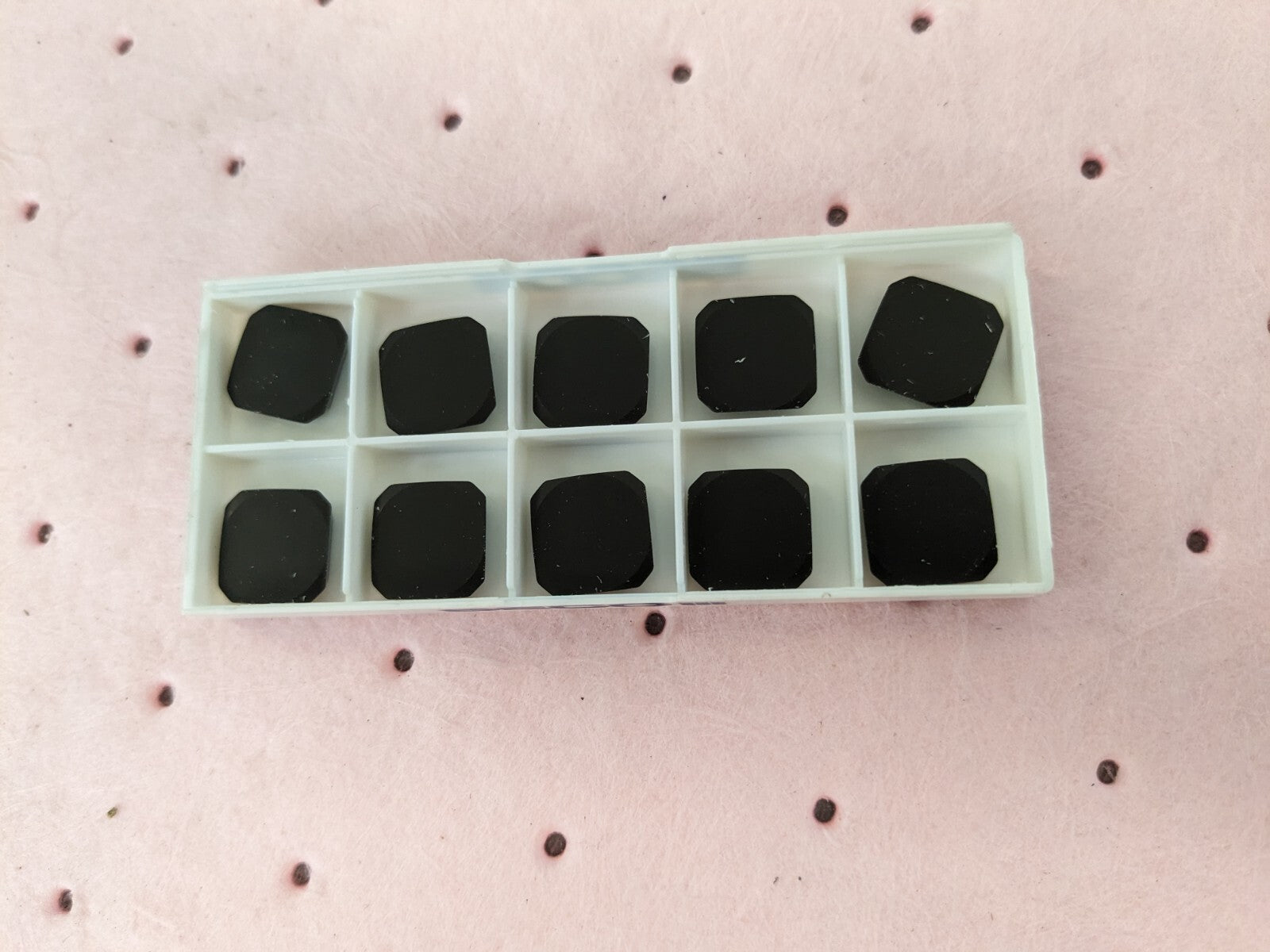

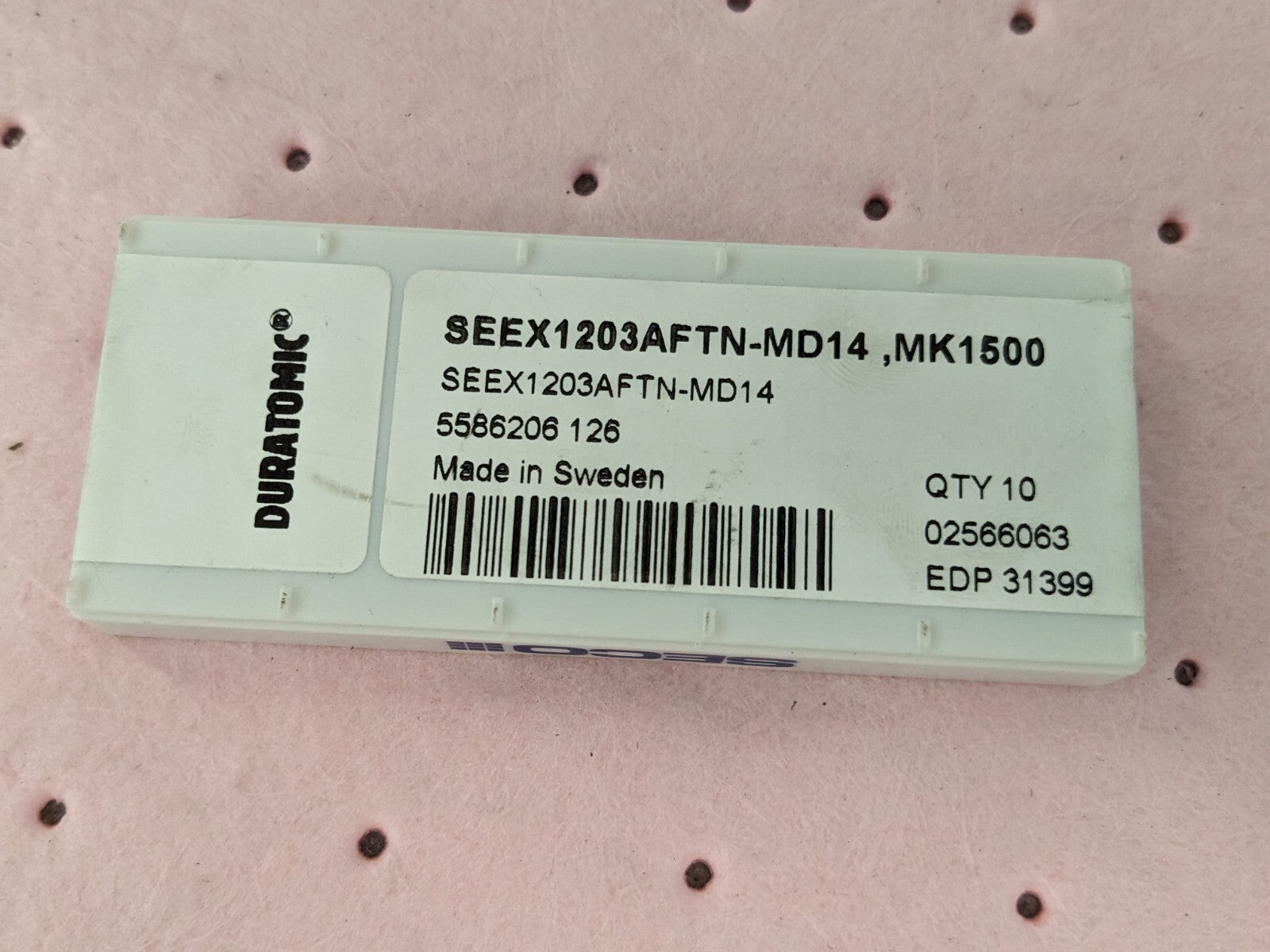

 Please review photos, comes as shown.
