SECO Milling Inserts 10ct: XCKX13T304R-ME10 T25M 74028698

SECO

 Milling Inserts 10ct: XCKX13T304R-ME10 T25M 74028698
MSRP: $220

• Insert Style XCKX
• Insert Size 13
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade T25M
• Corner Radius (Decimal Inch) 0.0157
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1980
• Coating/Finish TiCN
• Relief Angle 7.00
• Maximum Depth of Cut (Decimal Inch) 0.5299
• Insert Size Code 13T304
• Material Grade Medium Grain
• Inscribed Circle (Decimal Inch) 0.3118
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Corner Radius (Inch) 1/64
• Inscribed Circle Range (Decimal Inch) 0.3000 to 0.3500
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Right Hand
• Series XCKX-13
• Coating Process CVD
• Hole Diameter (Decimal Inch) 0.1378
• Cutting Edge Effective Length (Decimal Inch) 0.5299
• Rake Positive
• Secondary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Secondary Workpiece Material Code P; S; M
• Ansi Code XCKX13T304R-ME10
• Iso Code XCKX13T304R-ME10
• Standards ISO
• Rake Angle 14
• Cutting Edge Style Honed
• Manufacturers Catalog Number XCKX13T304R-ME10
• Cutter Series Compatibility R215.59-08
• Chip Breaker ME10
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Shape Parallelogram
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.3118
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5299

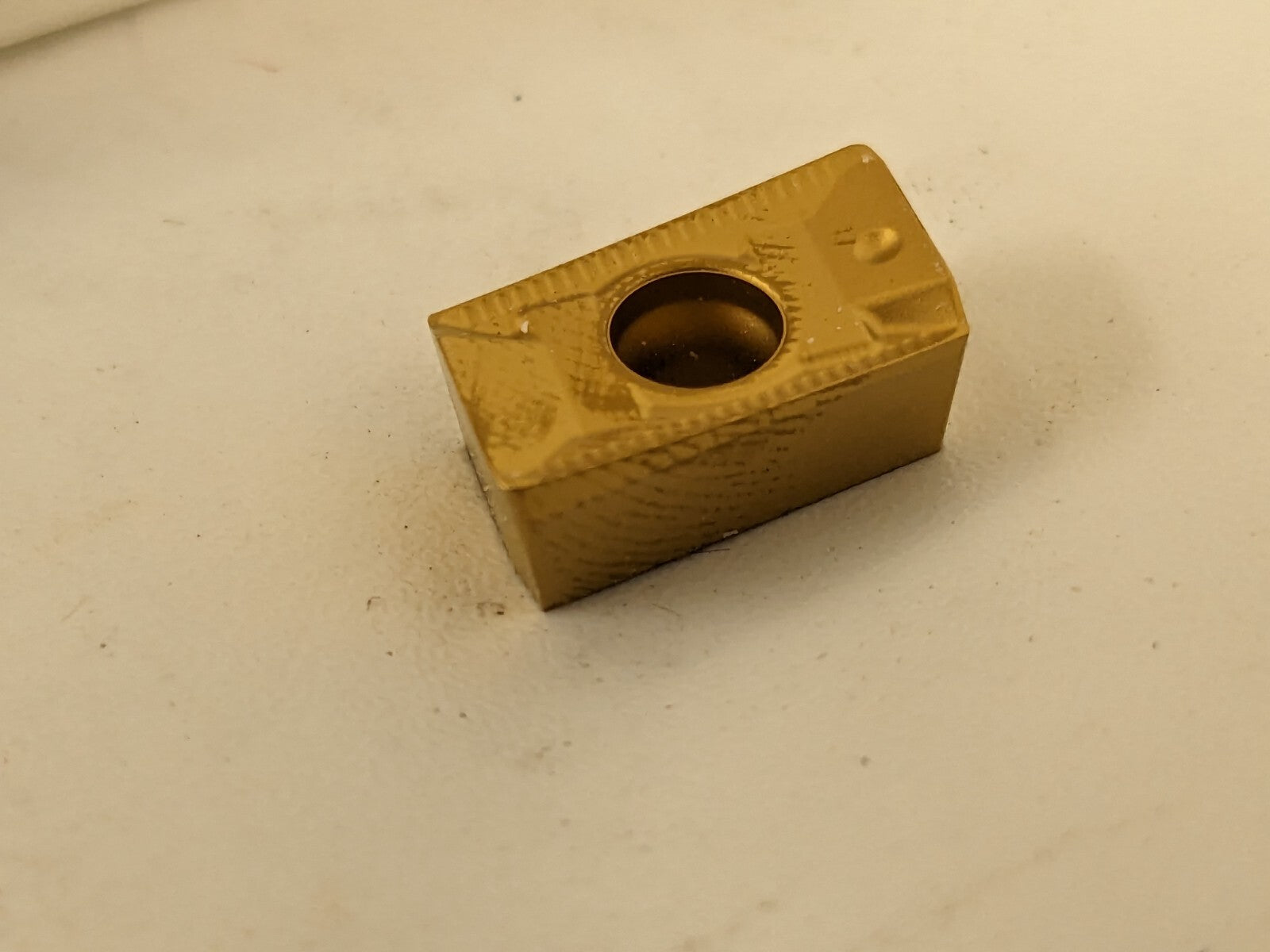

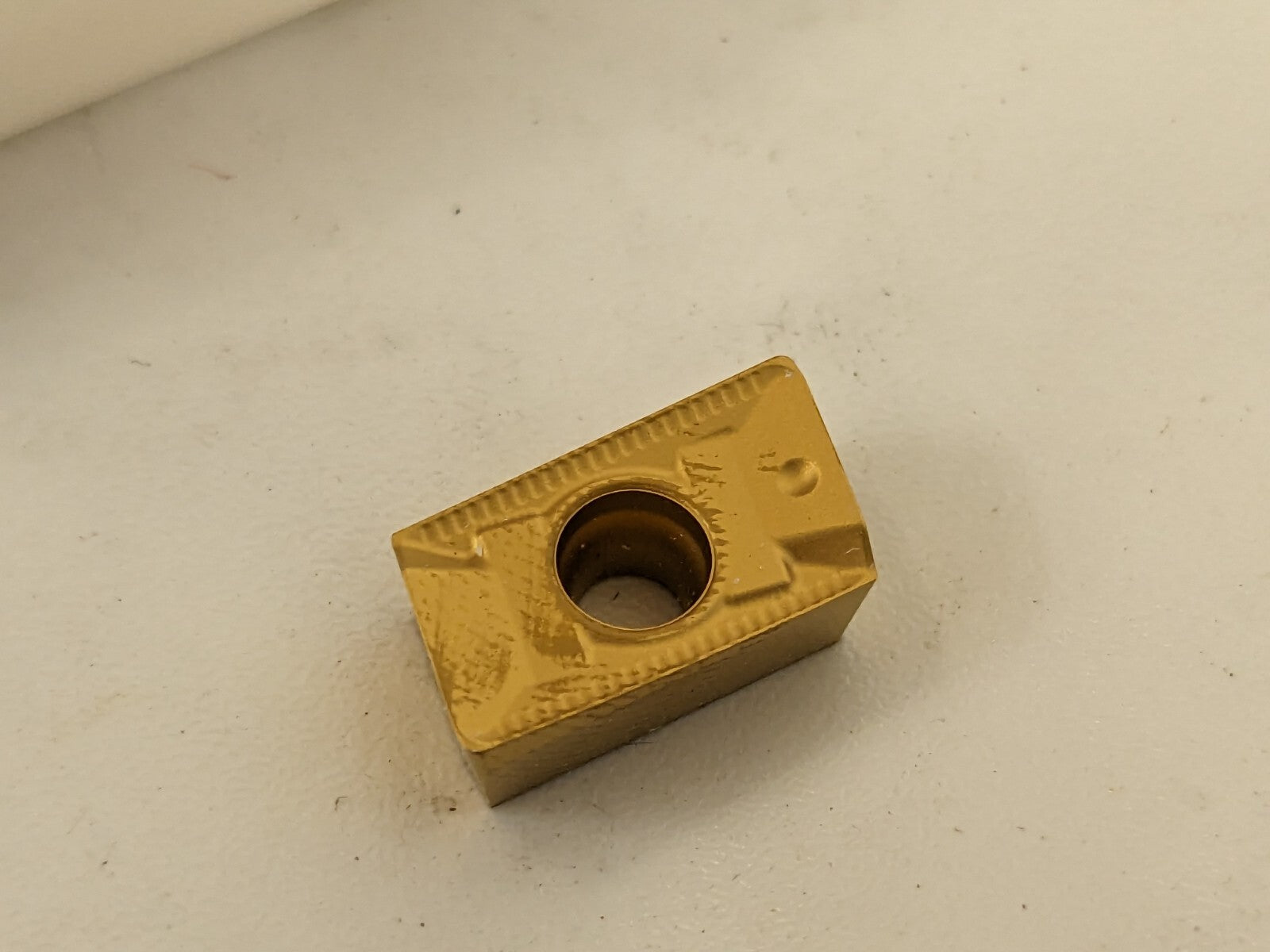

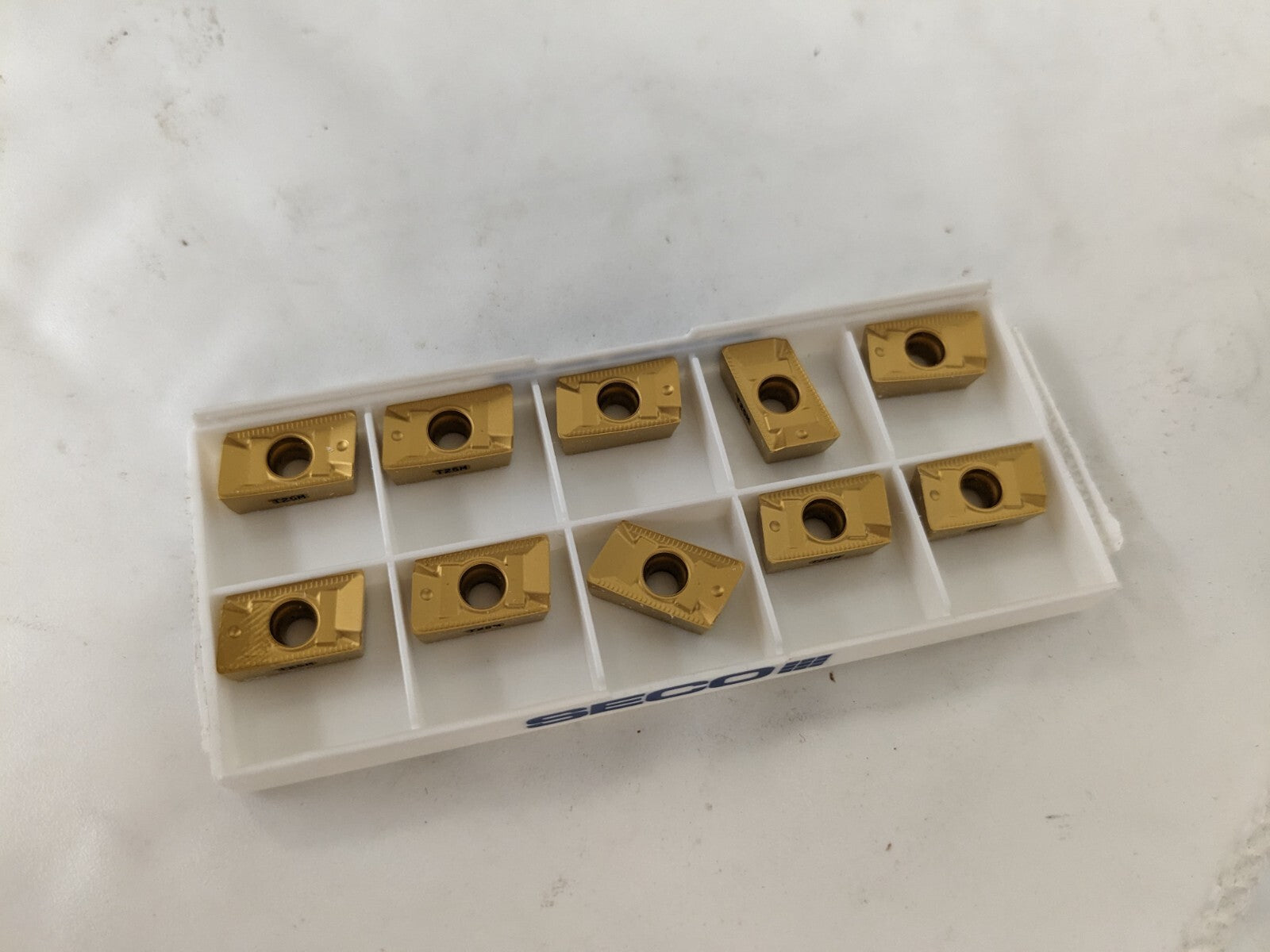

Please review photos, comes as shown.
