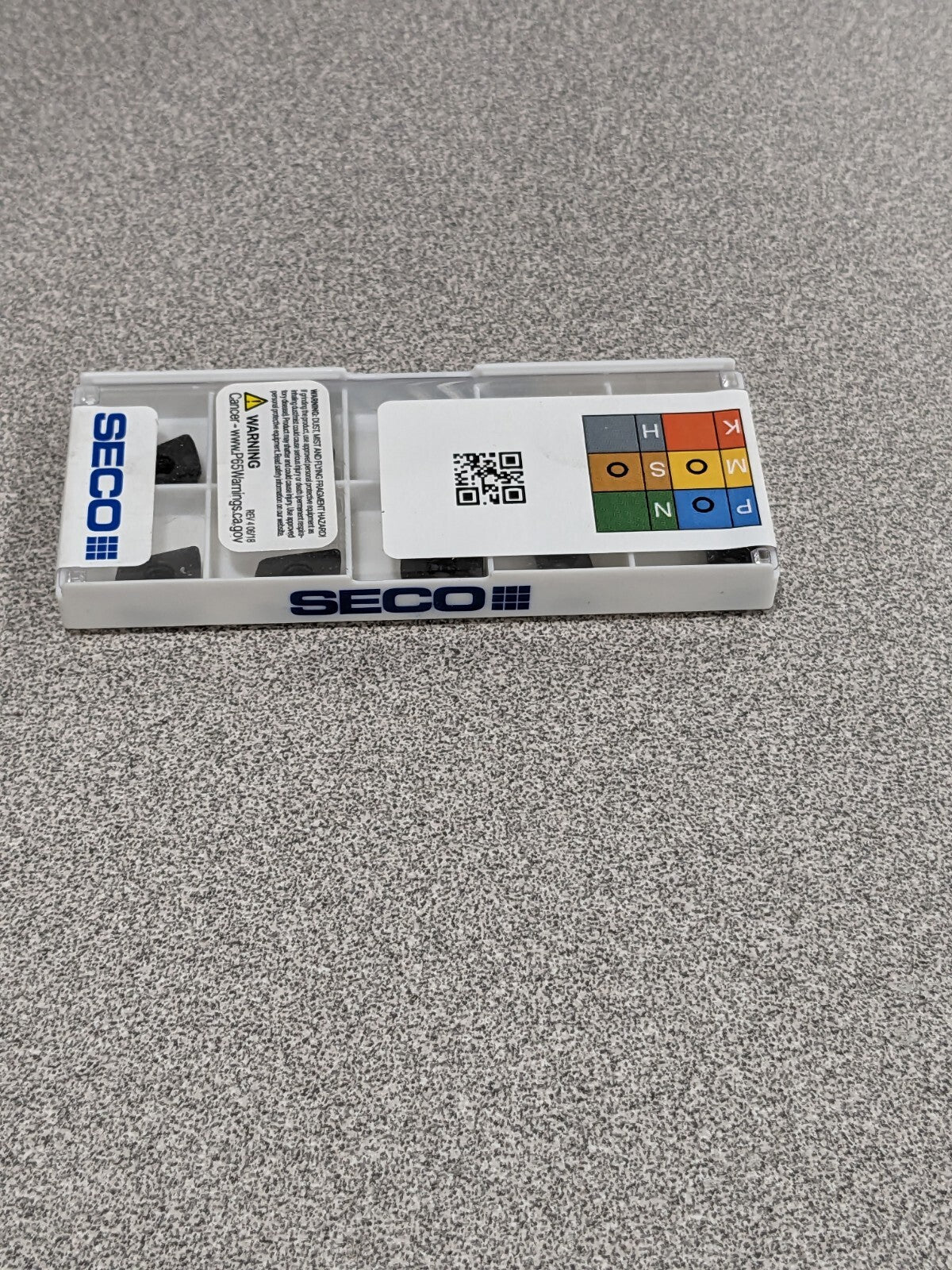

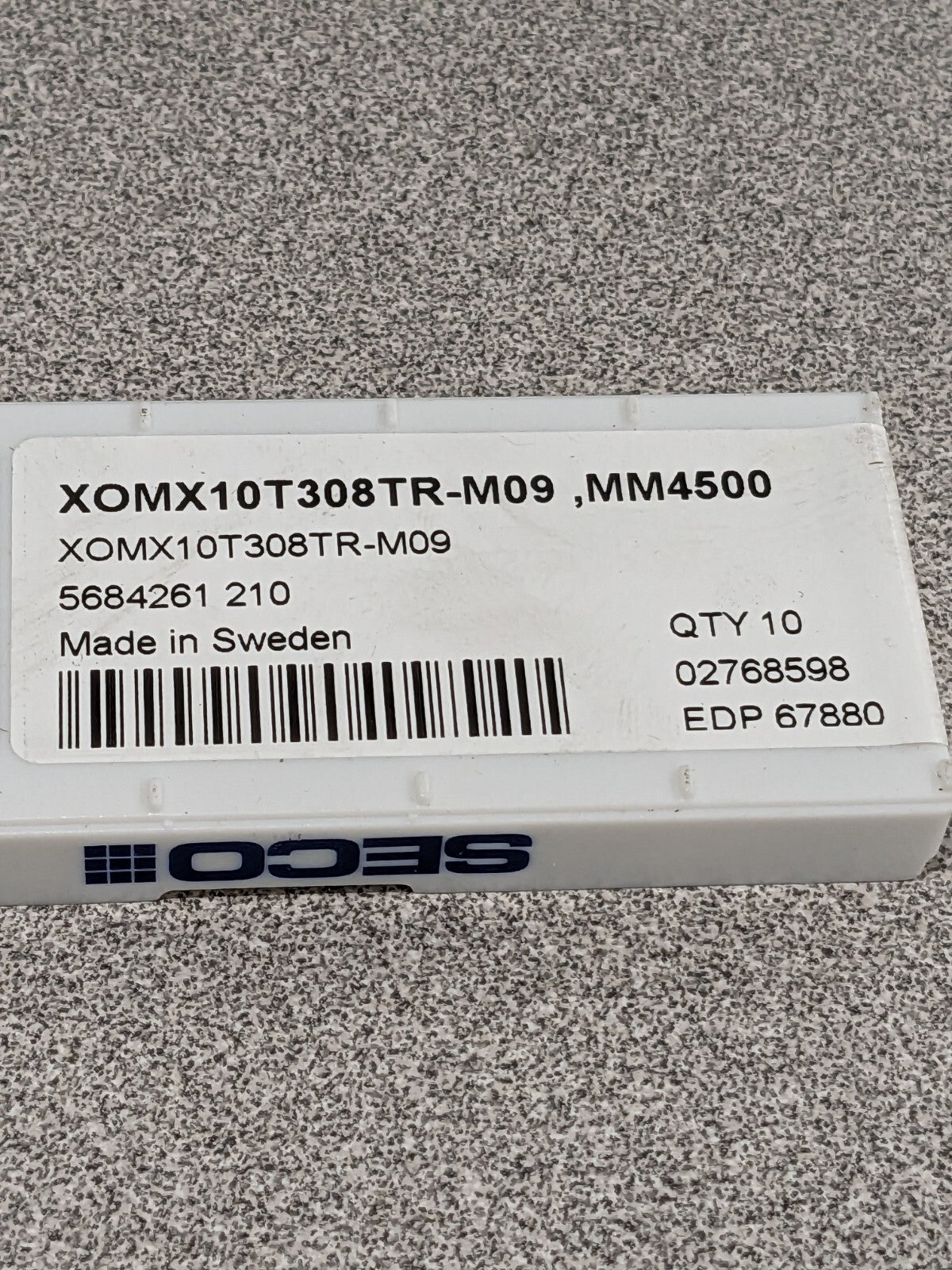

SECO Milling Insert: XOMX10T308TR-M09 MM4500, Solid Carbide Qty 10 02768598

Seco
1 Lot of 10 Inserts

MSRP: $200.00

• Insert Style XOMX
• Insert Size 10
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade MM4500
• Corner Radius (Decimal Inch) 0.0315
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1508
• Coating/Finish TiCN; Al2O3
• Relief Angle 15.00
• Maximum Depth of Cut (Decimal Inch) 0.3661
• Insert Size Code 10T308
• Material Grade Coarse Grain
• Inscribed Circle (Decimal Inch) 0.2717
• Thickness Range (Decimal Inch) 0.1500 to 0.1750
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000
• Length Range (Decimal Inch) 0.3200 to 0.4000
• Insert Hand Right Hand
• Series XOMX-10
• Coating Process CVD
• Hole Diameter (Decimal Inch) 0.1181
• Cutting Edge Effective Length (Decimal Inch) 0.3661
• Rake Positive
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code M
• Secondary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Secondary Workpiece Material Code P; S; M
• Ansi Code XOMX10T308TR-M09
• Iso Code XOMX10T308TR-M09
• Standards ISO
• Rake Angle 10.6
• Cutting Edge Style T-Land
• Manufacturers Catalog Number XOMX10T308TR-M09
• Cutter Series Compatibility R220.69-10; R217.69-10
• Chip Breaker M09
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Parallelogram
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.2717
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.3661
• System Of Measurement Decimal Inch

These items are new and in the original sealed package. SOLD AS IS.

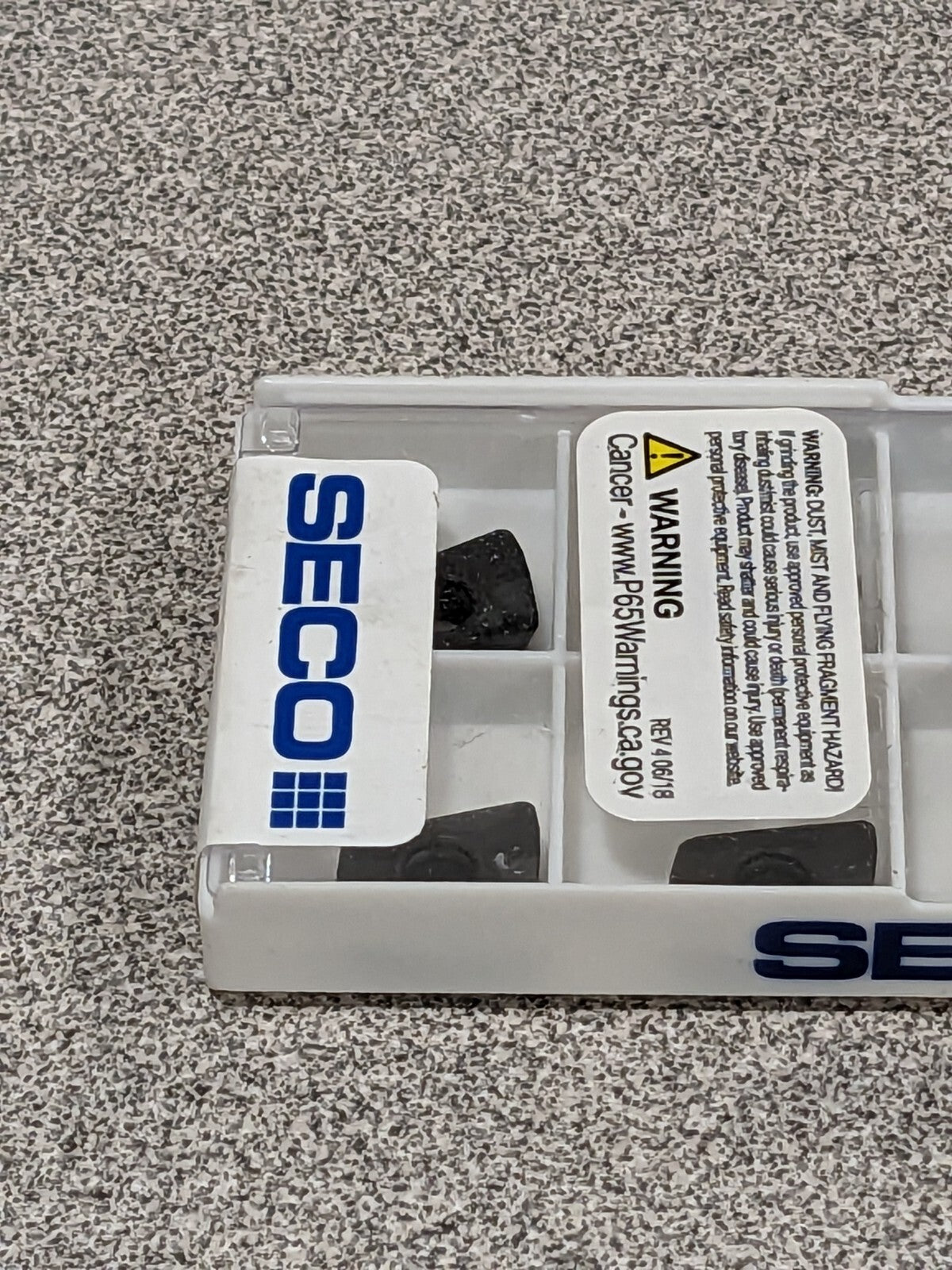

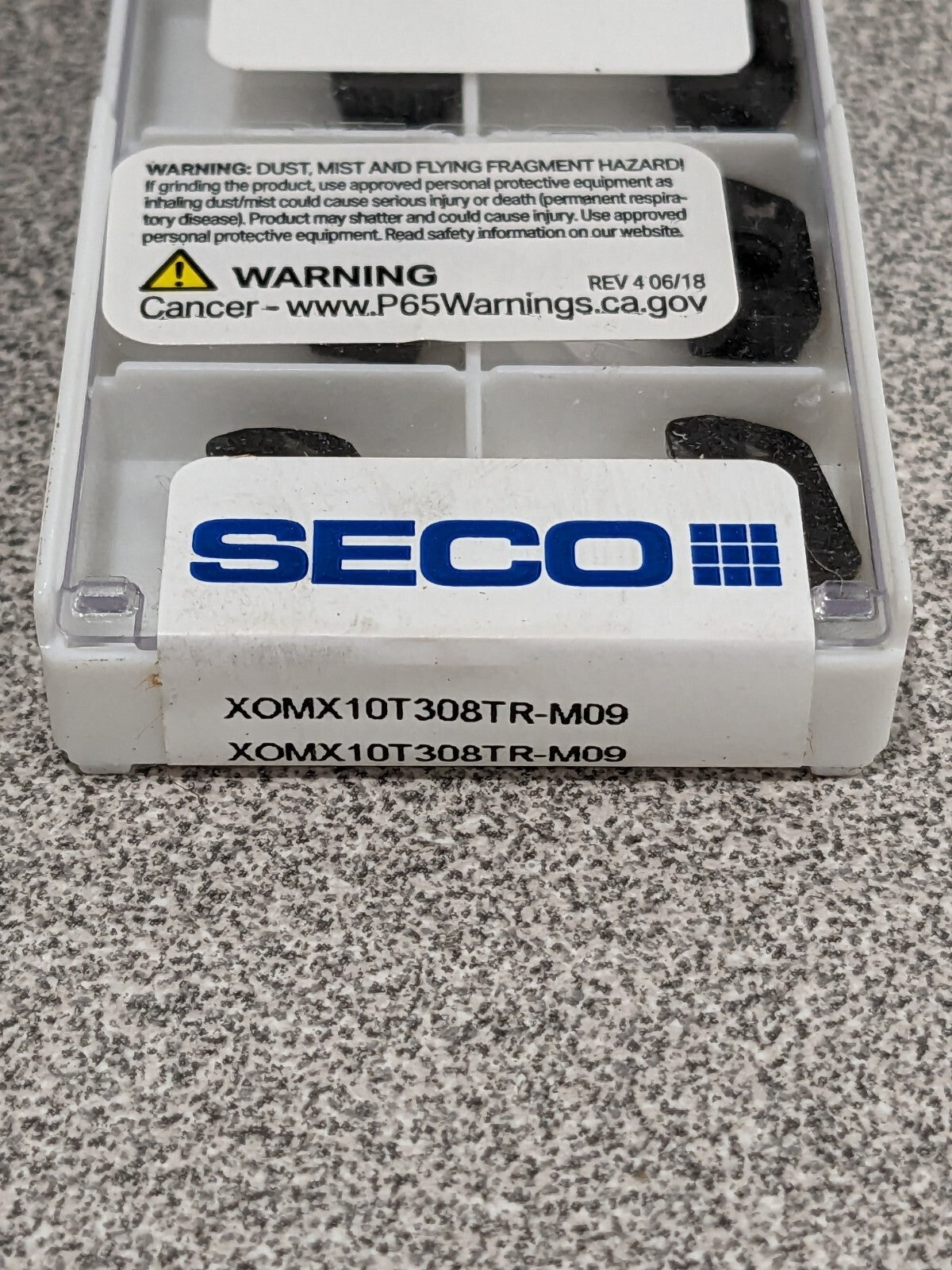

Please review photos, comes as shown.
