Seco

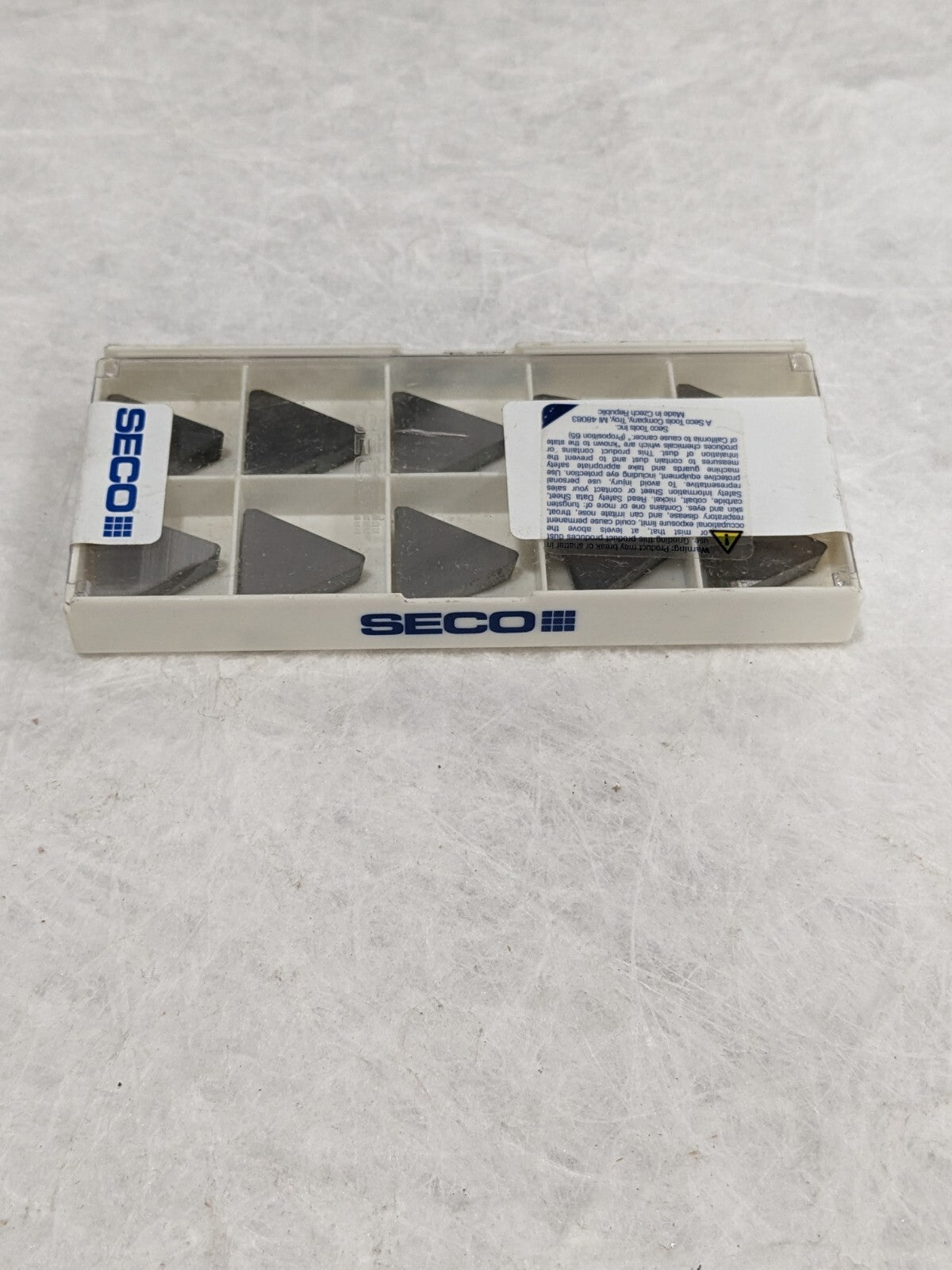

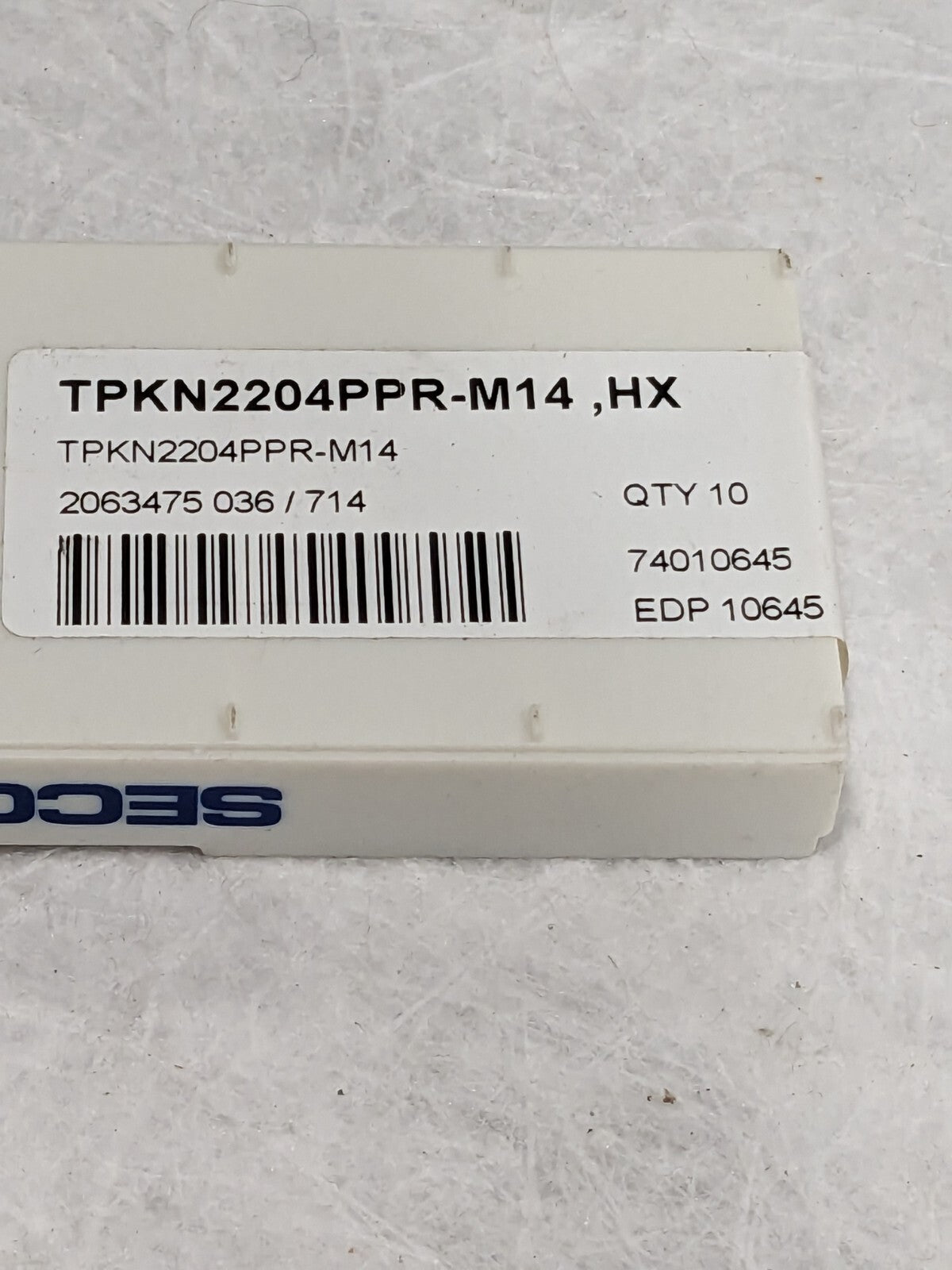

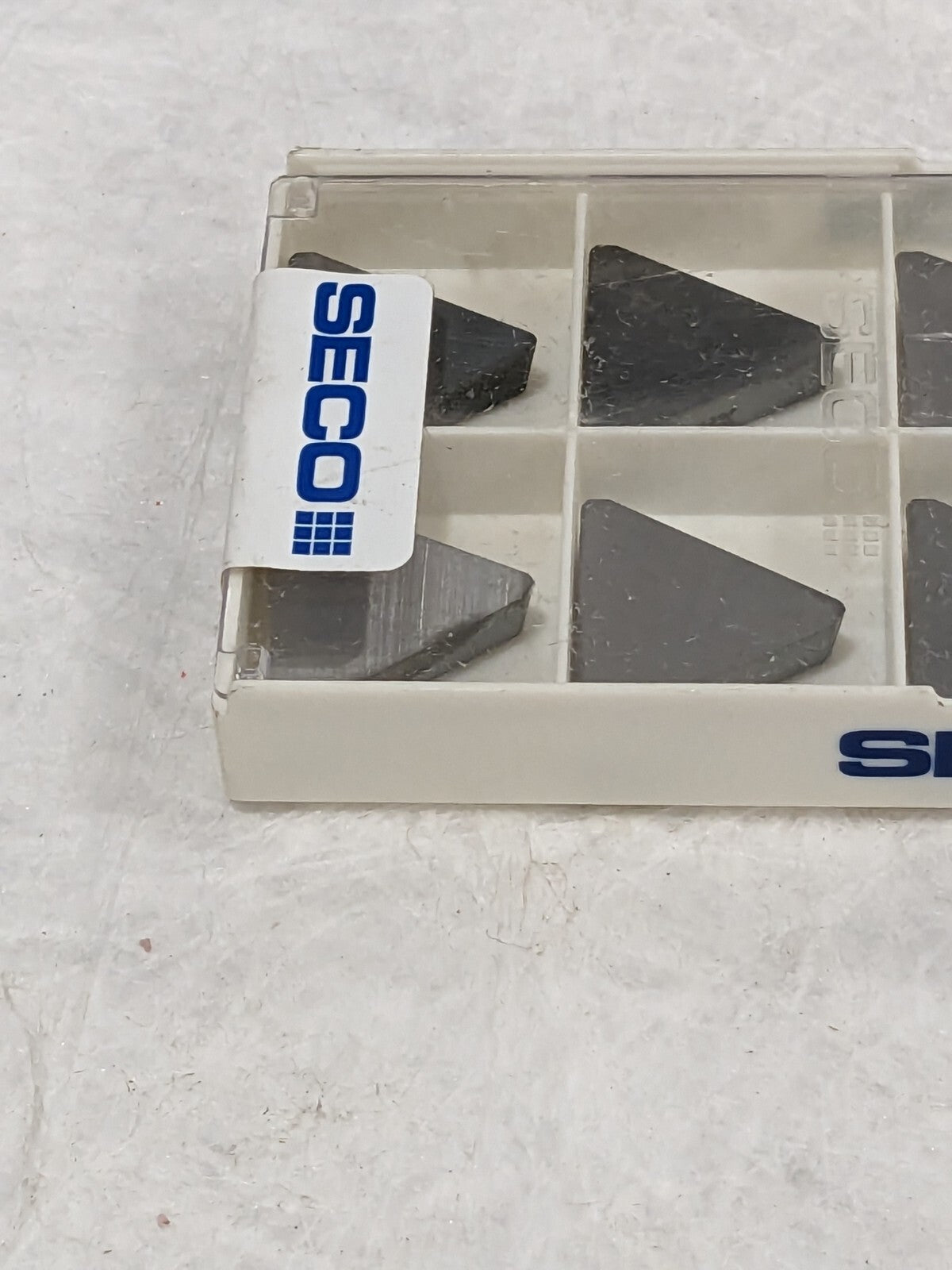

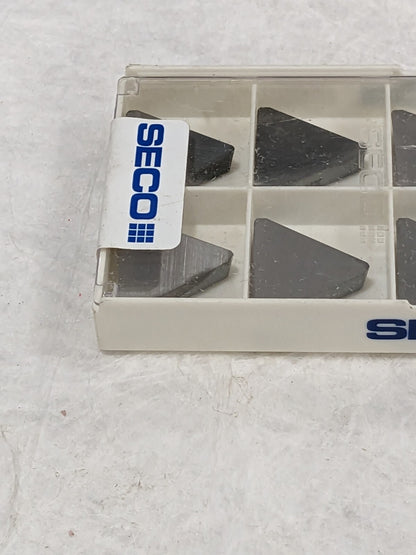

1 Lot of 10 Inserts

MSRP: $100.00

• Insert Style TPKN
• Insert Size 22
• Insert Material Solid Carbide
• Insert Shape Triangle
• Inscribed Circle (Inch) 1/2
• Manufacturer Grade HX
• Corner Radius (Decimal Inch) 0.0472
• Number Of Cutting Edges 3
• Thickness (Decimal Inch - 4 Decimals) 0.1875
• Coating/Finish Bright/Uncoated
• Relief Angle 11.00
• Maximum Depth of Cut (Decimal Inch) 0.6398
• Insert Size Code 2204
• Material Grade Fine Grain
• Thickness (Inch) 3/16
• Inscribed Circle (Decimal Inch) 0.5000
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
• Length Range (Decimal Inch) 0.6000 to 0.6500
• Insert Hand Right Hand
• Series TPKN-22
• Coating Process Uncoated
• Cutting Edge Effective Length (Decimal Inch) 0.6398
• Rake Neutral
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron; Superalloys & Titanium
• Secondary Workpiece Material Code S; K; N
• Ansi Code TPKN2204PPR-M14
• Iso Code TPKN2204PPR-M14
• Standards ISO
• Rake Angle 0
• Cutting Edge Style Honed
• Manufacturers Catalog Number TPKN2204PPR-M14
• Cutter Series Compatibility R220.17-22
• Chip Breaker M14
• Material Application Non-Ferrous Metal; Cast Iron; Superalloys & Titanium
• UNSPSC Code 23291601
• Shape Triangle
• Insert Holding Method Wedge Clamp
• Coating Classification Uncoated
• Single or Double Sided Insert Single
• Included Angle Degree 60
• Width (Decimal Inch - 4 Decimals) 0.6398
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.6398
• System Of Measurement Decimal Inch

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
