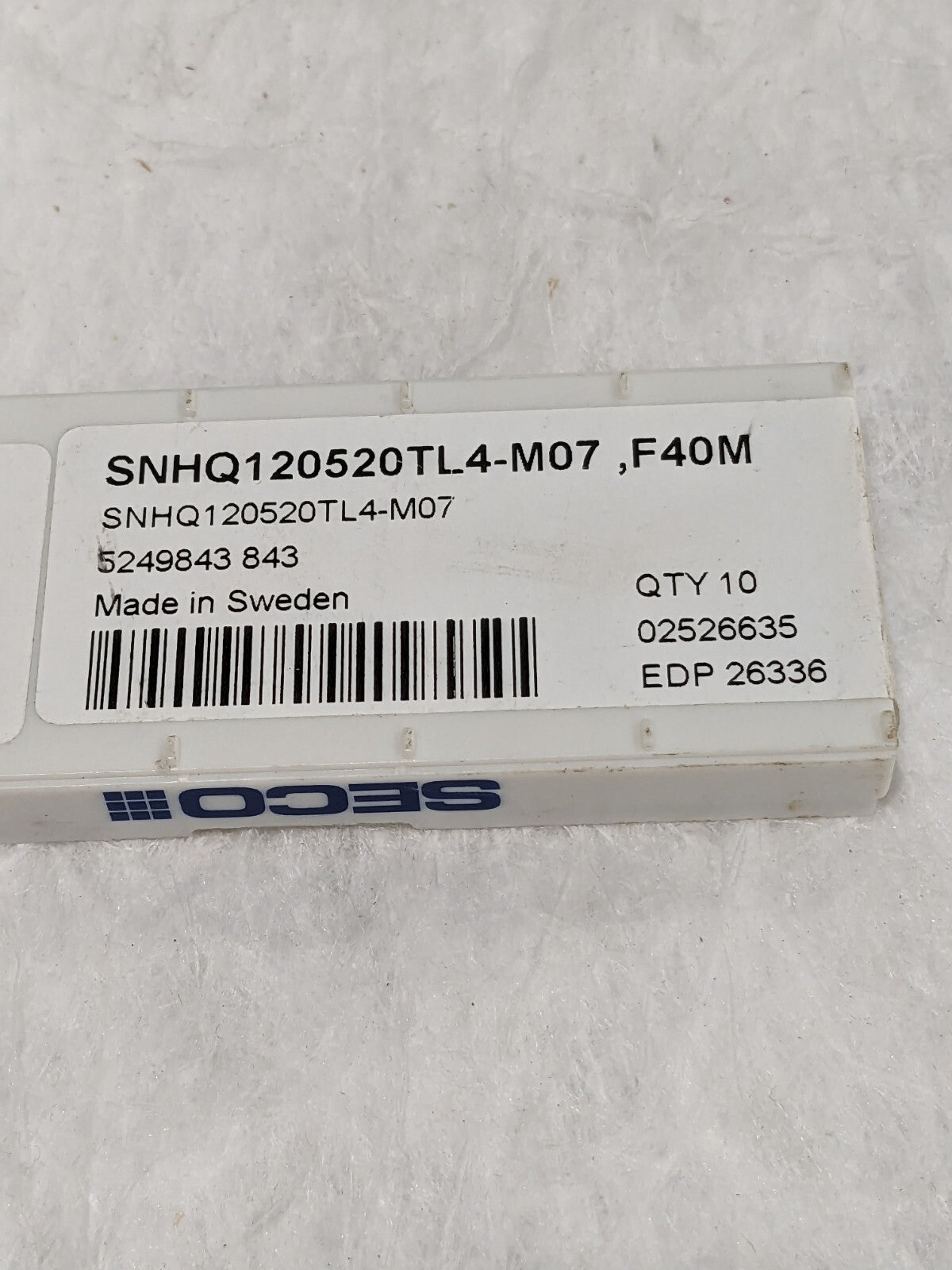

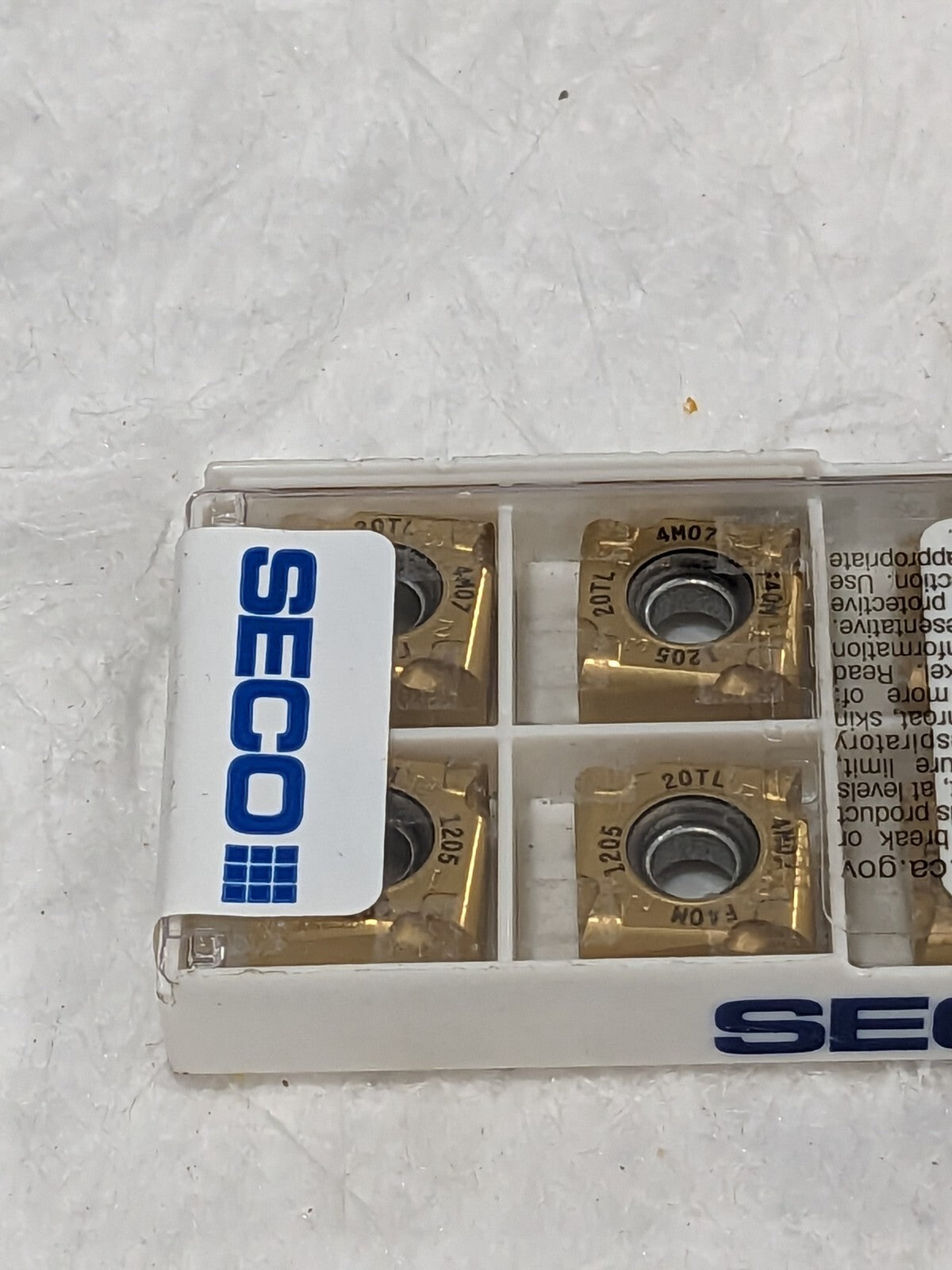

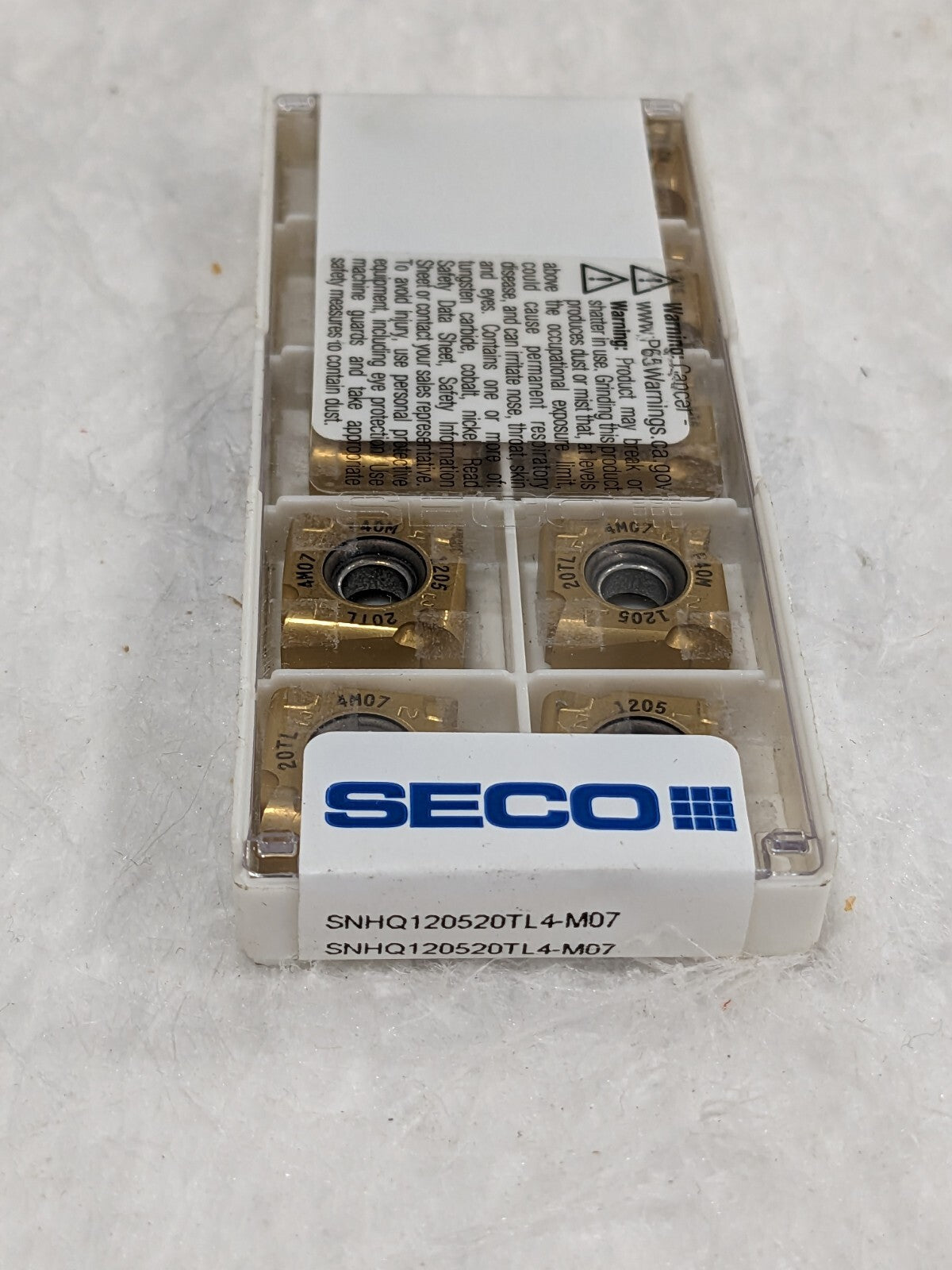

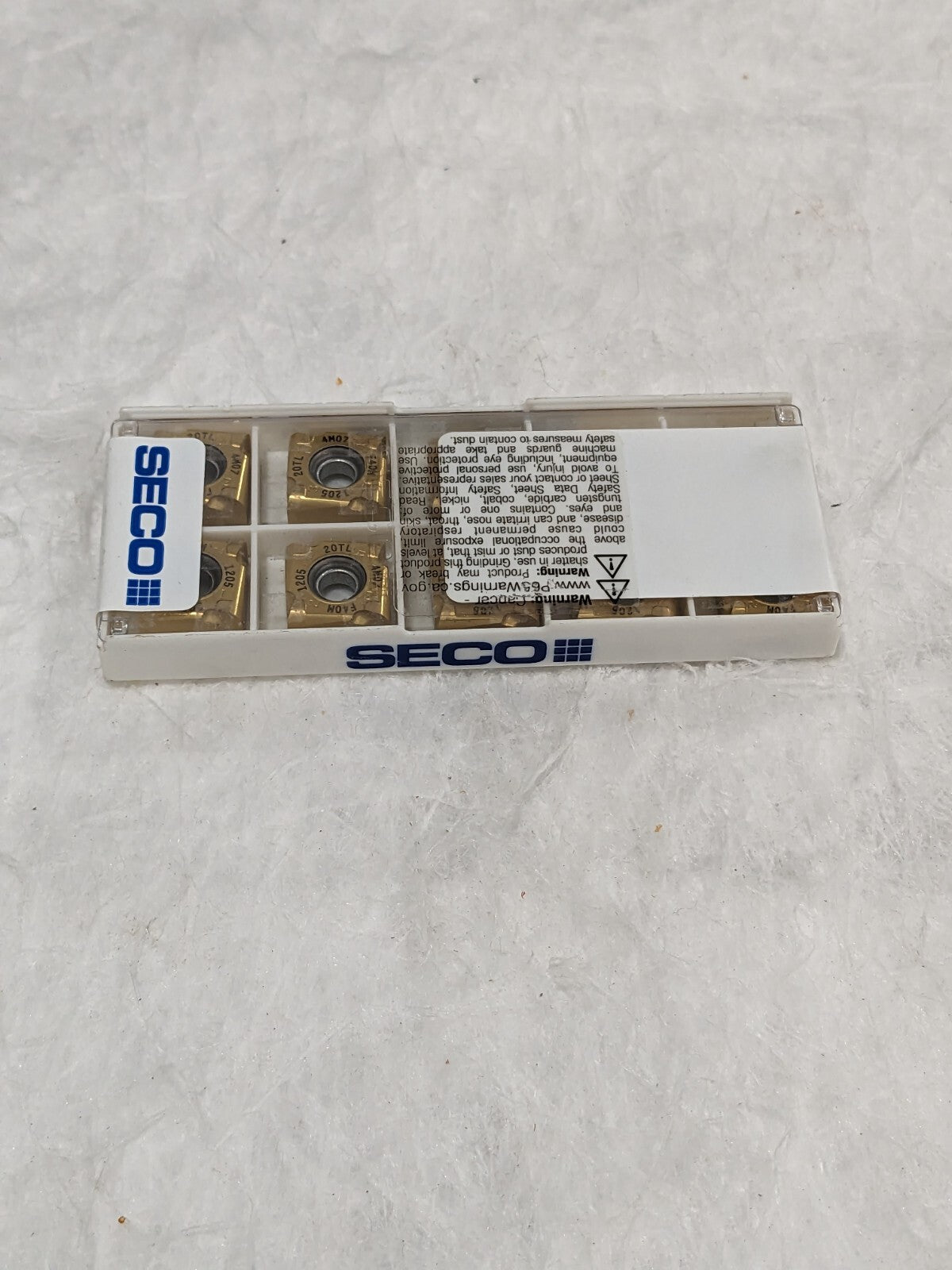

SECO Milling Insert: SNHQ120520TL4-M07 F40M, Solid Carbide Qty 10 02526635

Seco
1 Lot of 10 Inserts

MSRP: $250.00

• Insert Style SNHQ
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Square
• Inscribed Circle (Inch) 1/2
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0787
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.2126
• Coating/Finish TiN; TiAlN
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.2047
• Insert Size Code 120520
• Material Grade Fine Grain
• Width (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
• Length Range (Decimal Inch) 0.0000 to 0.3200
• Insert Hand Left Hand
• Series SNHQ-12
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.2126
• Rake Negative
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code SNHQ120520TL4-M07
• Iso Code SNHQ120520TL4-M07
• Standards ISO
• Rake Angle 20
• Cutting Edge Style T-Land
• Manufacturers Catalog Number SNHQ120520TL4-M07
• Cutter Series Compatibility 335.19-12
• Chip Breaker M07
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Square
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.5000
• Width (Mm - 2 Decimals) 5.20
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.2126
• System Of Measurement Decimal Inch

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.
