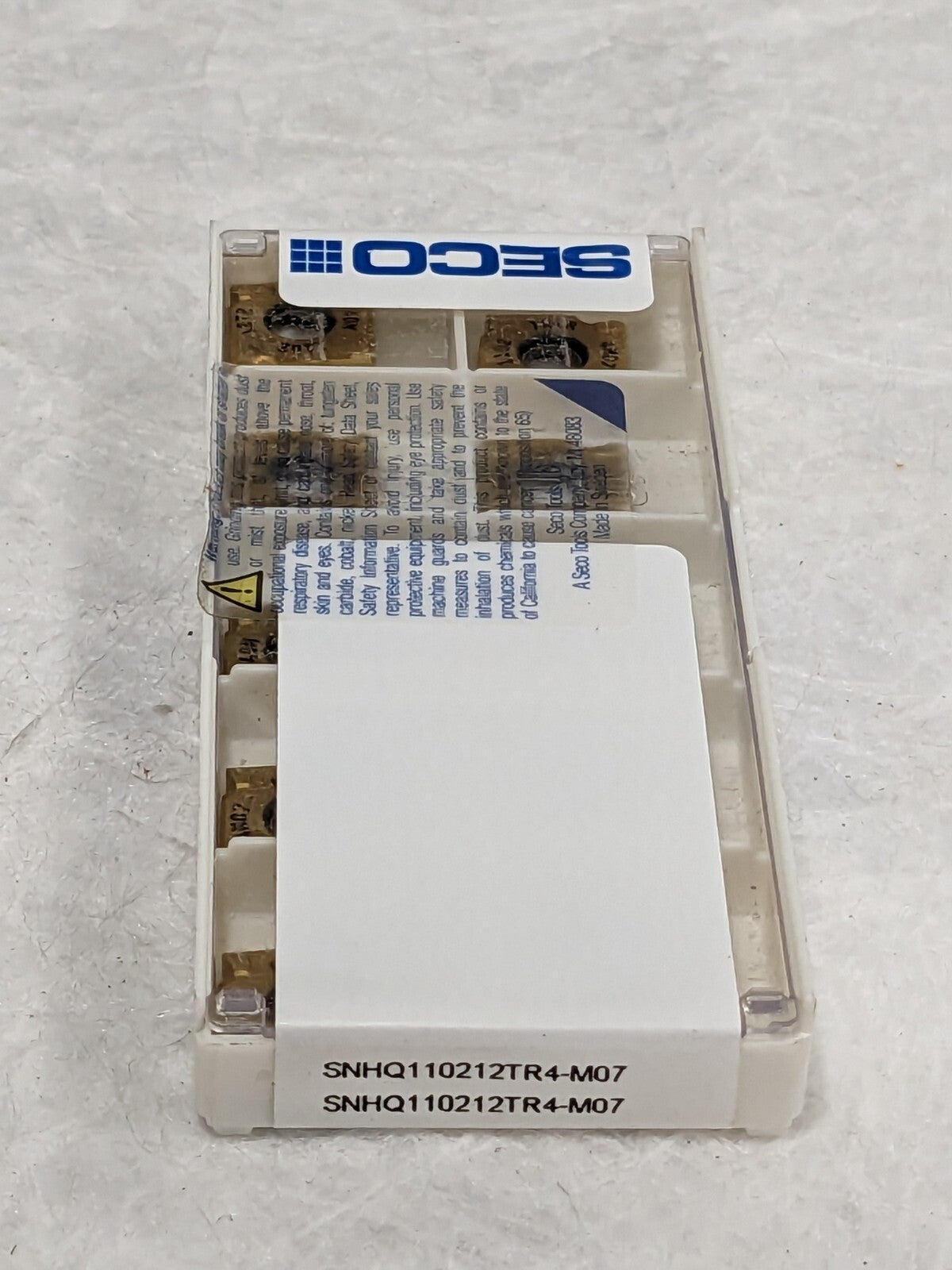

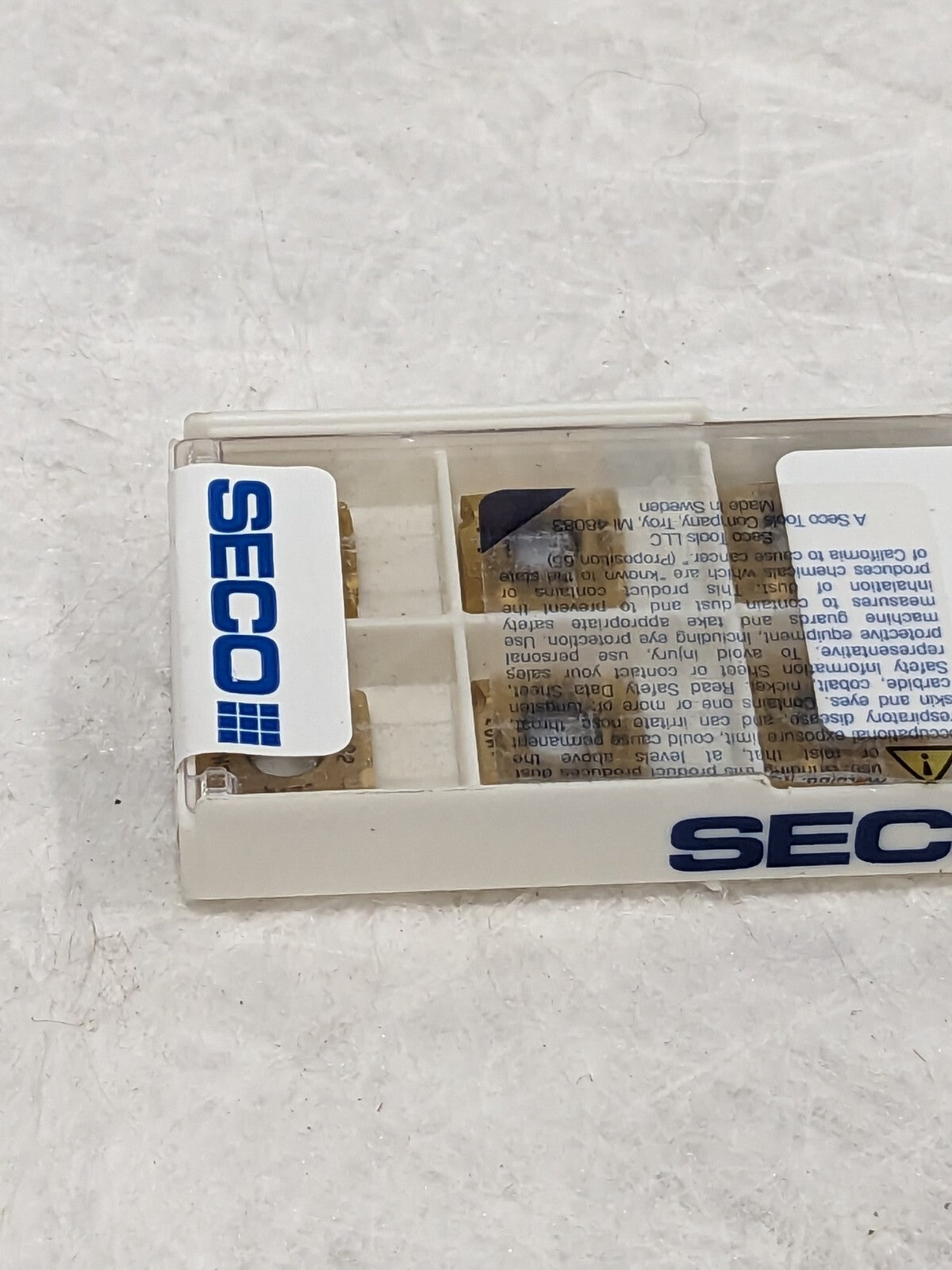

SECO Milling Insert: SNHQ110212TR4-M07 F40M, Solid Carbide Qty 10 02526591

Seco
1 Lot of 10 Inserts

MSRP: $250.00

• Insert Style SNHQ
• Insert Size 11
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0472
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.0906
• Coating/Finish TiN; TiAlN
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.0827
• Insert Size Code 110212
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.4331
• Thickness Range (Decimal Inch) 0.0000 to 0.1000
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.0000 to 0.3200
• Insert Hand Right Hand
• Series SNHQ-11
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.0906
• Rake Negative
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code SNHQ110212TR4-M07
• Iso Code SNHQ110212TR4-M07
• Standards ISO
• Rake Angle 20
• Cutting Edge Style T-Land
• Manufacturers Catalog Number SNHQ110212TR4-M07
• Cutter Series Compatibility 335.19-11
• Chip Breaker M07
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Square
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.4331
• Width (Mm - 2 Decimals) 2.10
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.0906
• System Of Measurement Decimal Inch

These items are new and in the original sealed package. SOLD AS IS.

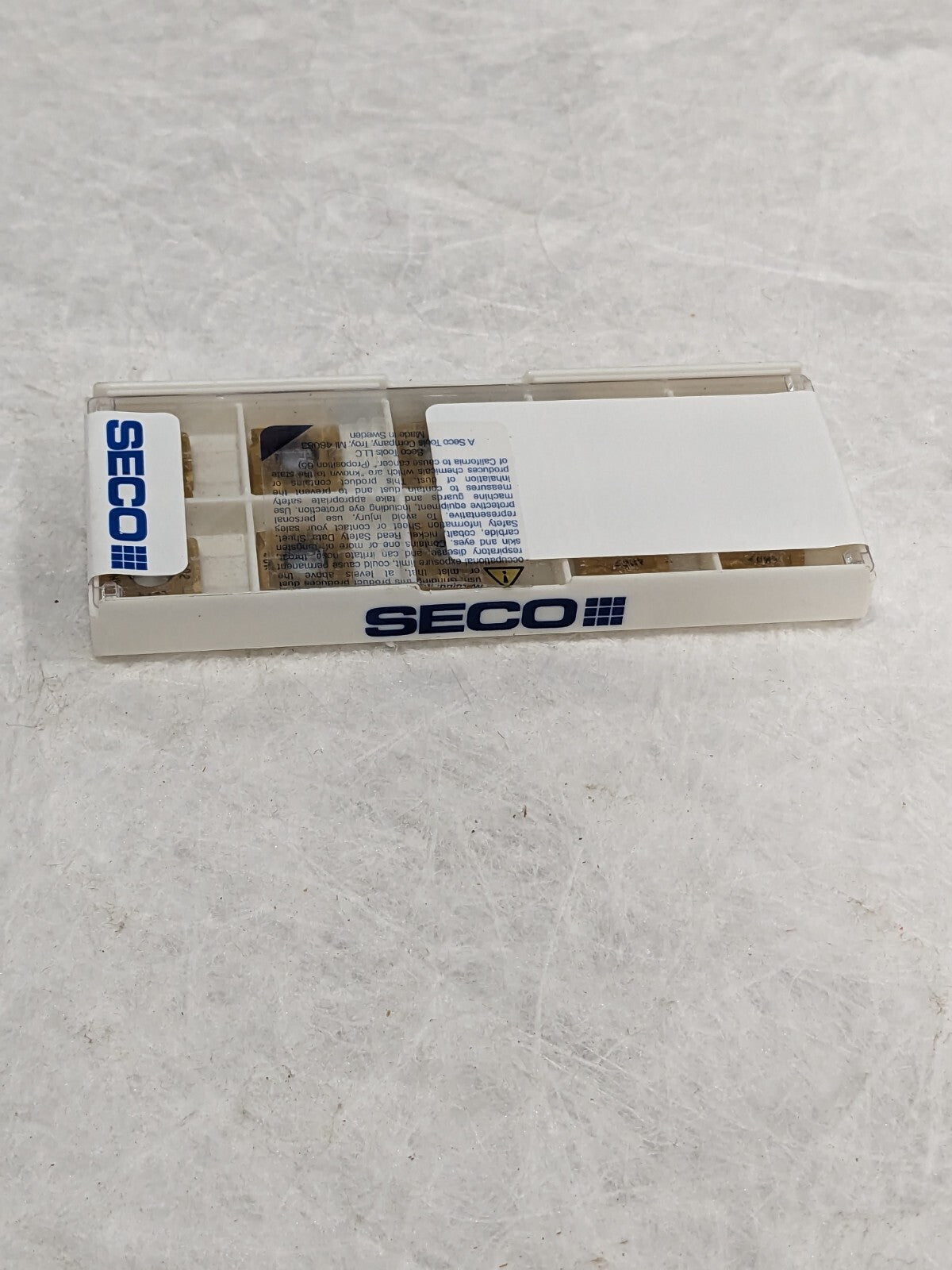

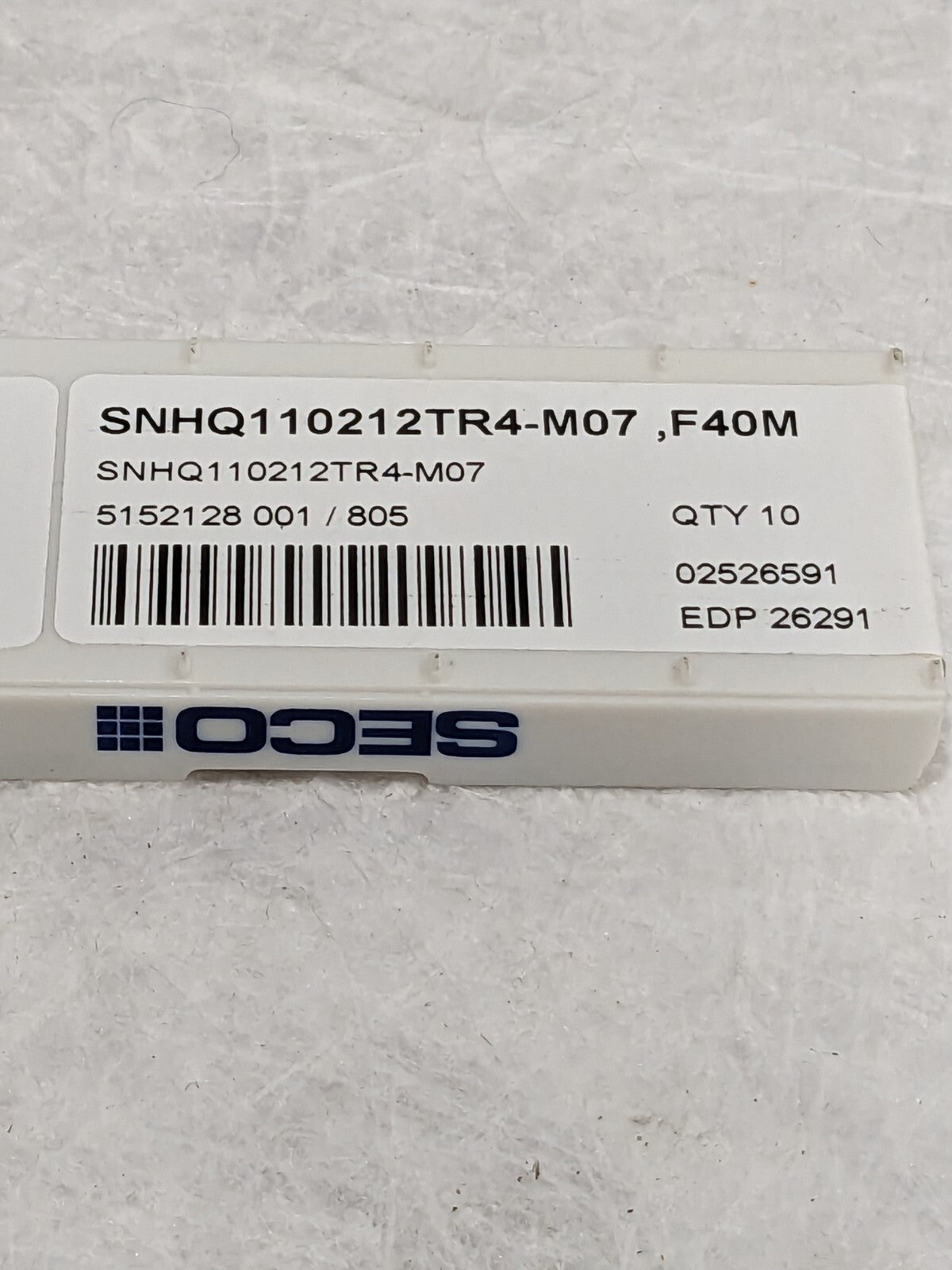

Please review photos, comes as shown.
