SECO Milling Insert: SEKR1303AFTN-ME13 F40M, Solid Carbide 02505918

SECO Milling Insert: SEKR1303AFTN-ME13 F40M, Solid Carbide 02505918

MSRP: $220

• Insert Style SEKR
• Insert Size 13
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0315
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.1323
• Coating/Finish TiN; TiAlN
• Relief Angle 20.00
• Maximum Depth of Cut (Decimal Inch) 0.2756
• Insert Size Code 1303
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.5291
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.5100 to 0.6000
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Neutral
• Series SEKR-13
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.5291
• Rake Positive
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code SEKR1303AFTN-ME13
• Iso Code SEKR1303AFTN-ME13
• Standards ISO
• Rake Angle 24
• Cutting Edge Style T-Land
• Manufacturers Catalog Number SEKR1303AFTN-ME13
• Cutter Series Compatibility R220.13-12
• Chip Breaker ME13
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Square
• Insert Holding Method Wedge Clamp
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.5291
• Width (Mm - 2 Decimals) 13.44
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5291
• System Of Measurement Decimal Inch

(Description).

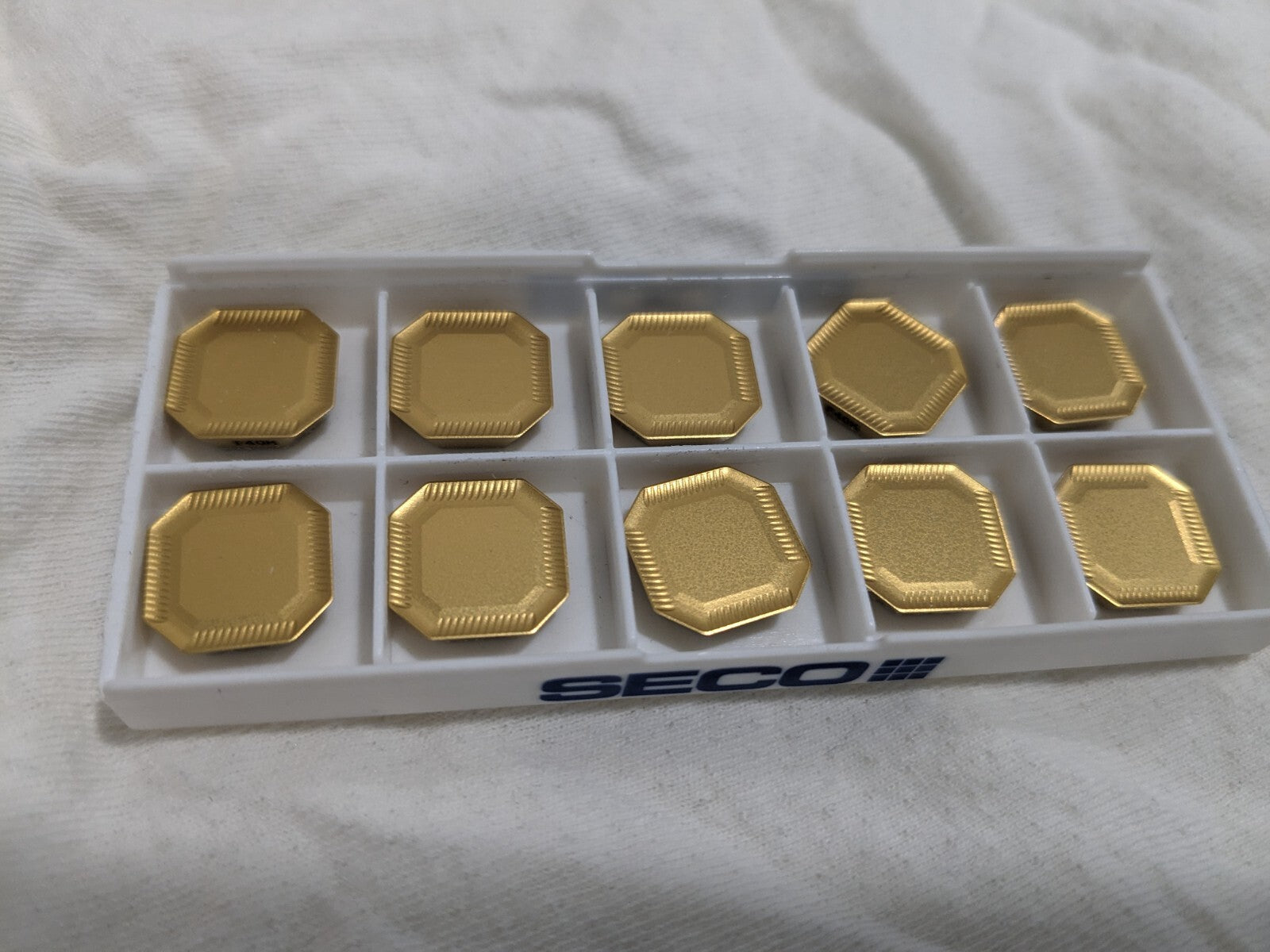

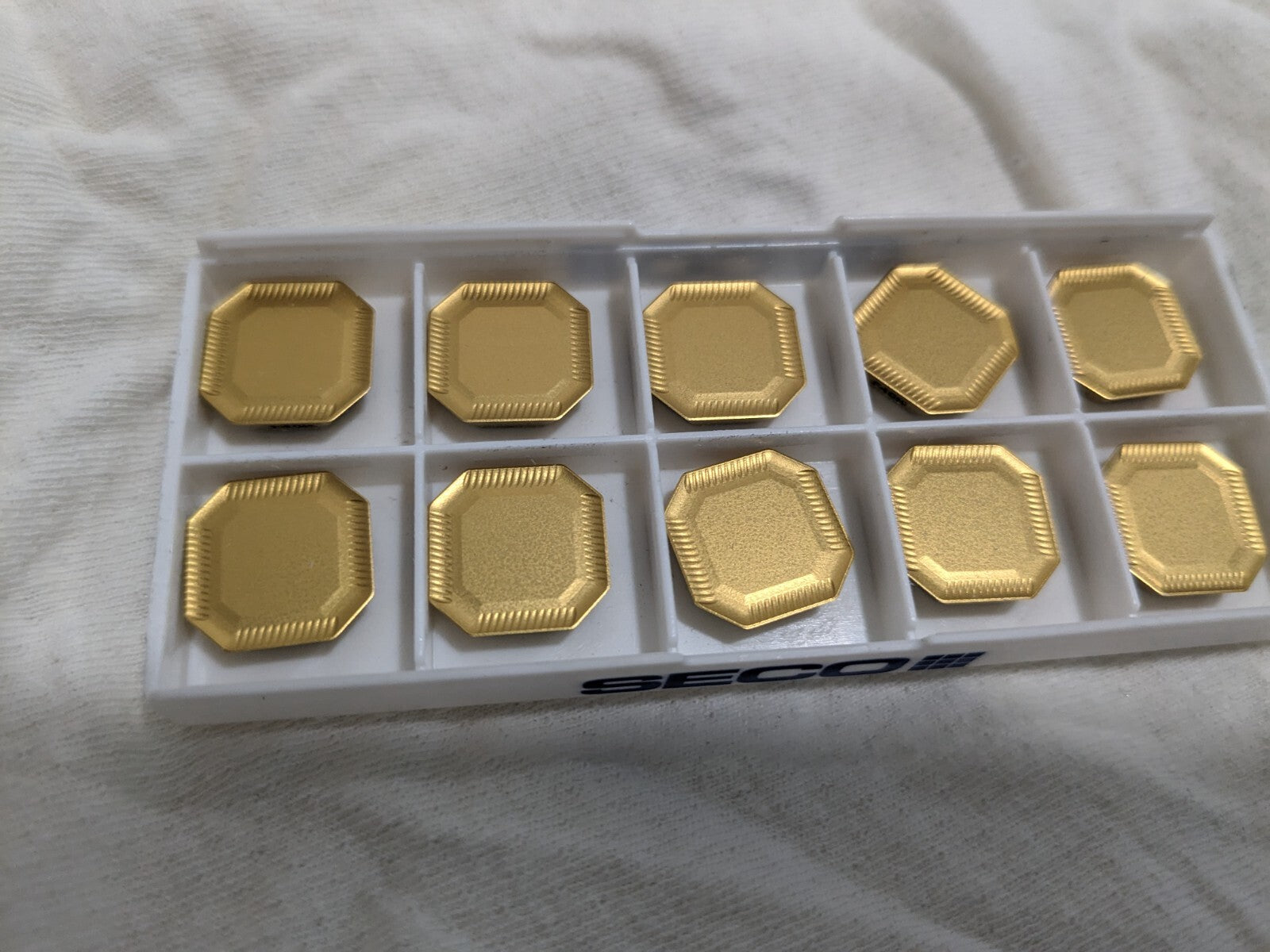

Please review photos, comes as shown.
