SECO Milling Insert: R335.15-13160FG-E08 F40M, Solid Carbide 02456292

SECO

 Milling Insert: R335.15-13160FG-E08 F40M, Solid Carbide 02456292
MSRP: $250

•

• Insert Style R335.15
• Insert Size 13
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0000
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.0642
• Coating/Finish TiN; TiAlN
• Relief Angle 15.00
• Maximum Depth of Cut (Decimal Inch) 0.1024
• Maximum Depth of Cut (mm) 2.60
• Insert Size Code 13160
• Material Grade Fine Grain
• Length (Inch) 17/32
• Inscribed Circle (Decimal Inch) 0.3543
• Thickness Range (Decimal Inch) 0.0000 to 0.1000
• Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Right Hand
• Series R335.15-13
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code R335.15-13160FG-E08
• Iso Code R335.15-13160FG-E08
• Standards ISO
• Rake Angle 15
• Cutting Edge Style Sharp
• Manufacturers Catalog Number R335.15-13160FG-E08
• Cutter Series Compatibility R335.15-13
• Chip Breaker E08
• UNSPSC Code 23291601
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Shape Round
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.3543
• Width (Mm - 2 Decimals) 9.00
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5315

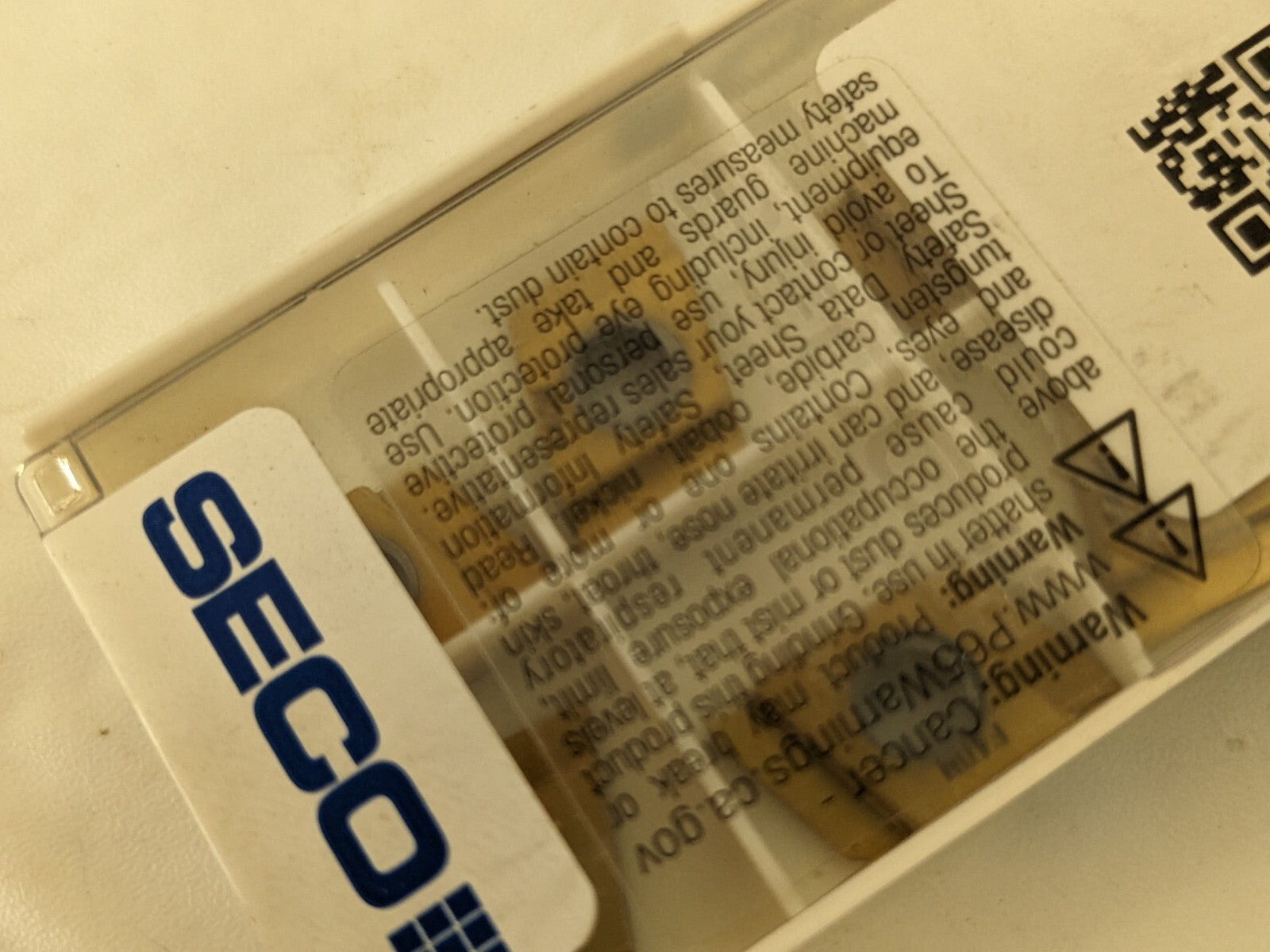

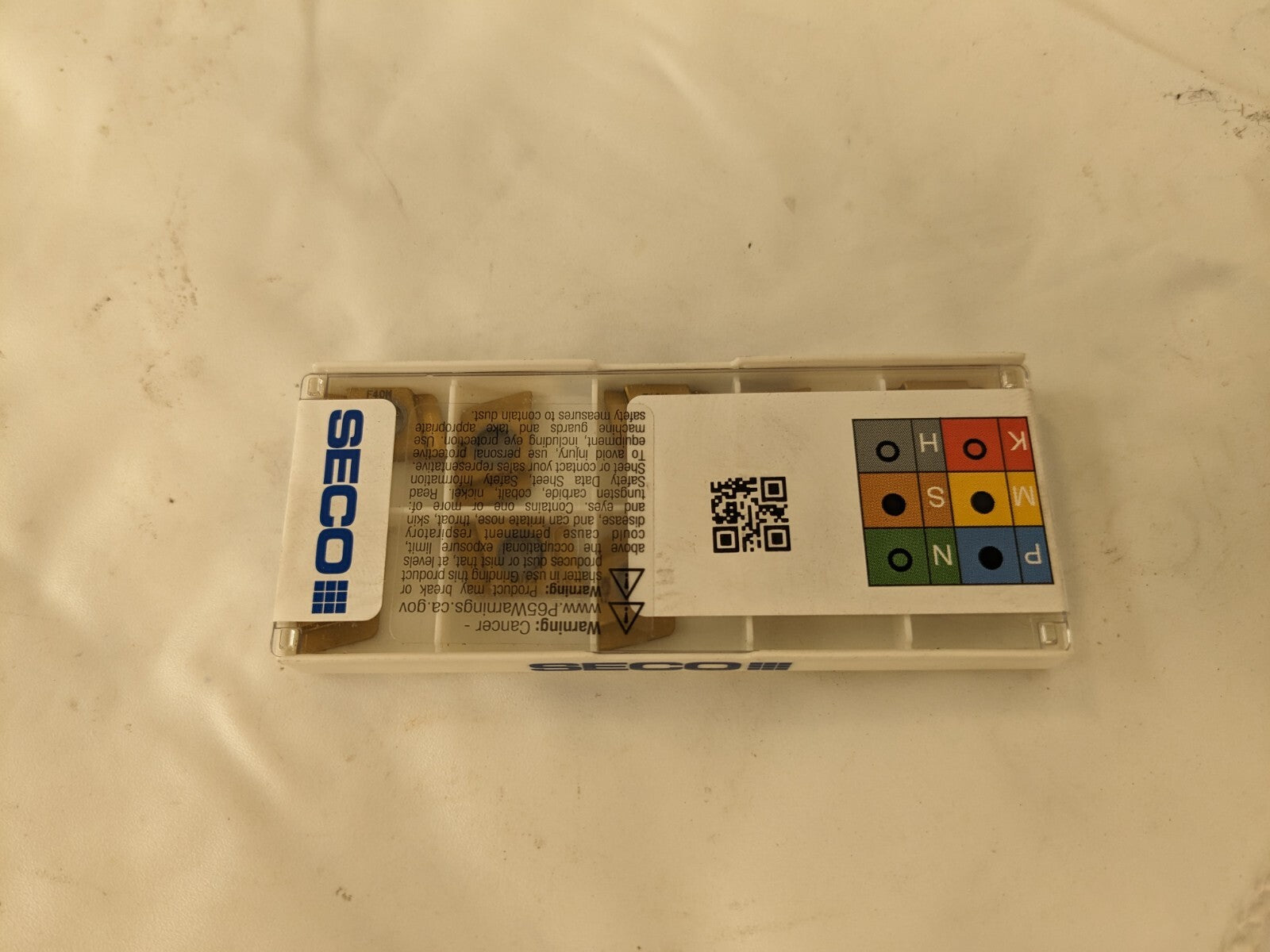

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
