Seco Milling Insert ANSI XOMX120408TR-M12 ISO XOMX120408TR-M12 MP2501 Solid carb
Seco Milling Insert ANSI XOMX120408TR-M12 ISO XOMX120408TR-M12 MP2501 Solid carb
Regular price
$122.38 USD
Regular price
$250.00 USD
Sale price
$122.38 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Seco
Item
MSRP: $250.00
- specs
| nsert Style | XOMX |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | MP2501 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1996 |
| Thickness (mm) | 5.07 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 120408 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Inscribed Circle (mm) | 8.20 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Maximum Depth of Cut (mm) | 5.80 |
| Series | XOMX-12 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.15 |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4567 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | XOMX120408TR-M12 |
| Iso Code | XOMX120408TR-M12 |
| Standards | ISO |
| Rake Angle | 10.4 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XOMX120408TR-M12 |
| Cutter Series Compatibility | R217.69-12; R220.69-12 |
| Chip Breaker | M12 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 11.60 |
| Width (Decimal Inch - 4 Decimals) | 0.3228 |
| Width (mm - 2 Decimals) | 8.20 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4567 |
| Country of Origin | Sweden |
(Description).

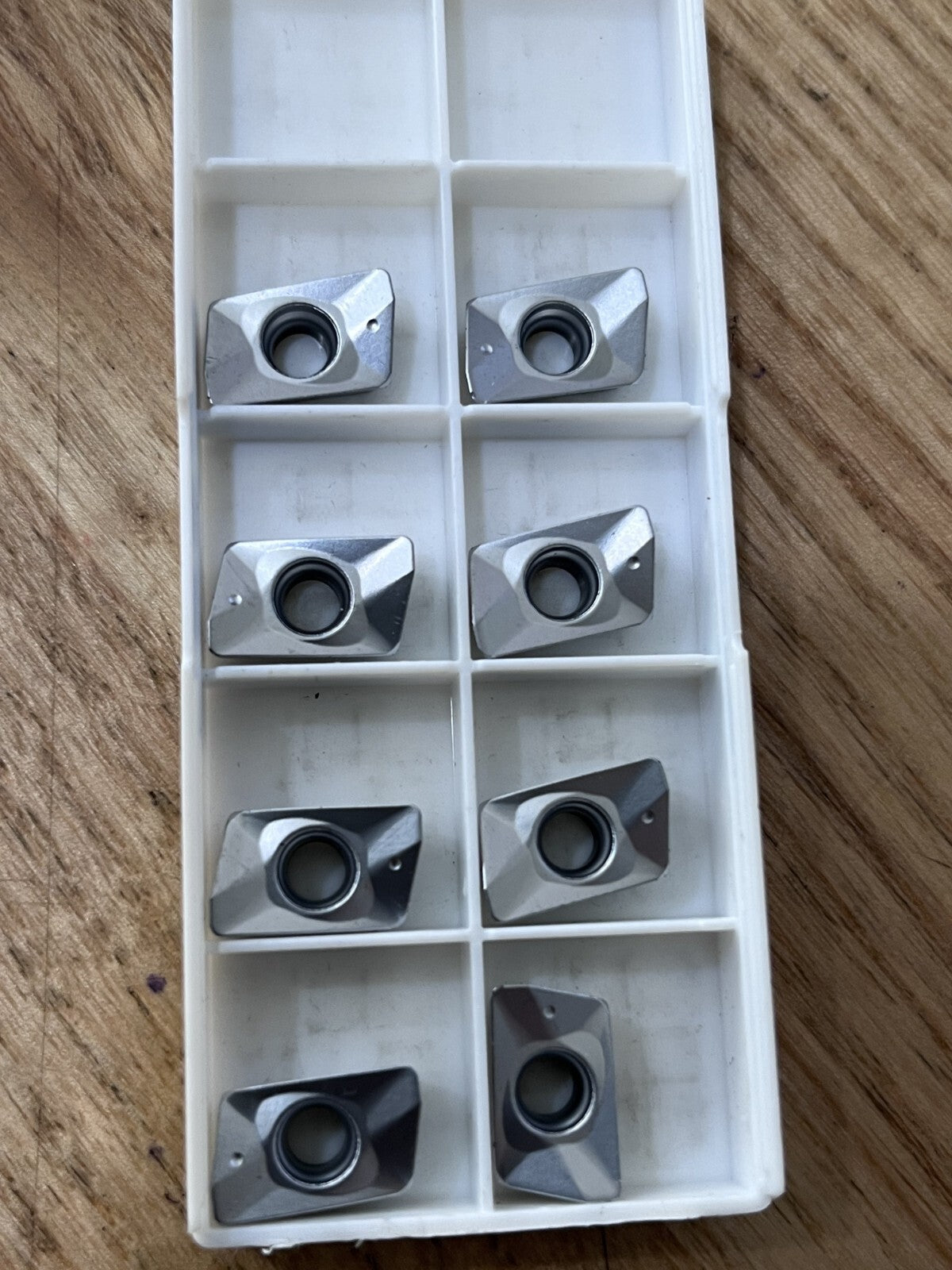

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
