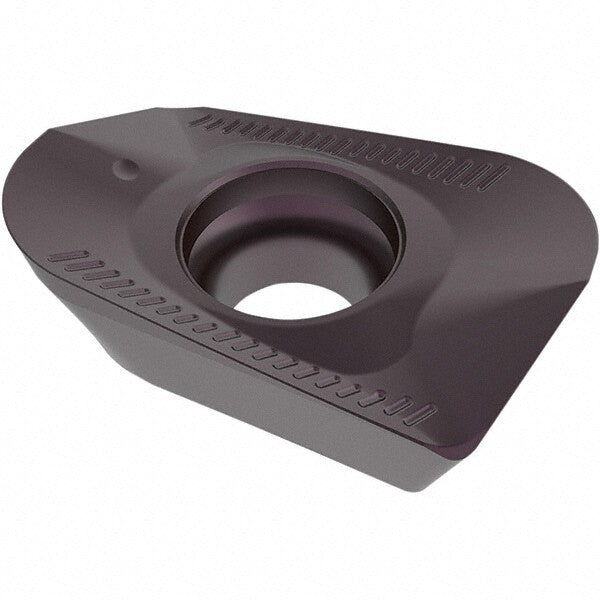

SECO Milling Insert 10pc XOMX120431TR-ME08 MP2050, Solid Carbide 03189056

SECO Milling Insert 10pc XOMX120431TR-ME08 MP2050, Solid Carbide 03189056
MSRP: $250

• Insert Style XOMX
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade MP2050
• Corner Radius (Decimal Inch) 0.1220
• Corner Radius (mm) 3.10
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1996
• Thickness (mm) 5.07
• Coating/Finish TiSiN; TiAlN
• Relief Angle 15.00
• Insert Size Code 120431
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.3228
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Inscribed Circle Range (Decimal Inch) 0.3000 to 0.3500
• Length Range (Decimal Inch) 0.4500 to 0.5000
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.4567
• Series XOMX-12
• Coating Process PVD
• Hole Diameter (Mm) ( - 0 Decimals) 0.15
• Hole Diameter (Decimal Inch) 0.1535
• Cutting Edge Effective Length (Decimal Inch) 0.4567
• Rake Positive
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Secondary Workpiece Material Code P; S; M
• Ansi Code XOMX120431TR-ME08
• Iso Code XOMX120431TR-ME08
• Standards ISO
• Rake Angle 20.1
• Cutting Edge Style T-Land
• Manufacturers Catalog Number XOMX120431TR-ME08
• Cutter Series Compatibility R217.69-12; R220.69-12
• Chip Breaker ME08
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Shape Parallelogram
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Length (mm) 11.60
• Width (Decimal Inch - 4 Decimals) 0.3228
• Width (mm - 2 Decimals) 8.20
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.4567

(Description).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
