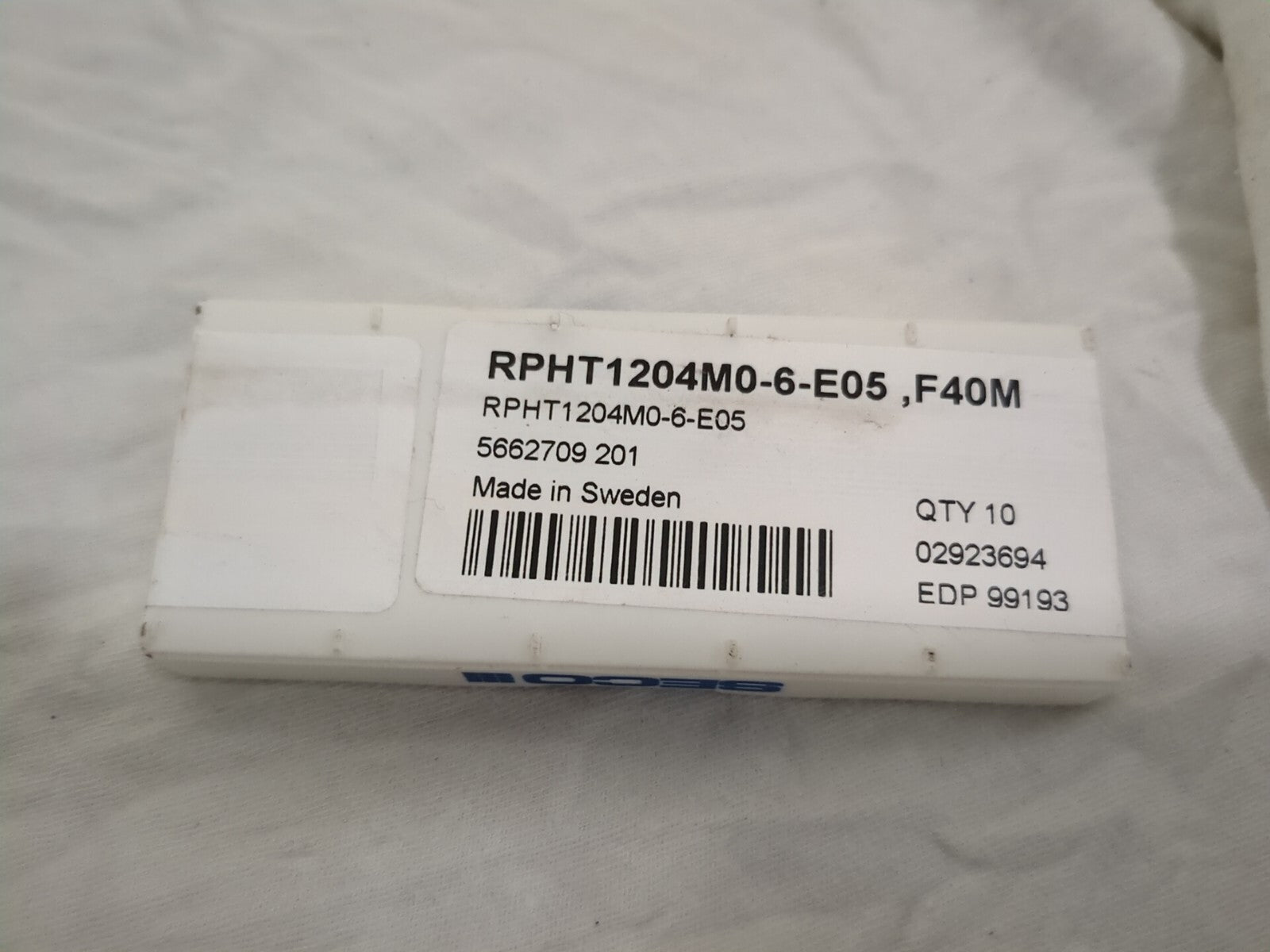

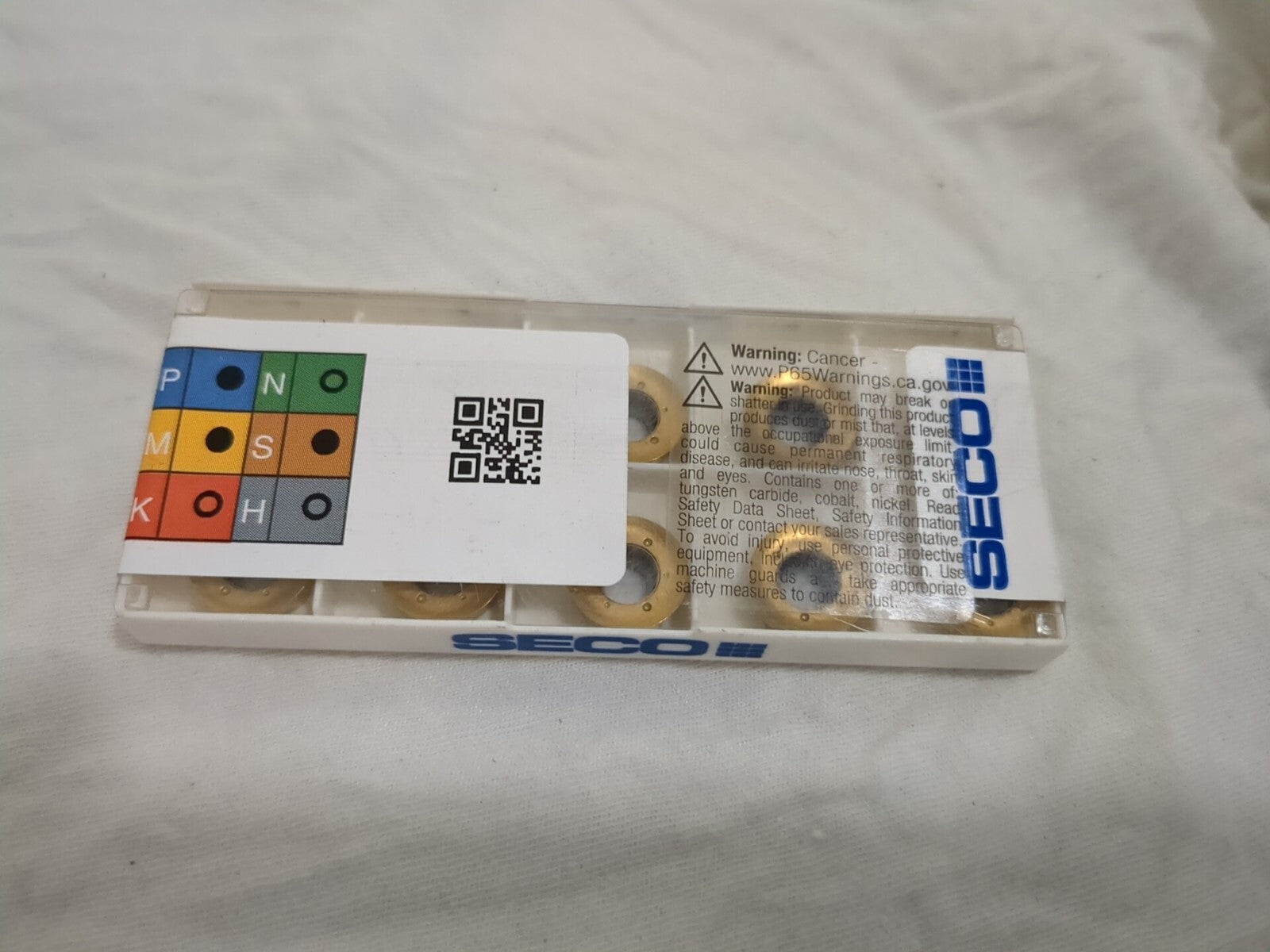

SECO Milling Insert 10pc: RPHT1204M0-6-E05 F40M, Solid Carbide 02923694

SECO Milling Insert 10pc: RPHT1204M0-6-E05 F40M, Solid Carbide 02923694

MSRP: $170

• Insert Style RPHT
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Round
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.2362
• Number Of Cutting Edges 6
• Thickness (Decimal Inch - 4 Decimals) 0.1874
• Coating/Finish TiN; TiAlN
• Relief Angle 11.00
• Maximum Depth of Cut (Decimal Inch) 0.2362
• Insert Size Code 1204
• Material Grade Fine Grain
• Thickness (Inch) 3/16
• Inscribed Circle (Decimal Inch) 0.4724
• Inscribed Circle (mm) 12.00
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.4500 to 0.5000
• Insert Hand Neutral
• Series RPHT-12
• Coating Process PVD
• Hole Diameter (Decimal Inch) 0.1772
• Cutting Edge Effective Length (Decimal Inch) 0.2362
• Rake Positive
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code RPHT1204M0-6-E05
• Iso Code RPHT1204M0-6-E05
• Standards ISO
• Rake Angle 20
• Cutting Edge Style Honed
• Manufacturers Catalog Number RPHT1204M0-6-E05
• Cutter Series Compatibility R217.29-06; R220.29-06
• Chip Breaker E05
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Round
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 360
• Width (Decimal Inch - 4 Decimals) 0.4724
• Width (mm - 2 Decimals) 12.00
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.4724
• System Of Measurement Decimal Inch

(Description).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
