Hand of Holder Left Hand

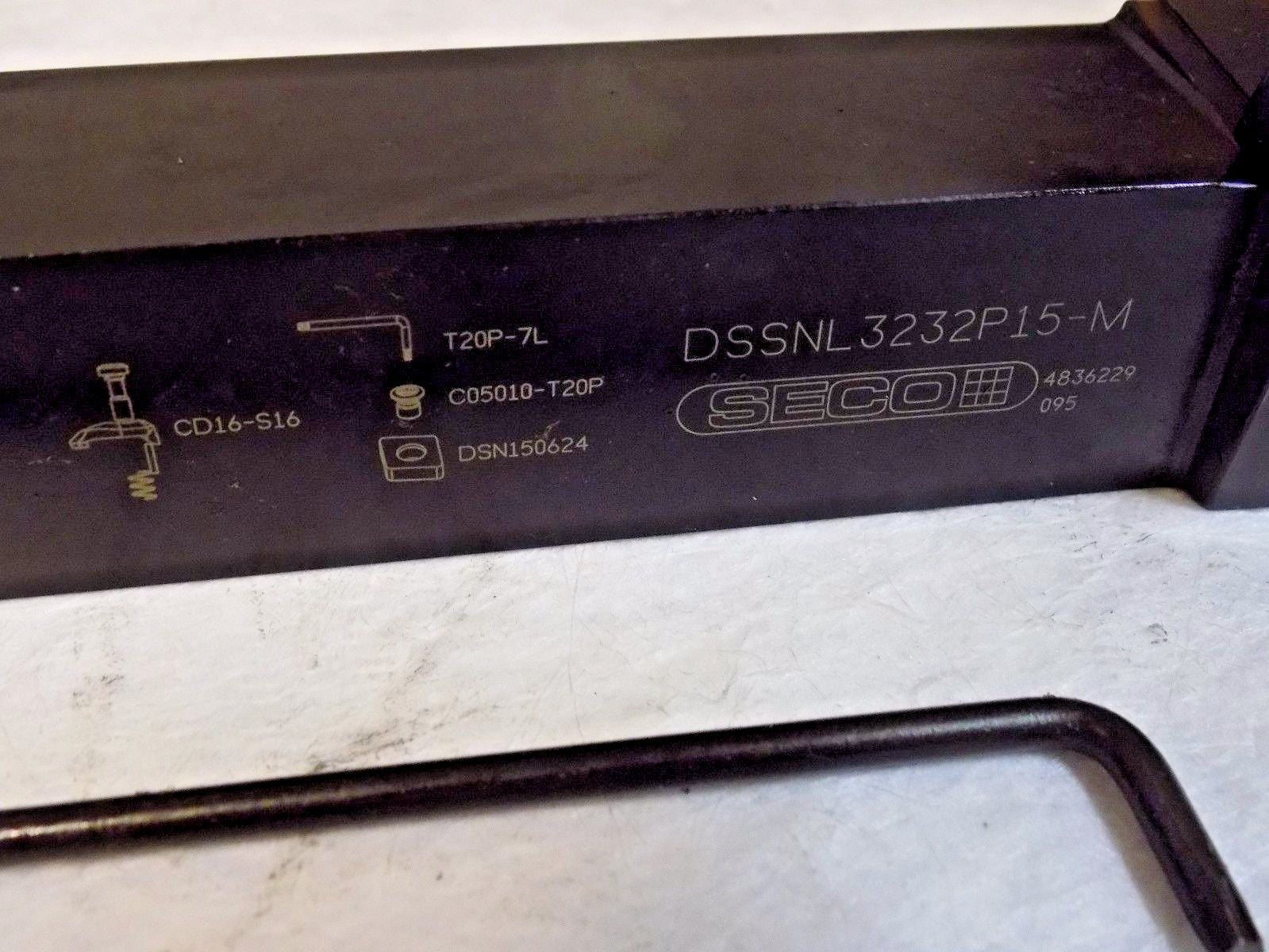

Toolholder Style DSSN
Rake Negative
Rake Angle -8

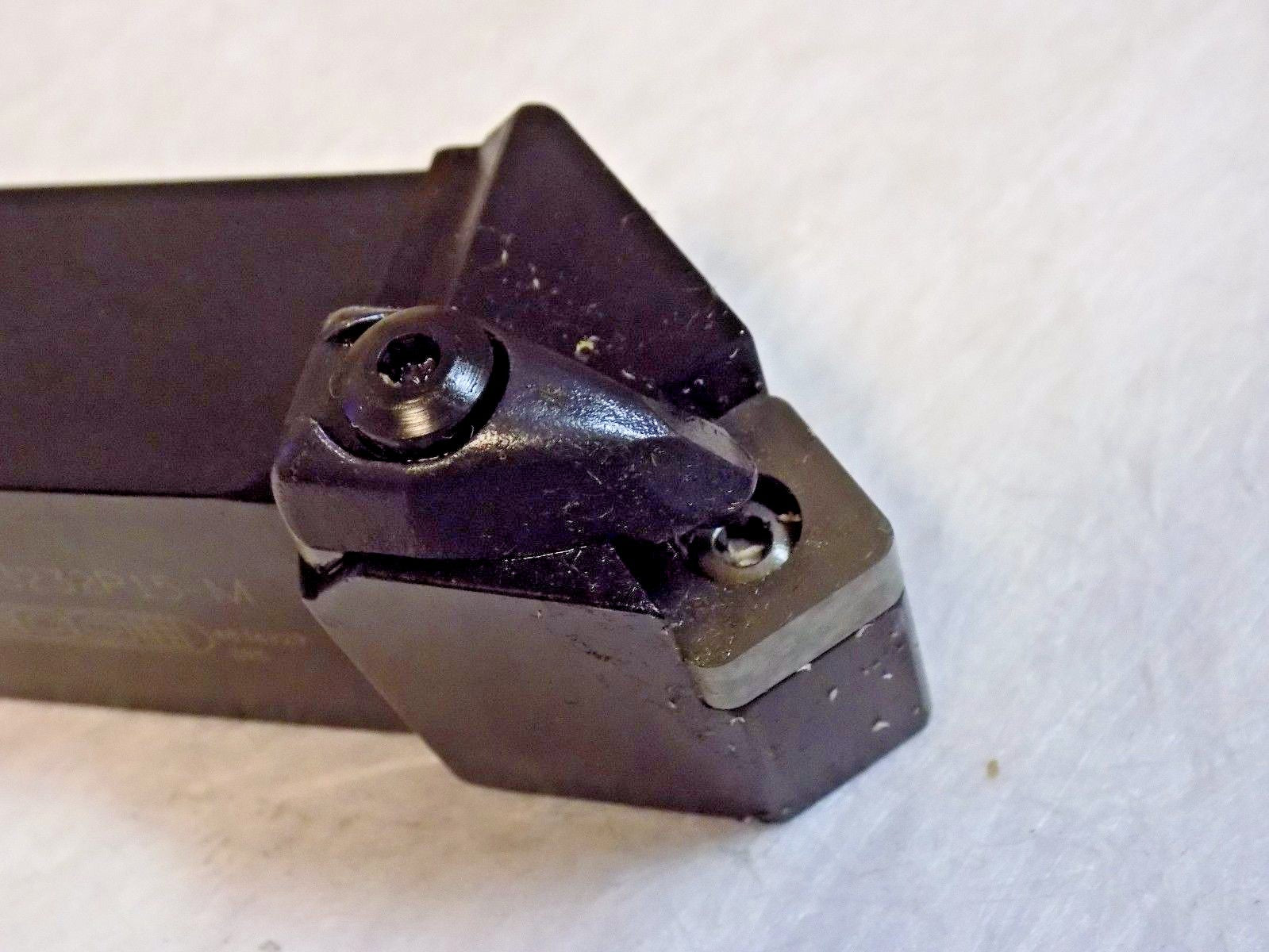

Series Dual Clamp
Lead Angle 45

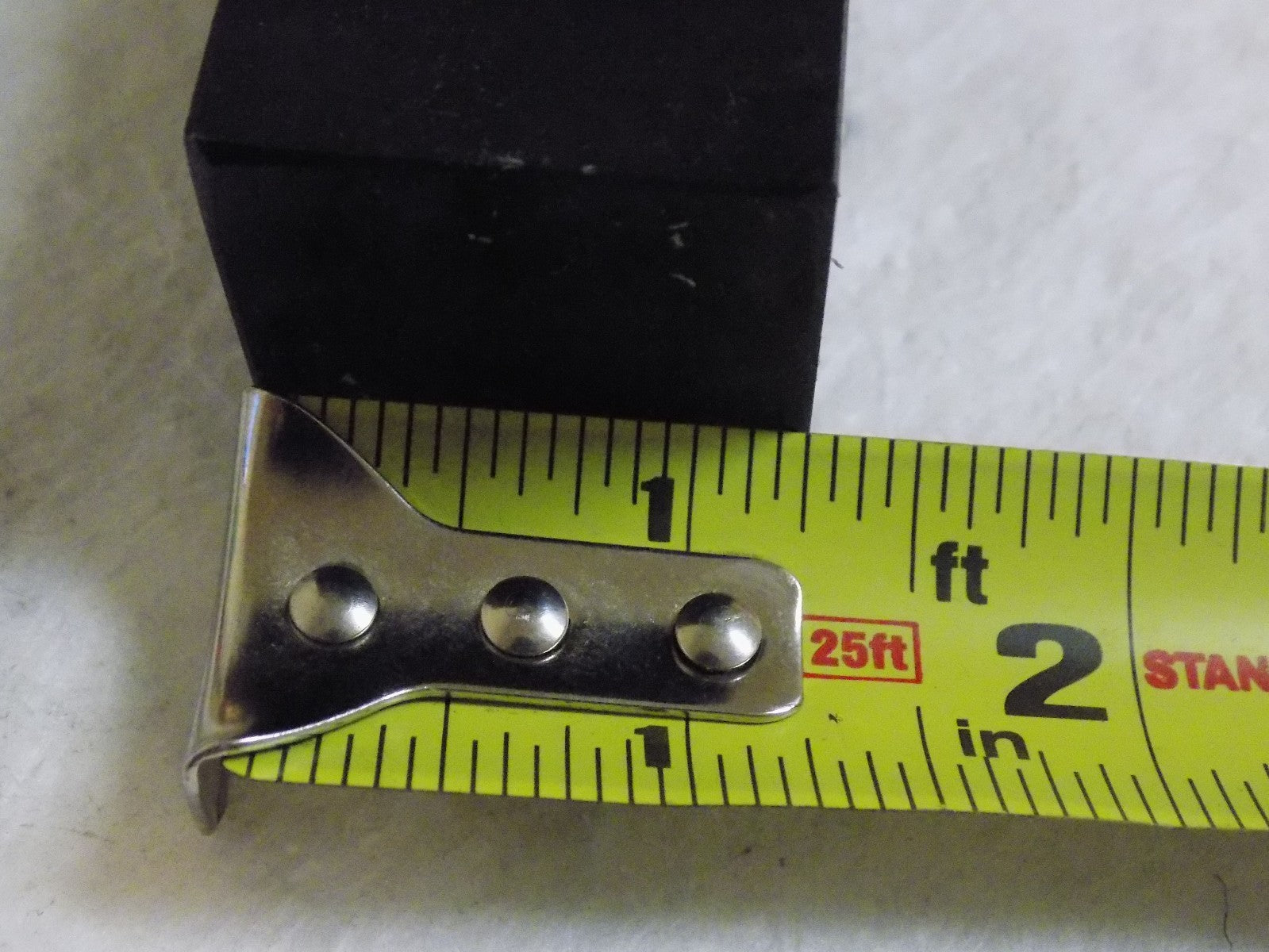

Shank Width (mm) 32.00
Shank Width (Decimal Inch) 1.2598
Shank Height (mm) 32.00
Shank Height (Decimal Inch) 1.2598

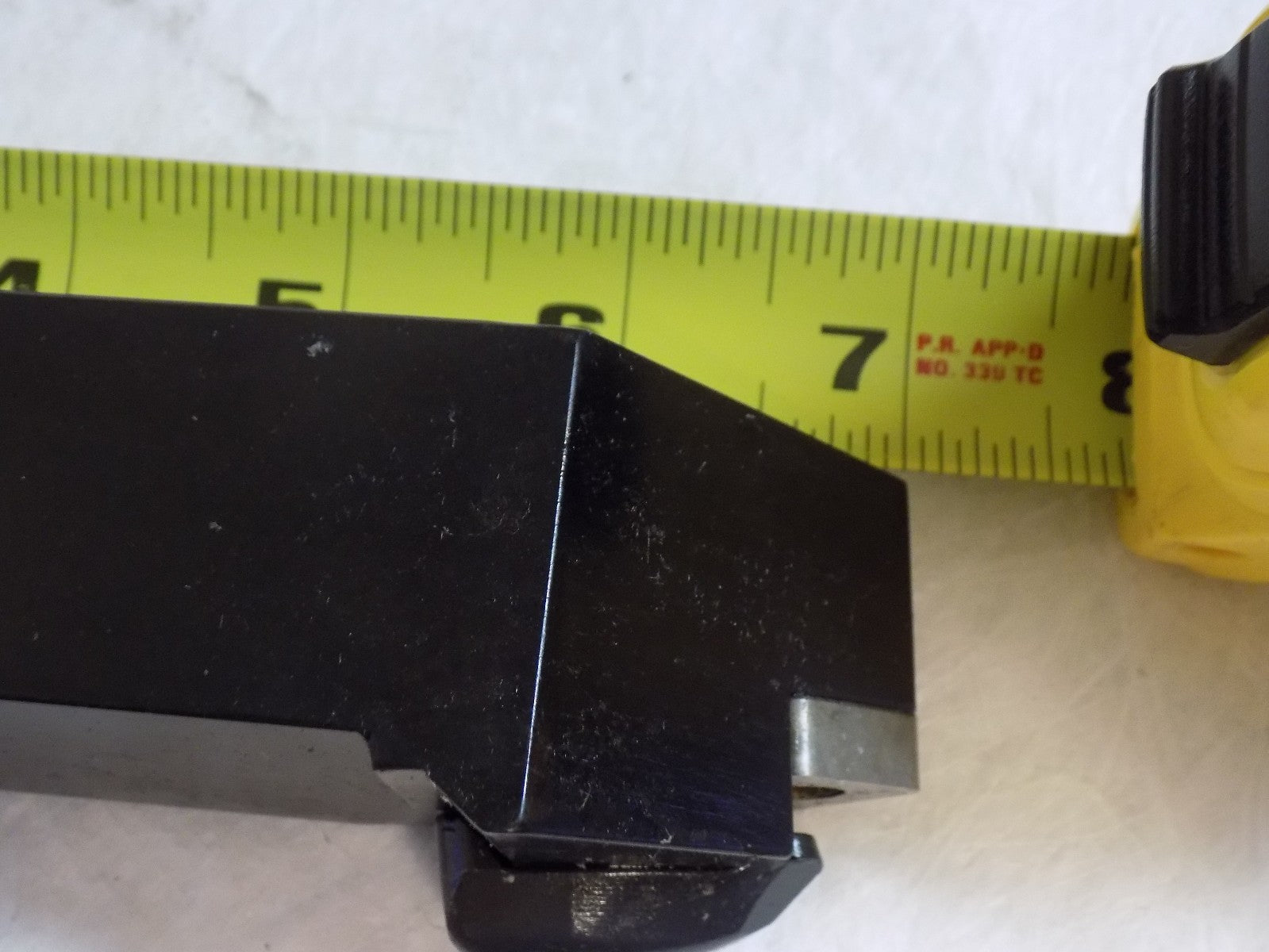

Overall Length (mm) 181.20
Overall Length (Decimal Inch) 7.1338
Insert Compatibility SNMG 322
Multi-Use Tool No

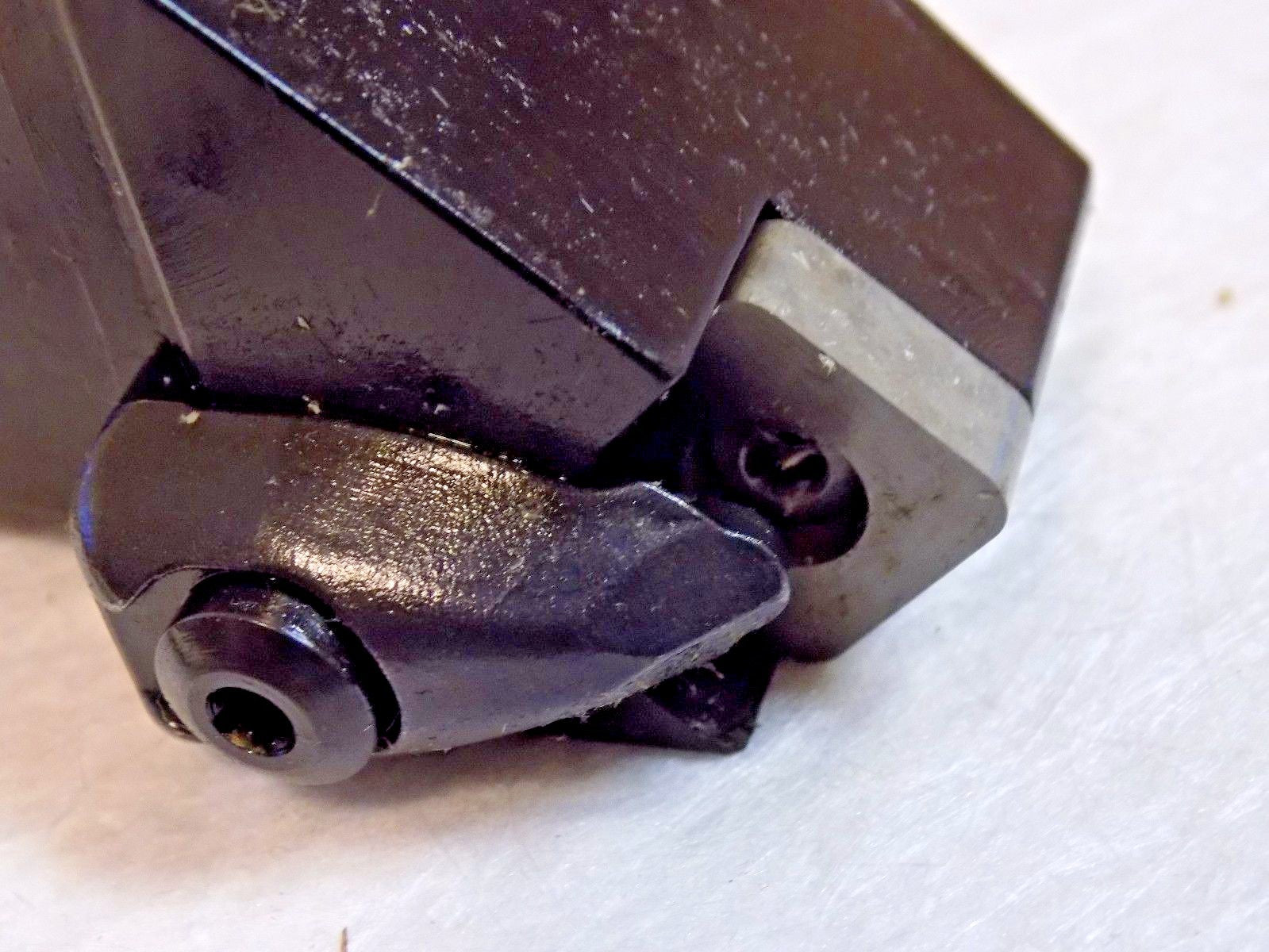

Insert Holding Method Screw
Back of Bar to Cutting Edge (mm) 40.00
Back of Bar to Cutting Edge (Decimal Inch) 1.5748
Center to Cutting Edge (Decimal Inch) 1.1811
Head Length (mm) 42.00
Head Length (Decimal Inch) 1.6535
Insert Inscribed Circle (Inch) 1/2
Insert Inscribed Circle (Decimal Inch) 0.5000
Toolholder Material Steel

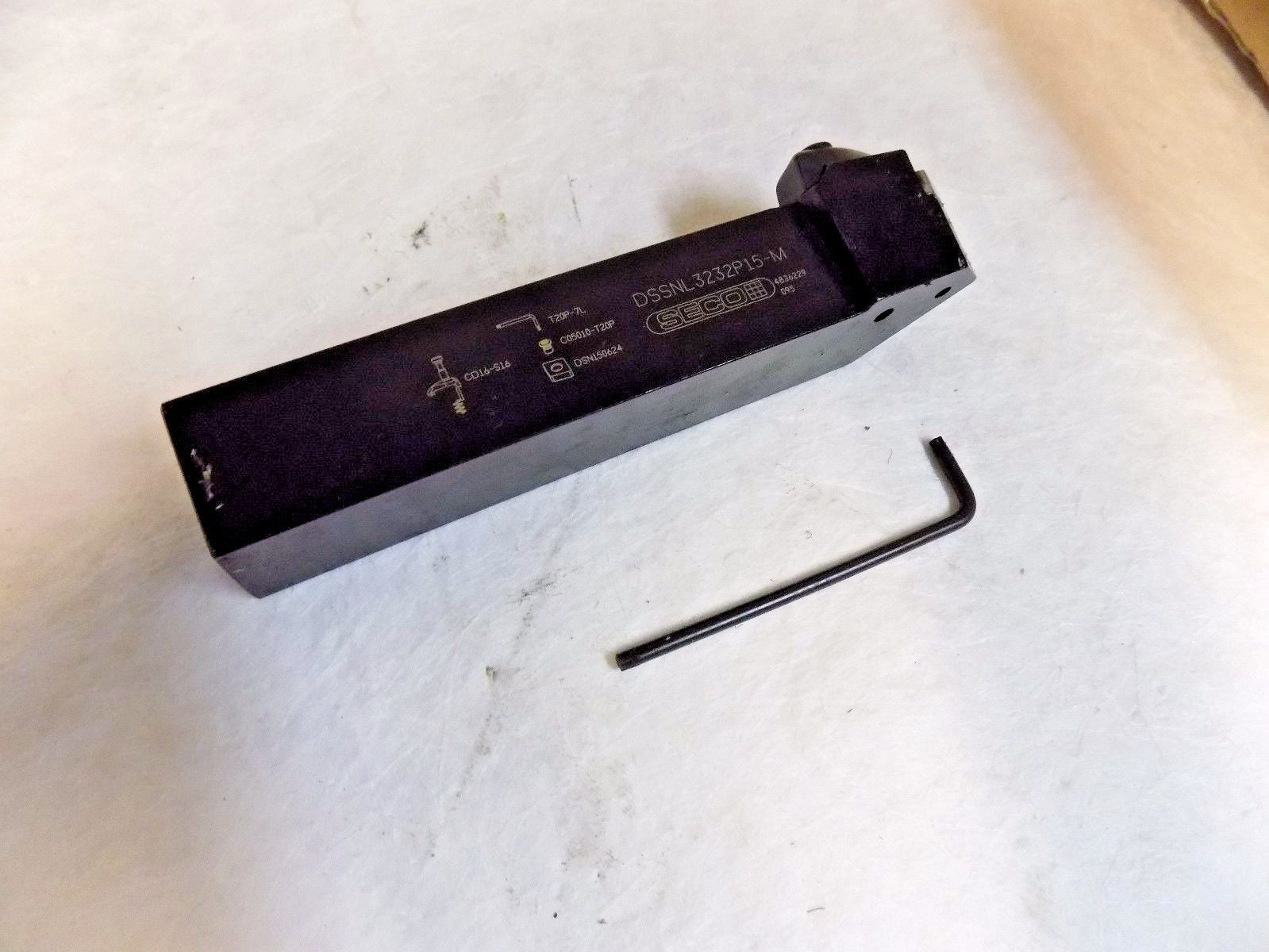

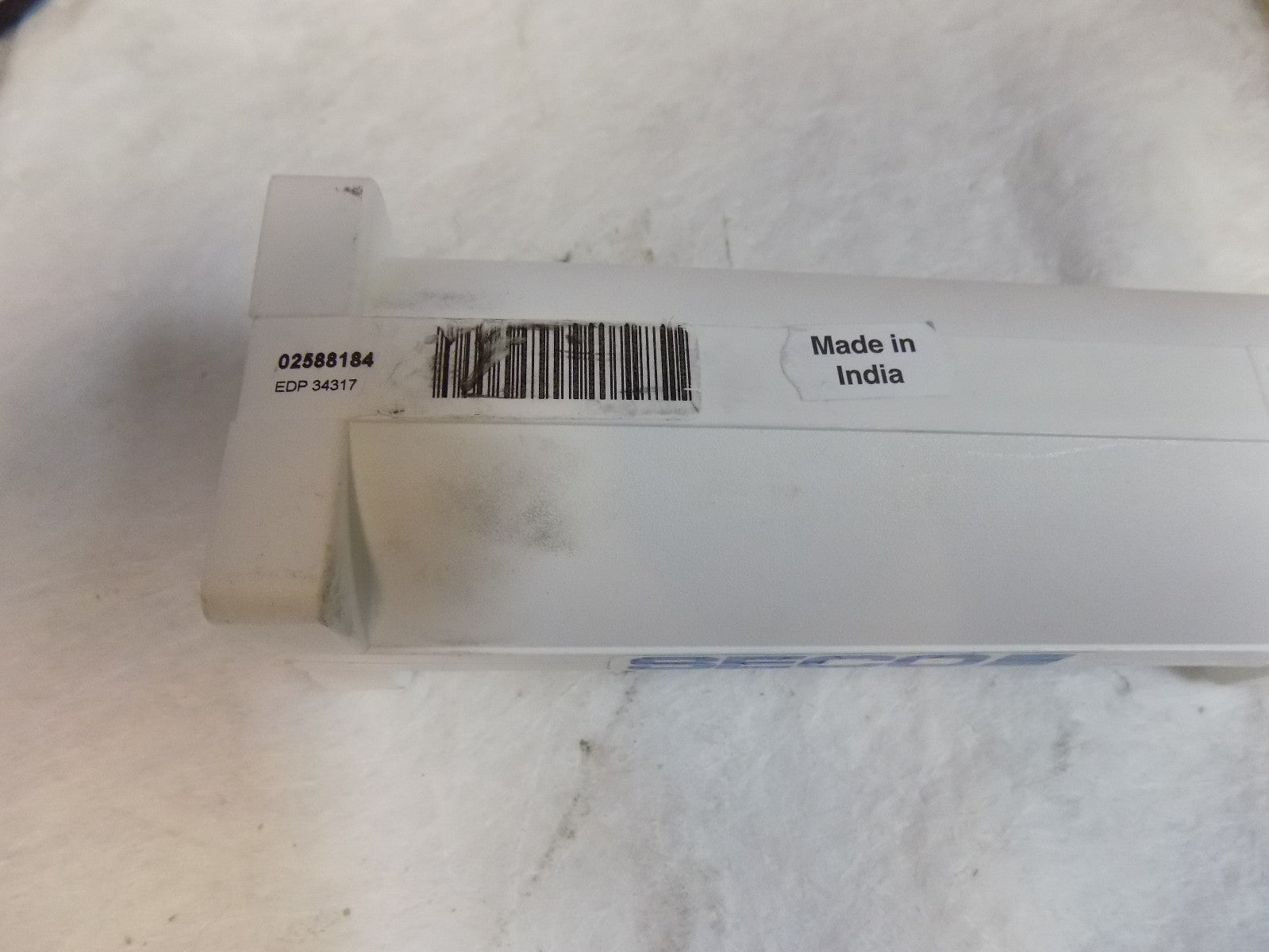

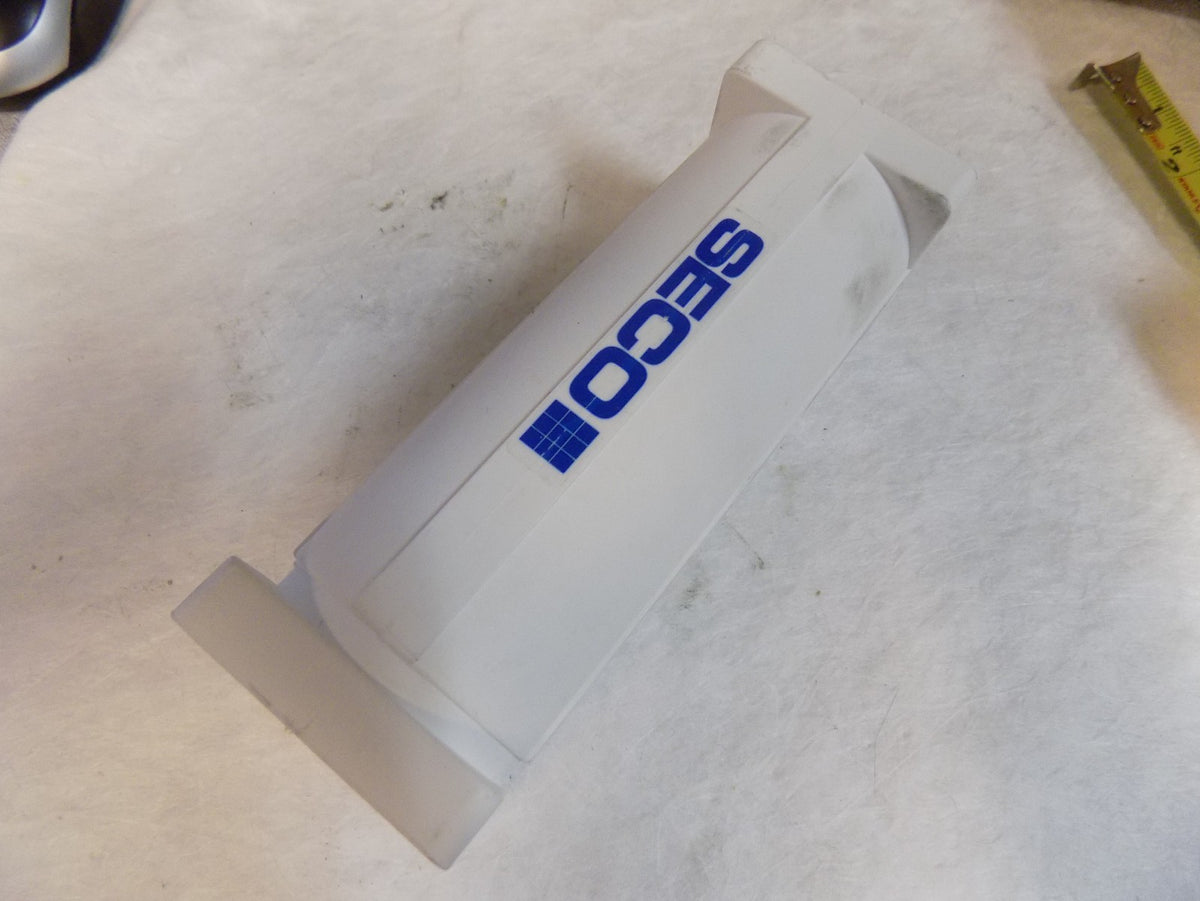

This listing is for One Indexable Turning Toolholder that is in the picture as well as described. Please ask any questions prior to buying!
