SECO Indexable Turning Toolholder: MTJNLS-20-5, Clamp & Pin 00014455

Seco
Indexable Turning Toolholder

MSRP: $125.00

• Toolholder Style MTJN
• Hand of Holder Left Hand
• Insert Compatibility TN..54.
• Insert Holding Method Pin; Clamp
• Shank Width (Inch) 1-1/4
• Shank Height (Inch) 1-1/4
• Overall Length (Decimal Inch) 7.0000
• Coolant Through No
• Rake Negative
• Cutting Direction Left Hand
• Compatible Insert Size Code TN54
• Rake Angle -5
• Multi-use Tool No
• Shank Width (Decimal Inch) 1.2500
• Shank Height (Decimal Inch) 1.2500
• Series Multiple Lock
• Overall Length (Inch) 7
• Cutting Tool Application Turning
• Head Length (Decimal Inch) 1.4400
• Back of Bar to Cutting Edge (Inch) 1-1/2
• Back of Bar to Cutting Edge (Decimal Inch) 1.5000
• Primary Workpiece Material Universal
• Primary Workpiece Material Code P; S; H; K; M; N
• Insert Inscribed Circle (Decimal Inch) 0.6250
• Insert Inscribed Circle (Inch) 5/8
• Toolholder Material Steel
• UNSPSC Code 23153308
• Manufacturers Catalog Number MTJNLS205

This item appears to be new and in good condition. SOLD AS IS.

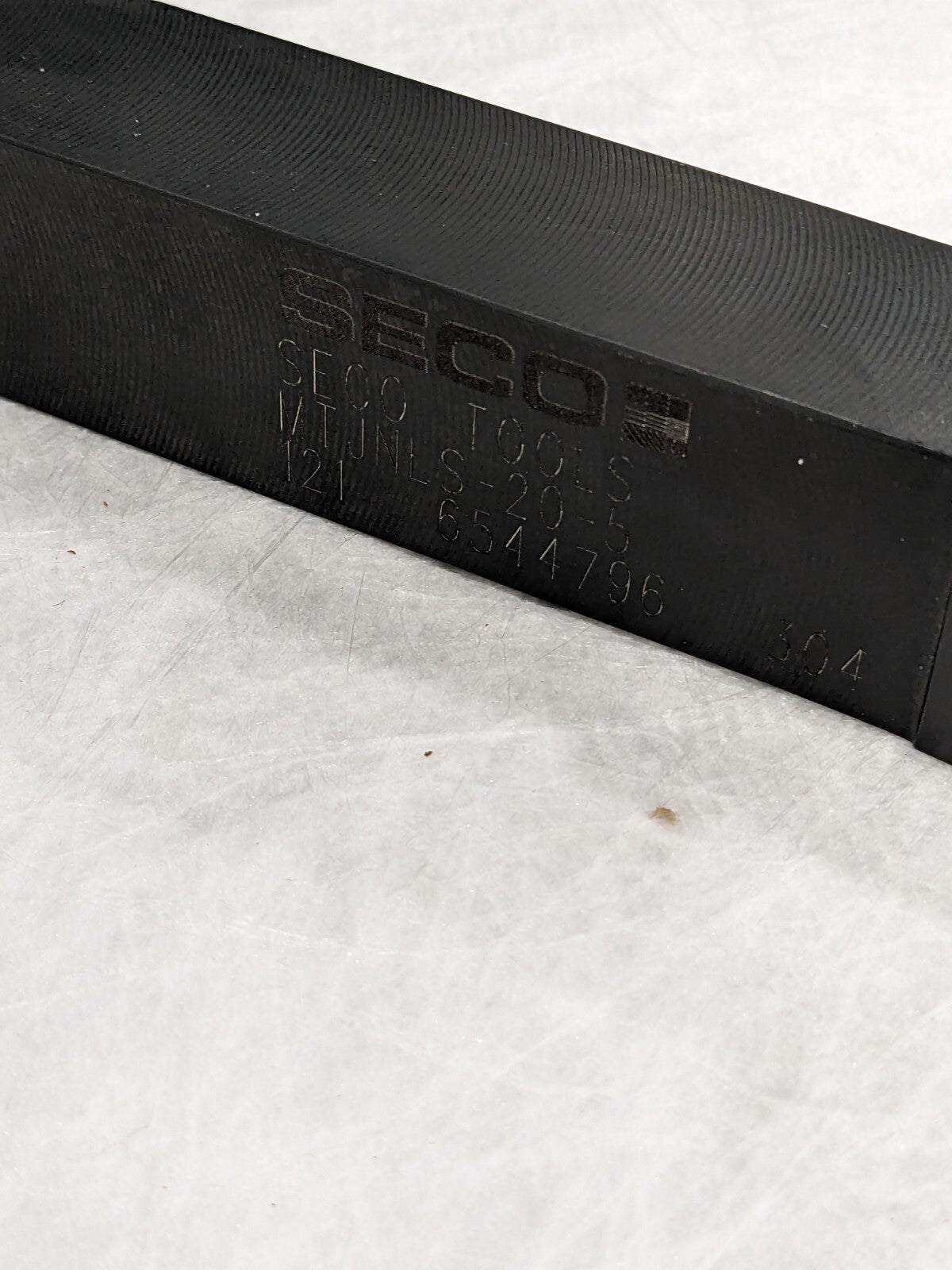

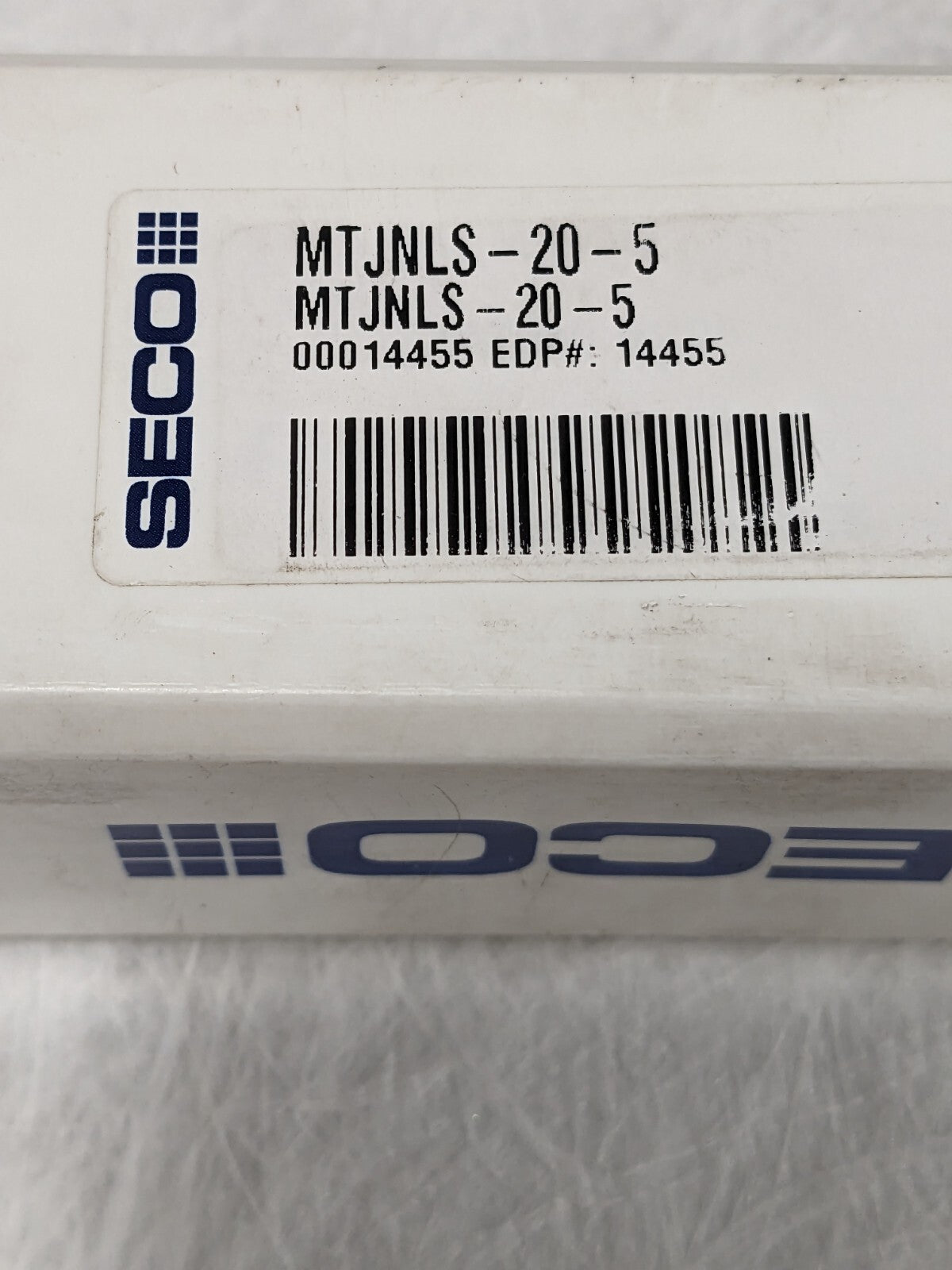

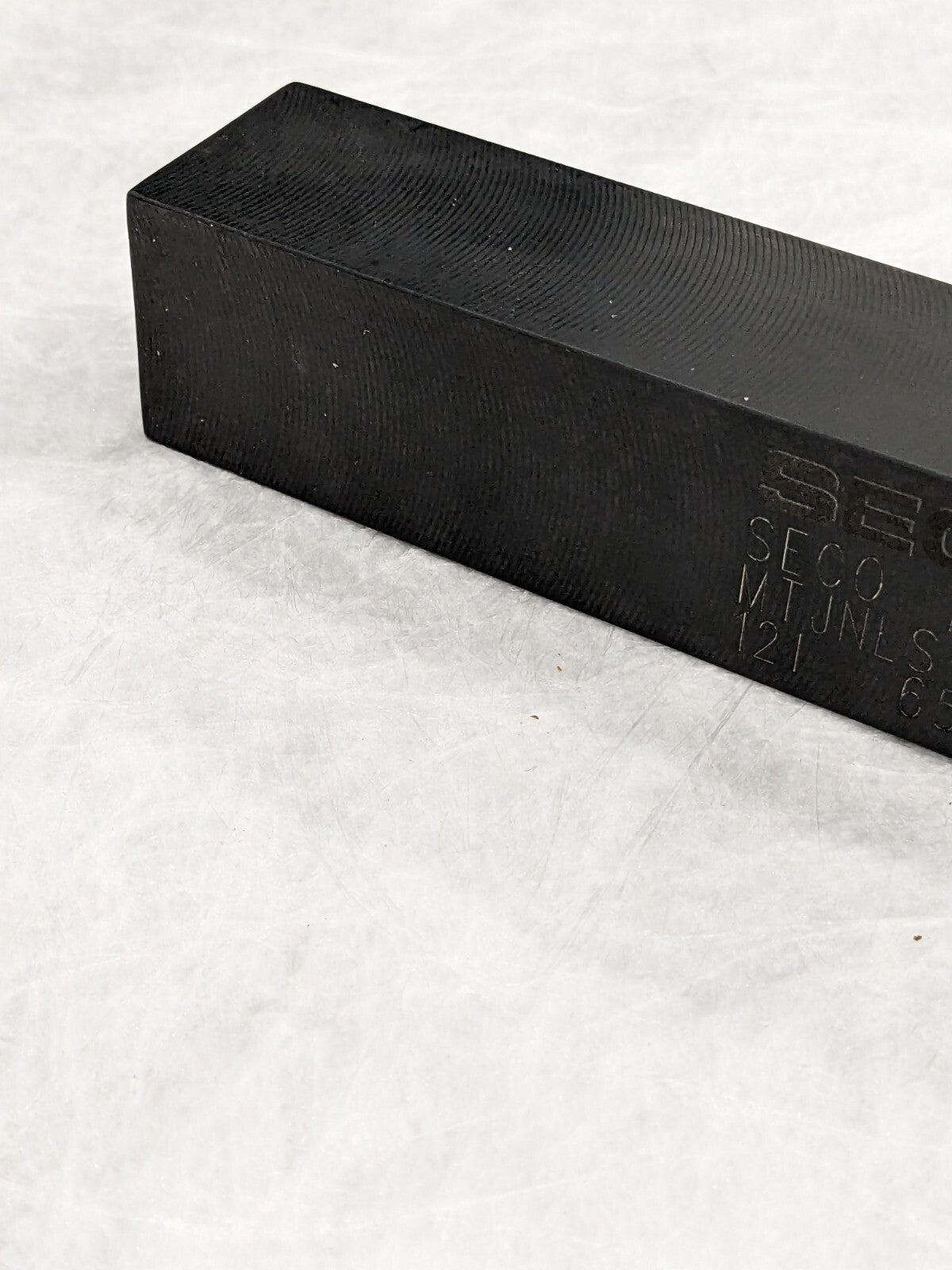

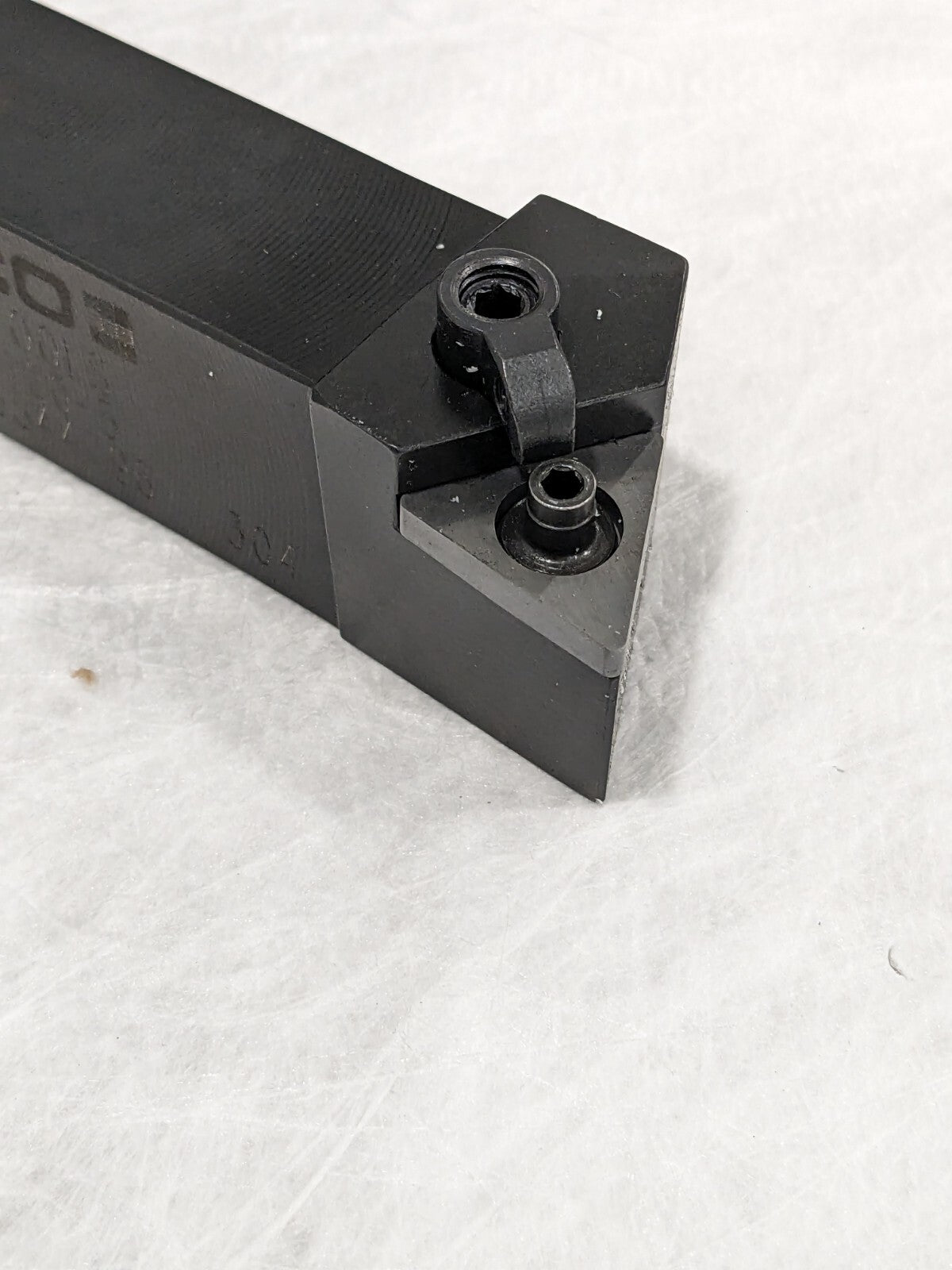

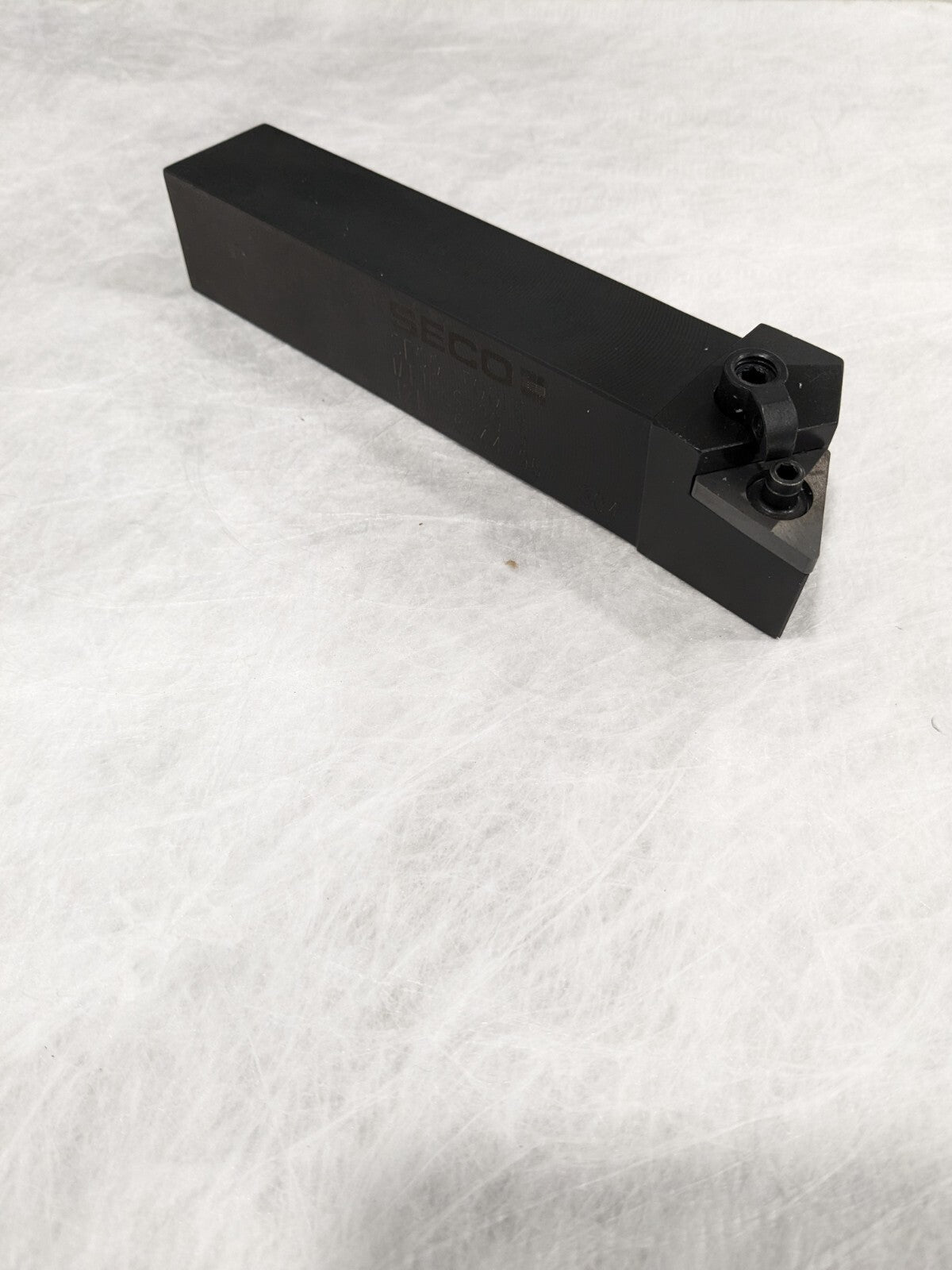

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
