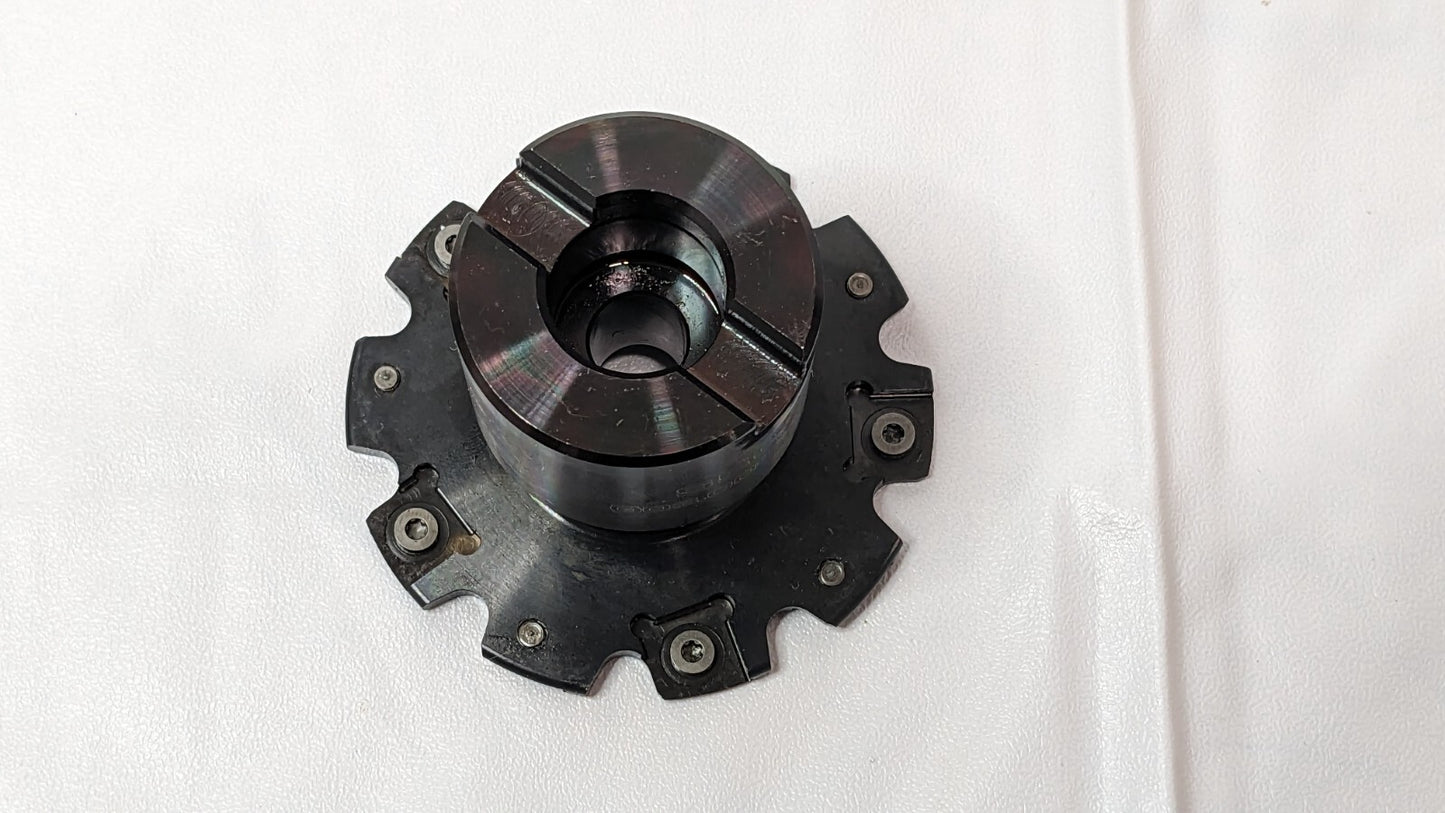

Seco Indexable Slotting Cutter RH 3" Cutter Dia R335.19-03.00-0.15-5 02881184

Seco
Indexable Slotting Cutter

MSRP: $1400

• Connection Type Arbor
• Cutting Width (mm) 20.50
• Cutting Width (Inch) 5/32
• Maximum Depth of Cut (Decimal Inch) 0.8070
• Hole Diameter (Inch) 3/4
• Hole Diameter (Mm) ( - 0 Decimals) 19.05
• Hole Diameter (Decimal Inch) 0.7500
• Cutter Diameter (Decimal Inch) 3.0000
• Cutter Diameter (Inch) 3
• Cutter Diameter (mm) 76.20
• Cutting Direction Right Hand
• Number Of Cutter Inserts 5
• Compatible Insert Style SNHQ
• Compatible Insert Size Code 1102..
• Tooth Type Staggered
• Rake Negative (Axial); Negative (Radial)
• Series R335.19
• Toolholder Style R335.19
• Hub Diameter (Decimal Inch) 1.5750
• Hub Diameter (mm) 40.00
• Keyway Width (Decimal Inch) 0.3210
• Maximum RPM 15200
• Tool Application Side Milling; Disc Milling; Slotting
• Tool Performance General Purpose
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P
• Maximum Cutting Width (Decimal Inch) 0.1560
• Radius No
• Lead Angle 90
• UNSPSC Code 23241629
• Cutter Body Width (Decimal Inch) 0.1560
• Manufacturers Catalog Number R335.19-03.00-0.15-5
• Number Of Teeth 10
• Coolant Through No
• Complete Insert Compatibility SNHQ1102..L+R; 335.19-1102

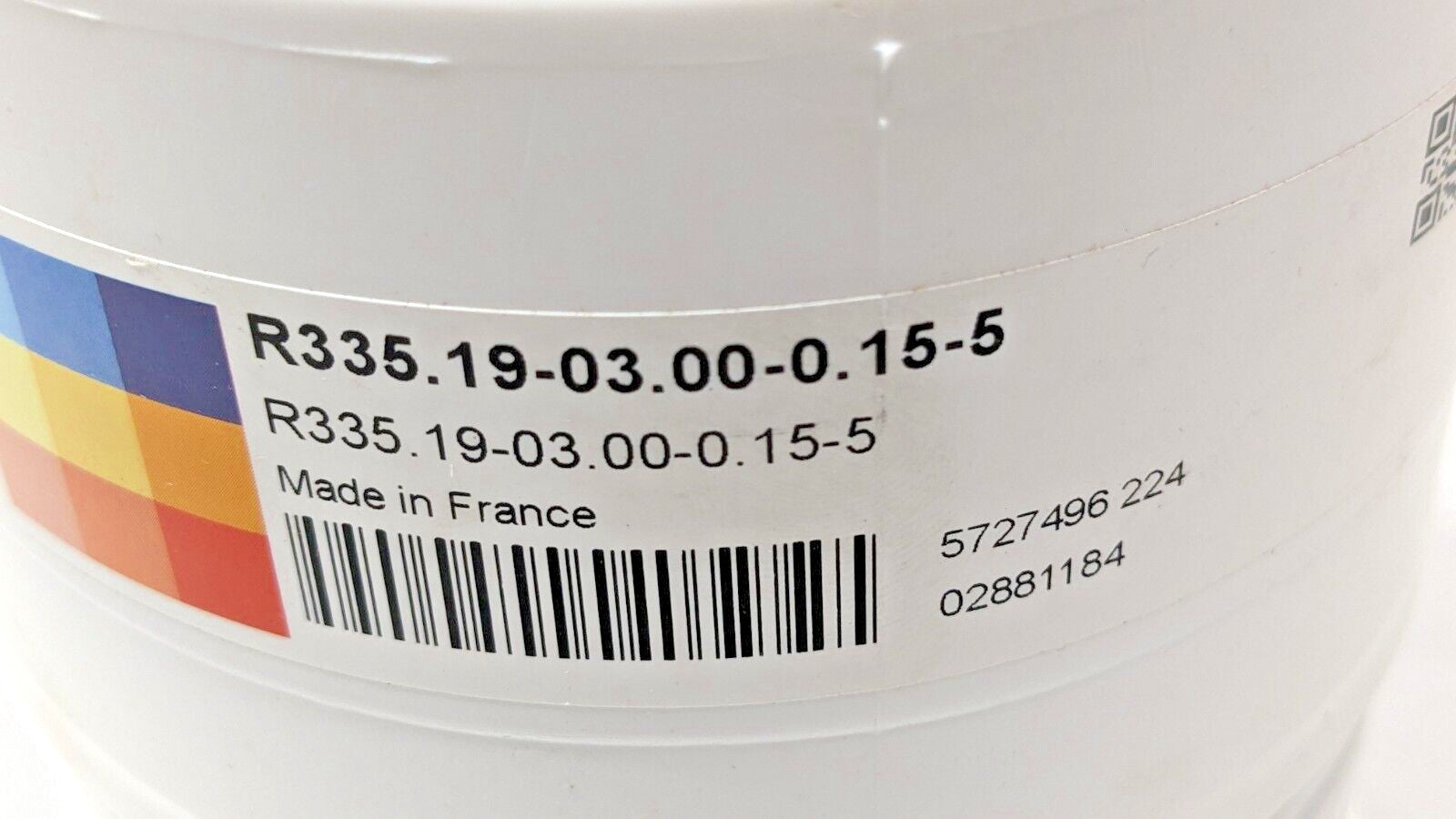

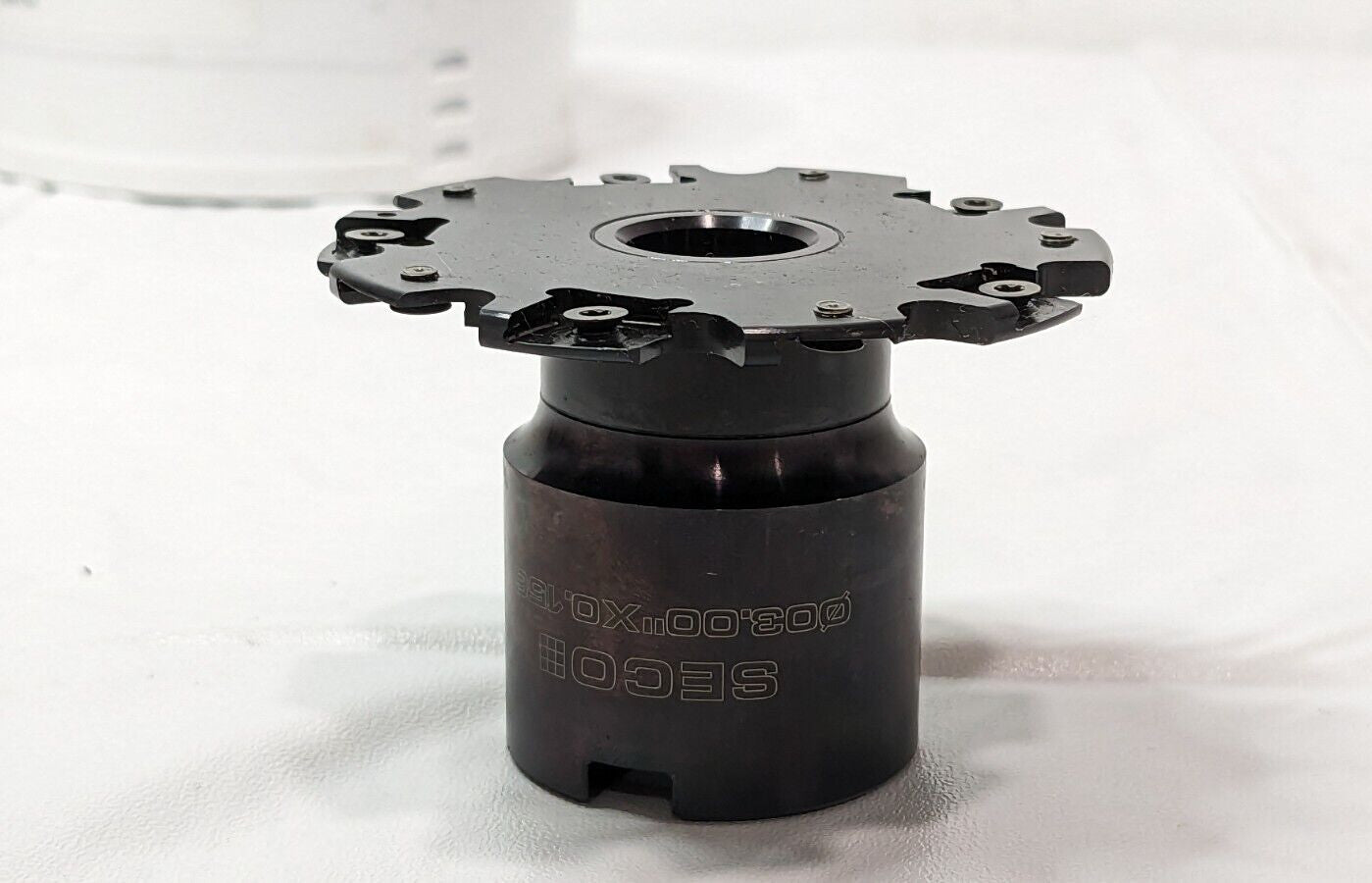

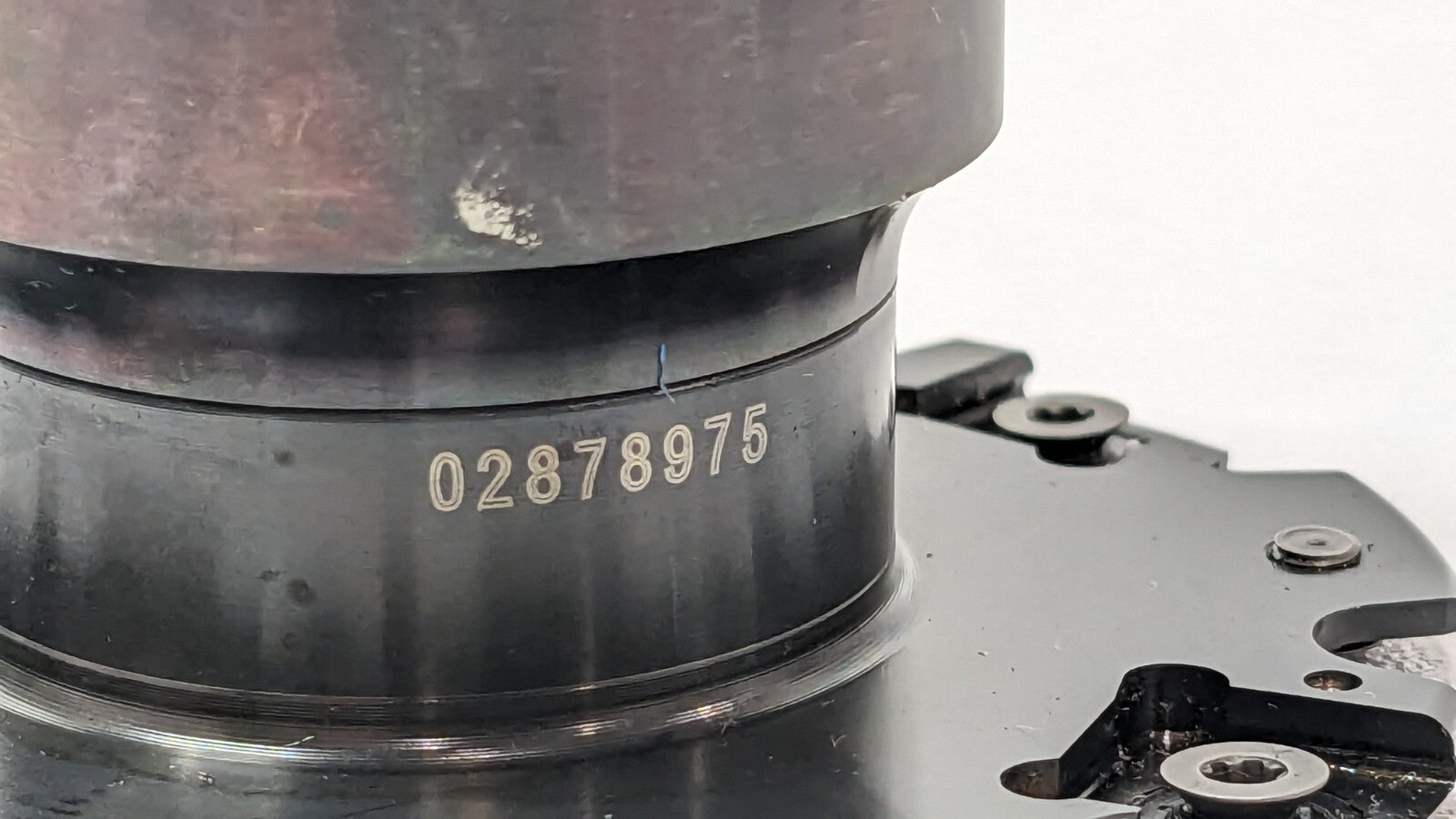

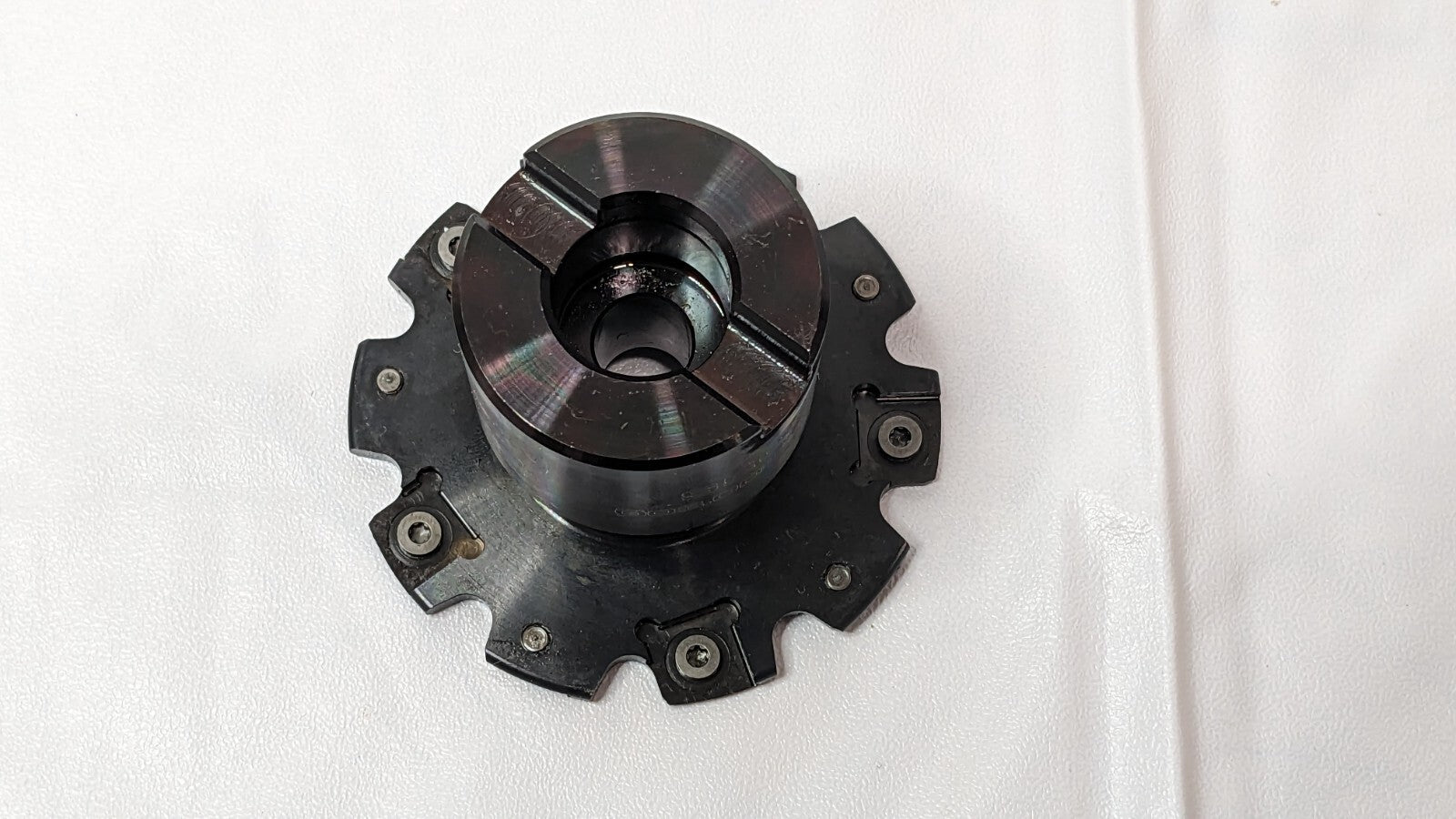

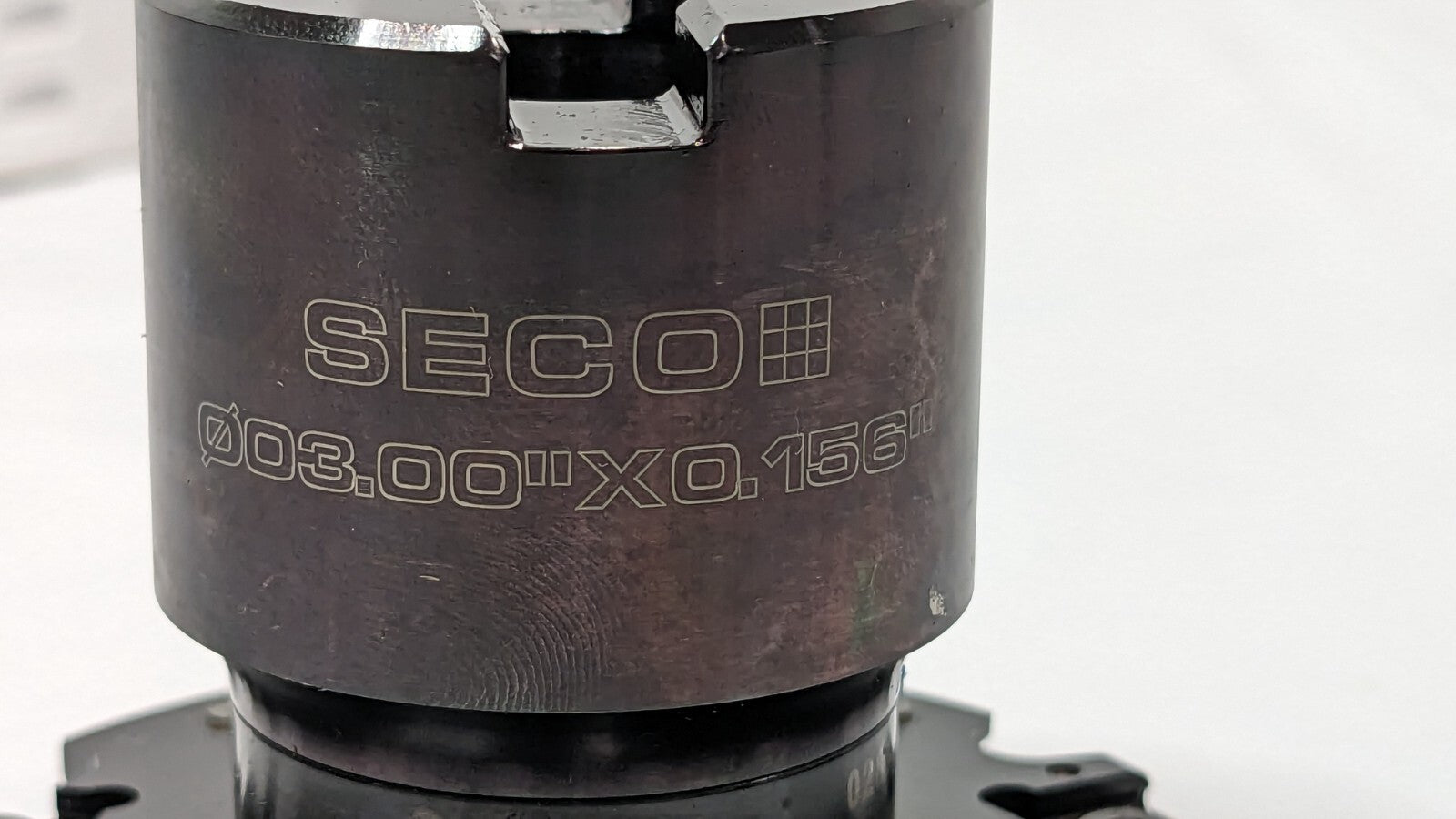

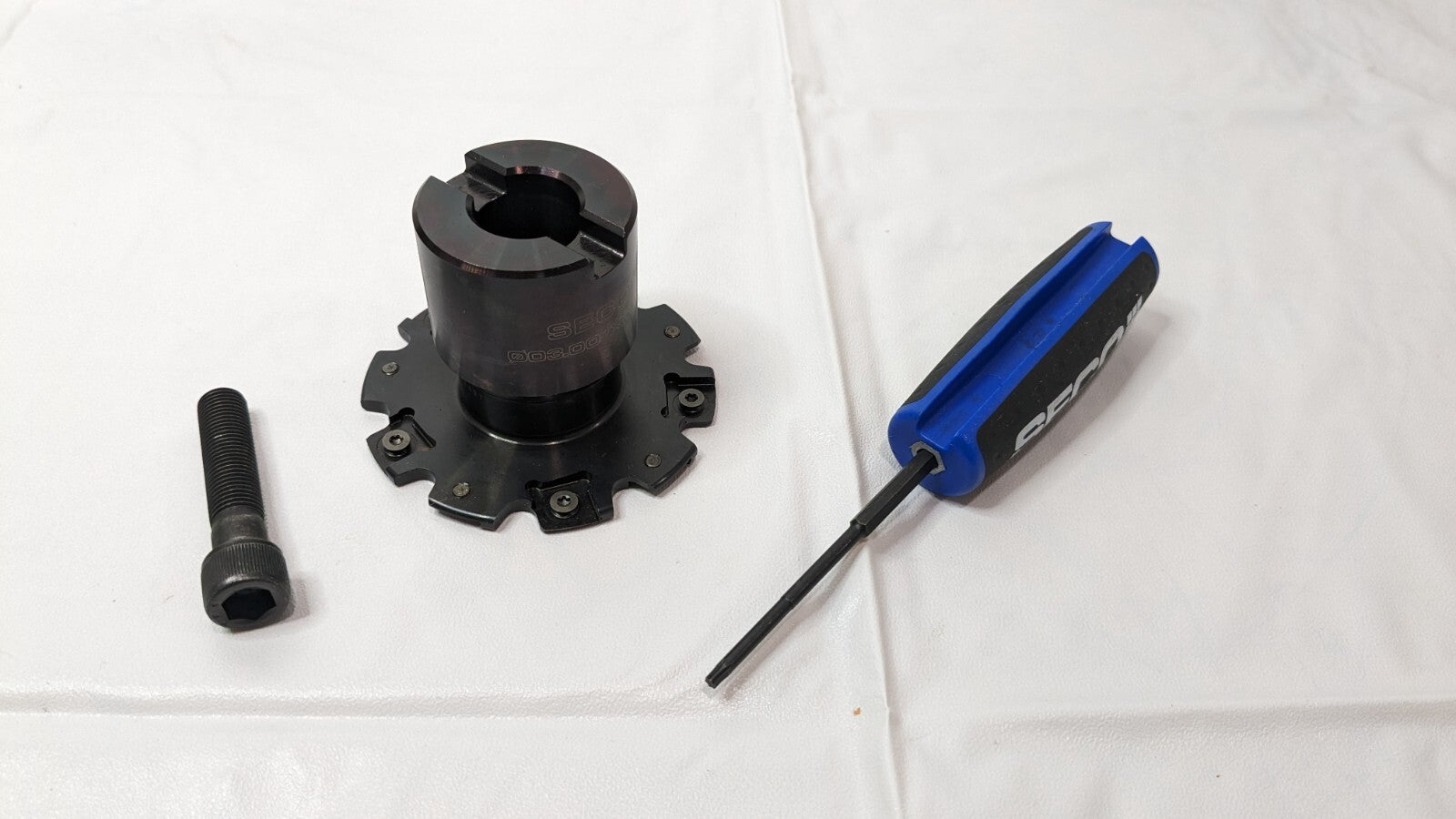

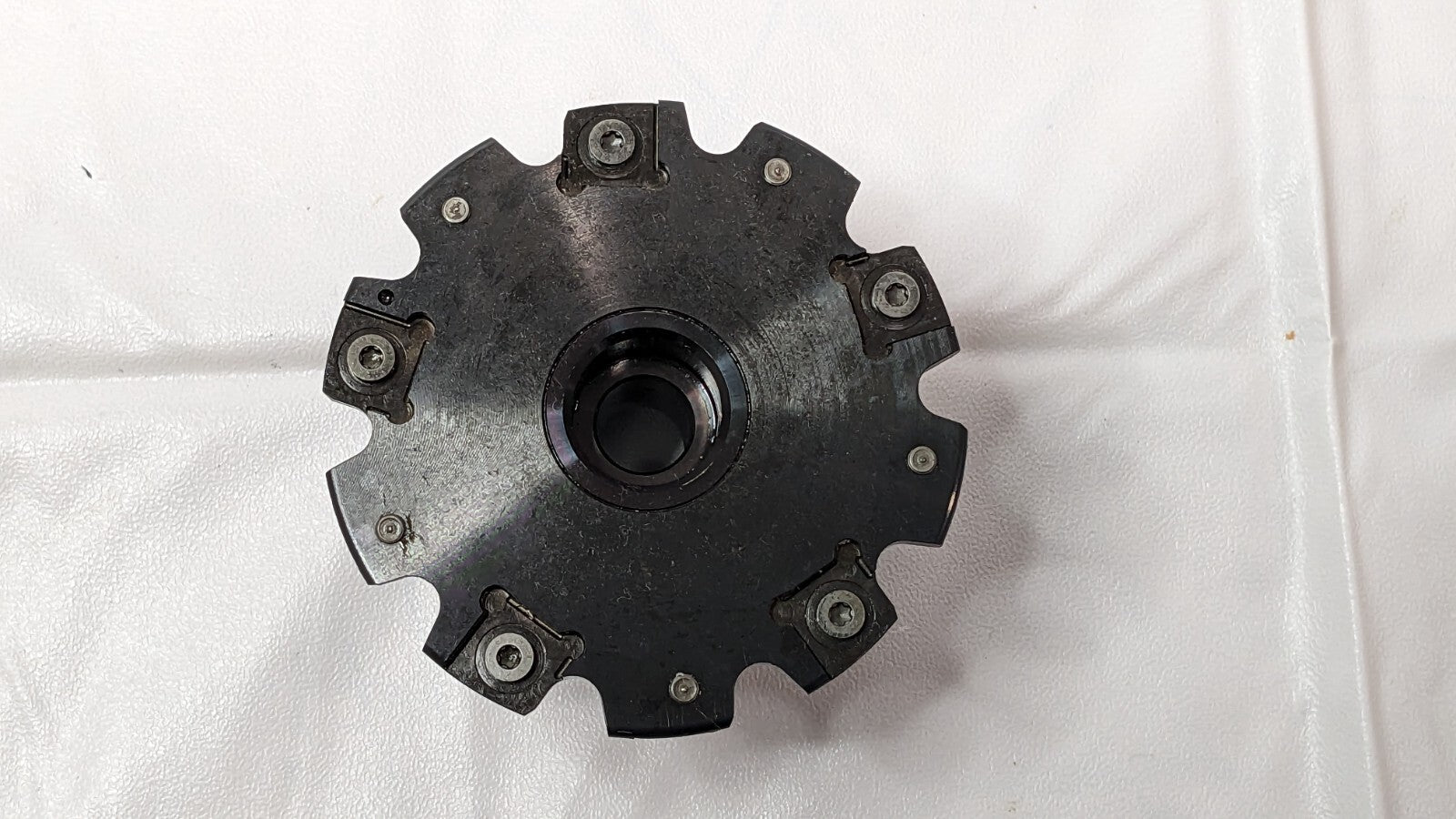

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!

Industry Recycles

155 Center Ct, Venice, FL 34285
