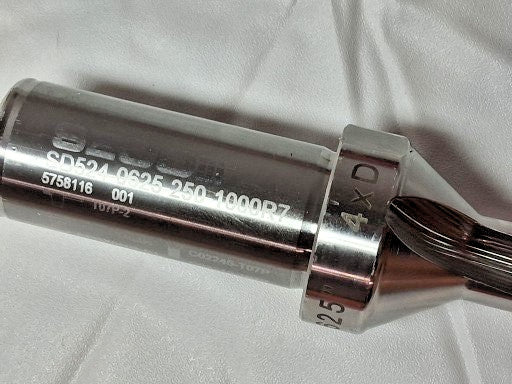

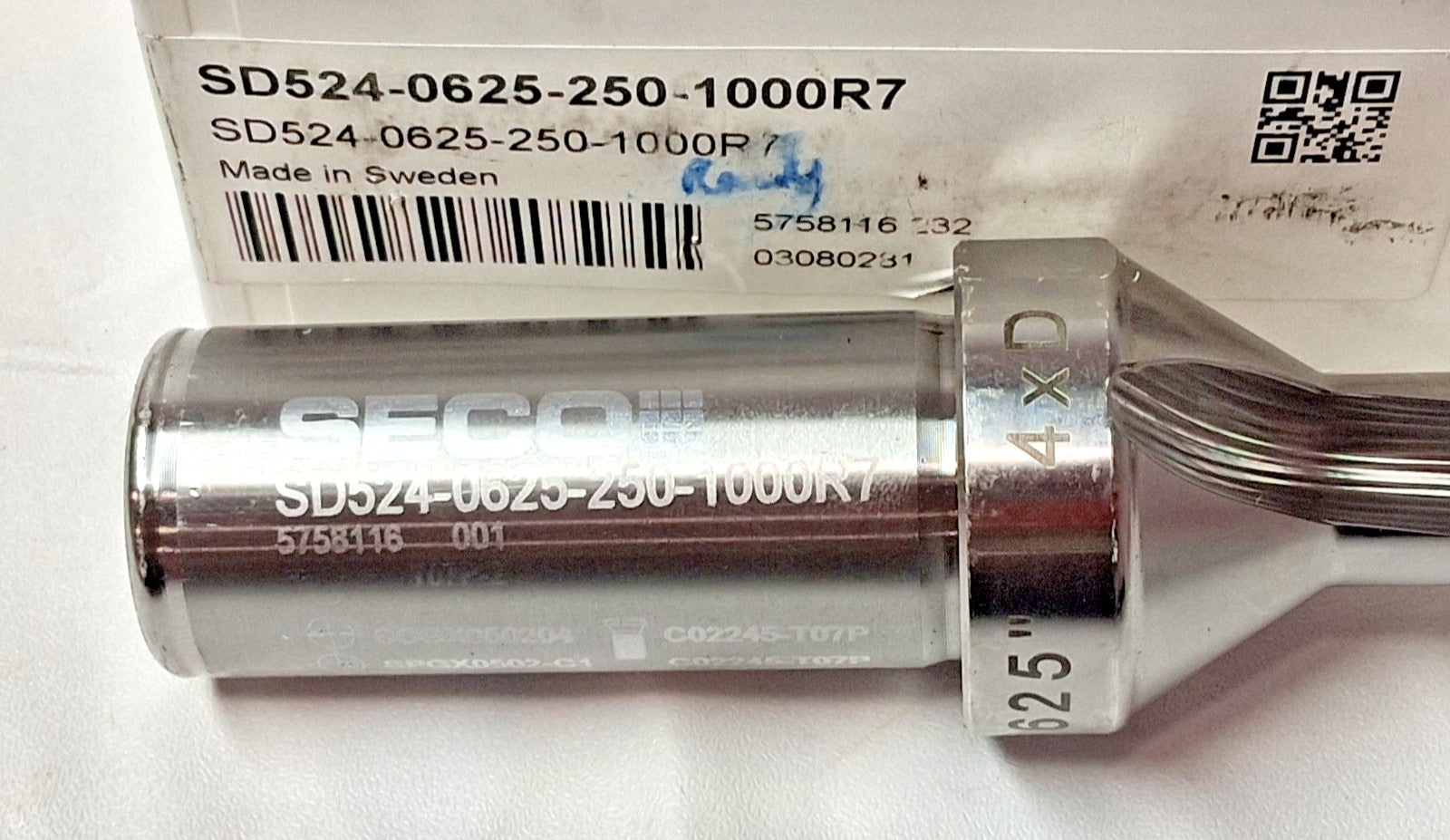

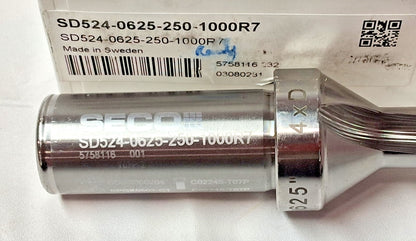

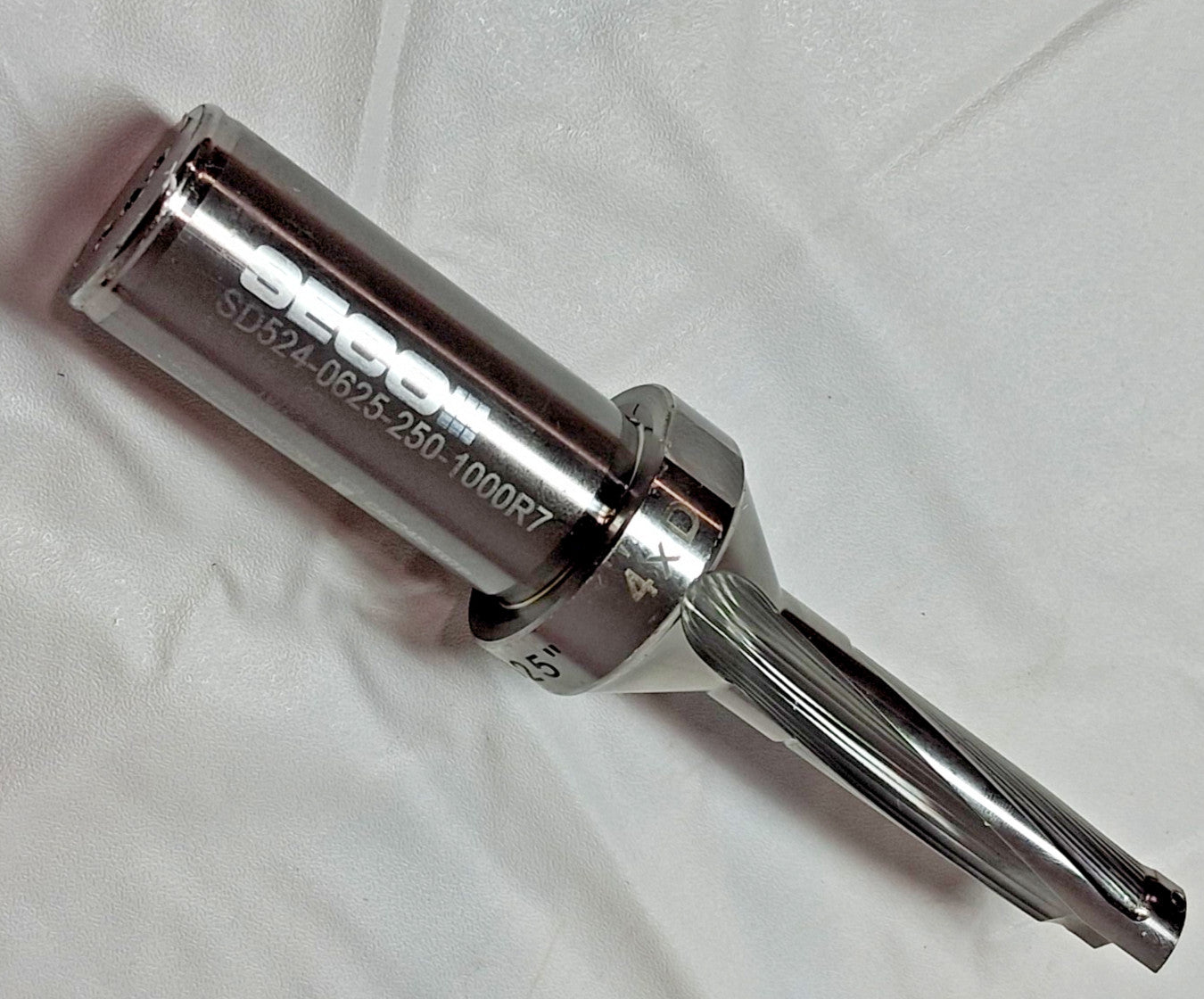

Seco Indexable Insert Drill SD524-0625-250-1000R7 5/8" Dia 2-1/2" Dep 03080281

Seco
Indexable Insert Drill

MSRP: $845.00

• Compatible Drill Style: SD524
• Maximum Drill Diameter (mm): 16.66

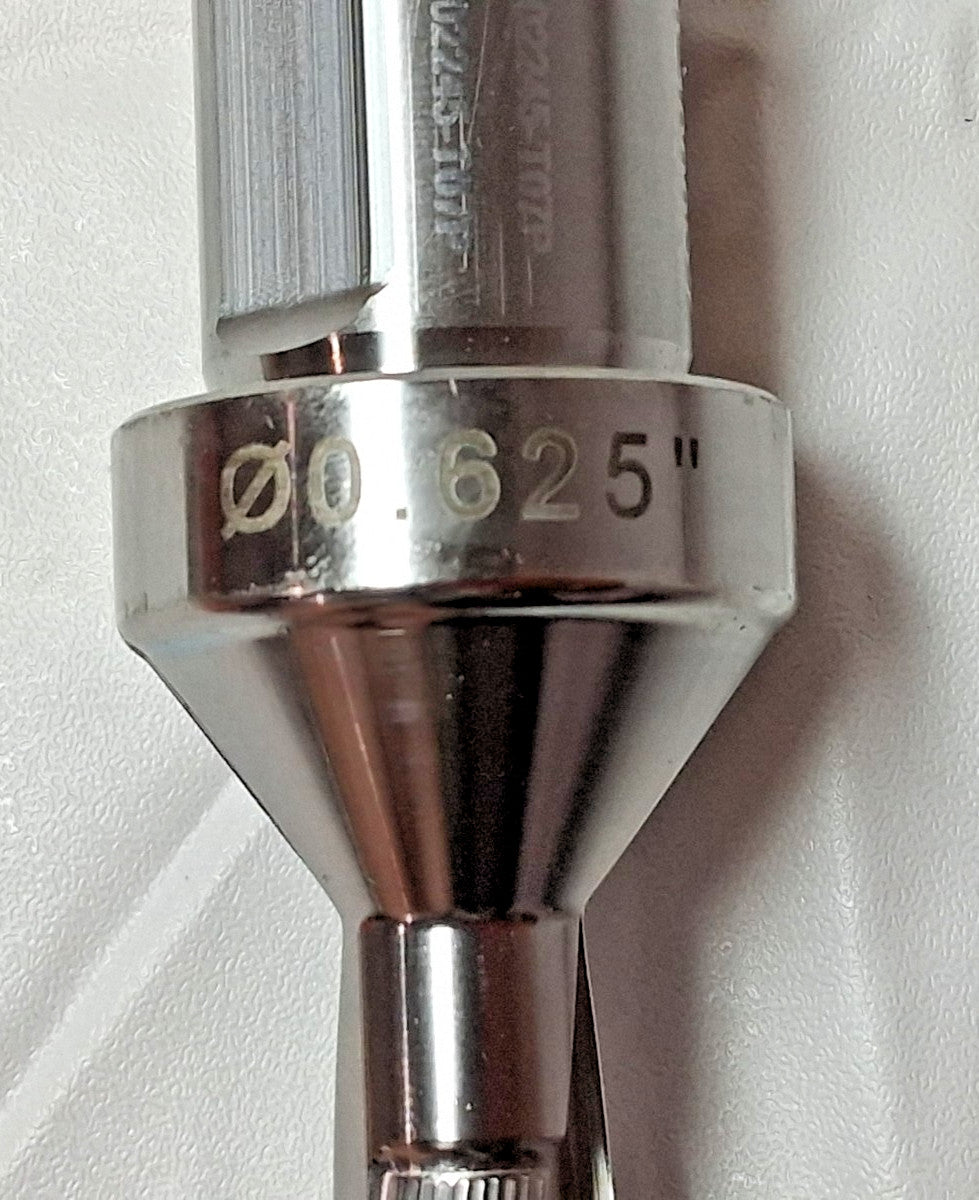

• Maximum Drill Diameter (Inch): 5/8
• Maximum Drill Diameter (Decimal Inch): 0.6250
• Maximum Drill Depth (Inch): 2-1/2
• Maximum Drill Depth (Decimal Inch): 2.5000
• Shank Type: Flange; Weldon Flat
• Shank Diameter (Inch): 1
• Shank Diameter (Decimal Inch): 1.0000

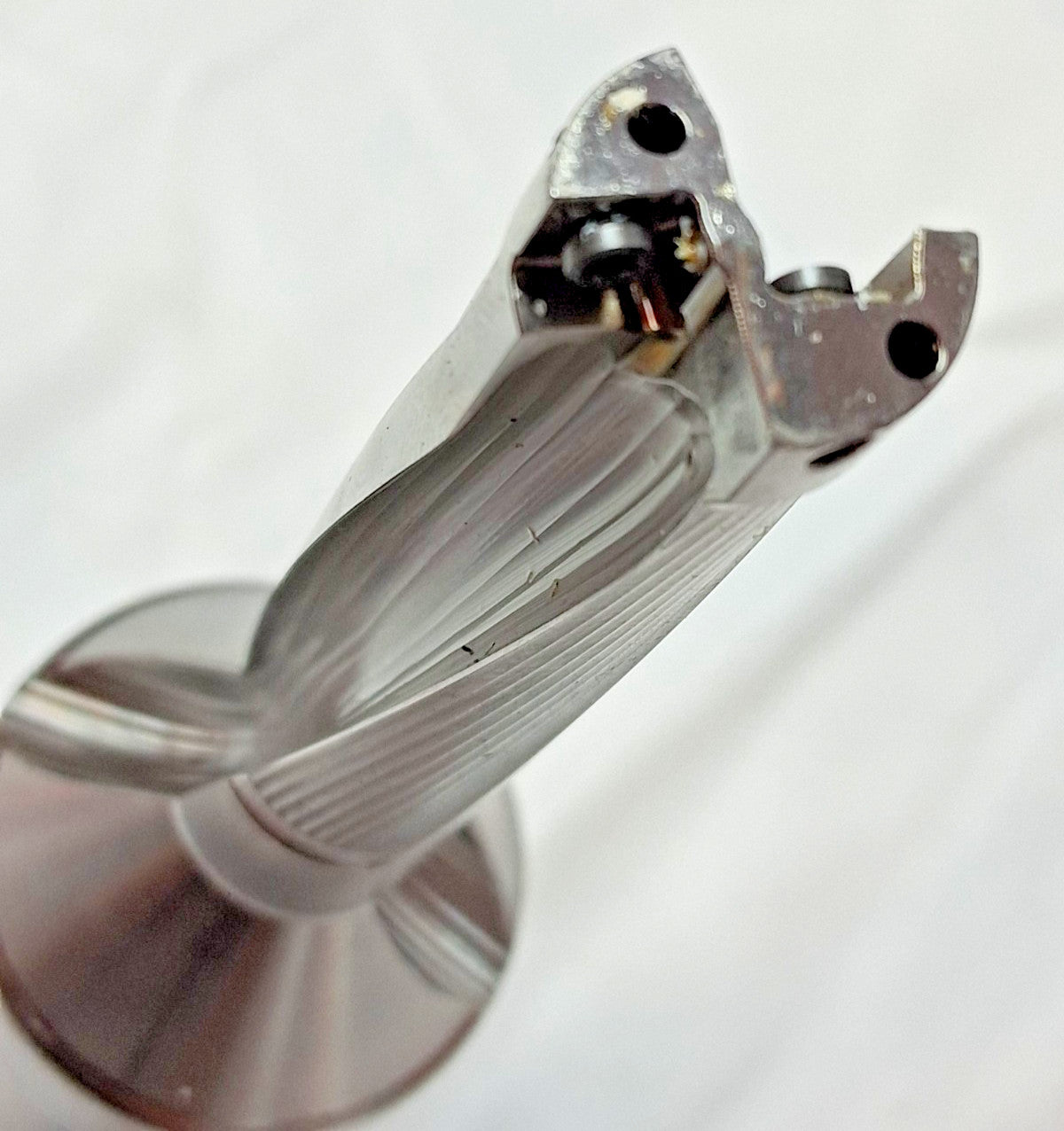

• Number of Drill Inserts: 2
• Cutting Direction: Right Hand
• Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000
• Tool Material: Steel
• Compatible Insert Style: SCGX; SPGX
• Compatible Insert Size Code: 0502; 050204
• Drill Depth by Diameter Ratio: 4xD

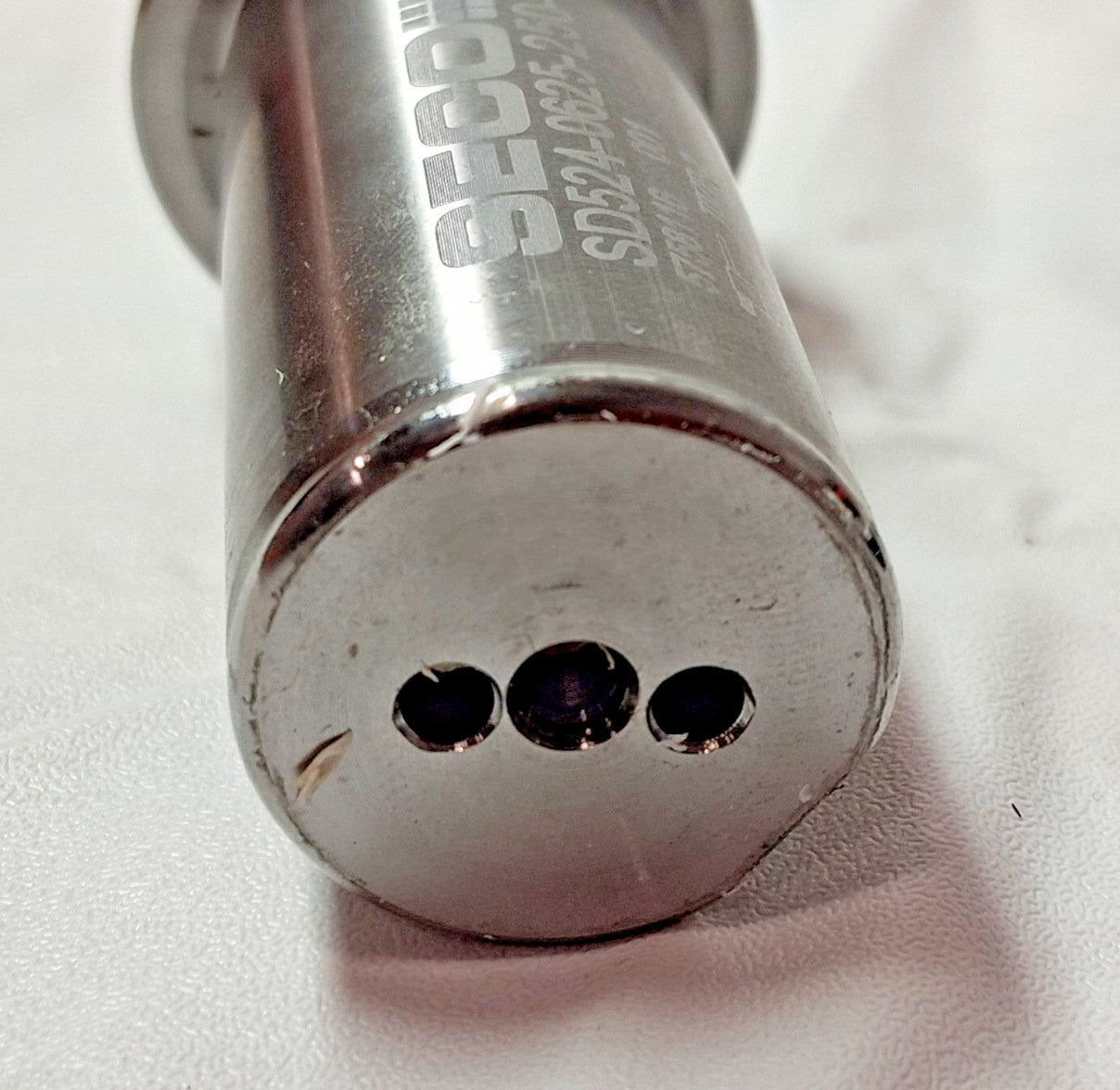

• Coolant Entry Style Code: 1-Axial Concentric Entry
• Overall Length (Decimal Inch): 5.9310
• Series: SD524
• Flute Length (Decimal Inch): 2.6970
• Flute Length (mm): 68.50
• Body Length (mm): 93.50
• Body Length (Decimal Inch): 3.6810
• Shank Length (Decimal Inch): 2.2500
• Neck Diameter (Inch): 1.3780
• Modular Connection Size: R7
• Tool Application: Drilling
• Tool Performance: General Purpose
• Insert Size (Decimal Inch): 0.2190
• UNSPSC Code: 23291503
• Insert Compatibility: SCGX050204; SPGX0502
• Collar Diameter (Decimal Inch): 1.3780
• Collar Diameter (mm): 35.00

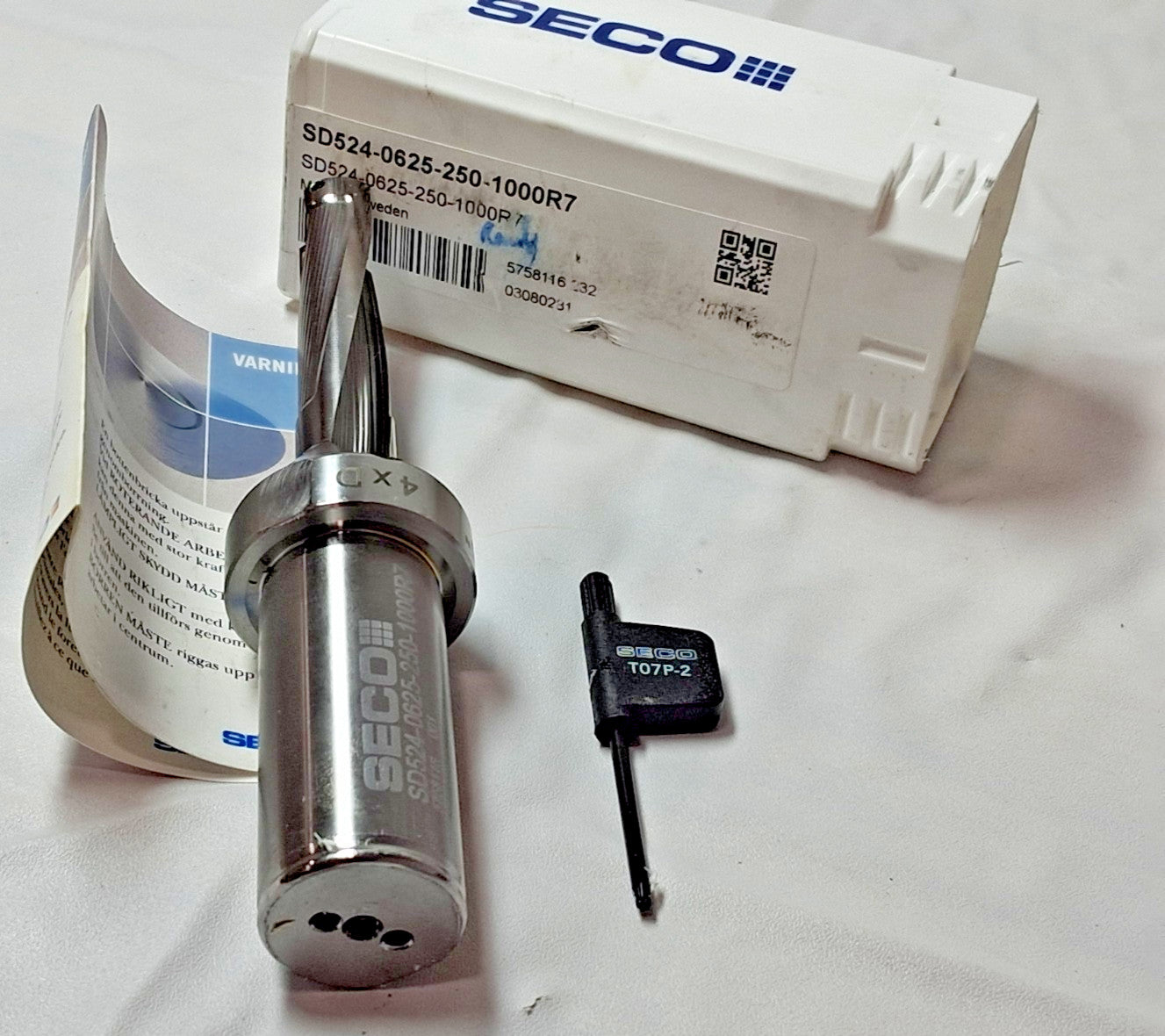

• Insert Lock Screw: C02245-T07P
• Coolant Through: Yes

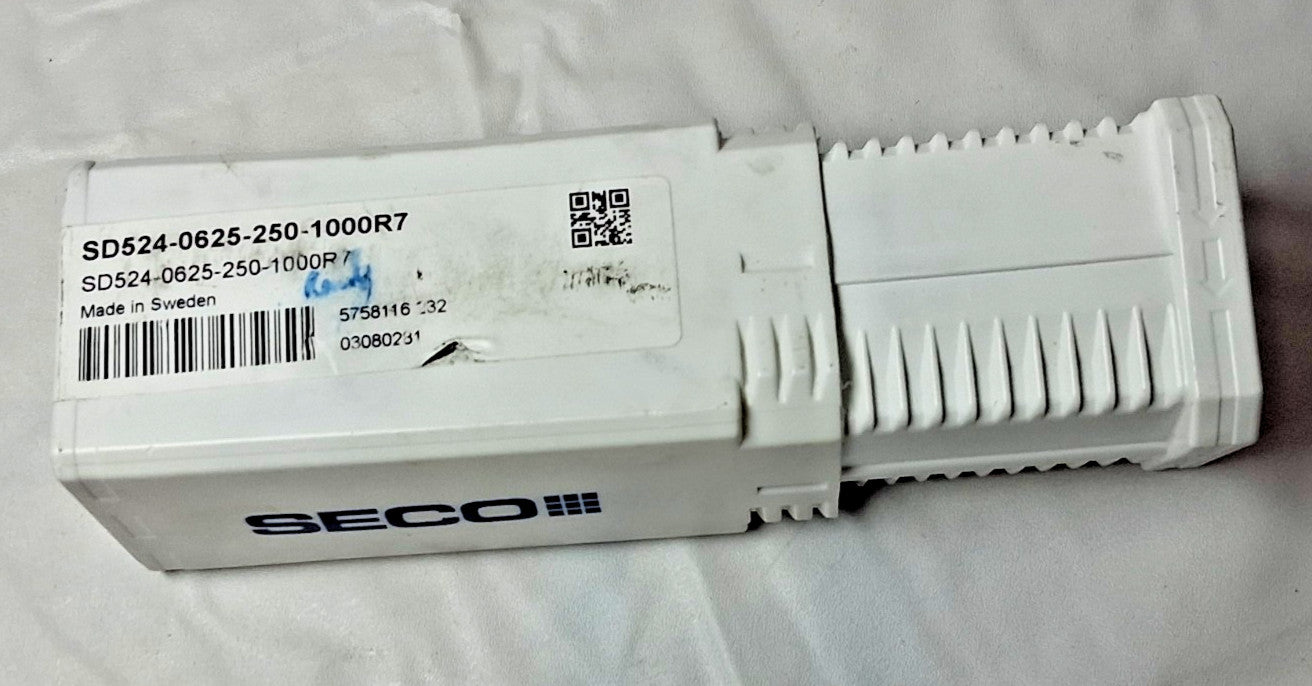

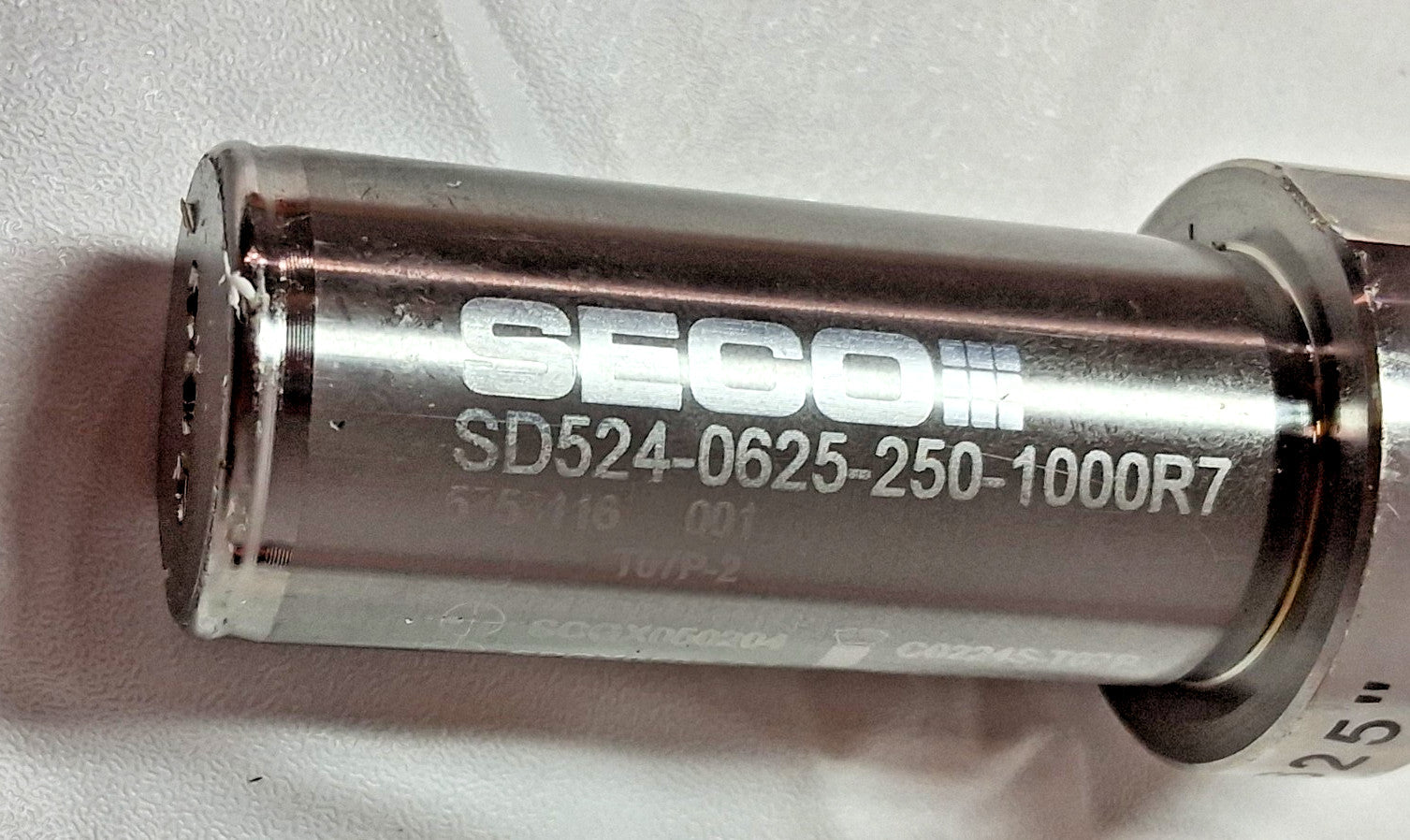

Please review photos, comes as shown.
