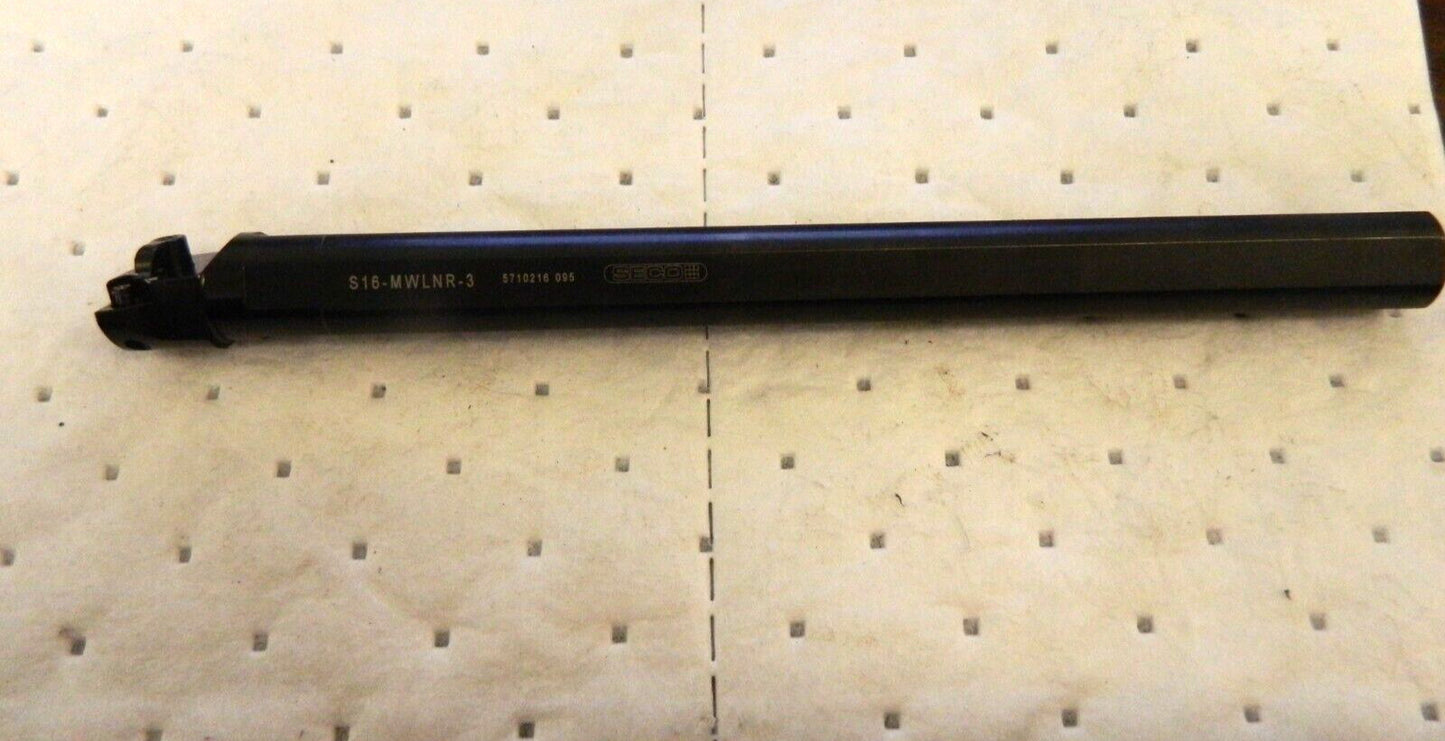

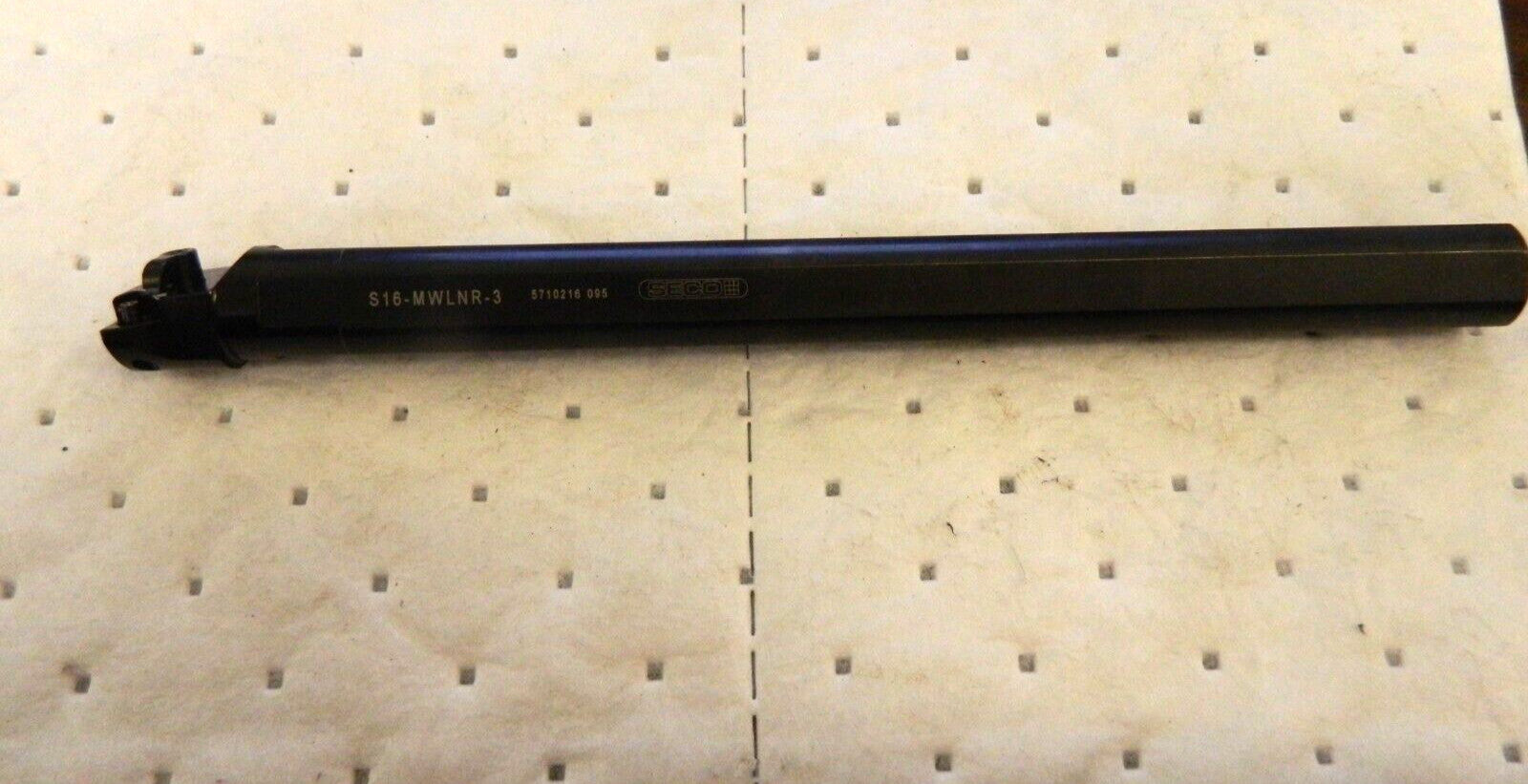

SECO Indexable Boring Bar: rh cut -5 ° Lead Angle, Steel 75051590

SECO

Indexable Boring Bar: rh cut -5 ° Lead Angle, Steel 75051590

MSRP: $300

• Minimum Bore Diameter (Decimal Inch) 1.2000
• Toolholder Style MWLN
• Tool Material Steel
• Insert Compatibility WNMG 332
• Shank Diameter (Decimal Inch) 1.0000
• Shank Diameter (mm) 1.00
• Hand of Holder Right Hand
• Shank Diameter (Inch) 1
• Overall Length (Inch) 12
• Compatible Insert Size Code 33
• Insert Holding Method Pin & Clamp
• Compatible Insert Shape Trigon
• Rake Negative
• Cutting Direction Right Hand
• Rake Angle -14.00
• Lead Angle -5.00
• Insert Inscribed Circle (Inch) 3/8
• Multi-use Tool No
• Cutting Tool Application Turning
• Center to Cutting Edge (Decimal Inch) 0.6400
• Insert Thickness (Inch) 3/16
• Insert Size 187R

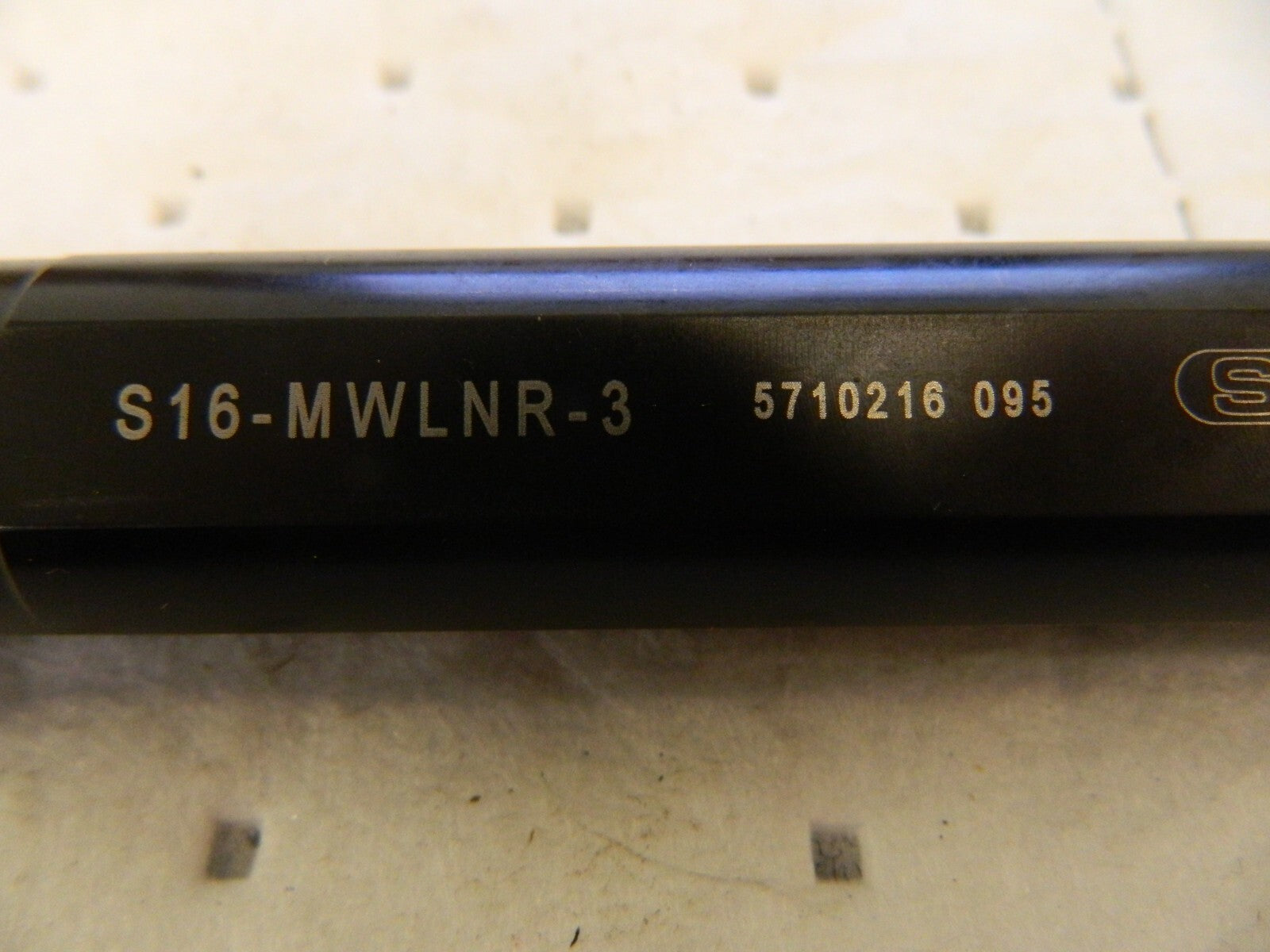

• MSC/Manufacturer Number S16-MWLNR/L - 3
• Coolant Through No

 Please review photos, comes as shown.
