Seco Indexable Ball Nose End Mill 40.01mm Cut Diam 89918
Seco Indexable Ball Nose End Mill 40.01mm Cut Diam 89918
Regular price
$84.91 USD
Regular price
$180.00 USD
Sale price
$84.91 USD
Shipping calculated at checkout.
Seco
MSRP: $180.00
Model:
Description:
Cutting Diameter (mm) 40.01
Cutting Diameter (Decimal Inch) 1.5750
Maximum Depth of Cut (mm) 24.99
Maximum Depth of Cut (Decimal Inch) 0.9840
Shank Type Modular Connection
Modular Connection Thread Size M16
Number of Ball Nose Inserts Used on Toolholder 3
Insert Style 218.19 200
Toolholder Style R218.19
Insert Holding Method Screw
Through Coolant Through Coolant
Weldon Flat No
Tapered Neck No
Number of Flutes 1
Head Length (mm) 50.01
Head Length (Decimal Inch) 1.9690
Maximum RPM 10400

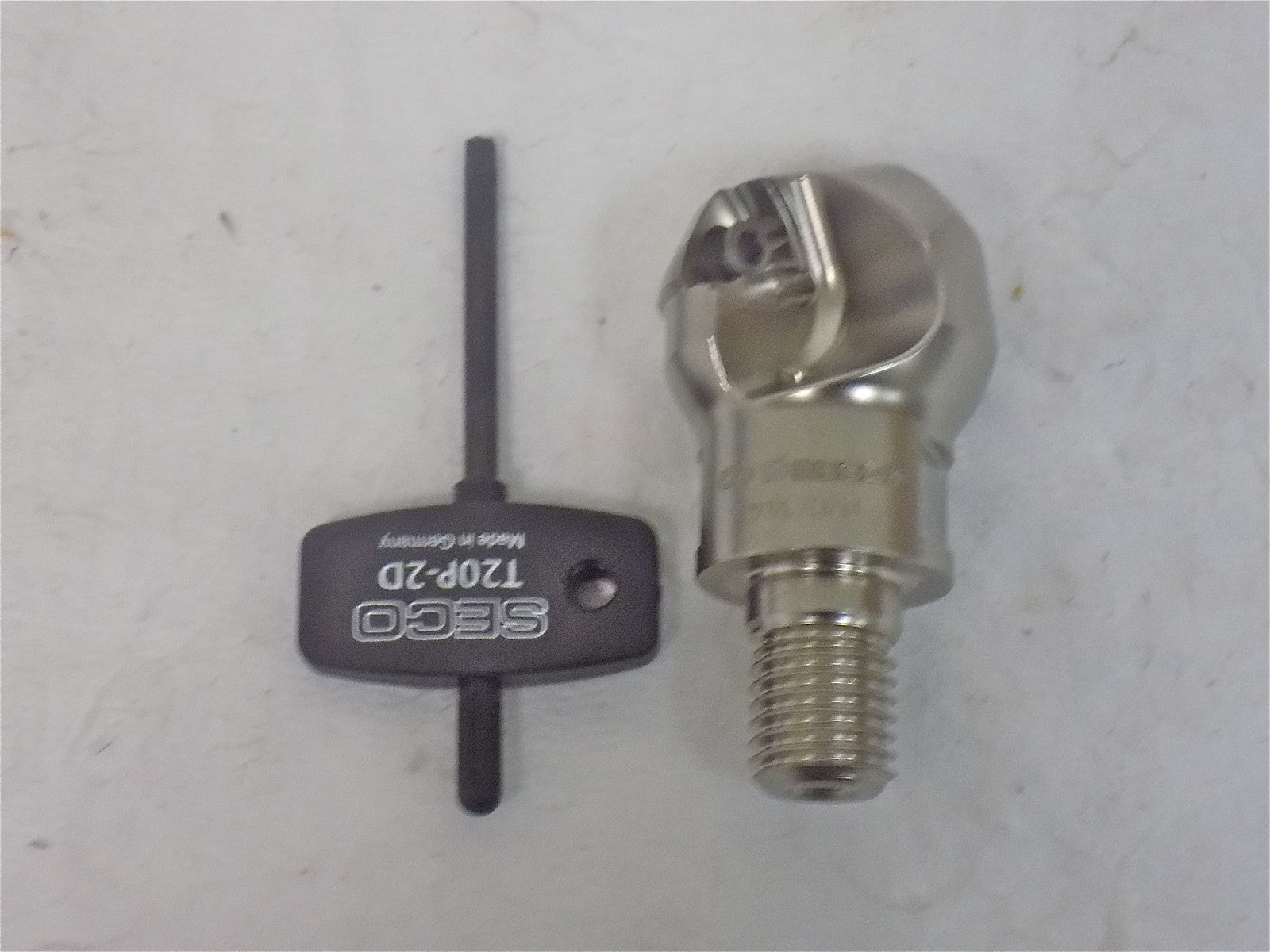

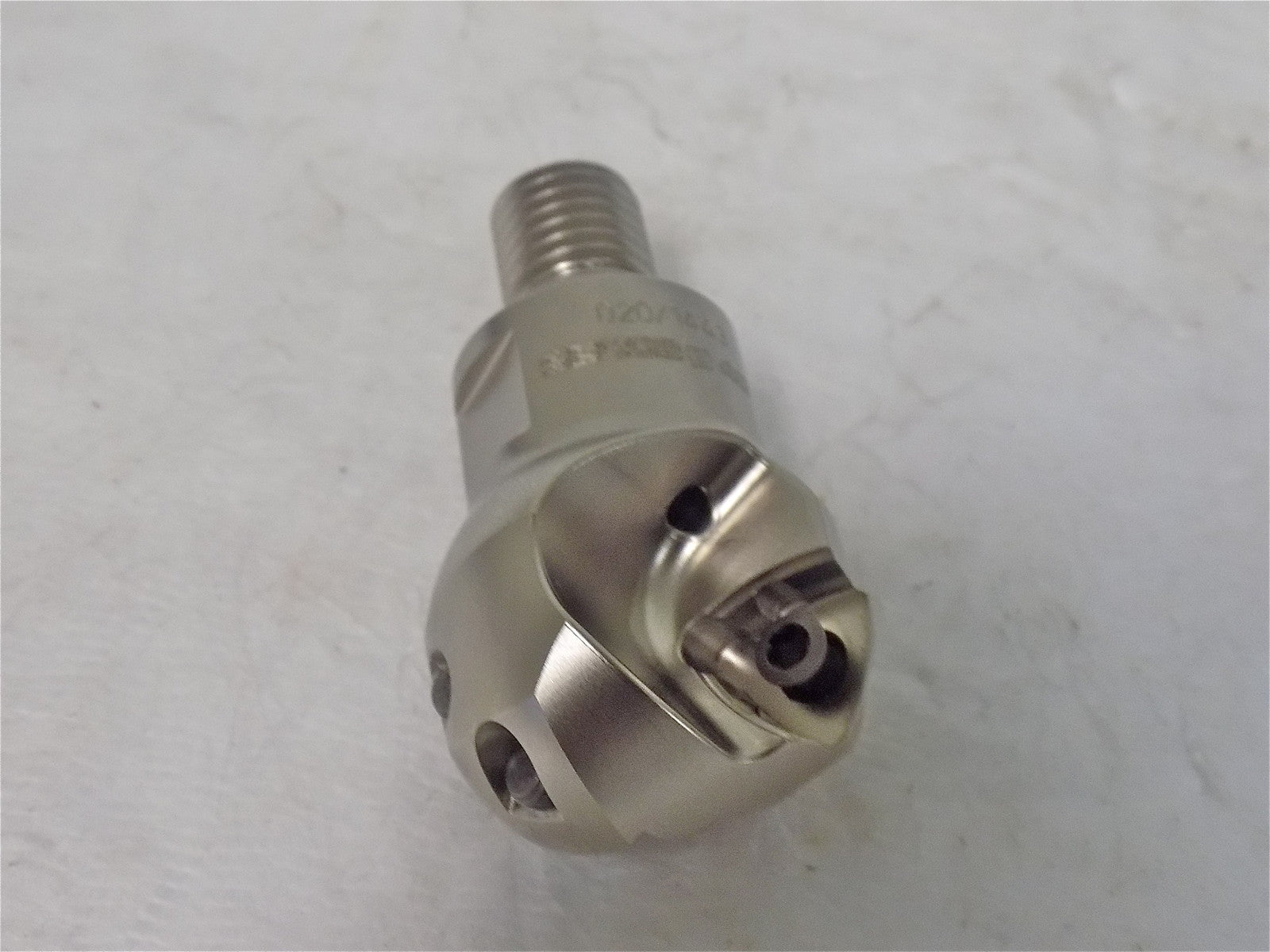

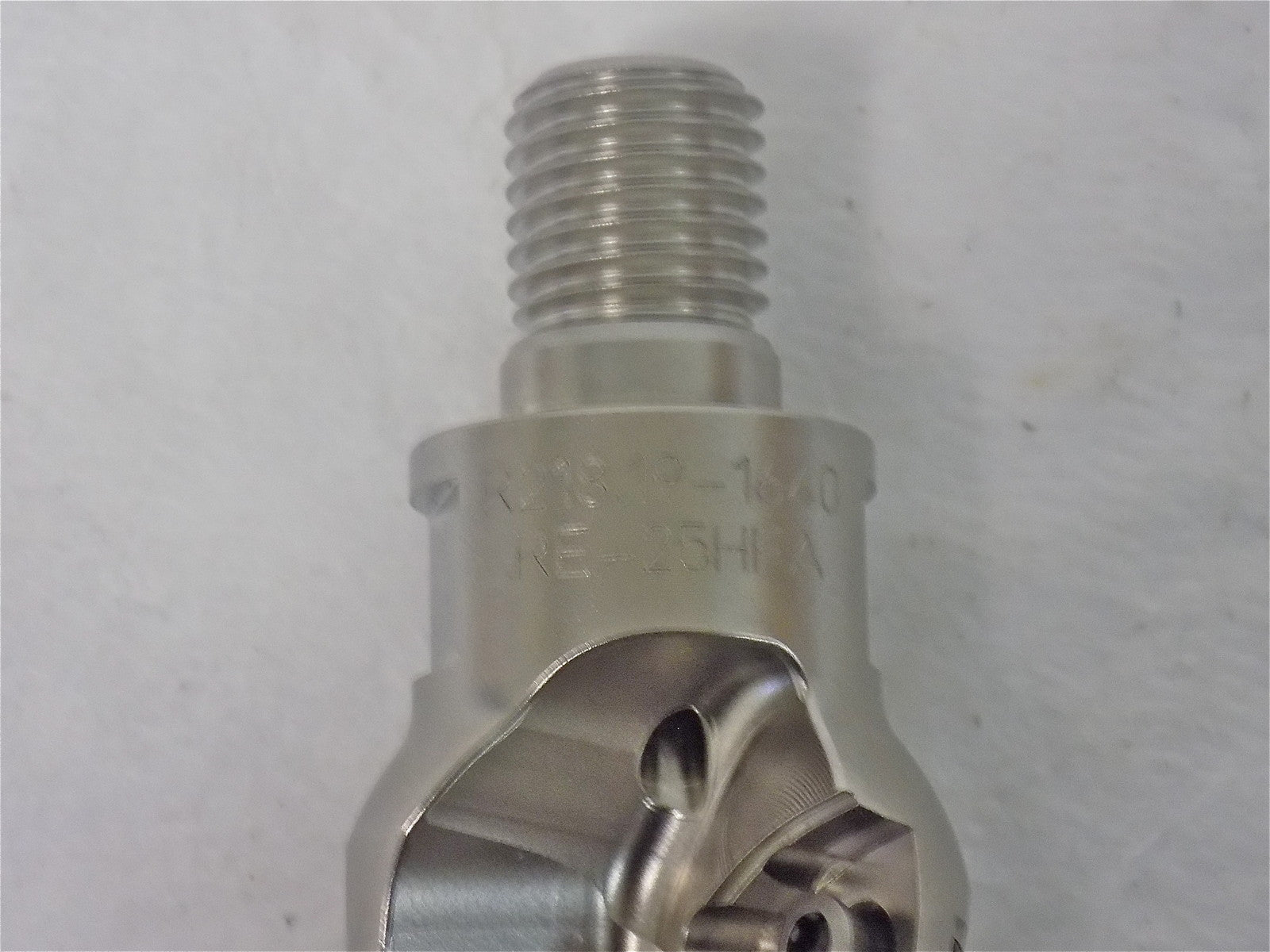

This listing is for One Indexable Ball Nose End Mill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
