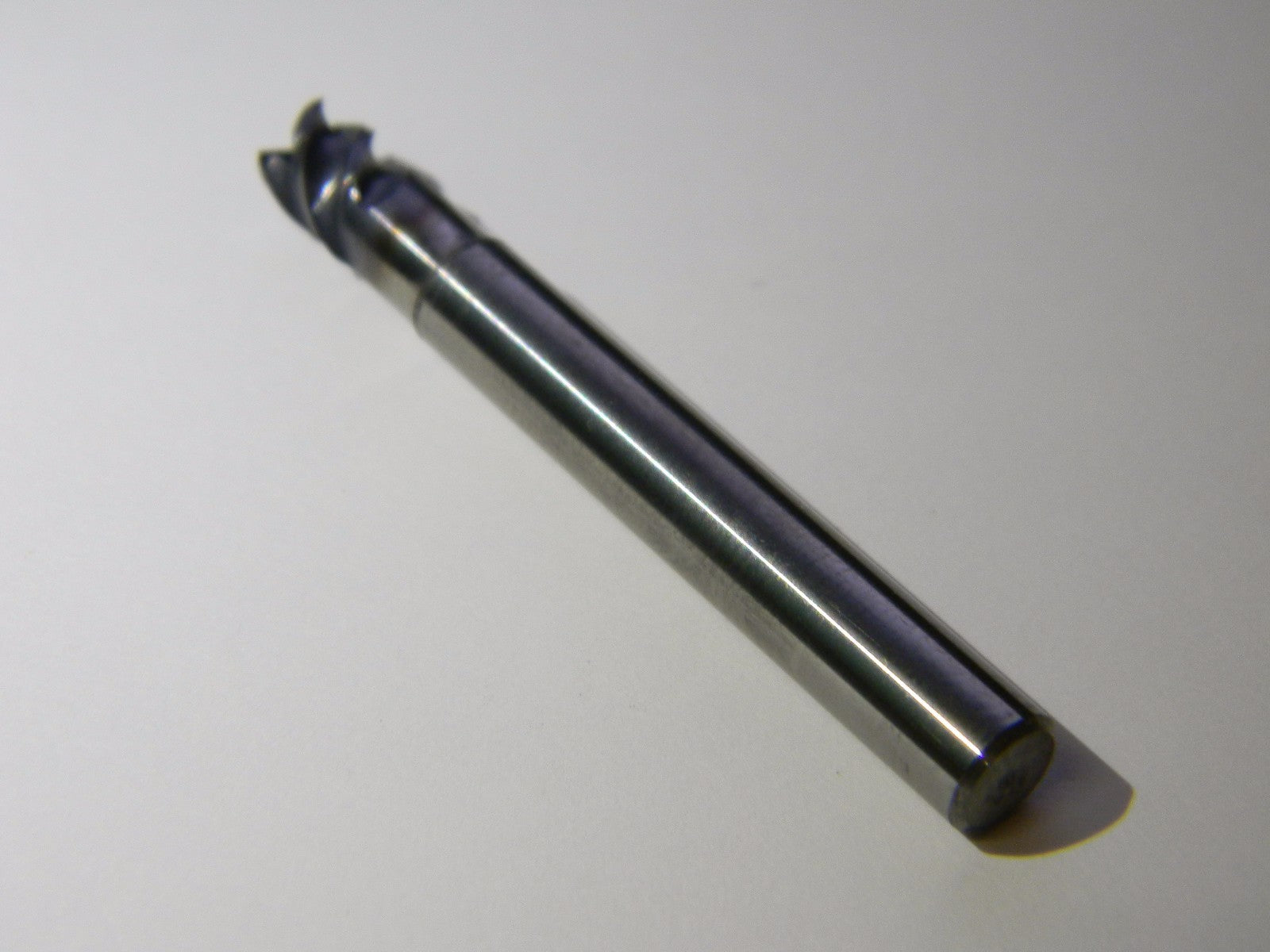

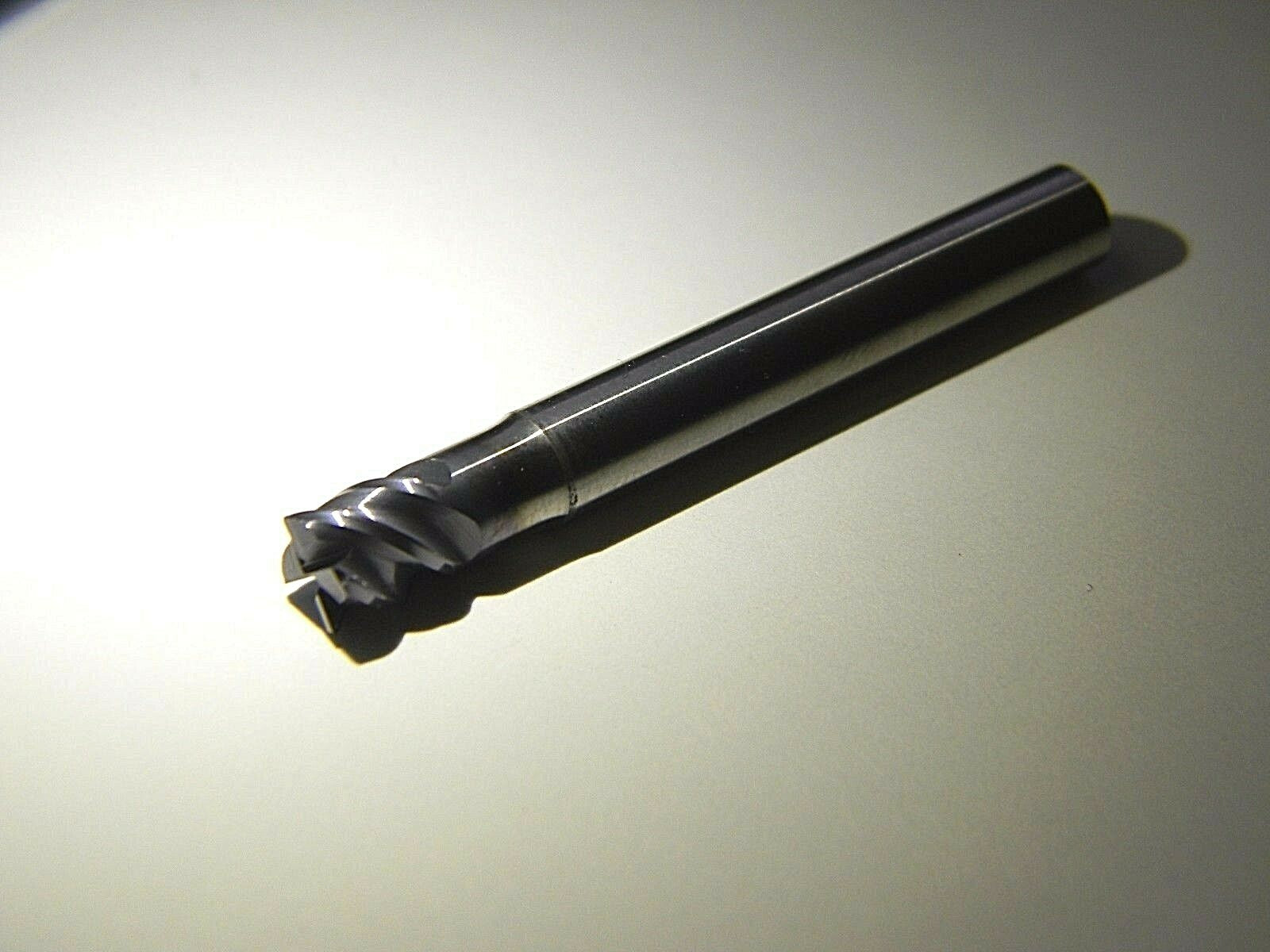

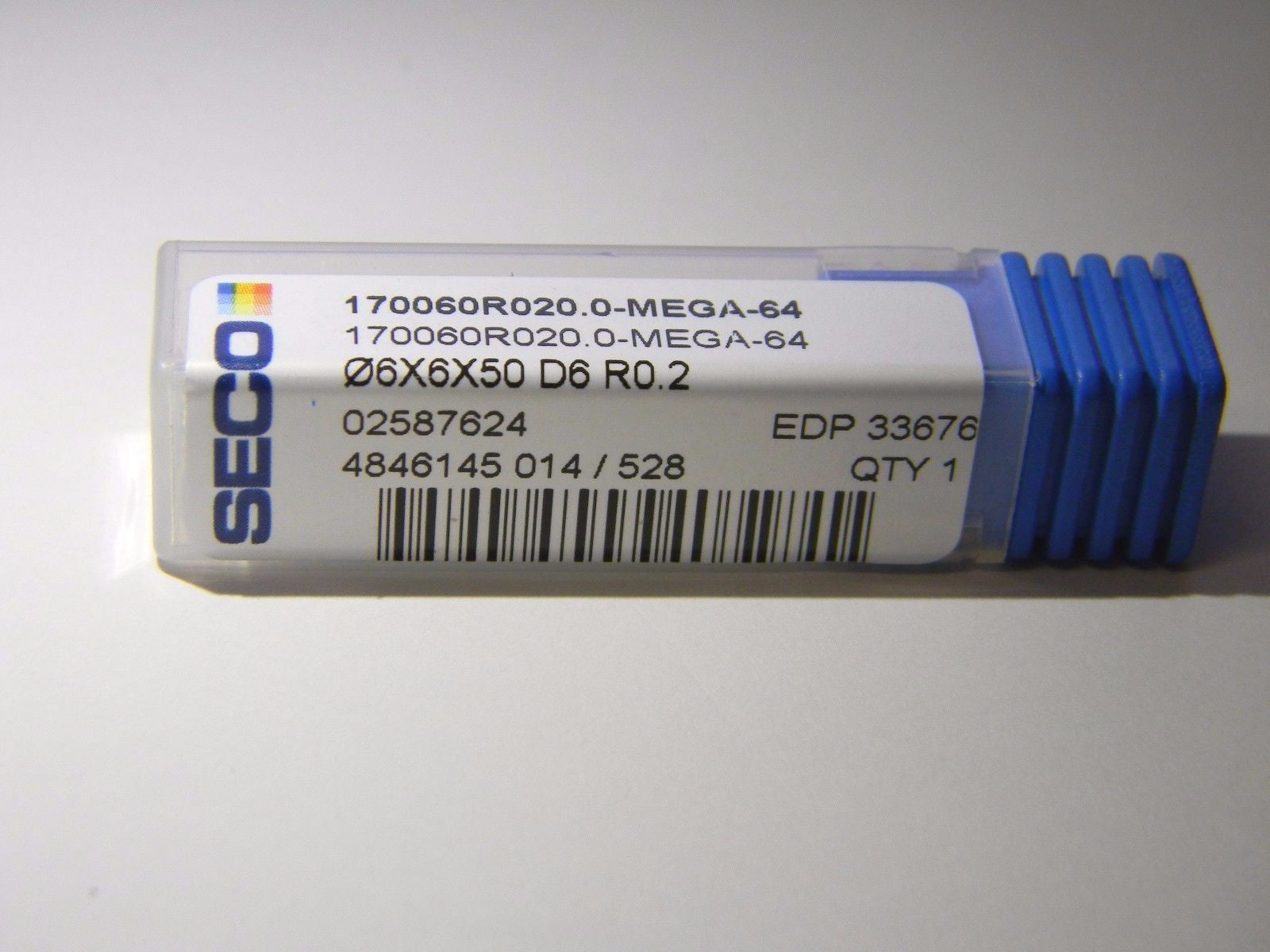

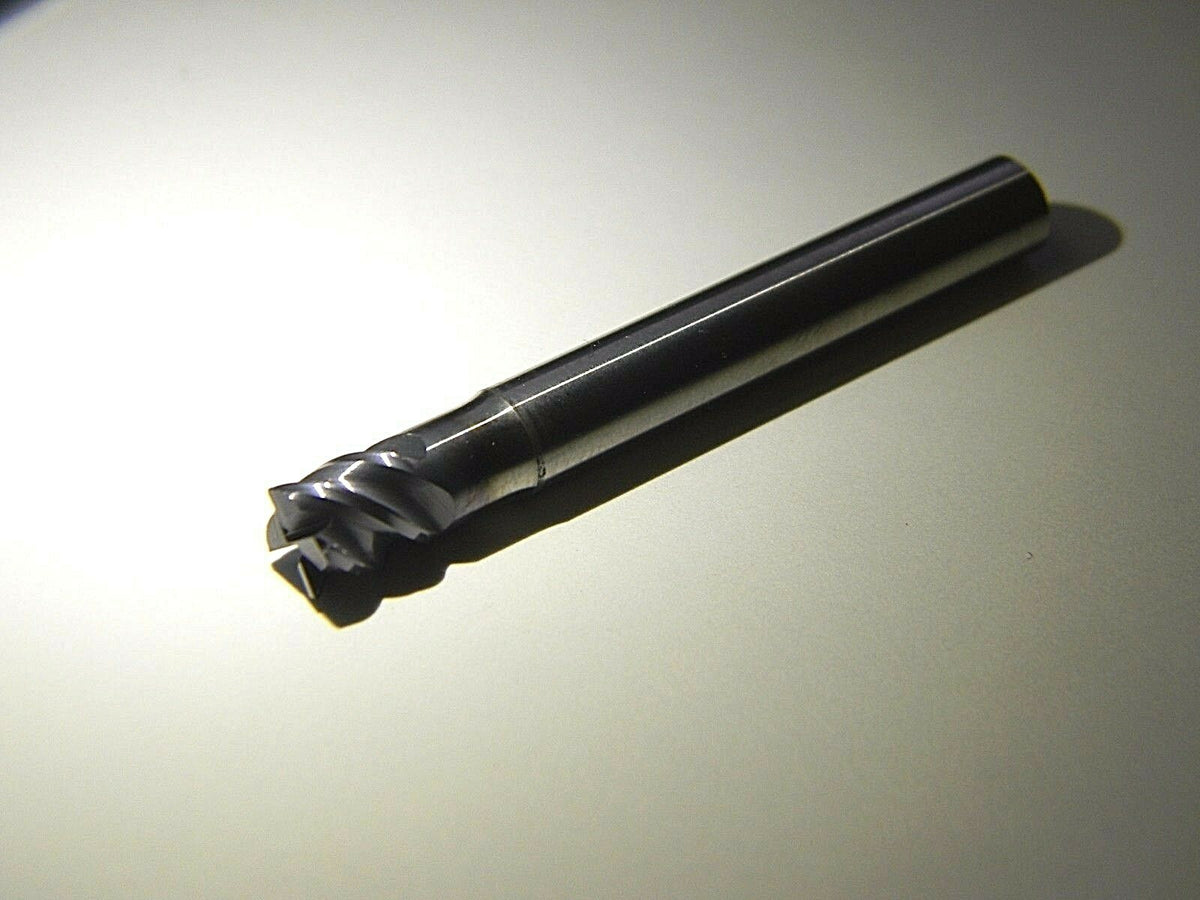

Seco Corner Radius End Mill 4FL Solid Carbide 6mm x 50mm 33676

MSRP: $60.00

Description:

Mill Diameter (mm): 6.00
Mill Diameter (Decimal Inch): 0.2362
End Type: Corner Radius
Corner Radius (mm): 0.200
Corner Radius (Decimal Inch): 0.0079
Number of Flutes: 4
Material: Solid Carbide
Finish/Coating: MEGA-64
Length of Cut (mm): 6.00
Length of Cut (Decimal Inch): 0.2362
Shank Diameter (mm): 6.00
Overall Length (mm): 50.00
Flute Type: Spiral
Reach Length (mm): 11.50
Reach Length (Decimal Inch): 0.4528
Helix Angle: 50.00
Single or Double End: Single
Centercutting: No
Cutting Direction: Right Hand
Flute Direction: Right Hand
Mill Diameter Tolerance (mm): -0.02/-0.04
Corner Radius Tolerance (mm): +0.05/-0.05
Extended Reach: Yes
TIR Maximum (mm): 0.01

This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
