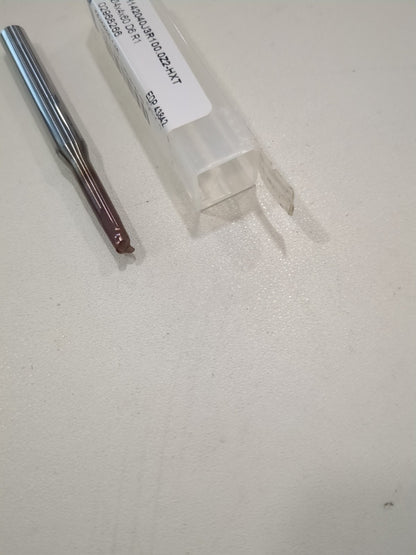

SECO Corner Radius End Mill: 4.00 mm Dia 2 Fl Solid Carbide 02968266

SECO Corner Radius End Mill: 4.00 mm Dia 2 Fl Solid Carbide 02968266
MSRP: $150

• Mill Diameter (Decimal Inch) 0.1575
• Mill Diameter (mm) 4.00
• Number Of Flutes 2
• Length of Cut (mm) 4.00
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish HXT
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0394
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Corner Radius (mm) 1.00
• Overall Length (mm) 60.00
• Coolant Through No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.1575
• Length Type Regular
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 6.00
• Neck Diameter (mm) 3.70
• Neck Diameter (Decimal Inch) 0.1457
• Reach Length (mm) 20.00
• Corner Radius Tolerance ±0.00500 mm
• Mill Diameter Tolerance 0.00/-0.01 mm
• Shank Diameter Tolerance h5
• Primary Workpiece Material Cast Iron; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; K
• Material Grade Submicron
• Series JH142
• Material Application Cast Iron; Steel
• Helix Style Medium
• Country of Origin Netherlands
• Ordered as Part # 02968266

(Description).

Please review photos, comes as shown.
