Seco
Corner Chamfer End Mill

MSRP: $50.00

• Mill Diameter (mm) 4.50
• Mill Diameter (Decimal Inch) 0.1772
• Number Of Flutes 3
• Single Or Double End Single
• End Mill Material Solid Carbide
• Length of Cut (mm) 12.00
• Coating/Finish SIRON-A
• Centercutting Yes
• Flute Direction Right Hand
• Chamfer Width (Decimal Inch) 0.0450
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Chamfer Width (mm) 0.05
• Overall Length (mm) 55.00
• Coolant Through No
• Pitch Normal
• Helix Angle 48
• Chipbreaker No
• Chamfer Angle 45
• Length Of Cut (Decimal Inch - 4 Decimals) 0.4724
• Length Type Short
• Flute Type Helical
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 6.00
• Neck Diameter (mm) 4.50
• Neck Diameter (Decimal Inch) 0.1770
• Reach Length (mm) 14.00
• Mill Diameter Tolerance e7
• Shank Diameter Tolerance h5
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Series JS553
• Additional Information Shouldering, Slotting, Rampdown, Helical Interpolation, Drill Mill, Plunging & Recessing
• TIR Maximum (mm) 0.01
• Coating Classification PVD
• Chamfer Length (mm) 0.05
• Helix Style High
• Manufacturers Catalog Number 553045Z3.0-SIRON-A

This item is new and in great condition. SOLD AS IS.

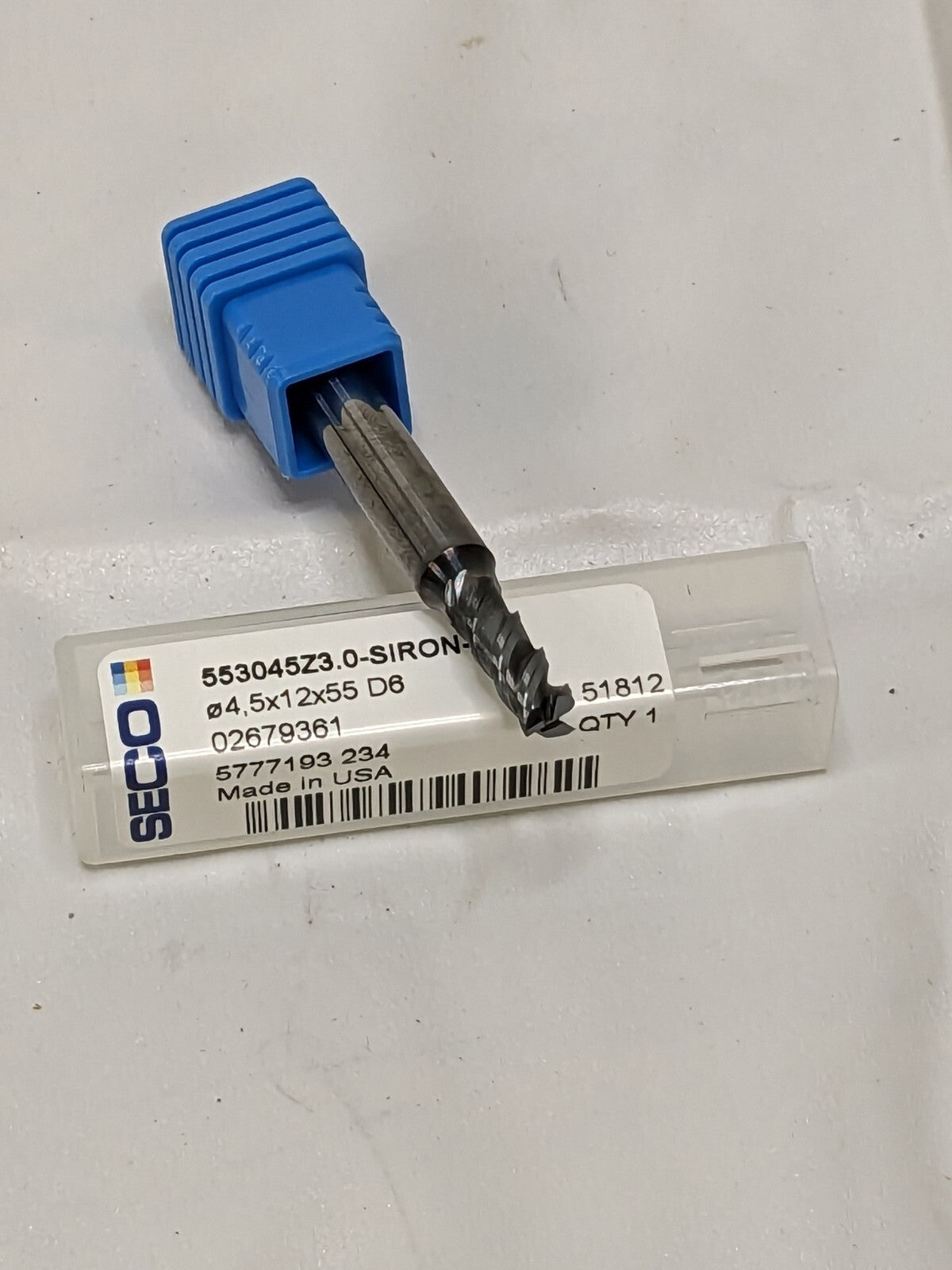

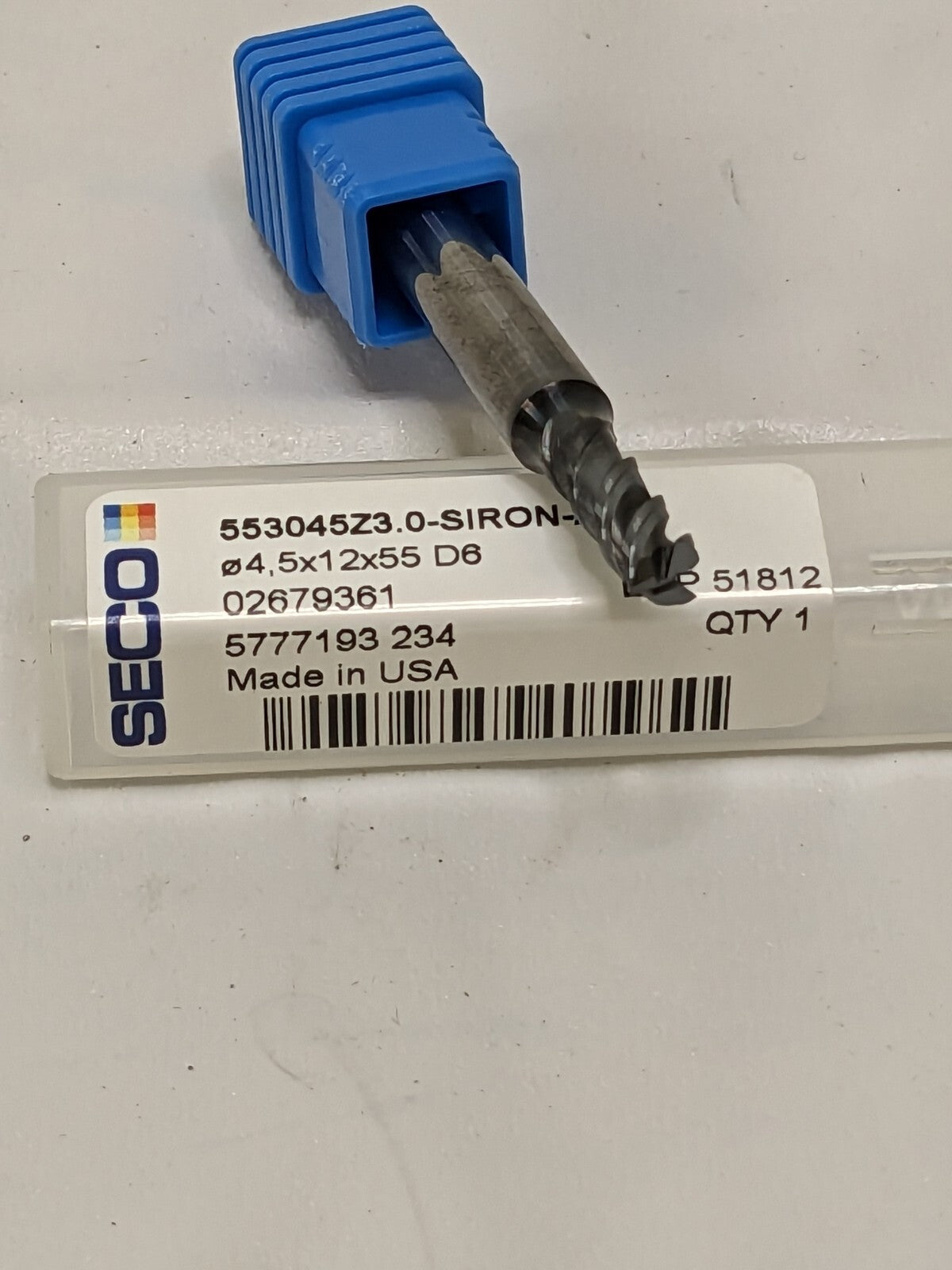

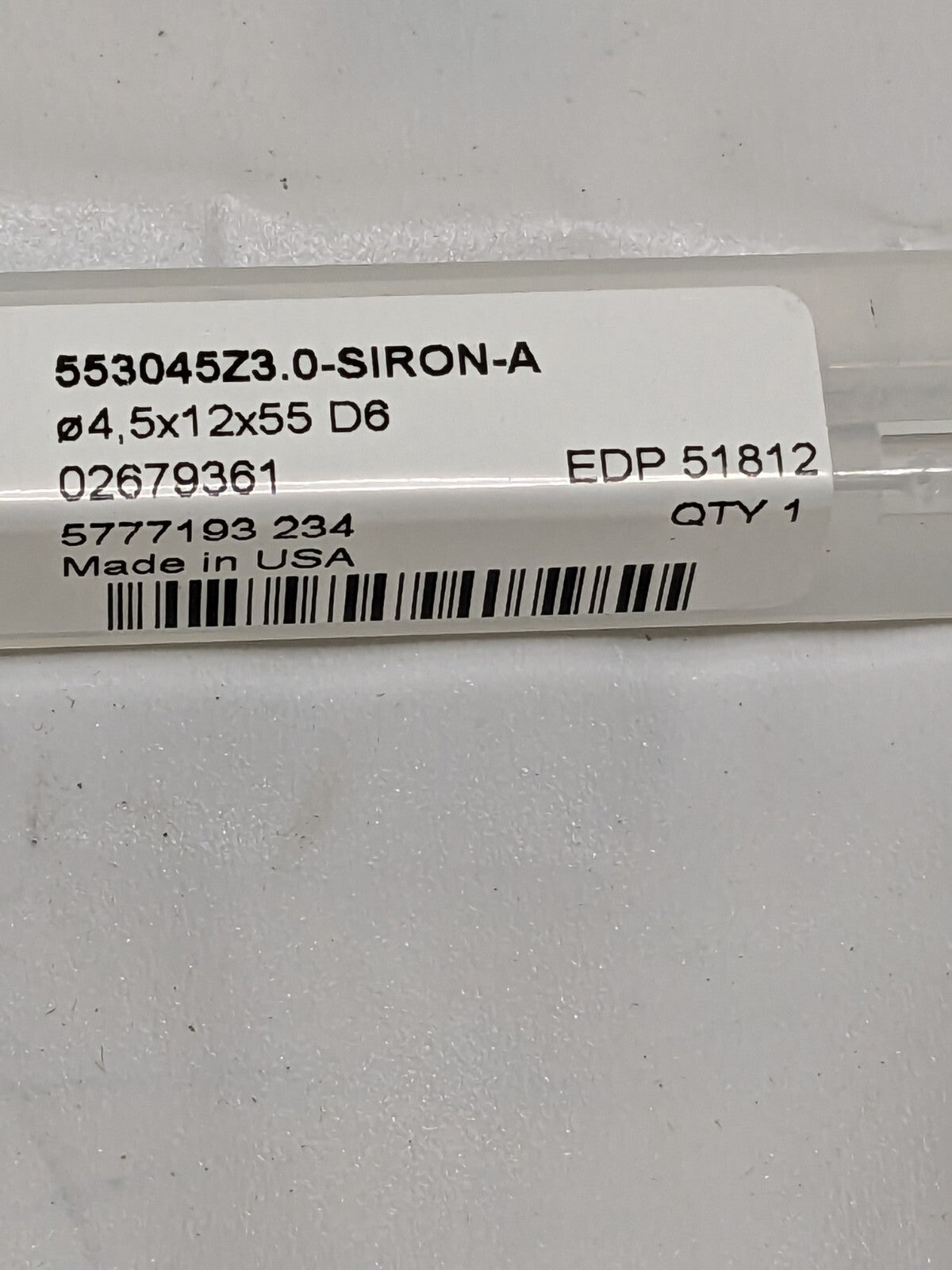

Please review photos, comes as shown.
