SECO Corner Chamfer End Mill: 1/2" Dia, 1" LOC, 3 Fl 02712697

SECO Corner Chamfer End Mill: 1/2" Dia, 1" LOC, 3 Fl 02712697

MSRP: $175

•

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• Number Of Flutes 3
• Length of Cut (Inch) 1
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish SIRON-A
• Overall Length (Inch) 3-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Chamfer Width (Decimal Inch) 0.0059
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.5000
• Chipbreaker No
• Chamfer Angle 45
• Length Of Cut (Decimal Inch - 4 Decimals) 1.0000
• Length Type Short
• Flute Type Helical
• Extended Reach No
• Shank Type Weldon Flat
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Reach Length (Decimal Inch) 1.0000
• Reach Length (Inch) 1
• Mill Diameter Tolerance e7
• Shank Diameter Tolerance h5
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M; N
• UNSPSC Code 27112803
• Material Grade Micrograin
• Series JS553
• Additional Information Rampdown; Helical Interpolation; Plunging & Recessing; Shouldering; Slotting; Drill Mill
• TIR Maximum (Decimal Inch) 0.0004
• Coating Classification PVD
• Chamfer Length (Decimal Inch) 0.0059
• Helix Style High
• Manufacturers Catalog Number 5530500Z3.3-SIRON-A

(Description).

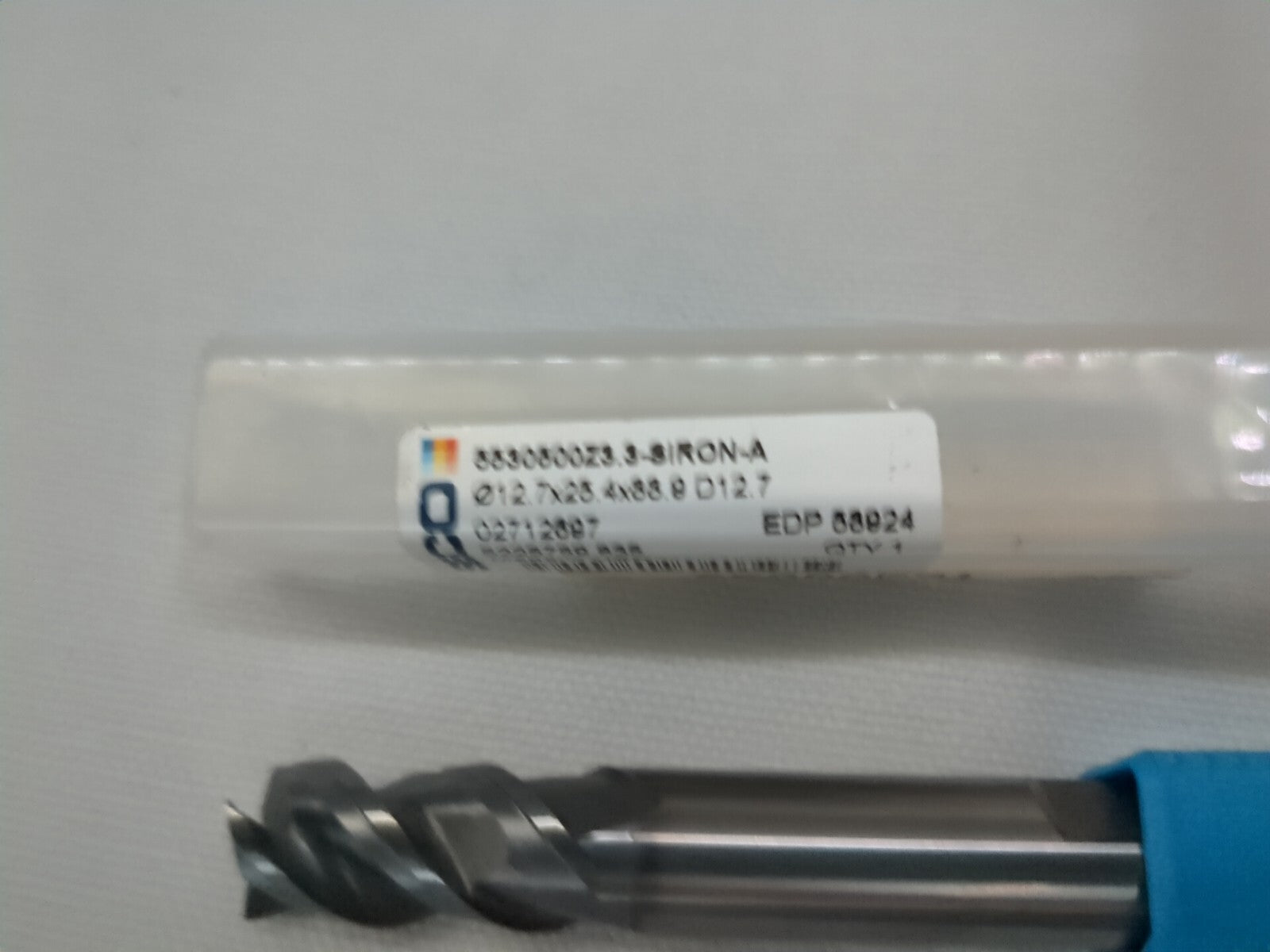

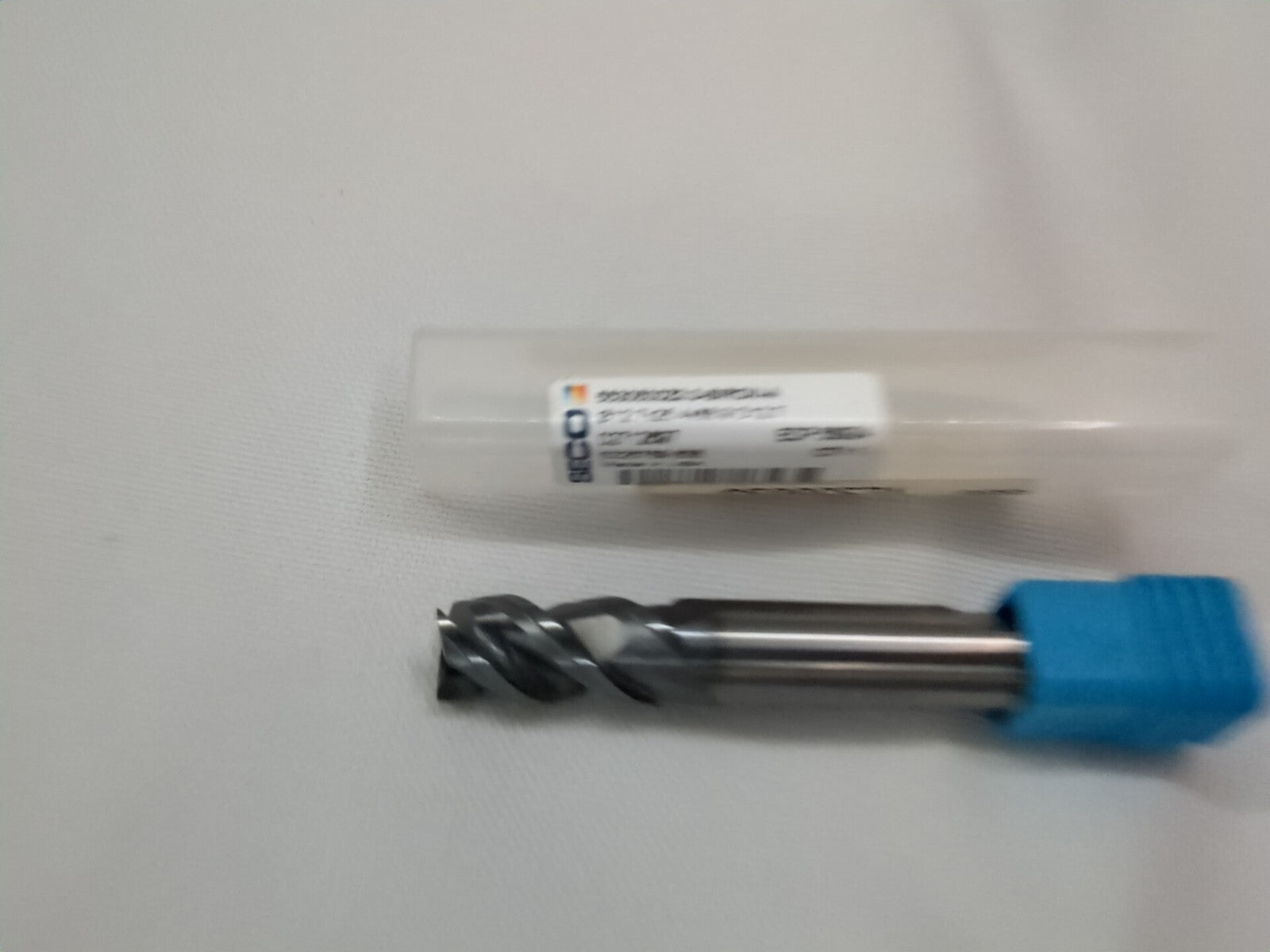

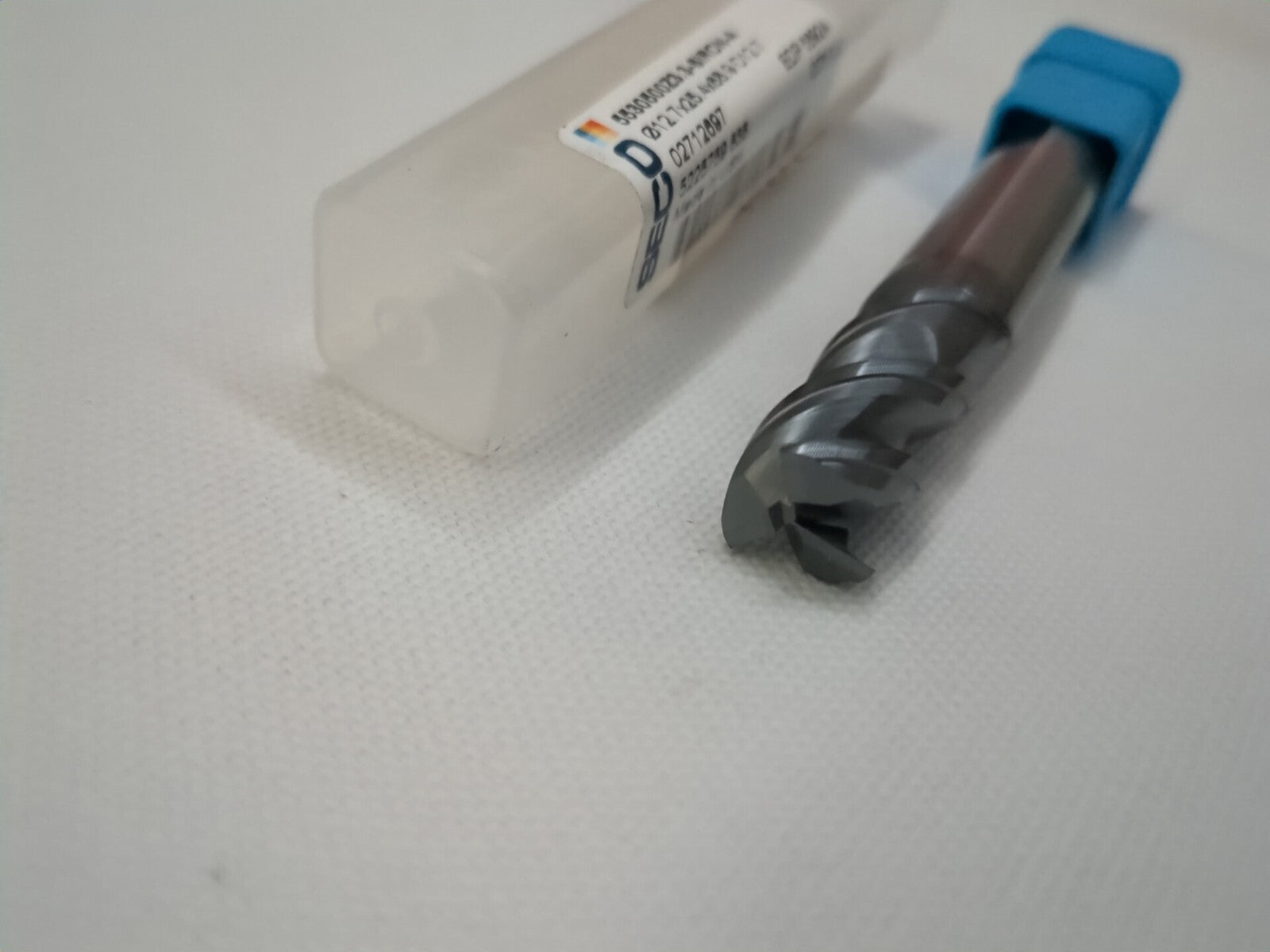

Please review photos, comes as shown.
