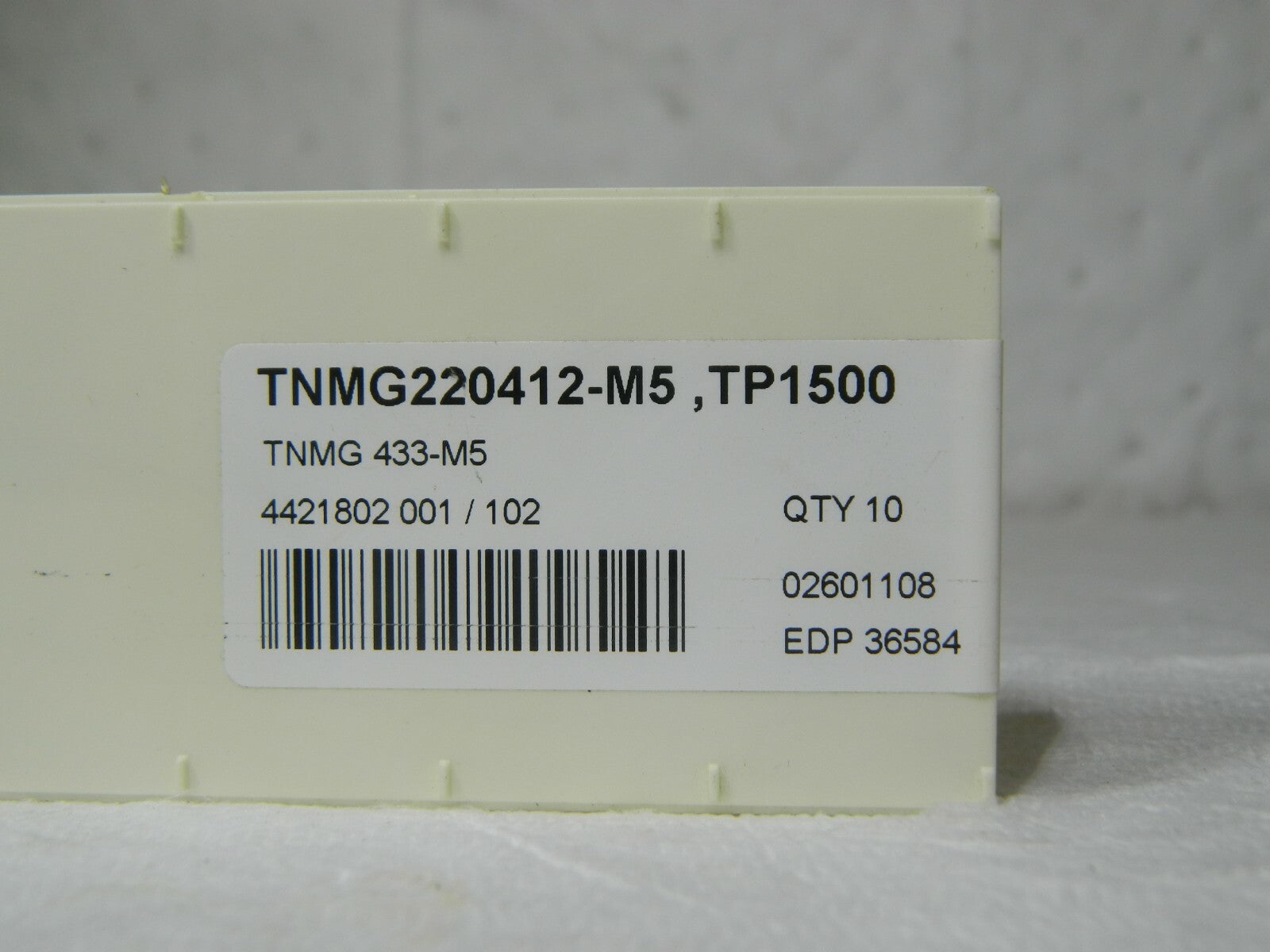

Seco Carbide Turning Inserts TNMG 433-M5 Grade TP1500 Qty. 10 36584
Seco Carbide Turning Inserts TNMG 433-M5 Grade TP1500 Qty. 10 36584
Regular price
$63.64 USD
Regular price
$130.00 USD
Sale price
$63.64 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco
MSRP: $130.00
Model: 36584
Description:
Insert Style: TNMG
Insert Size: 433
Material: Carbide
Inscribed Circle (mm) :1 2.70
Inscribed Circle (Decimal Inch) : 0.5000
Inscribed Circle (Inch) : 1/2
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1875
Corner Radius (Inch) : 3/64
Corner Radius (Decimal Inch) : 0.0469
Manufacturer's Grade: TP1500
Coating: TiCN/Al2O3
Material Grade: C6
Chip breaker: M5
Hole Diameter (Decimal Inch): 0.2030
Relief Angle: 0
Coating Process: Duratomic
Primary Workpiece Material: P
Secondary Workpiece Material: K
Included Angle: 60
Shape: Triangle

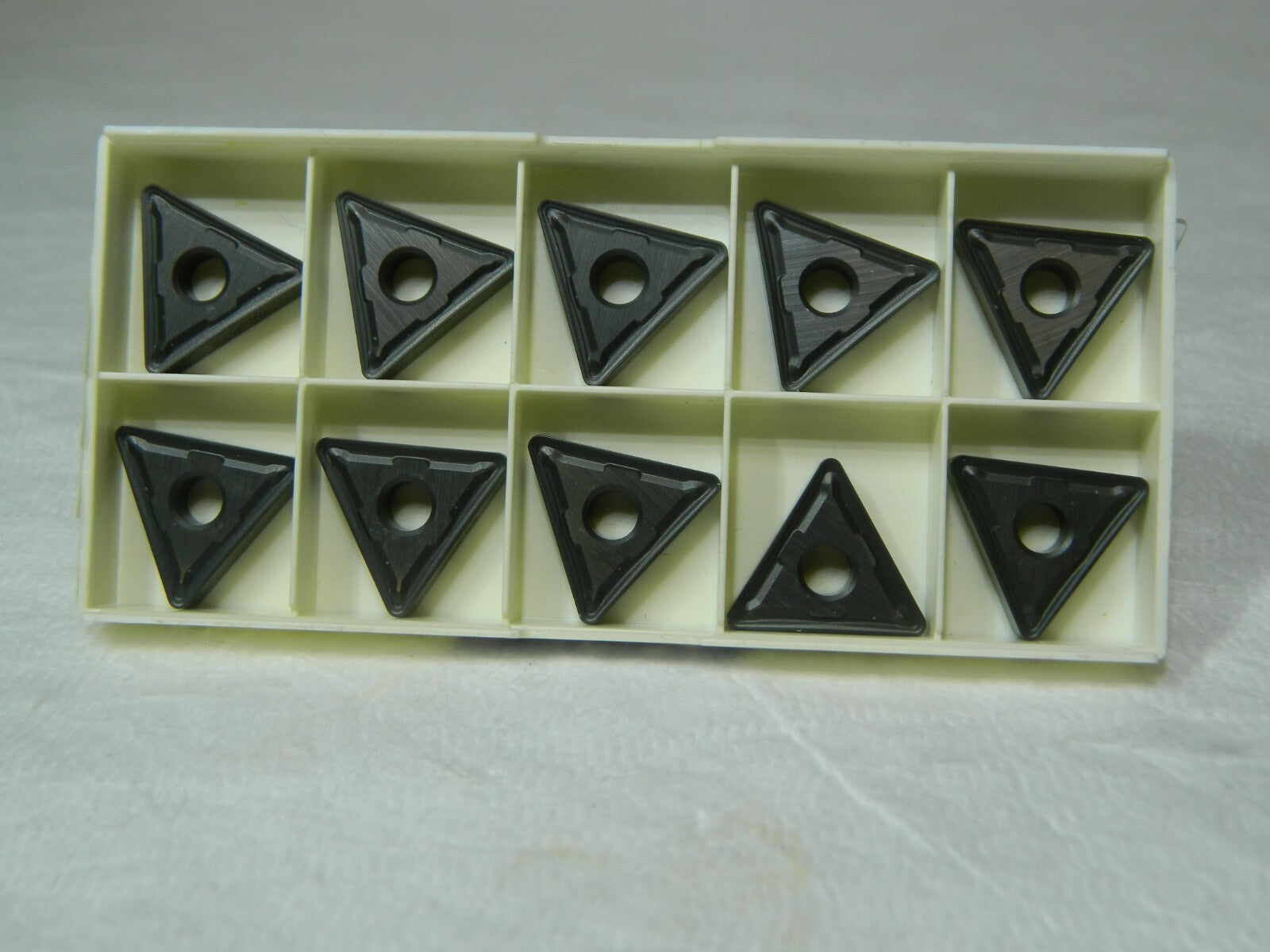

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
