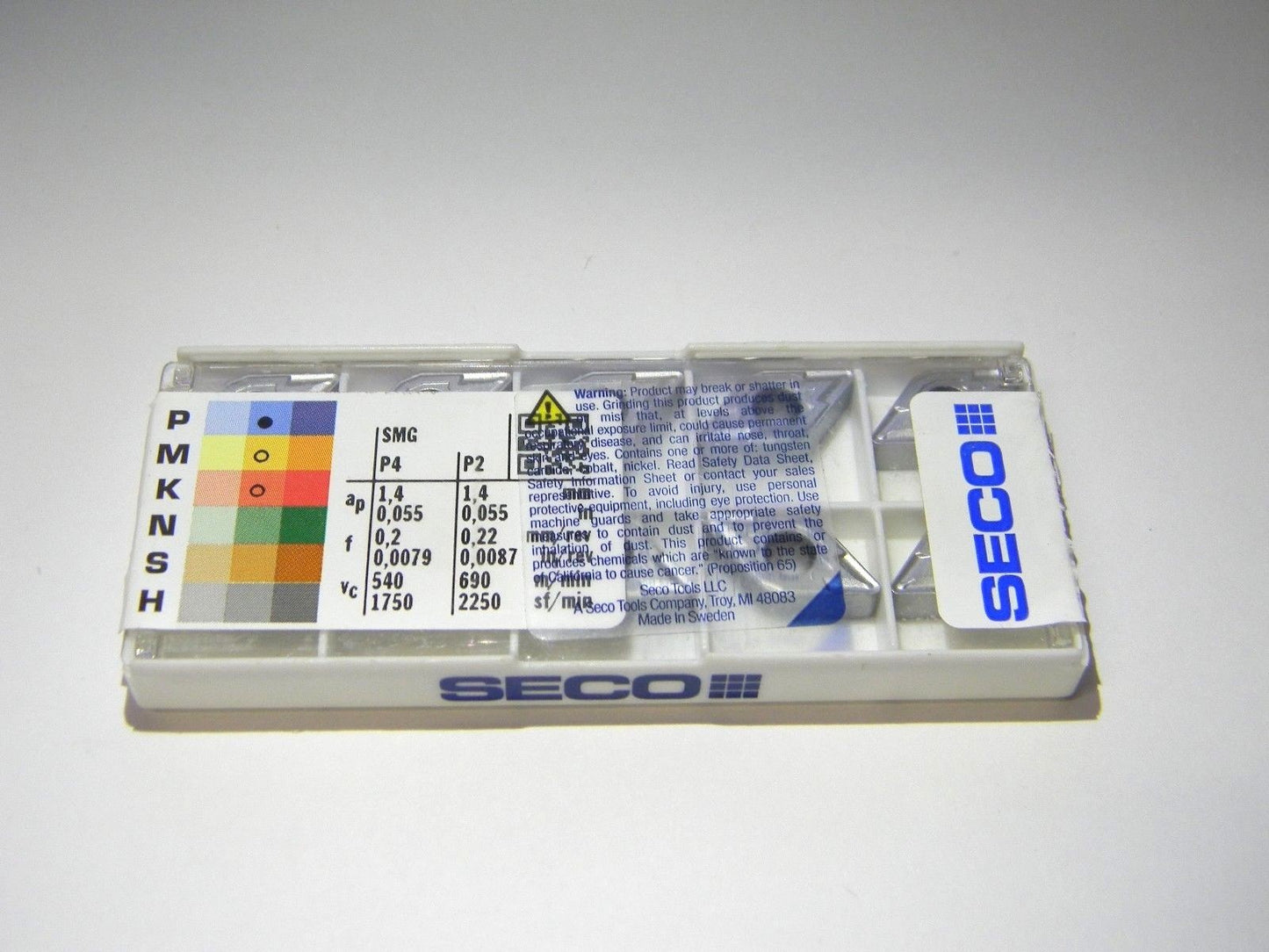

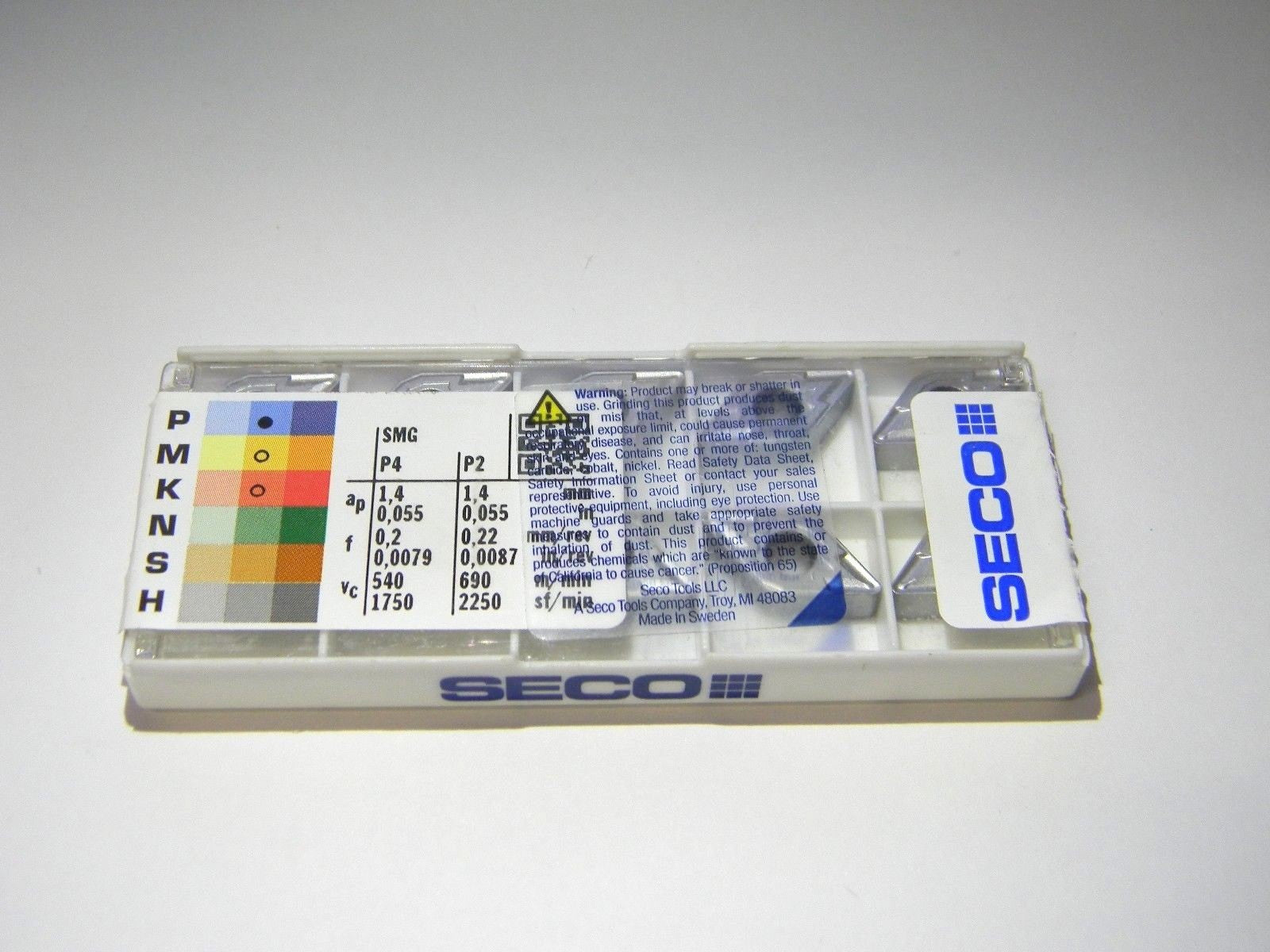

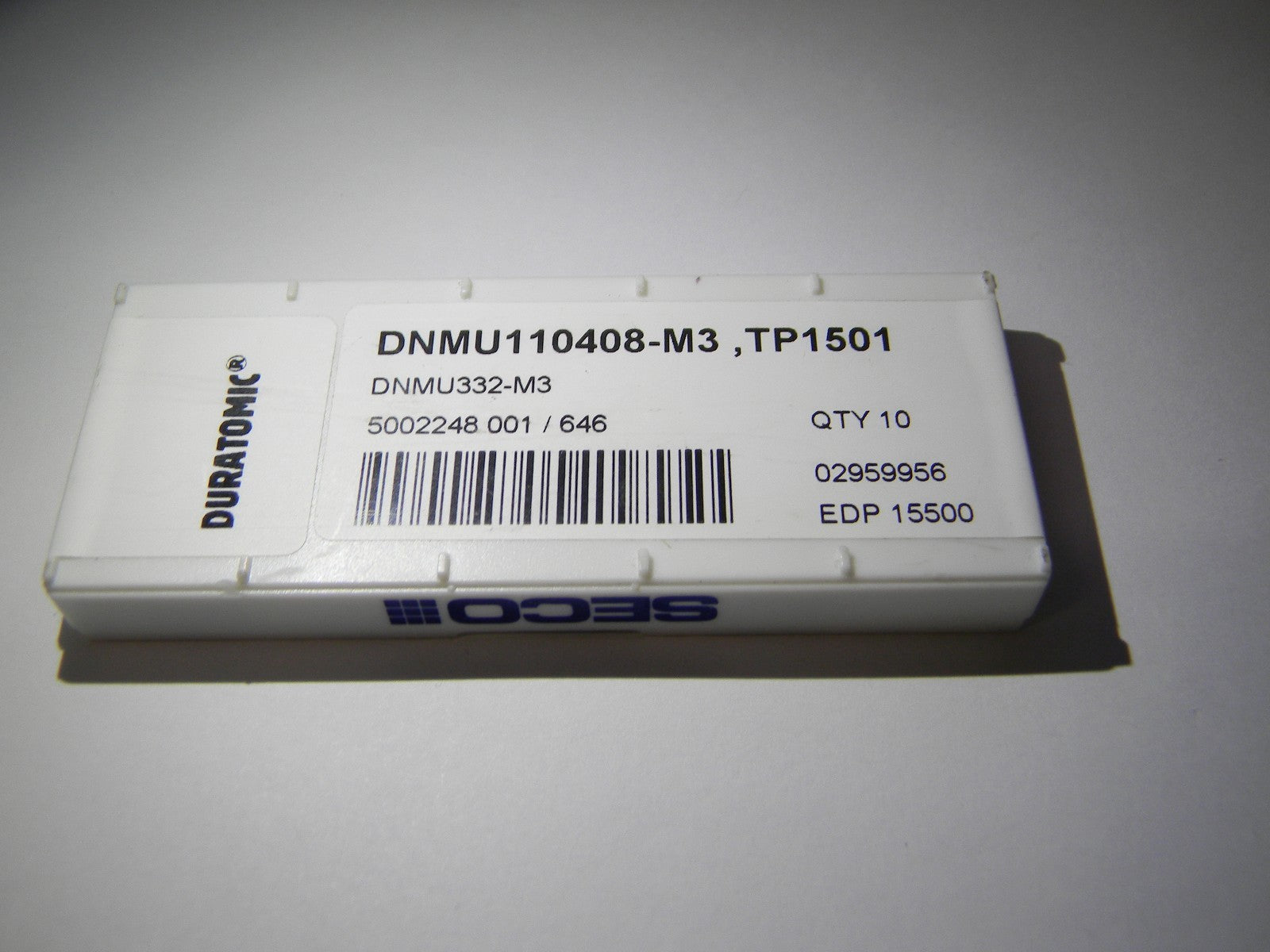

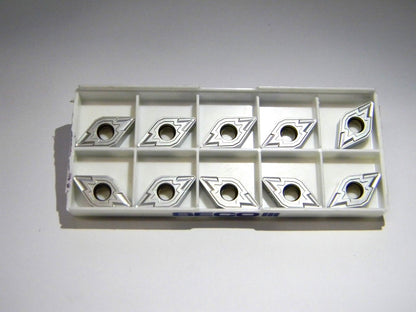

Seco Carbide Turning Inserts DNMU110408 DNMU332 M3 Grade TP1501 Qty 10 15500
Seco Carbide Turning Inserts DNMU110408 DNMU332 M3 Grade TP1501 Qty 10 15500
Regular price
$68.53 USD
Regular price
$140.00 USD
Sale price
$68.53 USD
Shipping calculated at checkout.
SECO
MSRP: $140.00
Model: 15500
Description:
Insert Style DNMU
Insert Size 332
Material Carbide
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0313
Manufacturer's Grade TP1501
Coating Al2O3
Chip breaker M3
Insert Length (Decimal Inch) 0.1500
Hole Diameter (mm) 3.81
Hole Diameter (Decimal Inch) 0.1500
Rake Negative
Relief Angle 0
Coating Process Duratomic
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 55
Cutting Direction Neutral
Insert Hand Neutral
Insert Holding Method Pin & Clamp
Cutting Edge Style Honed
FullRadius No
Shape Diamond

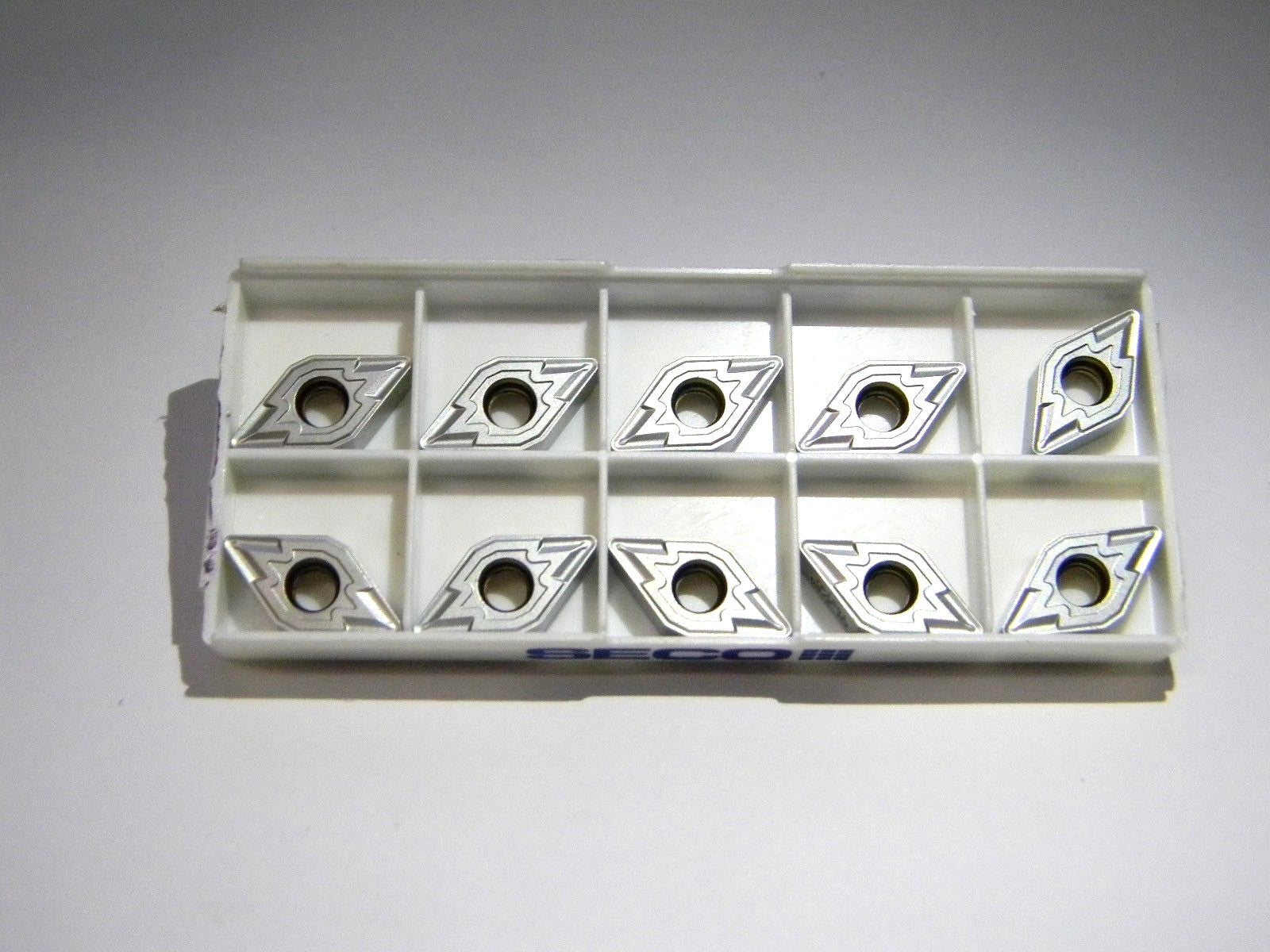

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
