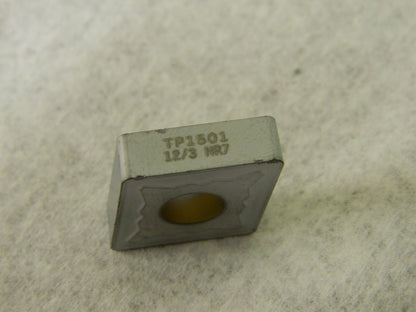

Seco Carbide Turning Inserts CNMG643 MR7 Grade TP1501 10 Pack #16081

Seco Carbide Turning Inserts CNMG643 MR7 Grade TP1501 10 Pack #16081

MSRP: $250

• ANSI Insert Code CNMG643
• ISO Insert Code CNMG190612
• Relief Angle 0
• Insert Style CNMG
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0472
• Included Angle 80
• Manufacturer Grade TP1501
• Coating/Finish TiCN; Al2O3; Cr
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Series CNMG-MR7
• Inscribed Circle (Decimal Inch) 0.7500
• Inscribed Circle (Inch) 3/4
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Medium Machining; Roughing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.3118
• Hole Diameter (Mm) ( - 0 Decimals) 7.92
• Maximum Depth of Cut (Decimal Inch) 0.7126
• Insert Holding Method Pin; Clamp; Lever Lock
• Width (Inch) 3/4
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 0.7598
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P; K
• Secondary Workpiece Material Hard Material; Cast Iron
• Secondary Workpiece Material Code H; K
• Iso Code CNMG190612-MR7
• Standards ISO; ANSI
• Manufacturers Catalog Number 02960475
• Material Grade P10; P20
• Single or Multi Tipped Multi Tipped
• Proprietary Coating Designation Duratomic
• Lead Angle 80
• Coating Classification Duratomic
• Chip Breaker MR7
• Cutting Edge Style T-Land
• Industry Standard Number CNMG643-MR7
• Width (Decimal Inch - 4 Decimals) 0.7500
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• ANSI Size Code 643
• ISO Size Code 190612
• UNSPSC Code 23242105
• Insert Size Code 643

(Description).

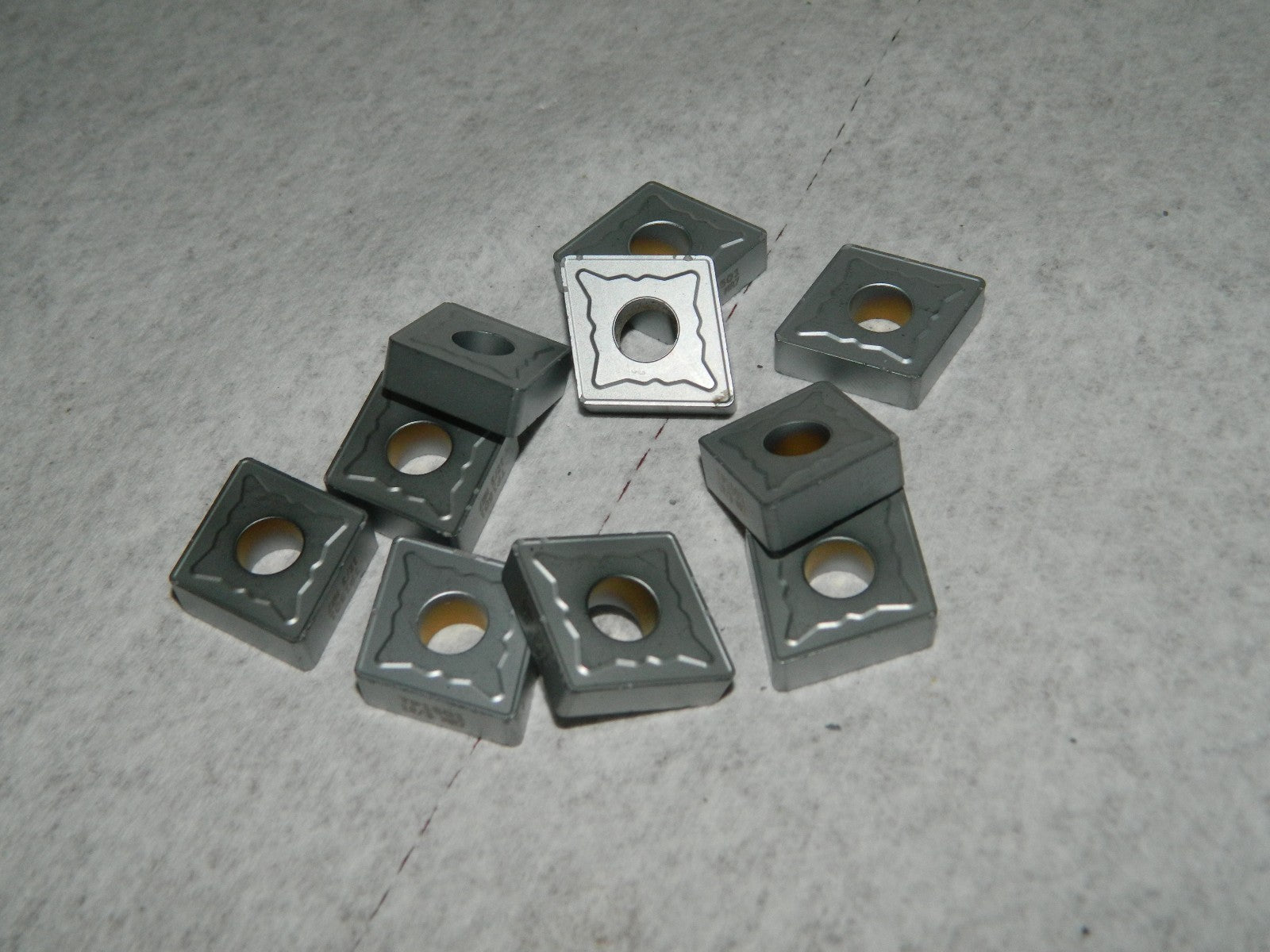

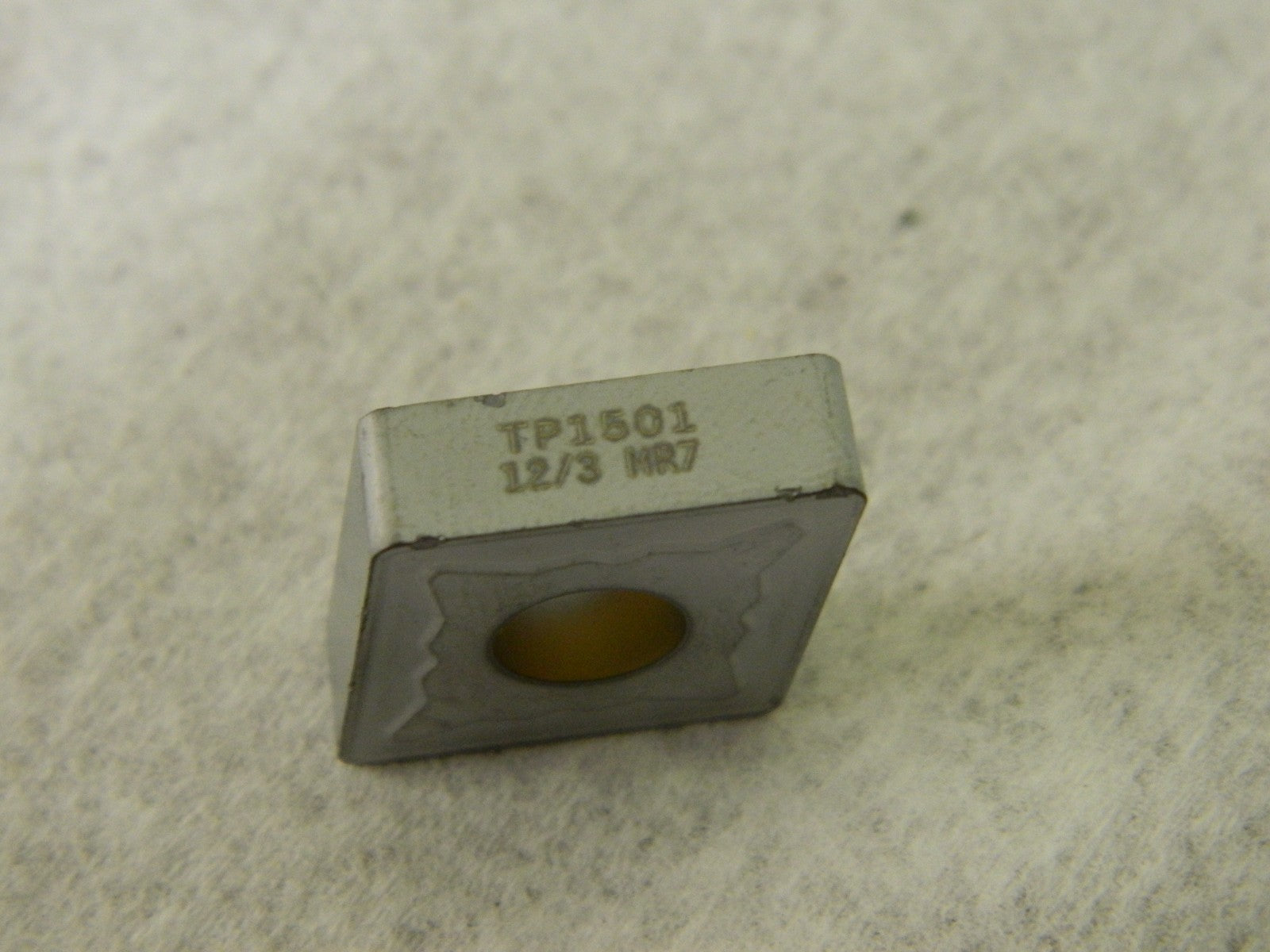

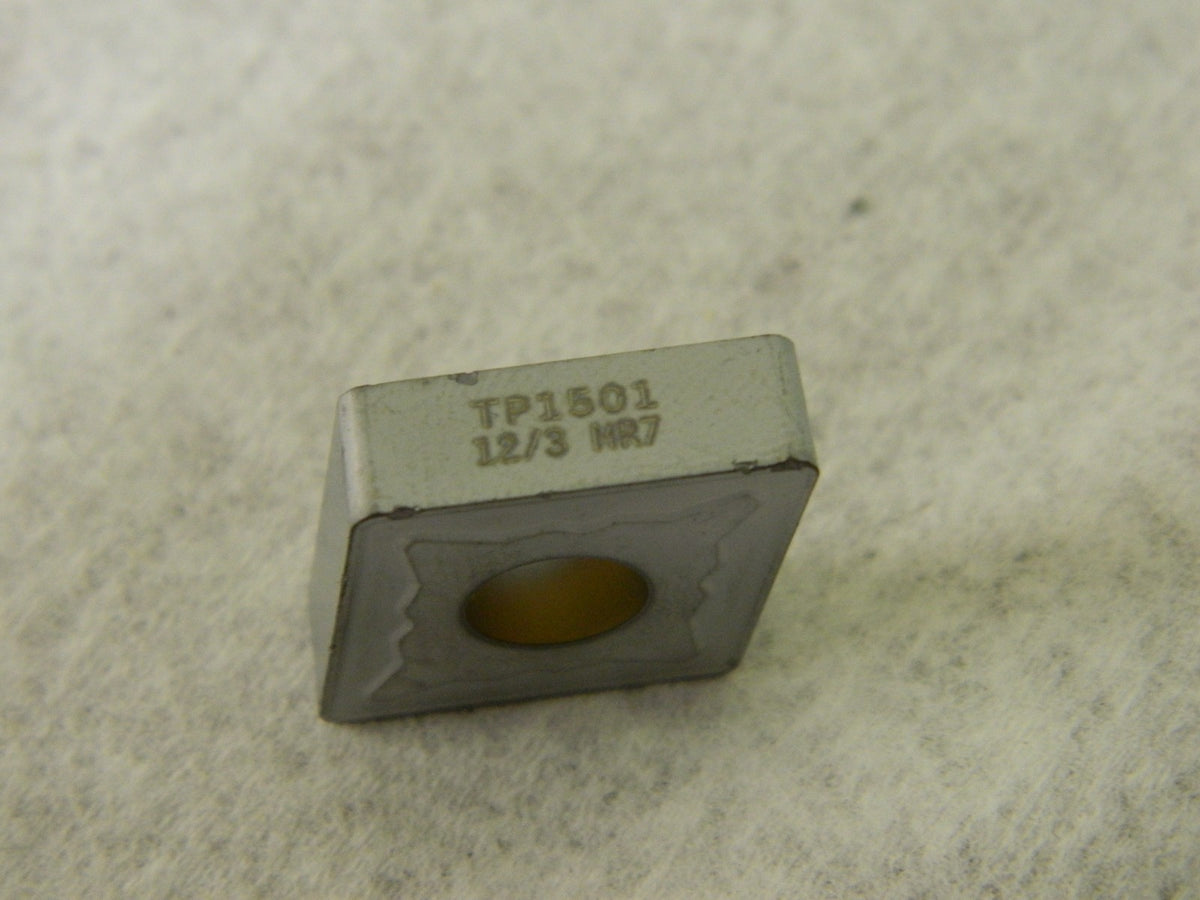

Please review photos, comes as shown.
