Seco Carbide Turning Inserts 1/4" Thick DNMG443-MR7 Grade TP1501 Qty 9 16412
Seco Carbide Turning Inserts 1/4" Thick DNMG443-MR7 Grade TP1501 Qty 9 16412
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco
MSRP: $120.00
Model: 16412
Description:
Insert StyleDNMG
Insert Size443
MaterialCarbide
Width (Inch)1/2
Width (Decimal Inch)0.5000
Inscribed Circle (Decimal Inch)0.5000
Inscribed Circle (Inch)1/2
Thickness (Inch)1/4
Thickness (Decimal Inch)0.2500
Corner Radius (Inch)3/64
Corner Radius (Decimal Inch)0.0469
Manufacturer's GradeTP1501
CoatingAl2O3
Chip breakerMR7
Insert Length (Decimal Inch)0.2030
Hole Diameter (mm)5.15
Hole Diameter (Decimal Inch)0.2028
RakeNegative
Relief Angle0
Coating ProcessDuratomic
Primary Workpiece MaterialP
Secondary Workpiece MaterialK
Included Angle55
Cutting DirectionNeutral
Insert HandNeutral
Cutting Edge StyleHoned
FullRadiusNo
ShapeDiamond

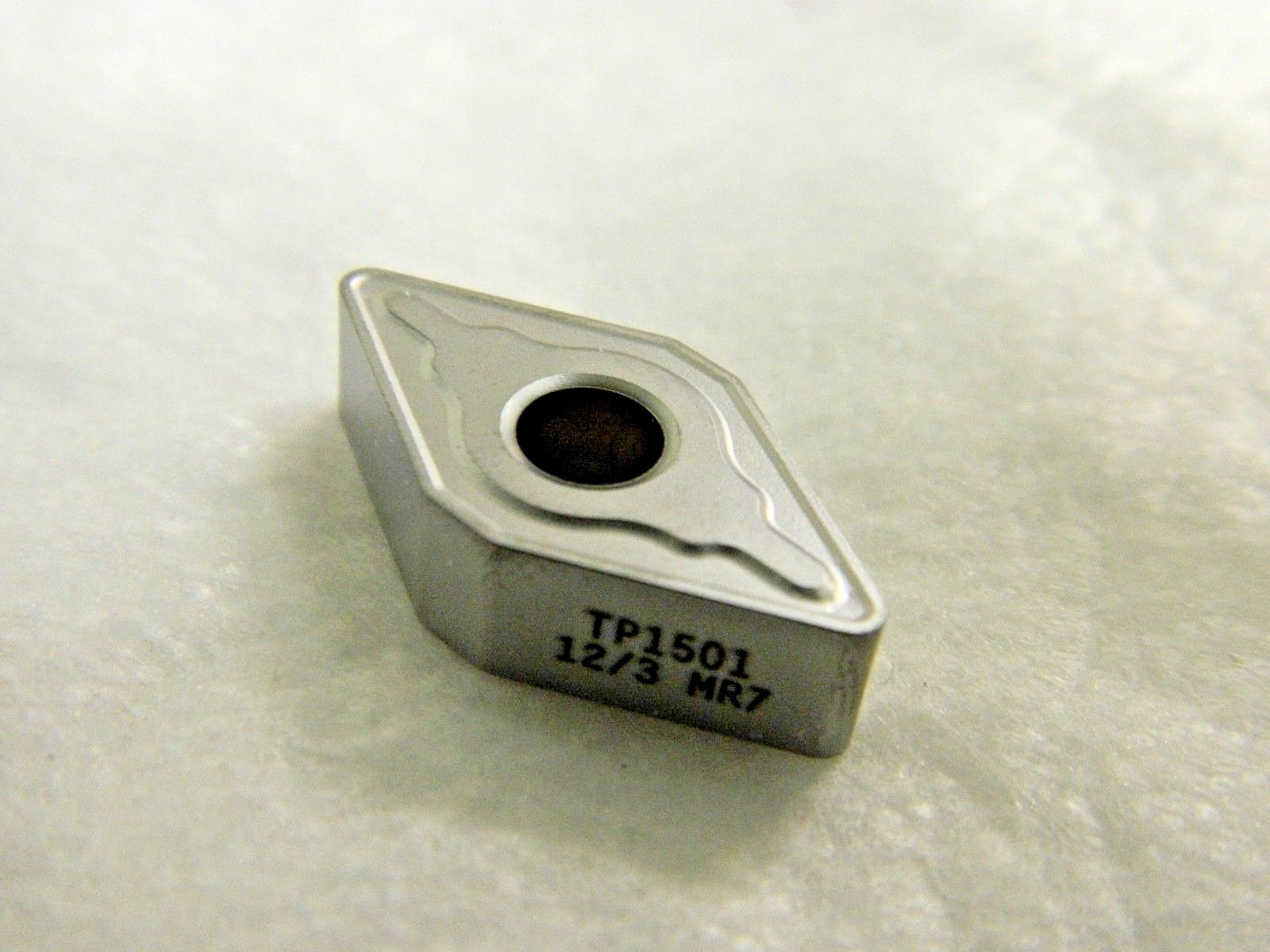

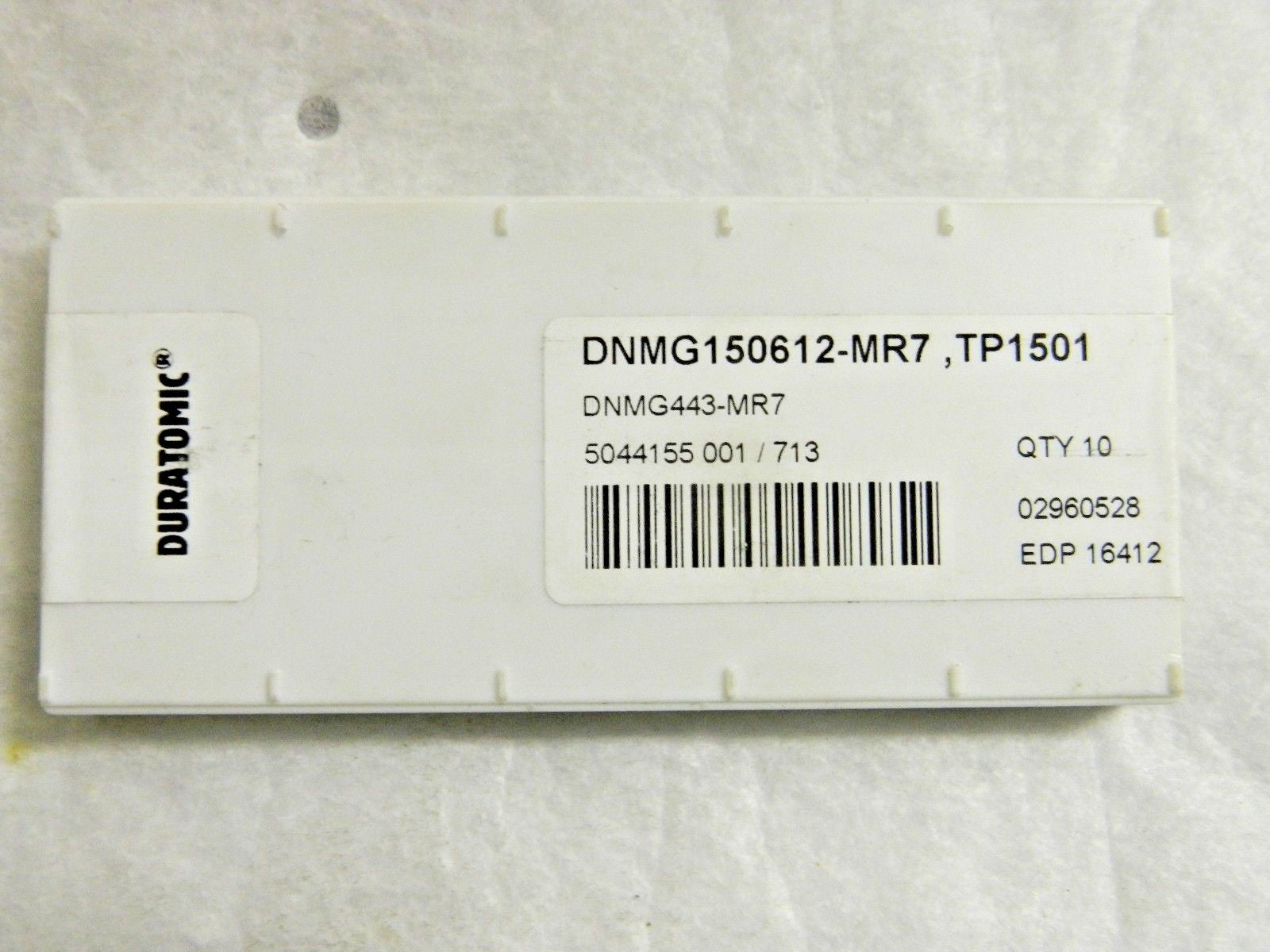

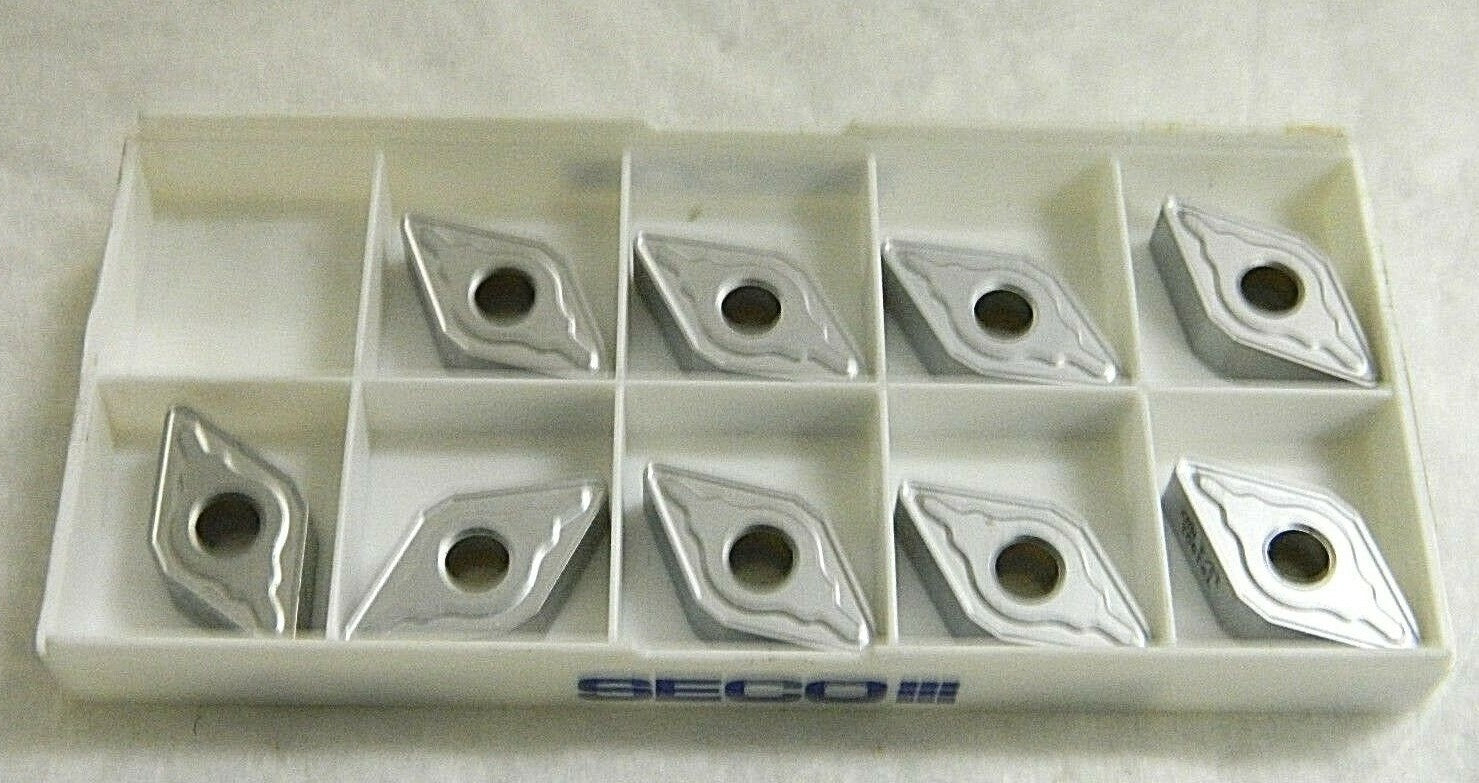

This listing is for One Lot of 9 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
