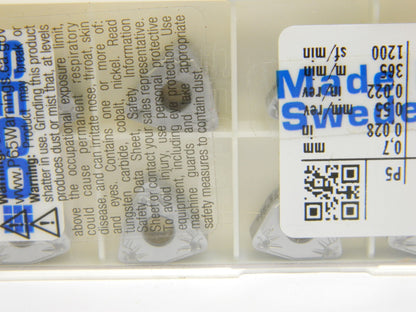

Seco Carbide Turning Insert WNMG333-MF5 TP2501 Qty 10 02960713

Seco
1 Lot of 10 Inserts

MSRP: $100.00

• Insert Style: WNMG
• Insert Shape Code: W
• Insert Size Code: 333
• Insert Shape: Trigon
• Clearance Code: N
• Tolerance Code: M
• Insert Material: Solid Carbide
• Manufacturer Grade: TP2501
• Hole Diameter (Mm) ( - 0 Decimals): 3.81
• Hole Diameter (Decimal Inch): 0.1500
• Inscribed Circle (Inch): 3/8
• Inscribed Circle (Decimal Inch): 0.3750
• Insert Holding Method: Pin; Clamp
• Insert Hand: Neutral
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0469
• Included Angle: 80.0
• Relief Angle: 0
• Coating Process: Duratomic
• Rake: Negative
• Primary Workpiece Material: P
• Secondary Workpiece Material: K
• Cutting Direction: Neutral
• Single or Multi Tipped: Multi Tipped
• Chip Breaker: G
• Coating/Finish: Al2O3

These items are new and in great condition. SOLD AS IS.

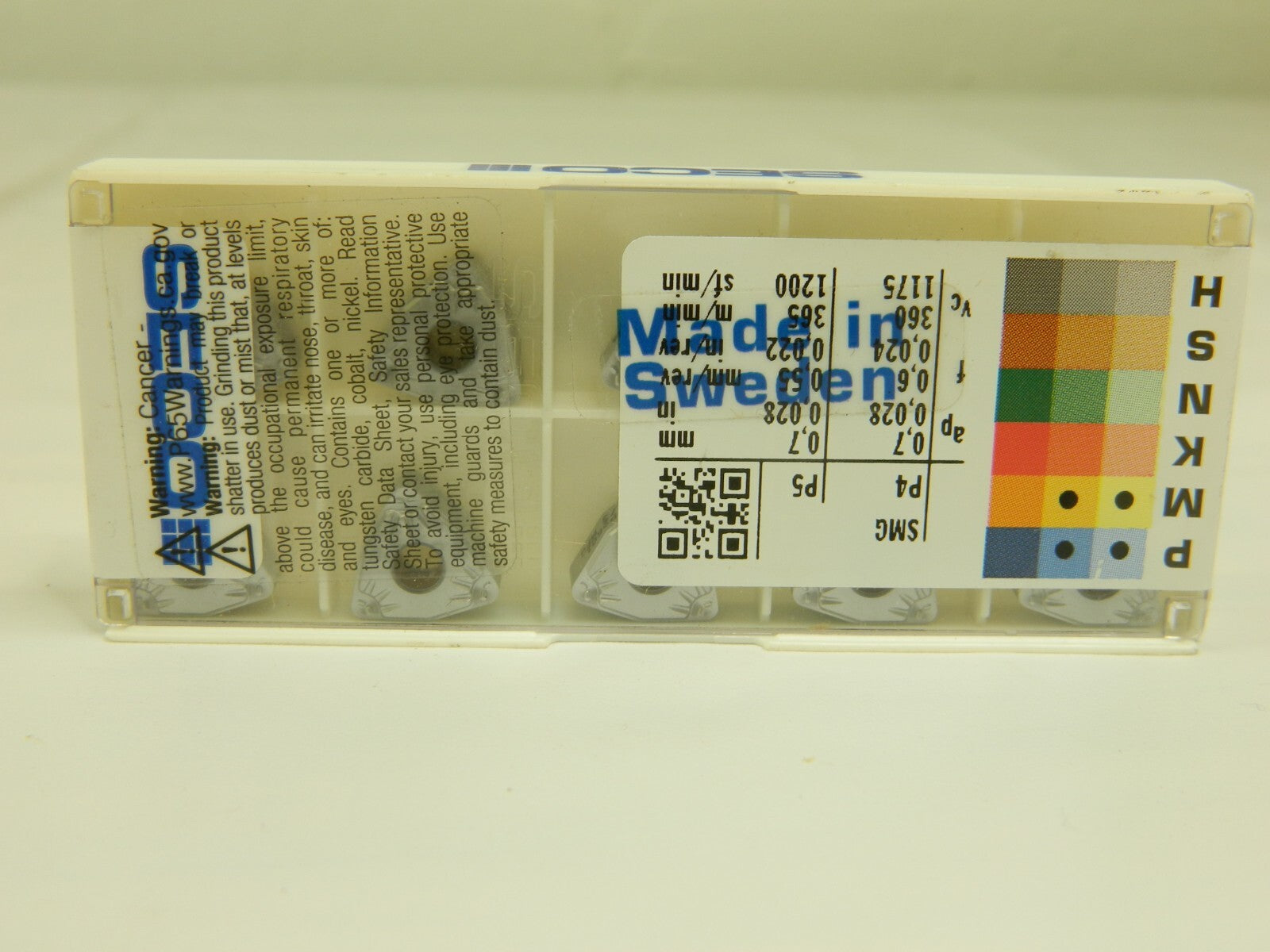

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
