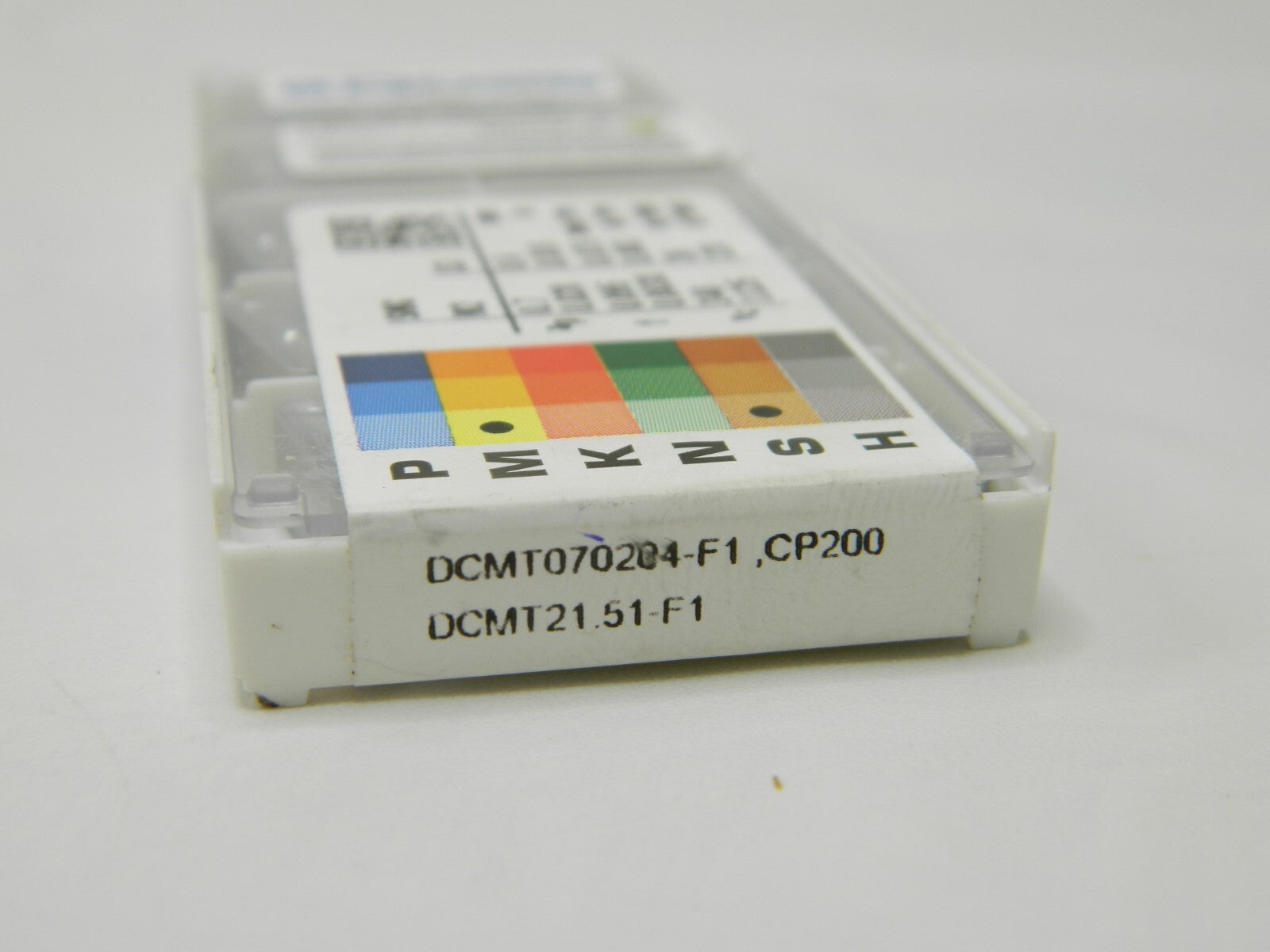

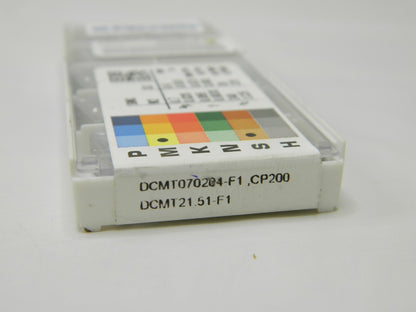

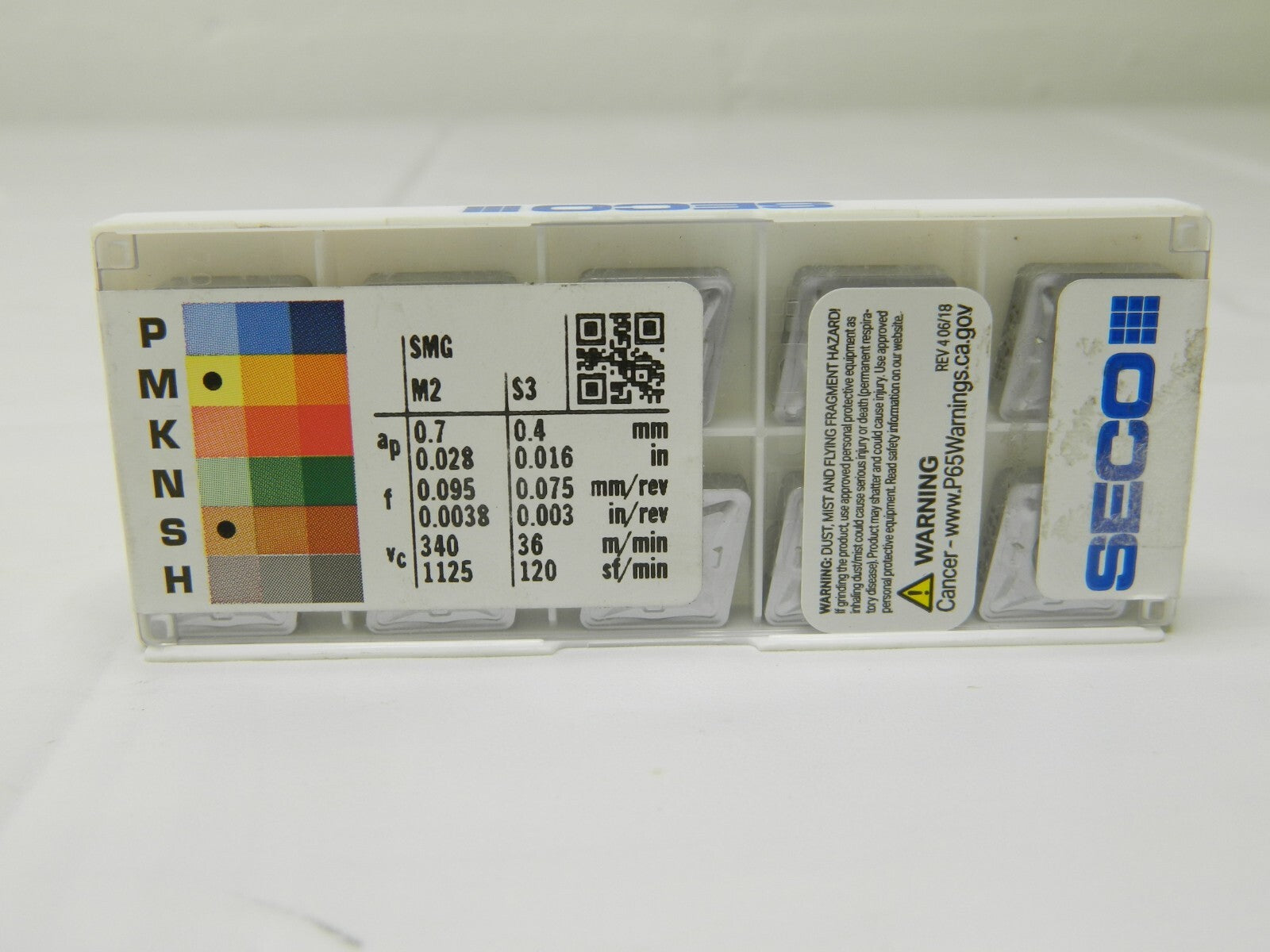

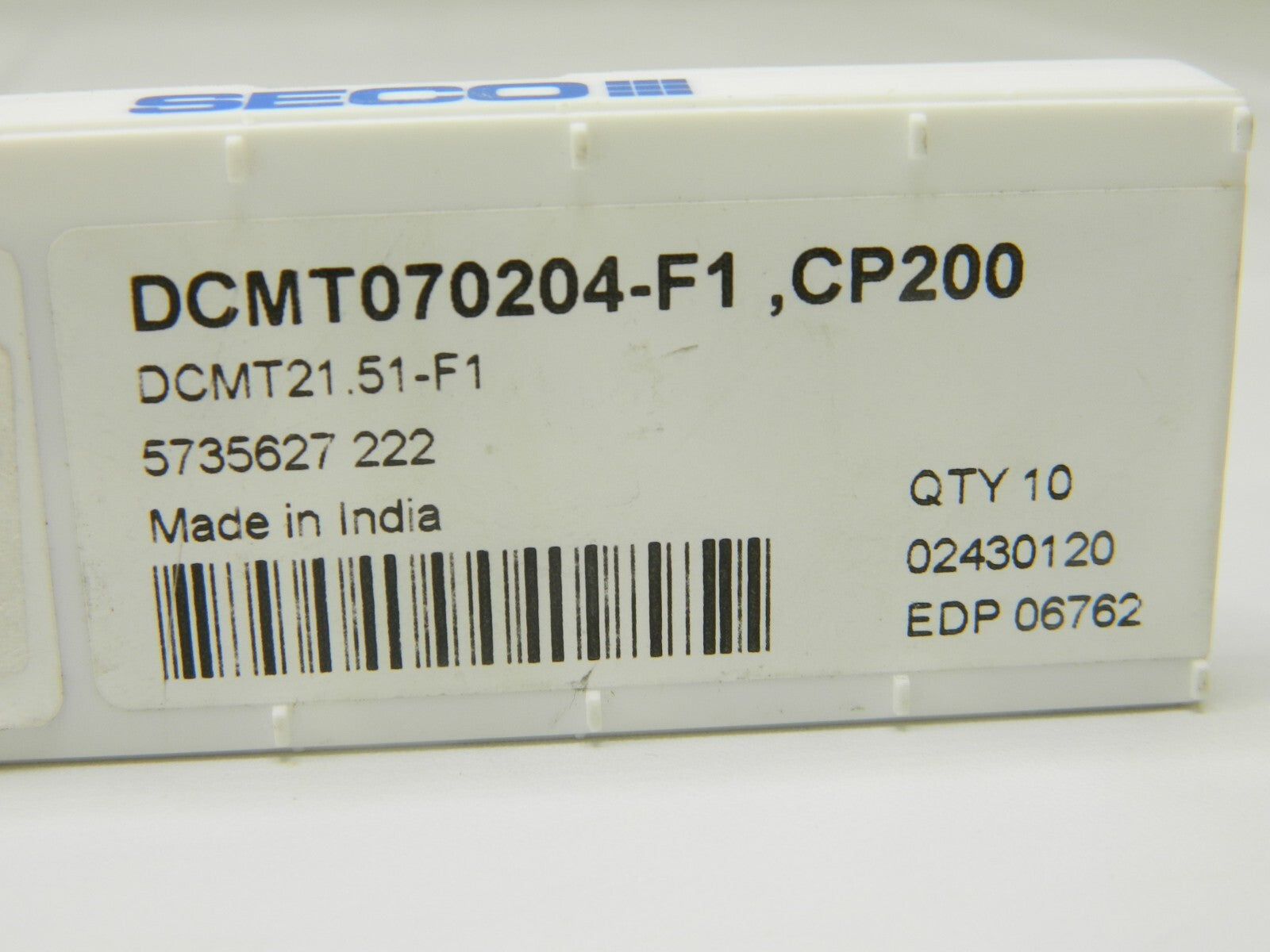

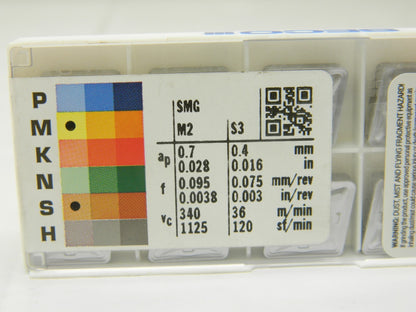

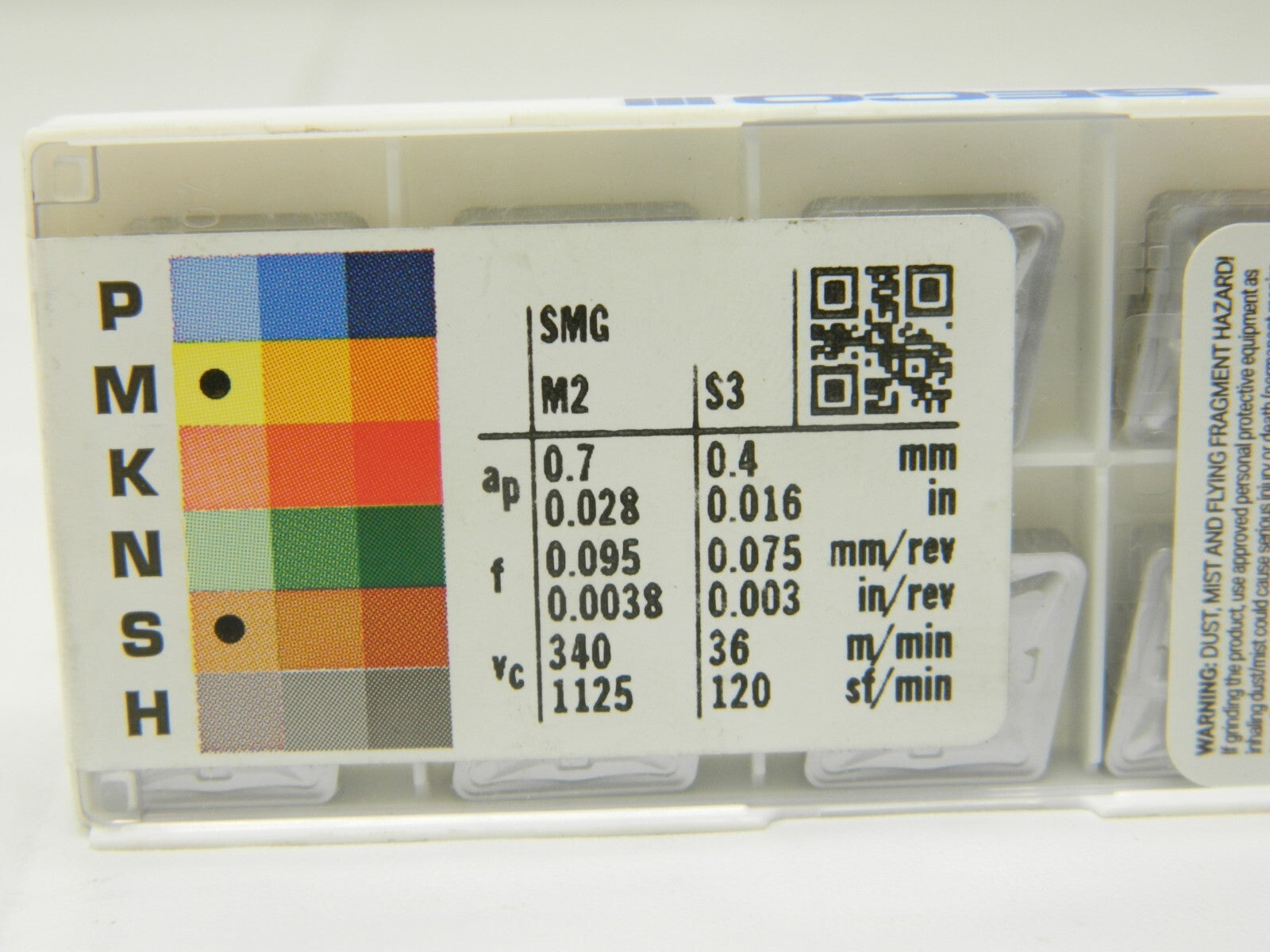

SECO Carbide Turning Insert DCMT 21.51-F1 CP200 Qty 10 02430120

Seco
1 Lot of 10 Carbide Turning Inserts

MSRP: $75.00

• Insert Style DCMT
• Insert Shape Code D
• Insert Size Code 21.5
• Insert Shape Diamond
• Clearance Code C
• Tolerance Code M
• Insert Material Solid Carbide
• Manufacturer Grade CP200
• Hole Diameter (Decimal Inch) 0.1140
• Maximum Depth of Cut (Decimal Inch) 0.1200
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (Decimal Inch) 0.2500
• Insert Holding Method Screw
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0938
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Included Angle 55.0
• Relief Angle 7
• Series DCMT
• Coating Process PVD
• Primary Workpiece Material Code P; S; H; M
• Standards ISO
• Material Grade Micrograin
• Chip Breaker F1
• Coating/Finish TiN; TiAlN

These items are new and in great condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
