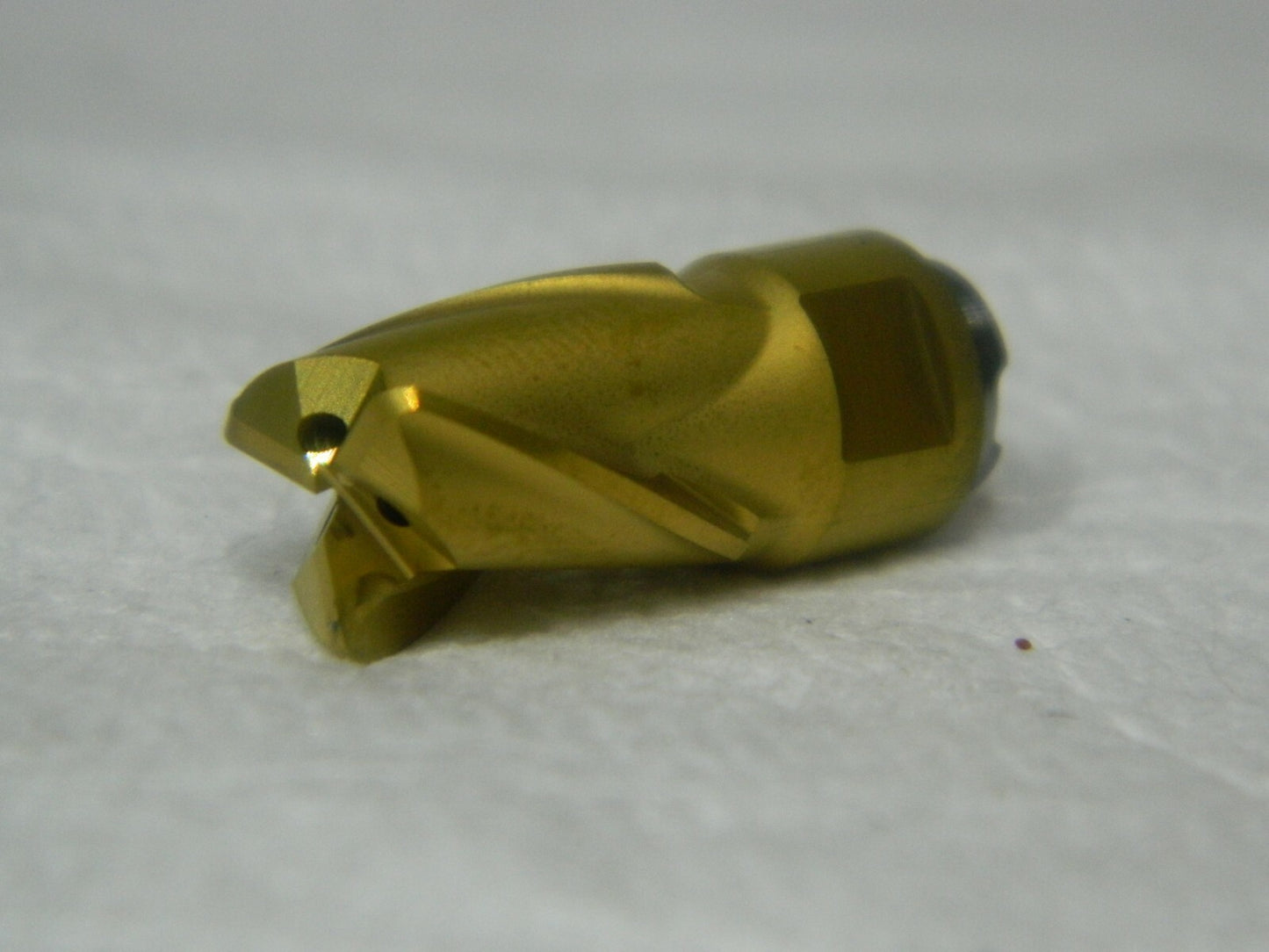

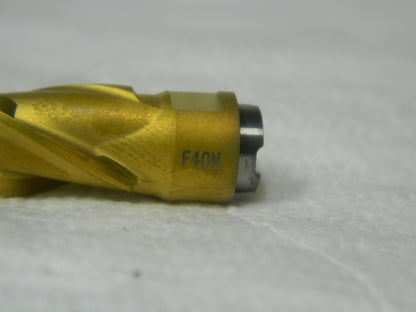

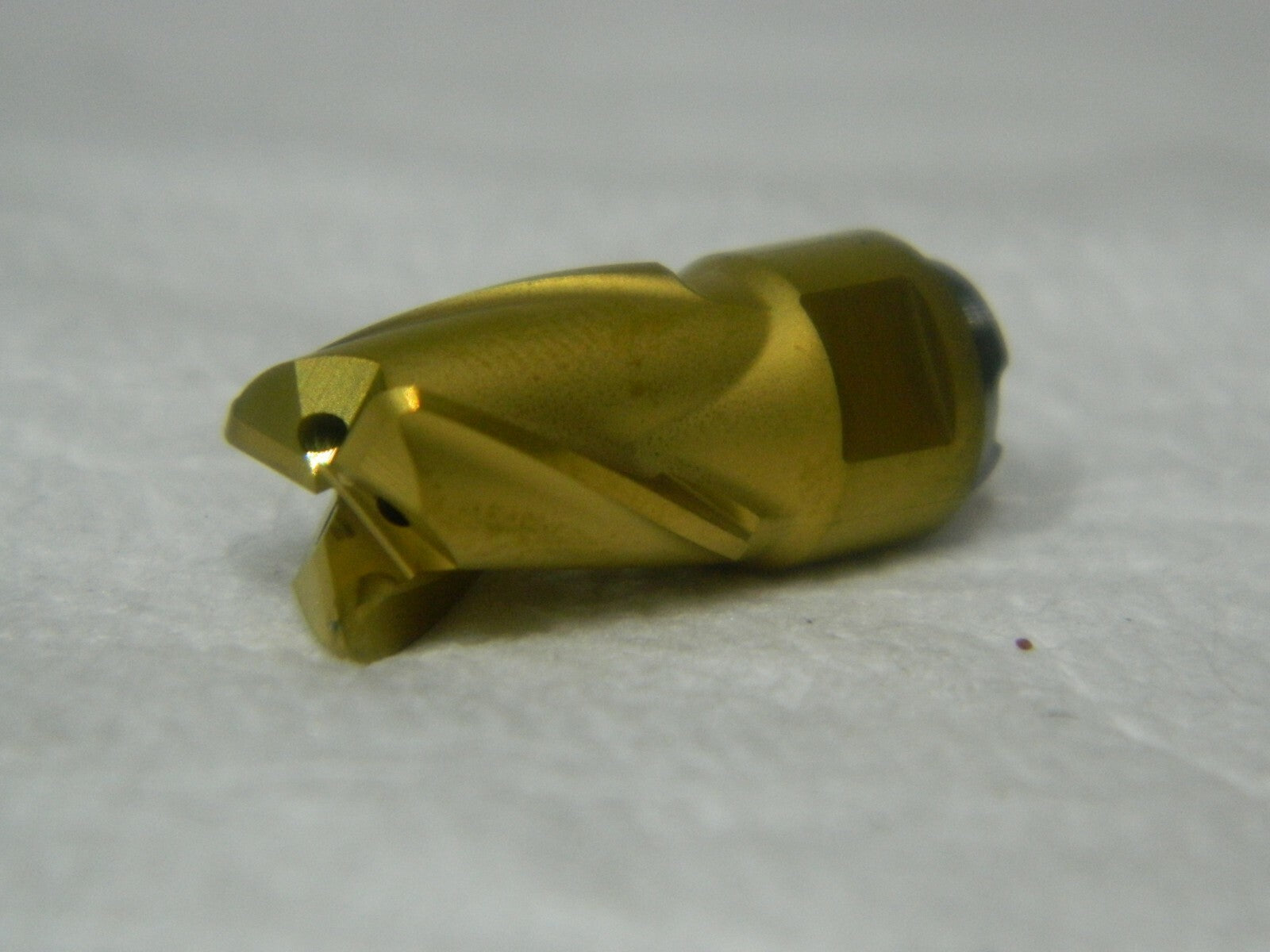

Seco Carbide Milling Tip Insert MP10-10012R12Z3-E03 F40M Qty 2 51716
Seco Carbide Milling Tip Insert MP10-10012R12Z3-E03 F40M Qty 2 51716
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Seco
MSRP: $120.00
Model: 51716
Description:
Depth of Cut Maximum in Feed Direction Side 0.472 in
Helical interpolation hole diameter maximum 0.685 in
Helical interpolation hole diameter minimum 0.480 in
Coolant supply property 1
Cutting diameter 0.394 in
Contact surface diameter machine side 0.378 in
Flute Helix Angle 30.000 deg
Rake angle radial 8.000 deg
Rake angle axial 6.000 deg

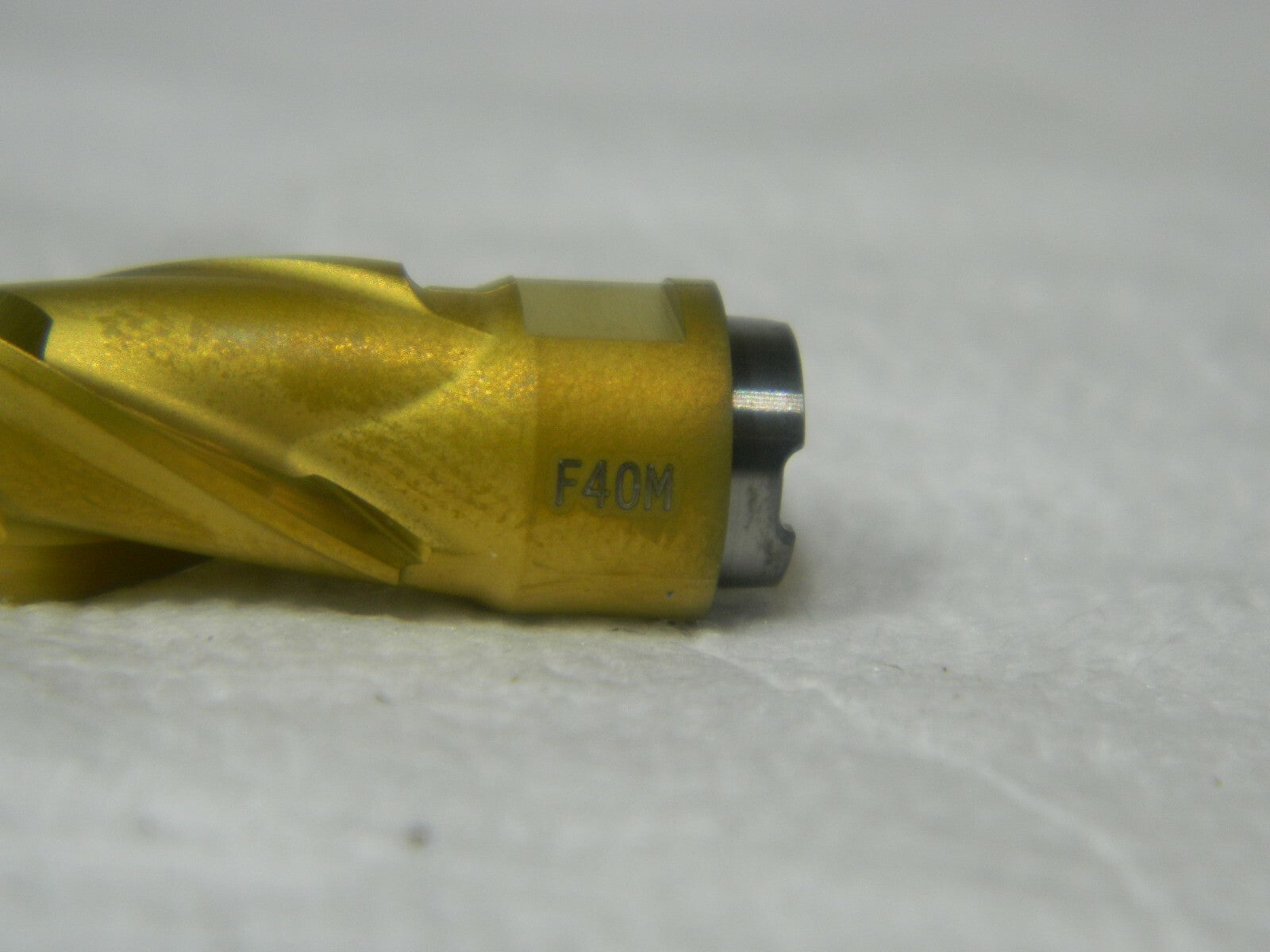

Grade F40M
Gradetype Carbide PVD
Tool cutting edge angle in feed direction side 90.000 deg
Functional length 0.827 in
Corner radius 0.047 in
Ramping angle maximum 15.000 deg
Torque 11.000 Nm
Net weight 0.028 lb
Peripheral effective cutting edge count 3

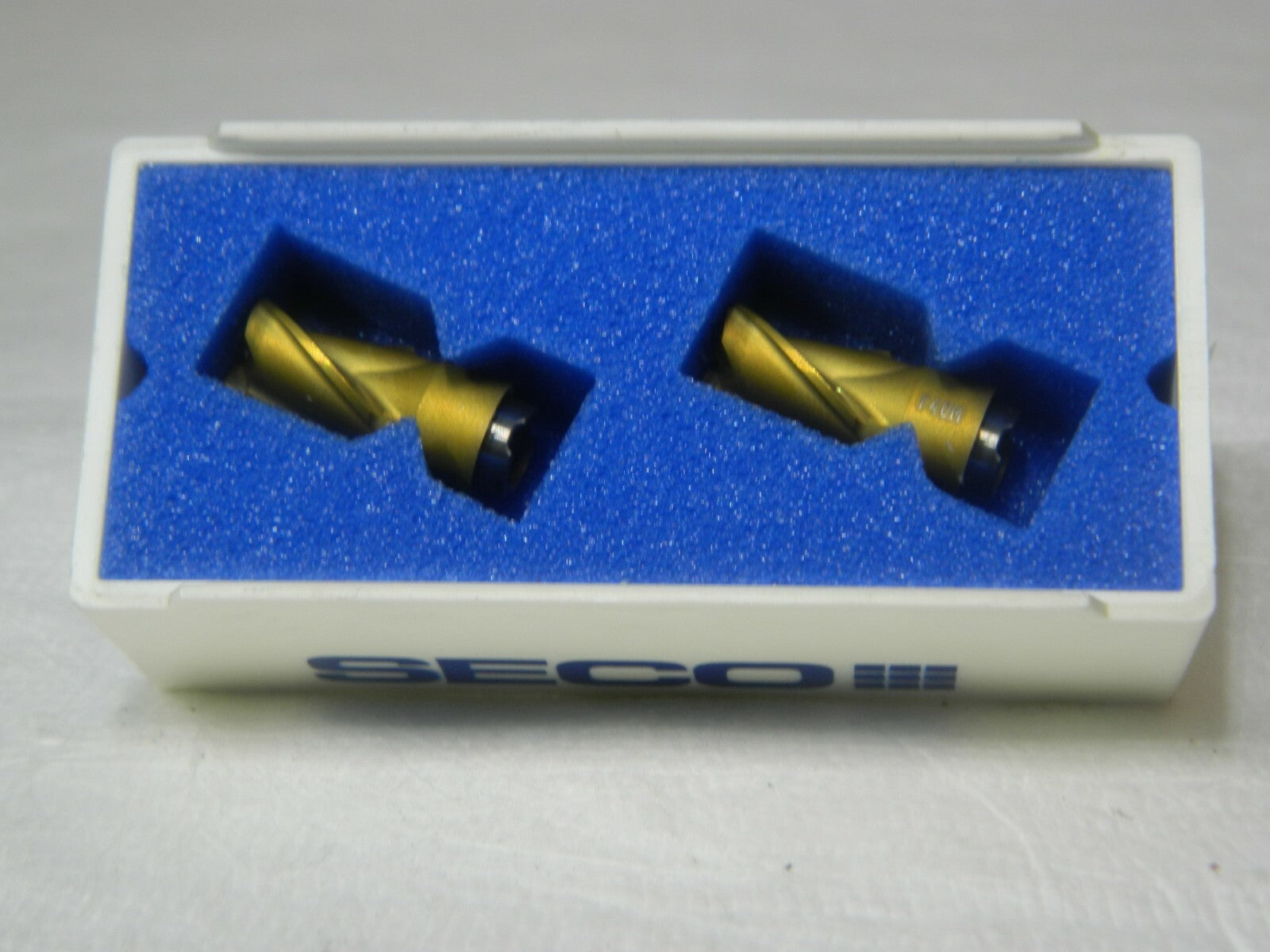

This listing is for One Lot of 2 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Tina February 08 2021
TB 8023
BW 1 Bin 27
