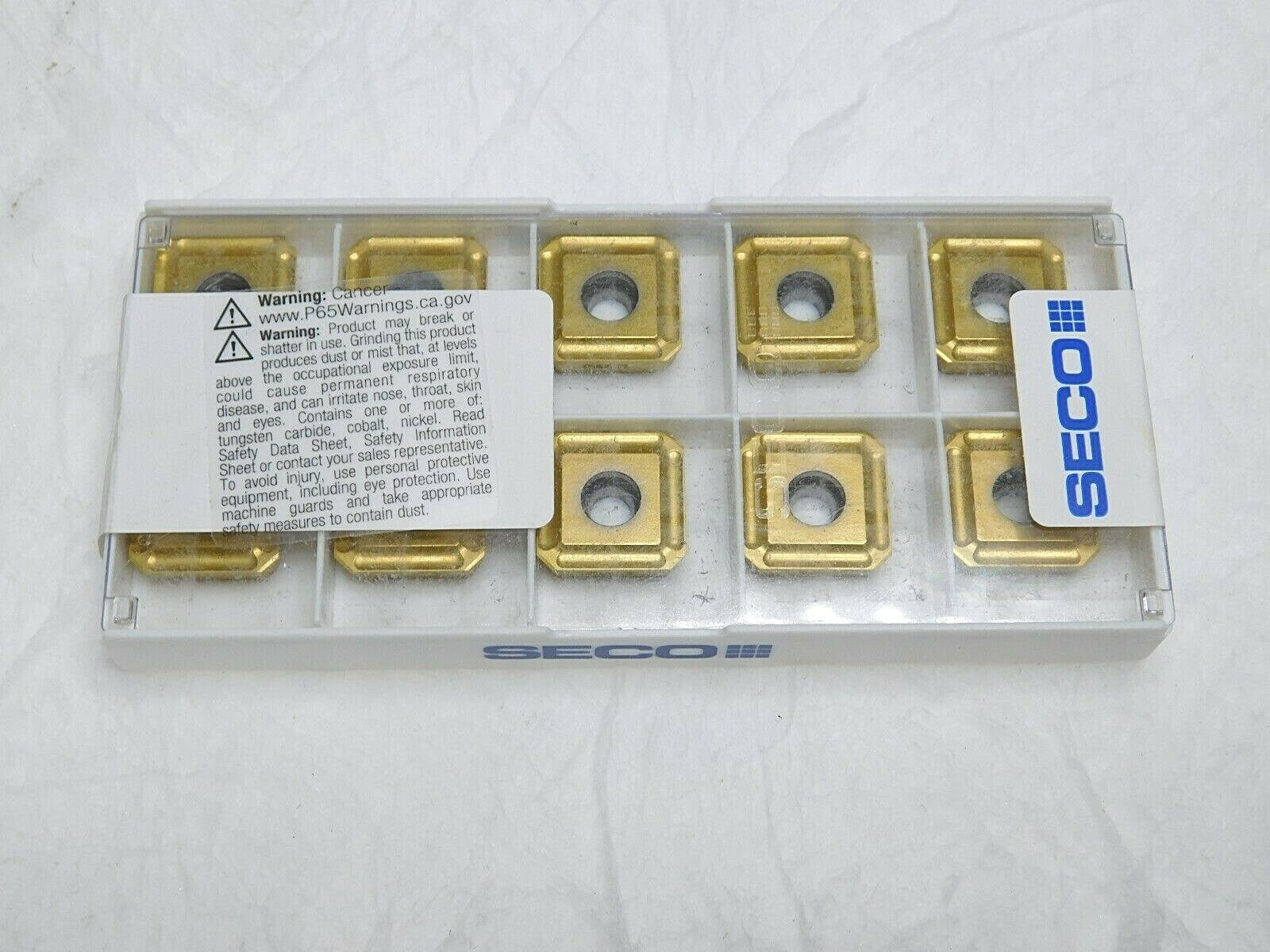

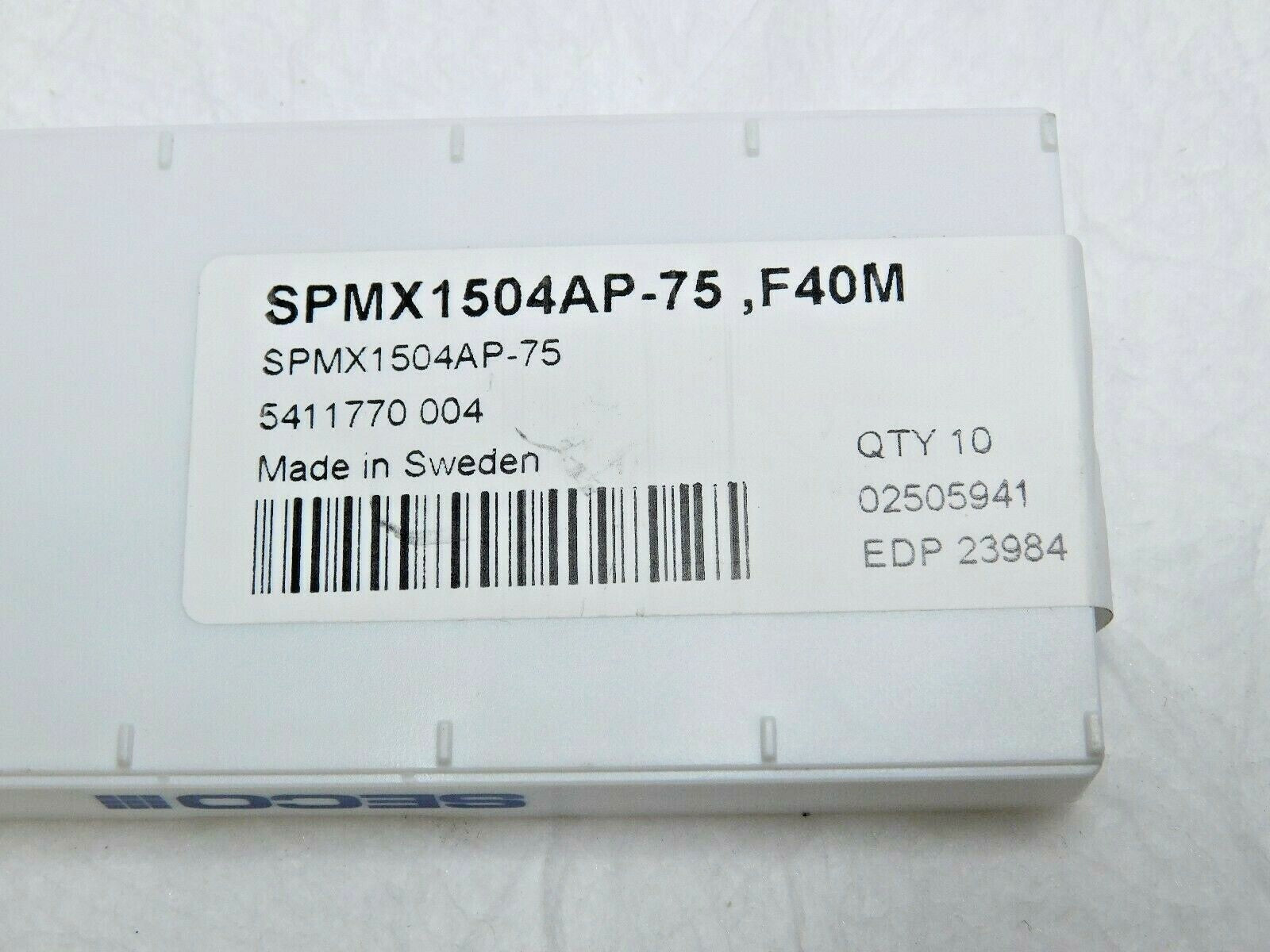

Seco Carbide Milling Inserts TiAlN/TiN SPMX1504AP-75 Grade F40M Qty 10 23984

Seco Carbide Milling Inserts TiAlN/TiN SPMX1504AP-75 Grade F40M Qty 10 23984

$92.00 USD
$200.00 USD $92.00 USD
Sale Sold out
Shipping calculated at checkout.

Seco Carbide Milling Inserts TiAlN/TiN SPMX1504AP-75 Grade F40M Qty 10 23984
Item Description
Seco

MSRP: $200

Model: 23984

Description:

Insert Style SPMX
Insert Size 1504
Material Carbide
Material Grade C5
Manufacturer's Grade F40M
Coating TiAlN/TiN
Width (Decimal Inch) 0.0770
Inscribed Circle (Decimal Inch) 0.6250
Thickness (Decimal Inch) 0.1870
Corner Radius (Decimal Inch) 0.0080
Hole Diameter (Decimal Inch) 0.1100
Relief Angle 11.000
Rake Angle 5
Coating Process PVD
Included Angle 90
Shape Square
Insert Hand Right Hand
Chipbreaker 75
ISO Number SPMX1504AP-75


This listing is for One Pack of 10 Carbide Milling Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
