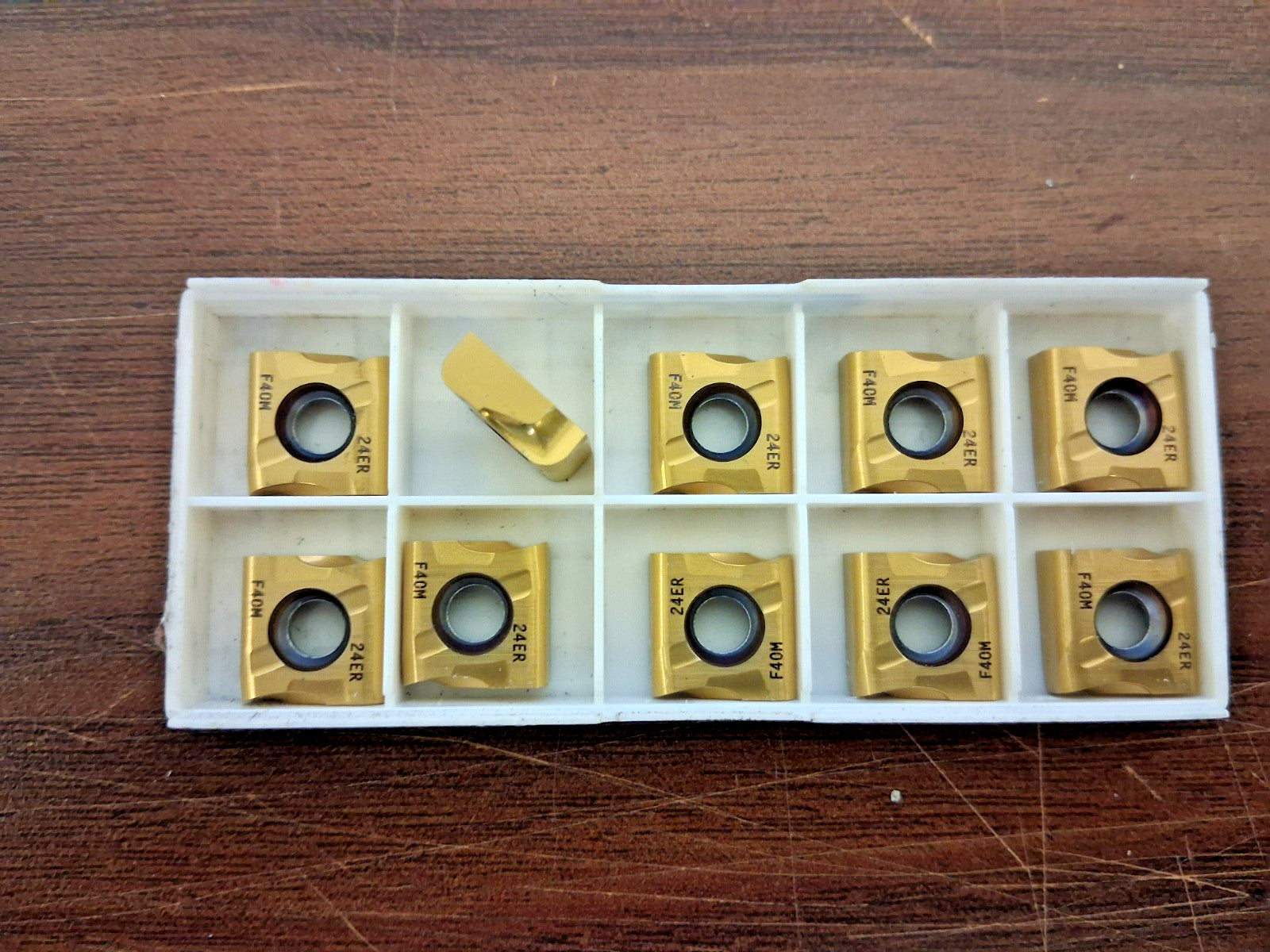

Seco Carbide Milling Inserts QTY10 ANSI SNHQ1204524ER2-M07 02459173

Seco
Carbide Milling Inserts


MSRP: $55

•

• Insert Style: SNHQ Insert Size: 12
• Insert Material: Solid Carbide Insert Shape: Square
• Manufacturer Grade: F40M Corner Radius (Decimal Inch): 0.0945
• Number Of Cutting Edges: 2 Thickness (Decimal Inch - 4 Decimals): 0.1772
• Coating/Finish: TiN; TiAlN Relief Angle: 0.000
• Insert Size Code: 1204524 Material Grade: Fine Grain
• Width (Inch): 1/2 Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2 Thickness Range (Decimal Inch): 0.1750 to 0.1850
• Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 Length Range (Decimal Inch): 0.0000 to 0.3200
• Insert Hand: Right Hand Maximum Depth of Cut (Decimal Inch): 0.1634
• Series: SNHQ-12 Coating Process: PVD
• Cutting Edge Effective Length (Decimal Inch): 0.1772 Rake: Negative
• Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel Primary Workpiece Material Code: P; S; K
• Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron Secondary Workpiece Material Code: K; N
• Ansi Code: SNHQ1204524ER2-M07 Iso Code: SNHQ1204524ER2-M07
• Standards: ISO Rake Angle: 20.000
• Cutting Edge Style: Honed Manufacturers Catalog Number: SNHQ1204524ER2-M07
• Cutter Series Compatibility: 335.19-12 Chip Breaker: M07
• UNSPSC Code: 23291601 Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Shape: Square Insert Holding Method: Screw
• Coating Classification: PVD Single or Double Sided Insert: Single
• Included Angle Degree: 90 Width (Decimal Inch - 4 Decimals): 0.5000
• Width (mm - 2 Decimals): 4.15 Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.1772

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
